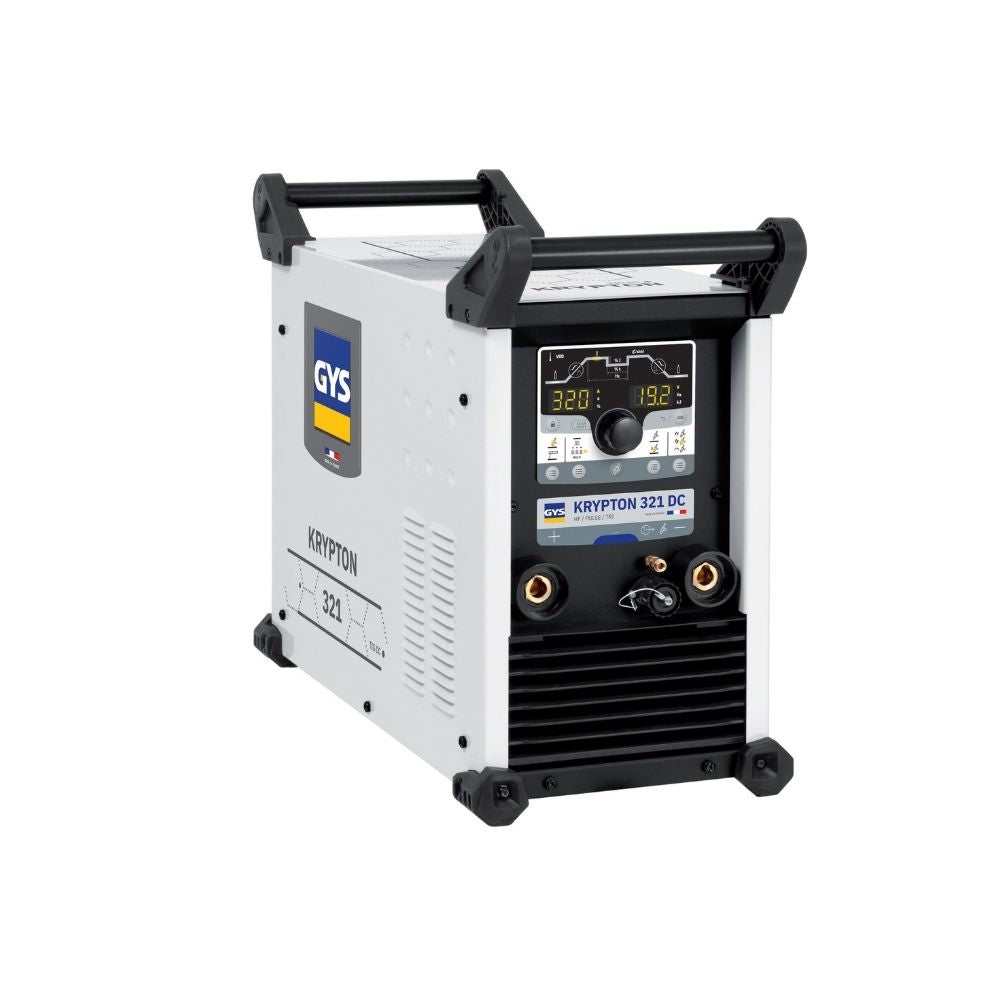

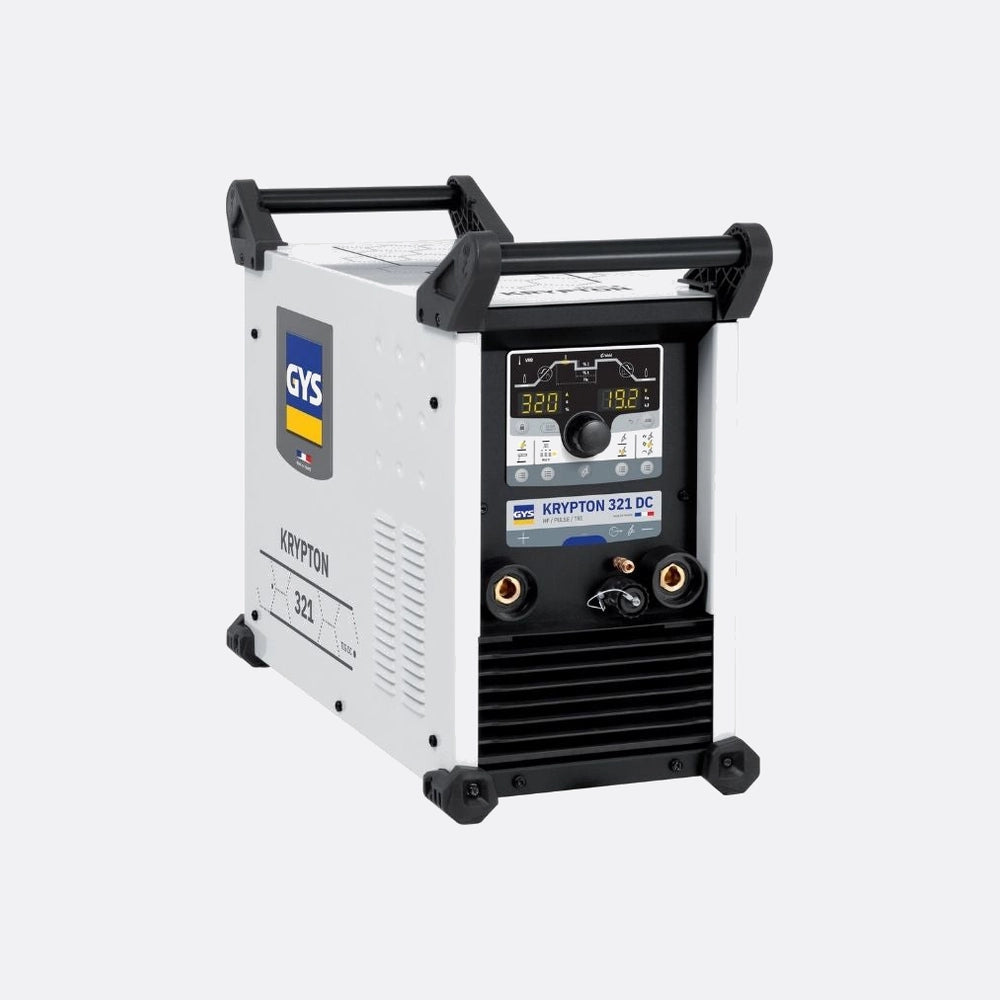

Gys Krypton 321 Dc Tri - Without Accessories **
Gys Krypton 321 Dc Tri - Without Accessories **
High-Performance 320A Three-Phase TIG & MMA Welding Power Source for Professional Fabrication
The KRYPTON 321 DC TRI is a powerful three-phase TIG and MMA welding power source designed for demanding professional environments such as engineering workshops, pipe fabrication, and automated welding systems. Delivering up to 320 A output with an exceptionally stable arc, this advanced machine ensures consistent weld quality across a wide range of ferrous materials. Its TIG DC Pulse capability up to 2 kHz allows precise control of heat input, making it ideal for thin materials down to 0.3 mm while minimising distortion. The unit also supports MMA Pulse welding up to 500 Hz, improving arc stability for vertical and positional welding tasks.
Designed with durability and efficiency in mind, the KRYPTON 321 DC TRI features an IP23-rated reinforced casing suitable for site conditions. The intuitive dual-display interface with rotary controls provides fast access to welding parameters, while advanced connectivity allows storage of up to 50 welding programs and optional robotic integration. Compatible with a range of remote controls, torches and cooling units, this machine offers exceptional flexibility for modern welding operations.
WHY BUY FROM BWS?
Specification
- Maximum Output Current: 320 A
- Input Power Supply: 400 V – Three Phase (50/60 Hz)
- TIG Duty Cycle: 260 A at 100% duty cycle
- MMA Duty Cycle: 300 A at 45%
- TIG Pulse Frequency: Up to 2 kHz
- MMA Pulse Frequency: Up to 500 Hz
- Protection Rating: IP23
- Dimensions: 64 × 26 × 46 cm
- Weight: 26.8 kg
- Generator Compatible: ±15% input tolerance
Features
- Dual welding processes: TIG DC and MMA with pulse capability
- Advanced TIG pulse technology for improved weld pool control
- Three ignition modes: Lift, HF, and Touch.HF
- Four spot welding modes for precision tacking

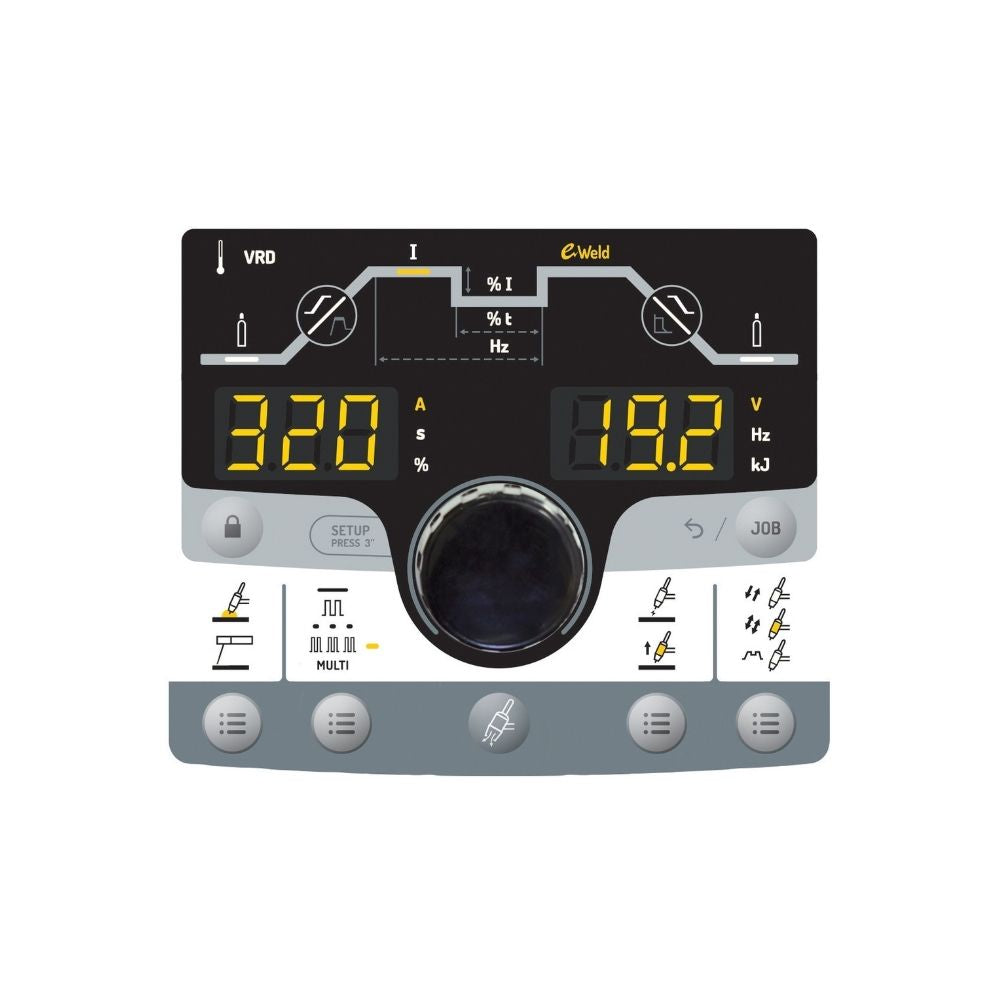

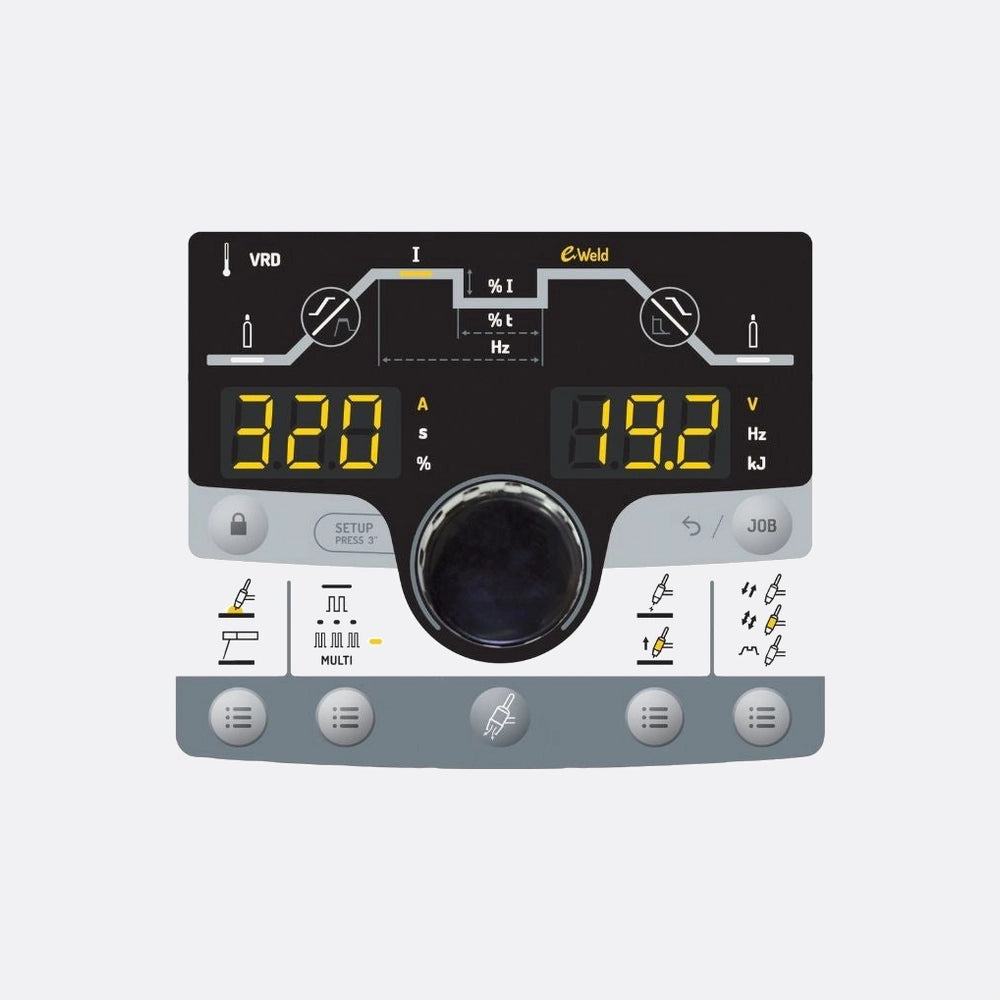

- Dual display interface with rotary knob and push-button control
- Stores up to 50 welding programs per process
- Compatible with remote controls, foot pedals and advanced torches
- Robot integration capability via optional connectivity kit
- Reinforced casing with shock-proof feet for site durability
- USB software updates and accessory calibration mode
FAQs
1. What materials can the KRYPTON 321 DC TRI weld?
The machine is designed primarily for TIG DC welding on ferrous materials such as mild steel, stainless steel and carbon steel. It can also weld thin sheet materials down to approximately 0.3 mm using TIG pulse mode.
2. Is the KRYPTON 321 DC TRI suitable for site work?
Yes. The machine features a robust reinforced casing with shock-proof feet and an IP23 protection rating, making it suitable for demanding workshop and site environments.
3. Can the machine be used with remote controls or foot pedals?
Yes. The unit supports a range of optional remote controls including hand controls and foot pedals, which can be connected without tools for convenient welding current adjustment.
4. Does the KRYPTON 321 DC TRI support automated or robotic welding?
Yes. With the optional connectivity kit, the machine can be integrated into robotic welding systems, making it suitable for industrial production environments.
