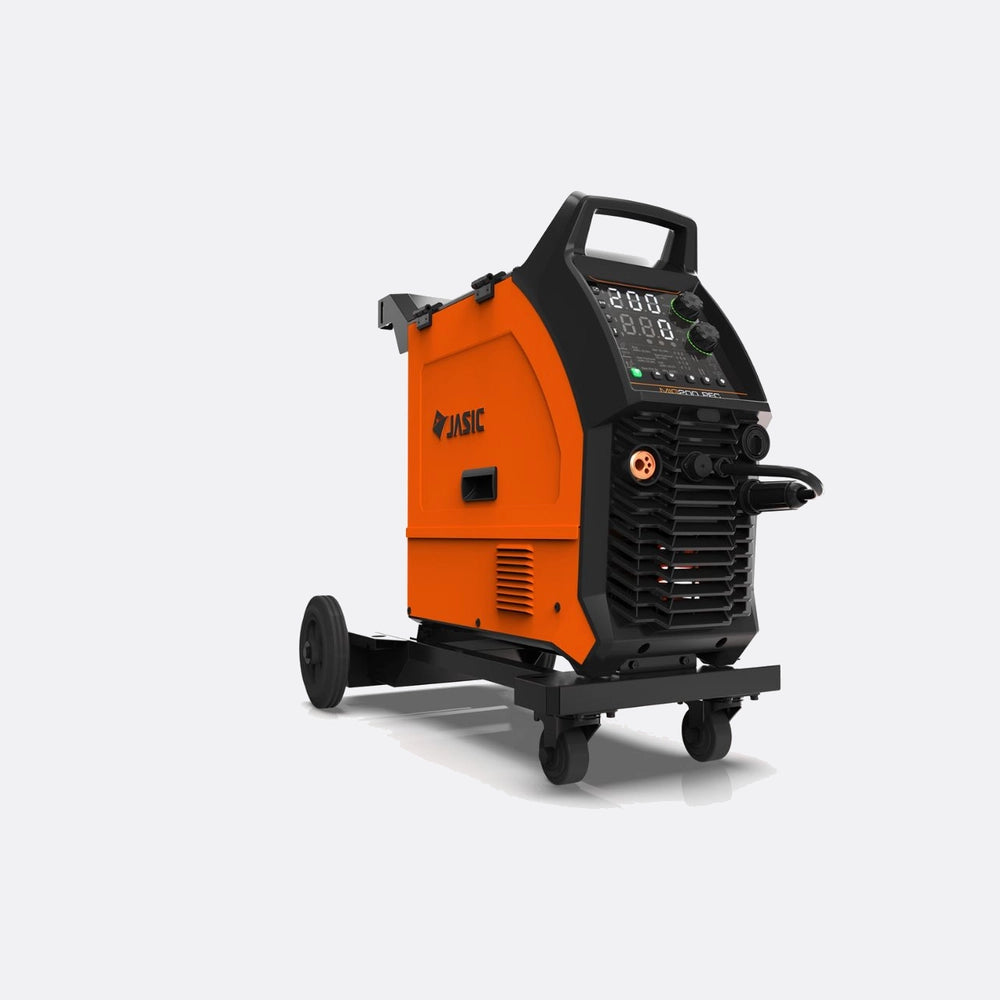

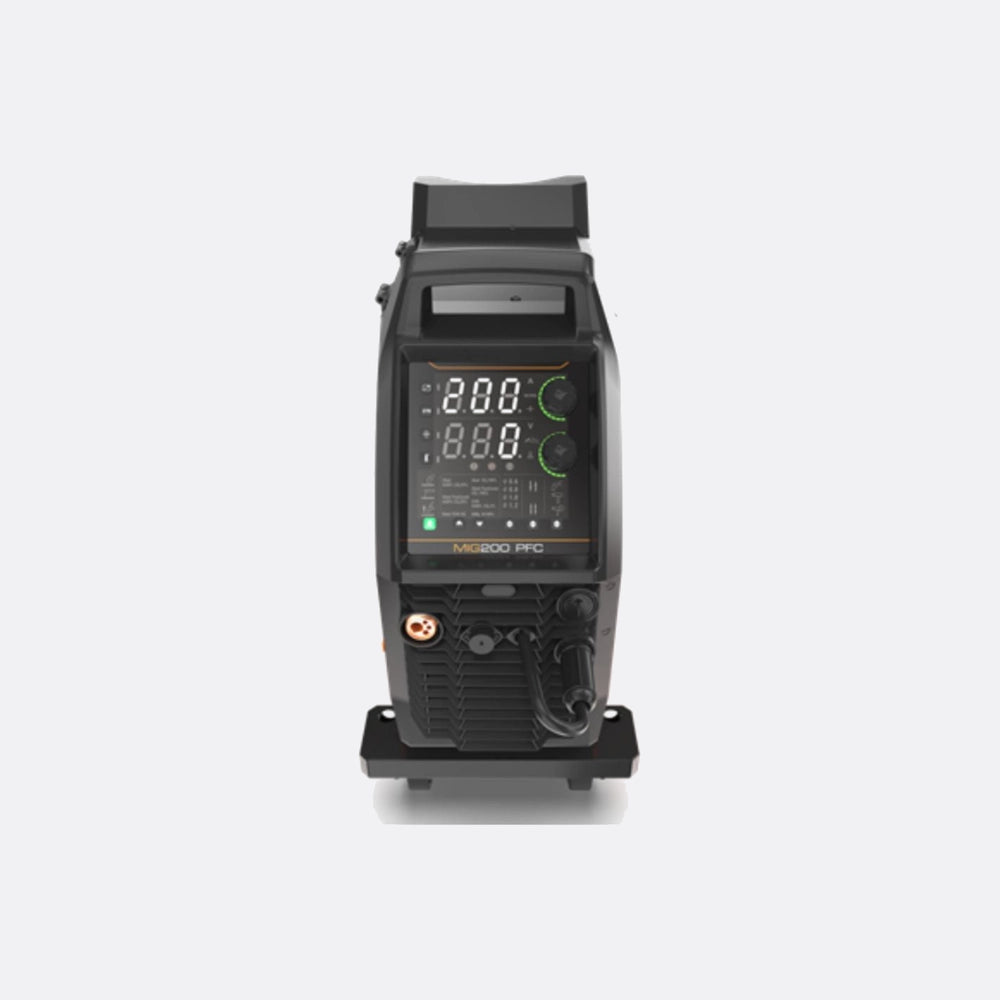

Jasic Evo Mig 200c Pfc Compact Inverter With Trolley
£1,155.00
Sale price
£1,155.00
Regular price
£0.00
Skip to product information
Jasic Evo Mig 200c Pfc Compact Inverter With Trolley
£1,155.00
Sale price
£1,155.00
Regular price
£0.00
Shipping calculated at checkout.
The JASIC EVO MIG 200C PFC COMPACT INVERTER WITH TROLLEY is a professional-grade, inverter-based MIG welding system engineered for workshop and light industrial applications. Featuring Power Factor Correction (PFC) technology, it delivers stable arc performance across varying input conditions, making the JASIC EVO MIG 200C PFC COMPACT INVERTER WITH TROLLEY a reliable choice for fabricators and engineers demanding consistent weld quality.
Key Features
- Power Factor Correction (PFC) technology
- Compact inverter design, space-saving
- Includes integrated workshop trolley
- Stable arc across voltage variations
- Suitable for MIG/MAG welding processes
- Professional-grade inverter performance
Technical Support
Everything we sell is supported by our factory trained engineers at our premesis in Manchester or nationwide through our mobile service engineers.
Delivery + Returns
Returns details can be edited in the theme editor.
Technical Features
- Power Factor Correction technology ensures stable welding performance even when powered by a generator.
- Compact and lightweight inverter design allows easy portability between workshop and onsite locations.
- Wide welding current range of 30 to 200A suits a broad variety of steel fabrication tasks.
- Included heavyduty trolley provides convenient and stable transportation of the machine and gas cylinder.
- Synergic wire feed control simplifies parameter setup for faster, more consistent weld results.
- Thermal overload protection automatically safeguards internal components during extended welding sessions.
Specification
Supply Voltage
230V - 50
Welding Current Range
30 - 200A
Duty Cycle at 200A
35%
Duty Cycle at 160A
60%
No-Load Voltage
48V
Wire Diameter Range
0.6 - 1.0 mm
IP Rating
IP21S
Weight (Machine Only)
9.5 kg
Power Factor Correction
Yes (PFC)
Insulation Class
F
FAQs
Is the JASIC EVO MIG 200C PFC suitable for use with a generator on site?
Yes, the JASIC EVO MIG 200C PFC is well suited for generator use thanks to its built-in Power Factor Correction technology, which stabilises power draw and compensates for fluctuating supply voltage. This makes it a reliable choice for site work where a consistent mains supply is not always available. As a general guide, a generator with a continuous output of at least 5 kVA is recommended for reliable operation.
What wire diameter and type is compatible with this MIG welder?
The JASIC EVO MIG 200C PFC is compatible with solid MIG wire in diameters ranging from 0.6 mm to 1.0 mm, making it suitable for welding thin to medium gauge steel. Flux-cored wire can also be used by reversing the torch polarity, allowing gasless welding when a shielding gas supply is not available. Always refer to the machine manual to confirm compatible wire types and ensure correct drive roll selection.
What shielding gas should I use with the JASIC EVO MIG 200C PFC?
For general mild steel MIG welding, a mixed shielding gas of 75% Argon and 25% CO2, commonly known as C25 or mixed gas, is the most widely recommended choice as it produces a stable arc with good penetration and a clean weld bead. Pure CO2 can also be used and offers deeper penetration at a lower gas cost, though it tends to produce a slightly rougher arc with more spatter. For stainless steel applications, a tri-mix or 98% Argon / 2% CO2 blend is typically preferred.
Does the trolley come included in the box, or does it need to be purchased separately?
The trolley is included as part of this specific product bundle, as indicated by the "with Trolley" designation in the product name, so no separate purchase is required. The trolley is designed to accommodate both the welding machine and a standard shielding gas cylinder, keeping your setup neat and easy to move around the workshop or job site. It is advisable to check the package contents listed in the product documentation upon delivery to confirm all components are present.
