Jasic Evo Air Compressor

Jasic Evo Air Compressor

£425.00
Skip to product information
Jasic Evo Air Compressor
  • Jasic Evo Air Compressor
  • Jasic Evo Air Compressor
  • Jasic Evo Air Compressor
  • Jasic Evo Air Compressor
Jasic Evo Air Compressor

Jasic Evo Air Compressor

£425.00
Shipping calculated at checkout.

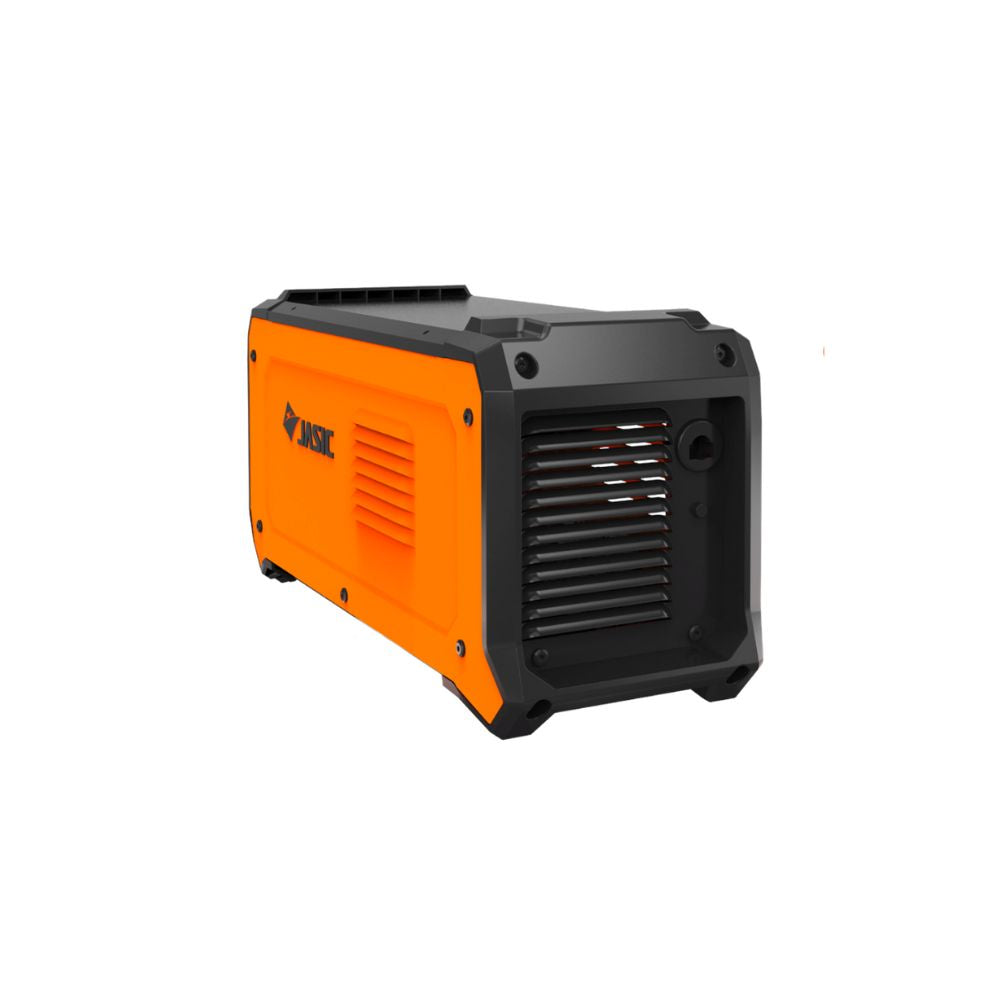

JASIC EVO AIR COMPRESSOR is designed for professional use in various workshop environments, providing reliable compressed air for automotive applications.

Key Features

  • Compact and portable design
  • Integrated cooling vents
  • Easy installation with plasma units
  • Compatible with factory compressed air
  • Robust build for workshop use
  • Efficient air output and pressure control
Technical Support

Everything we sell is supported by our factory trained engineers at our premesis in Manchester or nationwide through our mobile service engineers.

Delivery + Returns

Returns details can be edited in the theme editor.
Service engineers

Service

In-house engineers

Technical support

Support

0161 223 1843

Expert Advice

Paul Jones

Paul Jones says

The JASIC EVO Air Compressor is a reliable choice for workshops focusing on automotive repairs and bodywork. In a busy environment, it provides consistent compressed air essential for various applications, including painting, pneumatic tools, and cleaning. Ensuring the compressor is correctly set up is crucial; pay attention to the pressure regulation and hose compatibility to avoid inefficiencies or damage to equipment.

One common issue I’ve seen is misjudged air delivery. If the output pressure doesn't match the requirements of your tools, it can lead to suboptimal performance and increased wear. Additionally, regular maintenance, including draining moisture from the tank, is necessary to prevent rust and corrosion, ensuring that the system runs efficiently over time.

In conclusion, the JASIC EVO Air Compressor, when set up and maintained properly, offers the reliability and efficiency required in a workshop. Choose it with the assurance that it meets the demands of professional use and supports a wide range of applications.

Paul Jones, Technical Director

Bodyshop Equipment Engineers

WHY BUY YOUR EQUIPMENT FROM US?

Our team of welding experts at BWS is ready to assist you every step of the way. Whether you have questions about specific products, need guidance on selecting the right equipment, or seek welding-related advice, our knowledgeable staff is here to help.

We also have some of the most experienced engineers in the industry who are able to offer full technical support on top of what the manufacturers offer.

Find Our More

Technical Features

  • The JASIC EVO AIR compressor is designed to enhance the versatility of the JASIC Cut 45 plasma cutter, allowing for a portable cutting solution suitable for both factory and onsite applications.
  • Integral compressor module for direct mounting on the Cut 45 plasma cutter for mobility.
  • Operates with mains power input of 115v or 230v, providing flexibility in various environments.
  • Generates compressed air independently or connects to factorysupplied air as required.
  • Air output pressure of 0.25 MPa, with a maximum pressure capability of 0.4 MPa.
  • Equipped with integrated cooling vents to maintain optimal operating temperatures during use.
  • Features an input power indicator light to signal operational status.
  • Includes a robust connection bracket for secure attachment to compatible plasma units.
  • Easy installation process to ensure quick setup in workshop or onsite locations.
  • Designed with air filter caps to secure and facilitate easy maintenance of filter elements.
  • Compact dimensions and lightweight design for straightforward portability and handling.

Specification

Rated input (U1)
AC 95 ~ 265V 50
Rated input current
3.7 ± 5% A
Rated input power
780 ± 5% W
Rated air pressure
0.25 MPa ± %
Max pressure
0.4 MPa
Rotation Speed
2800 rpm
Protection class
IP23S
Insulation class
H
Size (with handle)
463 x 187 x 236 mm
Net weight
17.15 kg
Overall weight
18.40 kg

FAQs

What power supply does the JASIC EVO air compressor require?
The compressor operates on a single-phase input of 95 to 265V AC at 50/60Hz, making it suitable for various UK workshop settings.
How often should the air filter be replaced?
Under normal conditions, it is recommended to replace the air filter every 1000 hours or 12 months to ensure optimal performance and longevity of the compressor.
What is the maximum pressure output of the compressor?
The maximum output pressure of the JASIC EVO air compressor is 0.4 MPa, which is suitable for various professional applications requiring compressed air.
Does the compressor come with technical support?
Yes, BWS offers full technical support, including service and repair expertise to ensure reliable operation in a workshop environment.
