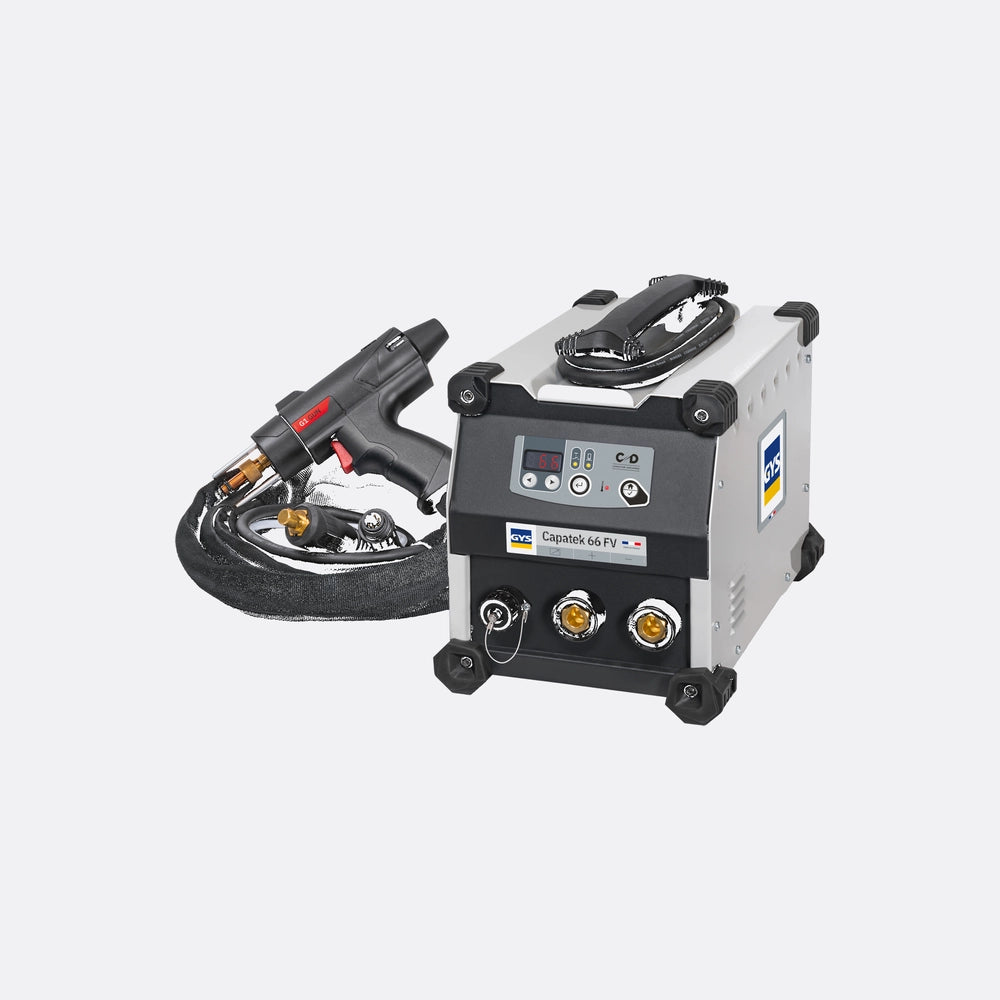

GYStud Capatek 66 Fv - Retracting Gun
GYStud Capatek 66 Fv - Retracting Gun

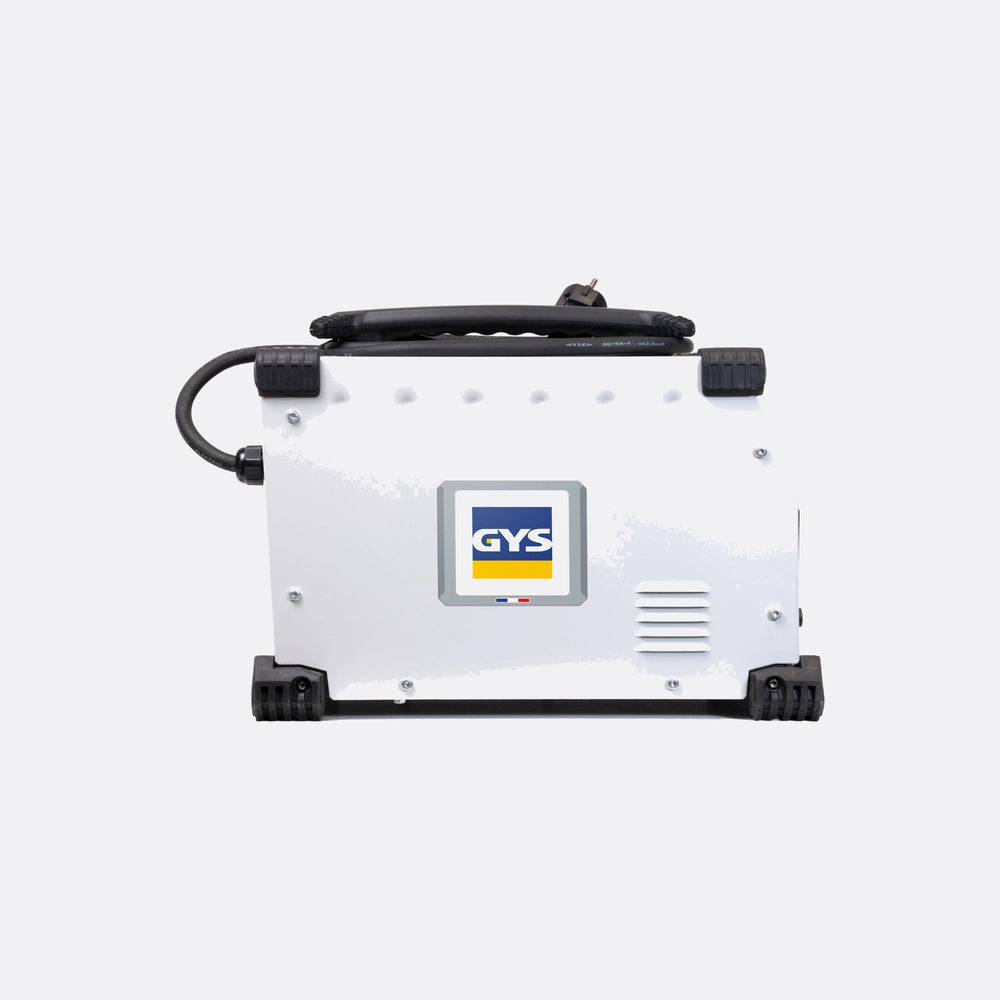

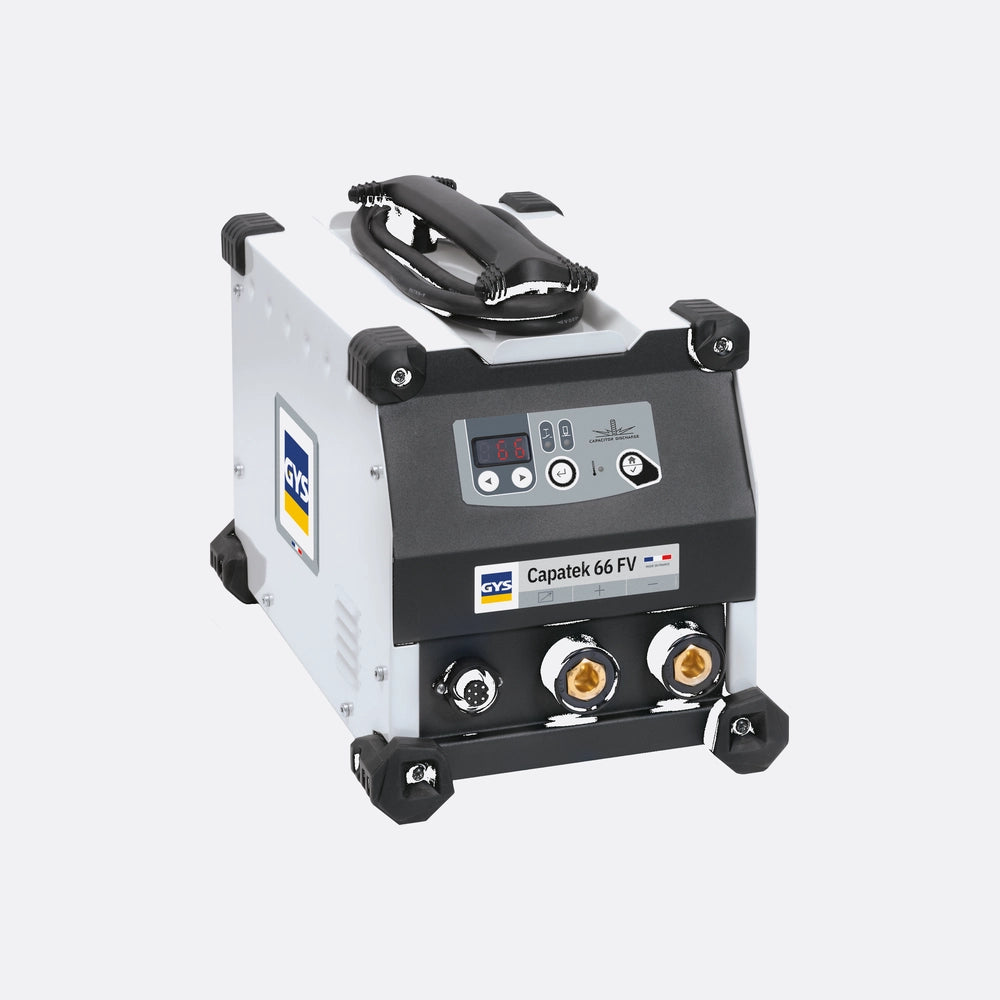

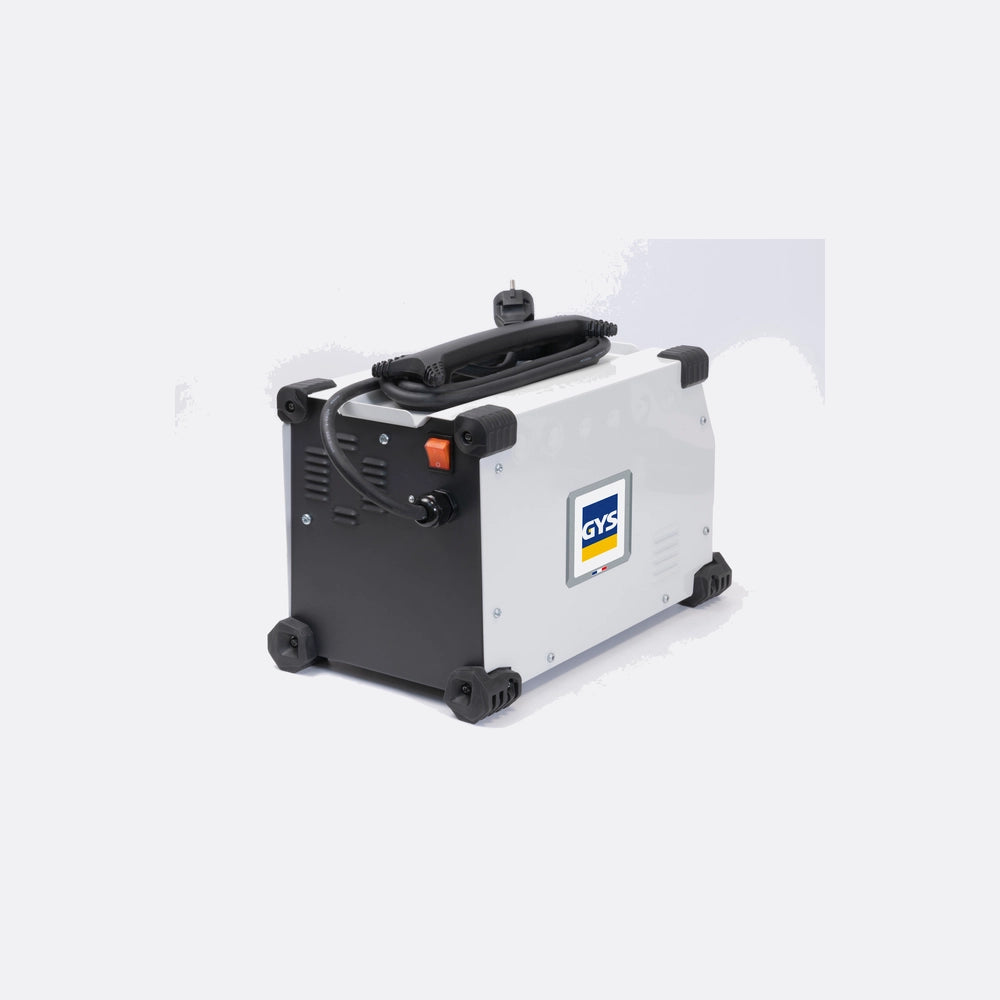

GYS High-Performance Capacitive Discharge Stud Welding Power Source
The GYS CAPATEK 66 FV is an industrial-grade capacitive discharge stud welding power source designed for fast, precise, and deformation-free welding of M3 to M8 studs. Engineered and manufactured in France, this system is ideal for thin sheet metal applications in steel, stainless steel, aluminium, and brass, where surface finish and material integrity are critical. Featuring advanced FV technology, the CAPATEK 66 FV operates reliably on all single-phase power supplies from 85 to 265 V, ensuring maximum flexibility on-site and in workshop environments. Its 66 mF capacitor delivers high peak current for consistent weld quality, while the ergonomic retracting gun provides adjustable force and retraction for optimal stud fusion. An intuitive user interface with voltage adjustment, setting lock, and stud counter enhances process control, productivity, and repeatability, making the CAPATEK 66 FV a robust solution for demanding industrial stud welding applications. :contentReference[oaicite:0]{index=0}
WHY BUY FROM BWS?
Specification
- Capacitor capacity: 66 mF
- Stud welding range: M3 to M8
- Input power supply: 85–265 V, single-phase, 50/60 Hz
- Adjustable output voltage: 50–200 V
- Maximum welding current: up to 13,000 A
- Compatible stud length: 6–40 mm
- Protection class: IP21 with PROTEC 400 overvoltage protection
Features
- Capacitive discharge technology for deformation-free stud welding
- FV technology for operation on all single-phase power supplies

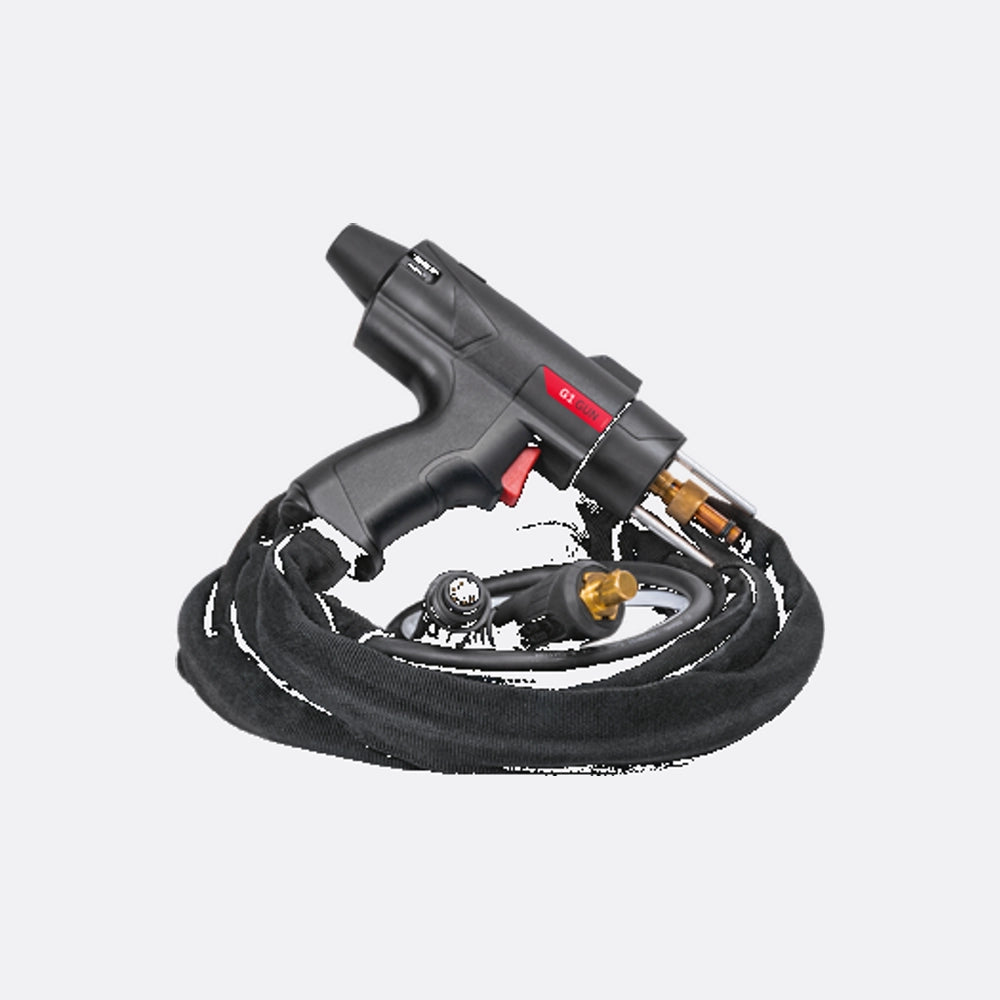

- Ergonomic retracting gun with adjustable force and retraction
- LED-illuminated welding zone with status and error indication
- Intuitive user interface with voltage lock and stud counter
- Reinforced casing with anti-shock protection
- Ventilation on demand for improved reliability
FAQs
1. What materials can the CAPATEK 66 FV weld?
The CAPATEK 66 FV is suitable for welding studs onto steel, stainless steel, aluminium, and brass without surface deformation. :contentReference[oaicite:1]{index=1}
2. What stud sizes are supported?
This unit supports capacitive discharge welding of studs from M3 up to M8, covering a wide range of industrial applications.
3. Does it require a specific power supply?
No, the FV technology allows operation on any single-phase power supply between 85 and 265 V, making it highly versatile.
4. Is the welding gun adjustable?
Yes, the retracting gun features adjustable force (20–50 N) and retraction (1–5 mm) to optimise weld quality and repeatability.
