Gyspot Pti Premium Pro (6m) - 400v

Name: Gyspot Pti Premium Pro (6m) - 400v
Brand: IMS
SKU: 021327
Price: 11667.00 GBP
Availability: InStock

£11,667.00

Shipping calculated at checkout.

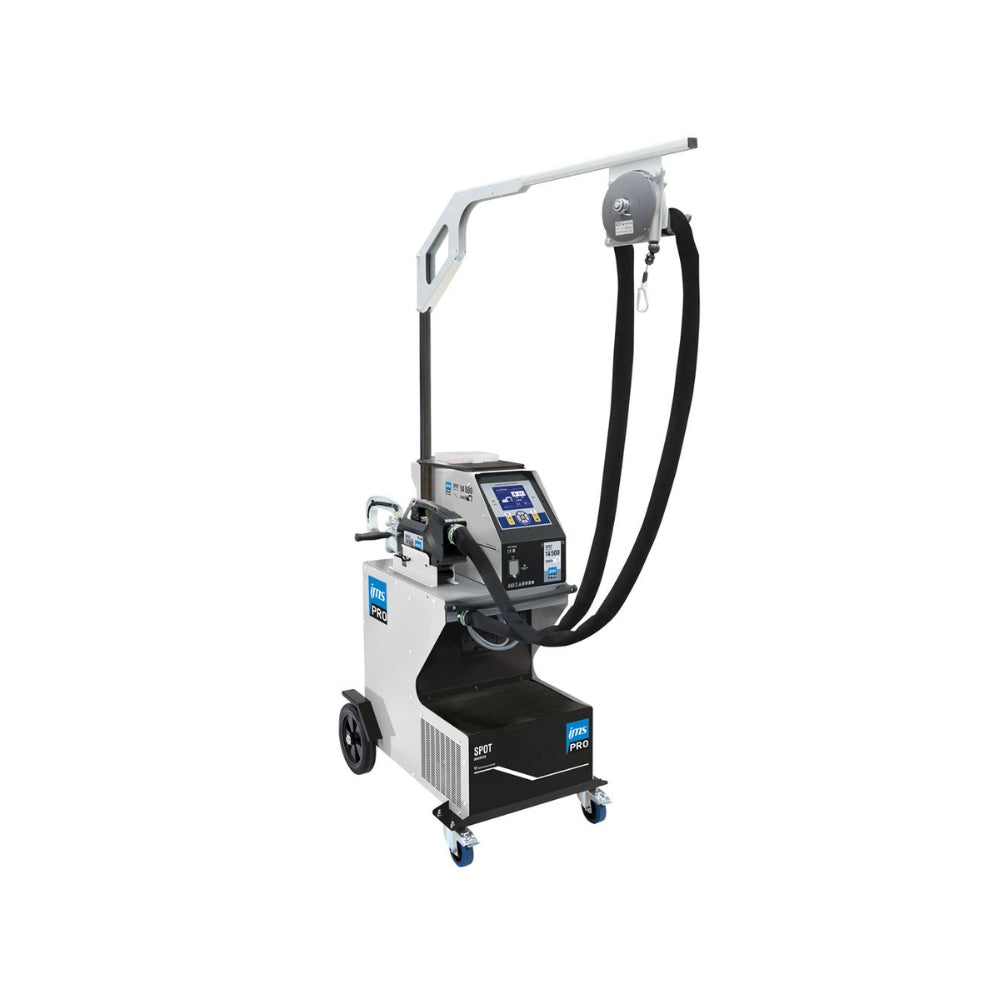

GYSPOT PTI PREMIUM PRO (6M) - 400V is a professional three-phase spot welder for bodyshop repair of high-strength, ultra-high-strength and boron steels.

Key Features

14,500 A welding current
550 daN electrode clamping force
Liquid-cooled integrated transformer
Six-metre G-clamp cable
Automatic welding parameter setting
Welding spot data traceability

Everything we sell is supported by our factory trained engineers at our premesis in Manchester or nationwide through our mobile service engineers.

Returns details can be edited in the theme editor.

Supply

400V

Warranty

2 Years

Free Delivery

UK mainland delivery

Service

In-house engineers

Support

0161 223 1843

Expert Advice

Paul Jones says

The GYSPOT PTI PREMIUM PRO is a three-phase resistance spot welder intended for professional bodyshop repairs, particularly where high-strength, UHSS and boron steel are involved. I use this type of equipment for structural panel assemblies where consistent electrode force and controlled current are essential to reproduce the vehicle maker’s weld pattern.

The 400V, 6m version uses a liquid-cooled transformer built into the G clamp, producing up to 14,500A with a clamping force of up to 550daN at 8 bar. Correct air pressure, clean panel surfaces and suitable electrode caps are critical; the machine cannot compensate for poor preparation or inadequate access.

A common issue in workshops is assuming the automatic programme removes the need for setup. Sheet thickness, steel grade, coatings and adhesive all affect the weld, so the correct material mode and contact condition still need checking. In practice, reliable results come from sound preparation, regular cap maintenance and a properly sized 400V supply. When installed and used correctly, it provides repeatable spot welds with efficient cooling and useful traceability for professional repairs.

Paul Jones, Technical Director, BWS Ltd

Paul Jones, Technical Director

WHY BUY YOUR EQUIPMENT FROM US?

Our team of welding experts at BWS is ready to assist you every step of the way. Whether you have questions about specific products, need guidance on selecting the right equipment, or seek welding-related advice, our knowledgeable staff is here to help.

We also have some of the most experienced engineers in the industry who are able to offer full technical support on top of what the manufacturers offer.

Find Our More

Technical Features

Designed for welding highstrength steels, including UHSS and boron steel, in professional automotive bodyshop repairs
High welding current up to 14,500 A for demanding resistance spotwelding applications
G clamp with integrated liquidcooled mediumfrequency transformer for efficient power delivery at the workpiece
550 daN electrode clamping force at 8 bar air pressure for consistent contact during welding
Automatic electrodeforce control with a digital display showing the actual force applied
EASY mode automatically sets welding parameters from the sheet thickness and steel type
Standard mode selects welding parameters from the material type and sheet thickness
Manual mode allows direct adjustment of welding current, welding time and electrode force
Multi mode calculates welding parameters for assemblies where each sheet has a different thickness or steel type
GYSTEEL mode accepts hardness readings from the GYSTEEL Vision system to identify the steel type
AUTO mode detects metal type, sheet thickness, adhesive presence and insulating material between sheets
Car manufacturer mode provides prerecorded welding spots based on manufacturer repair instructions
Energy mode controls the welding spot using welding current and transferred energy for testing and approval work
GLUE mode supports welding through sheets with adhesive or other coatings
Constantcurrent control helps maintain consistent weld output
Sound alert warns when the welding current is too low
Liquid cooling extends electrode and arm performance during repeated welding work
High duty factor supports sustained use in busy bodyshop environments
Reduced electrical consumption compared with conventional cablemachine designs
Designed to operate from a 400 V threephase supply with 25 A fuses, helping workshops with limited available power
Sixmetre clamp cable provides extended reach around vehicles and large workpieces
Lightweight 10 kg clamp is easier to position during repairs
Remote controls on the clamp allow convenient operation at the work area
Telescopic cablesupport arm helps manage the long cable during vehicle repairs
SDcard recording stores the characteristics of each welding spot for traceability
Saved welding reports can be transferred to a PC for review and documentation
Supplied with the G1 arm for general automotive spotwelding applications

Specification

Input Voltage

3 x 400V, 50

Fuse Rating

25A

Welding Current

14,500A

No-Load Voltage

7.3V

Electrode Force

550daN at 8 bar

Cooling

Liquid-cooled

Clamp Cable Length

6m

Clamp Weight

10kg

Machine Dimensions

65 x 80 x 230cm

Machine Weight

92kg

Air Pressure Range

1.5–8 bar

Air Connection

4 x 4 H07RNF

Arm Diameter

200mm

Arm Length

820mm

Welding Material

Mild steel, HSS, UHSS and boron steel

Protection Standard

EN 62135-1

FAQs

What types of steel can the GYSPOT PTI PREMIUM PRO weld?

It is designed for professional automotive repair involving mild steel, high-strength steel, ultra-high-strength steel and boron steel. The 14,500A welding current and up to 550 daN clamping force at 8 bar make it suitable for demanding bodyshop repairs, provided the vehicle manufacturer's welding procedures are followed.

What electrical supply does the 400V version require?

The machine requires a three-phase 400V supply and is specified for a 25A fuse. Have the workshop supply checked by a qualified electrician before installation, including the correct protection, earthing and cable capacity.

How does the automatic setting work?

AUTO mode identifies the relevant material and sheet conditions and sets suitable welding parameters. The machine also provides manual, multi-material, manufacturer-repair and energy modes, giving experienced technicians control when a repair procedure or test requirement calls for specific settings.

What are the advantages of the 6 metre liquid-cooled clamp cable?

The 6 metre cable gives better reach around vehicles and is useful when working at height or on larger workpieces. The G clamp has an integrated transformer, liquid-cooled arms and remote controls, while the telescopic cable support helps manage the cable during use. The supplied G1 arm is included.
