GYSPOT G9 X TYPE WELDING ARM
GYSPOT G9 X TYPE WELDING ARM
Brand: GYS Type: Spot Welders
Innovative X-Movement Welding Arm for Advanced Spot Welding

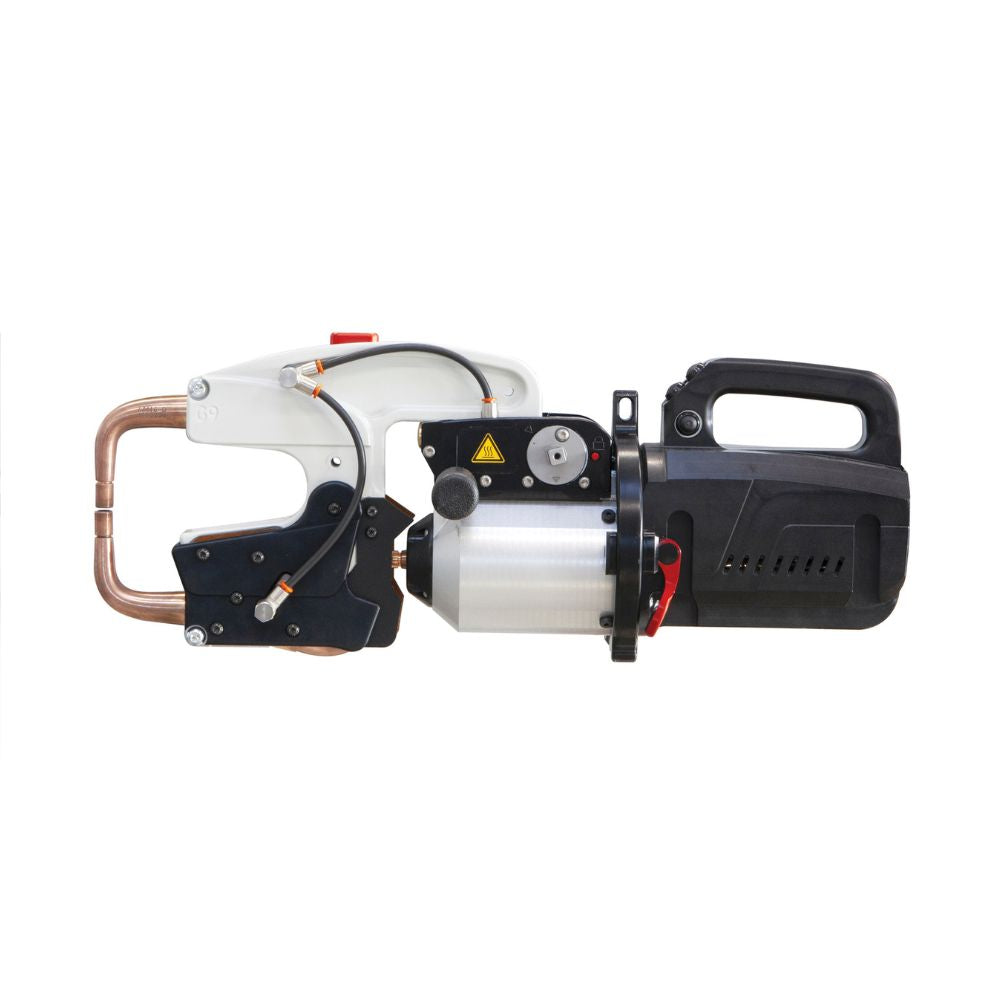

The GYS GYSPOT G9 X Type Welding Arm (022881) is a revolutionary accessory designed for GYS spot welding systems. This C-shaped arm transforms the clamp from a C movement to an X movement, offering enhanced ergonomics and versatility.
The G9 arm can automatically determine steel type, sheet thickness, and the presence of glue or insulating material between HLE/THLE, UHLE, and boron sheets. With a maximum welding current of 13,000 A and a clamping force of 550 daN at 8 bars, it delivers powerful performance.
The G9 arm can be switched from other arms in less than 5 seconds, offering exceptional flexibility. It includes an integrated arm support for convenient storage and comes with the X1 copper arm, handle, and arm support.
WHY BUY FROM BWS?
- Technical Support ✓
- Service Engineers ✓
- Business Account ✓
Download
Specification
- Welding Current: 13,000 A
- Max. Clamping Force: 550 daN at 8 bars with X1 arm
- Cooling System: Liquid cooling for electrodes and caps

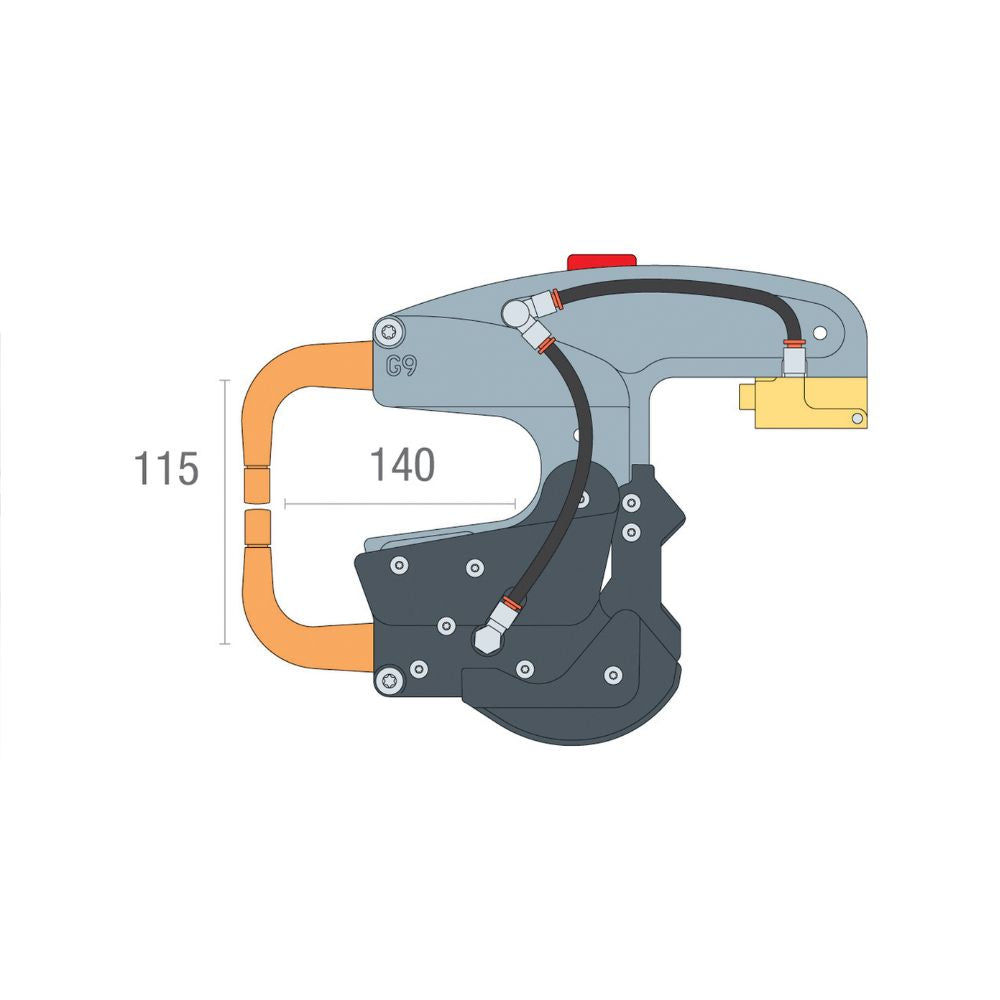

- Arm Passage (X1): 140 mm
- Max. Opening (X1): 30 mm
- Product Dimensions: 55.5x36x11.5cm
- Product Weight: 5.299kg
Features
- C-shaped arm for X movement welding
- Compatible with AUTO mode for automatic parameter setting
- Automatic detection of steel type and sheet thickness
- Quick setup without tools
- No need for electrode adjustment
- Fast arm change (less than 5 seconds)
- Automatic connection to cooling system
- Integrated arm support
- Compatible with three copper arms (X1, X2, X6)
- Patented design (US Patent No. 11,618,097)
FAQs
-
Q: What is the advantage of the X movement provided by the G9 arm?
A: The X movement offers improved ergonomics and access to difficult welding spots, enhancing overall welding efficiency and quality. -
Q: Can the G9 arm be used with all GYS spot welders?
A: The G9 arm is specifically designed for use with GYSPOT BP.LG and PTI.G systems. Compatibility with other models should be confirmed with GYS. -
Q: What additional arms are compatible with the G9?
A: The G9 is compatible with three copper arms: X1 (included), X2 (optional), and X6 (optional), offering versatility for different welding scenarios. -
Q: How does the automatic parameter setting work?
A: In AUTO mode, the system automatically detects steel type, sheet thickness, and the presence of insulating materials, adjusting welding parameters accordingly for optimal results.
