GYSMATIC XXL AIR FED WELDING HELMET

Name: GYSMATIC XXL AIR FED WELDING HELMET
Brand: GYS
SKU: 028852
Price: 523.00 GBP
Availability: InStock

£523.00

Shipping calculated at checkout.

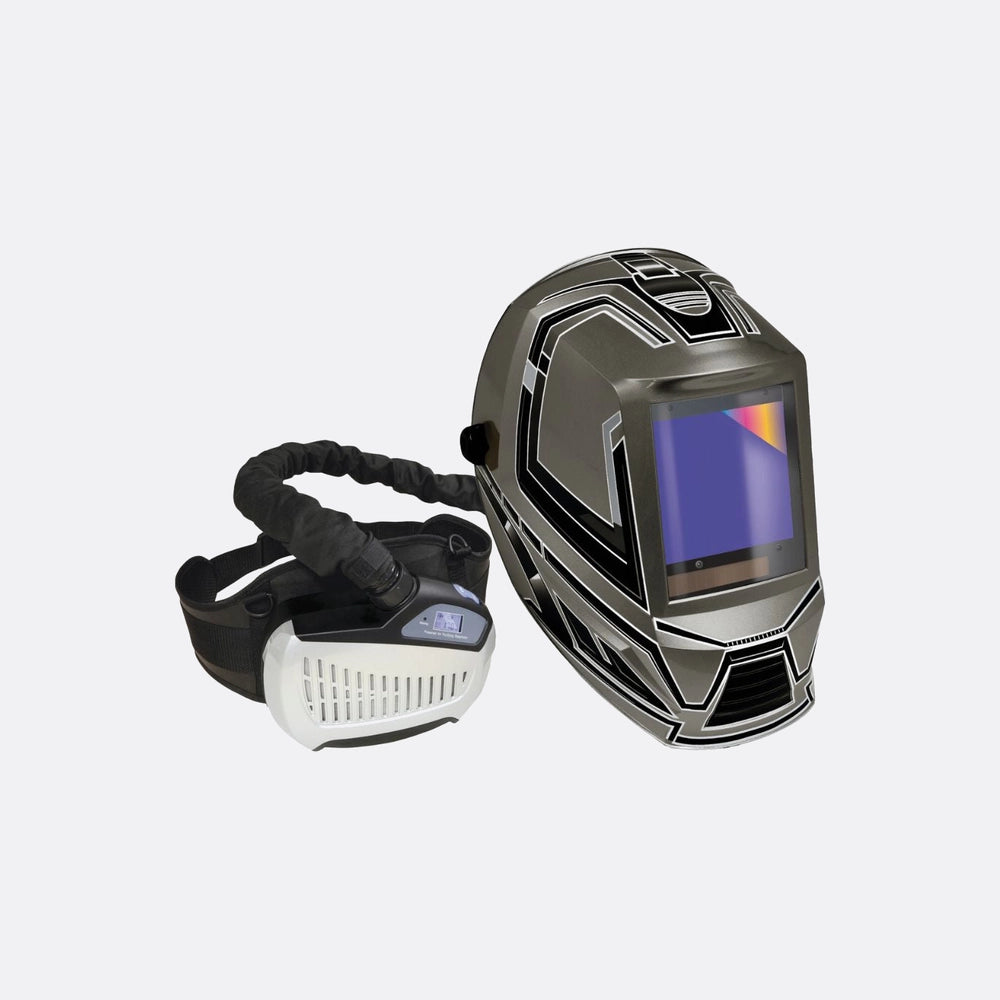

Brand: GYS Type: Air Fed Welding HelmetsAdvanced Air Fed Welding Helmet with True Color TechnologyThe GYS GYSMATIC 5/13 XXL Air Fed Welding Helmet is a state-of-the-art protective equipment designed for professional welders. This 2-in-1 system offers comprehensive protection for both eyes and respiratory system during welding operations.The respiratory protection system includes a TH2 P R SL filter class (upgradable to TH3) and offers three air flow rates: 170, 200, and 230 l/min. With a digital display for battery life and filter saturation, and up to 8 hours of battery life, this helmet ensures prolonged protection during extended welding sessions.WHY BUY FROM BWS?Technical Support ✓Service Engineers ✓Business Account ✓DownloadSpecificationScreen Size: 100 x 83 mm (XXL)Shade Range: 5-13Air Flow Rates: 170 l/min, 200 l/min, 230 l/minFilter Class: TH2 P R SL (upgradable to TH3)Battery Life: Up to 8 hoursWeight: 15 kg (total system weight)Standards: CE / EN 166 / EN 175 / EN 379 / EN 12941FeaturesTRUE COLOR technology for enhanced visibilityTouch-sensitive buttons for easy adjustments4 sensors for improved performanceTIG welding capability > 2 ADigital display for battery life and filter saturationWaist-mounted motor/filter pack for comfortAlarm system for obstructed filter and low batterySpark arrestor for added safetyLarge carrying bag includedAbility to save up to 3 custom settingsFAQsQ: What types of welding is this helmet suitable for?A: The GYSMATIC 5/13 XXL is suitable for all types of welding, including TIG welding at currents as low as 2 A.Q: How long does the battery last?A: The lithium battery provides up to 8 hours of operation, making it suitable for extended welding sessions.Q: Can the air flow rate be adjusted?A: Yes, the helmet offers three air flow rates: 170 l/min, 200 l/min, and 230 l/min, allowing users to adjust based on their needs and working conditions.Q: Is the filter upgradable?A: Yes, while the standard filter class is TH2 P R SL, it can be upgraded to TH3 for enhanced filtration (upgrade kit sold separately).

Everything we sell is supported by our factory trained engineers at our premesis in Manchester or nationwide through our mobile service engineers.

Returns details can be edited in the theme editor.

Warranty

12 months

Package

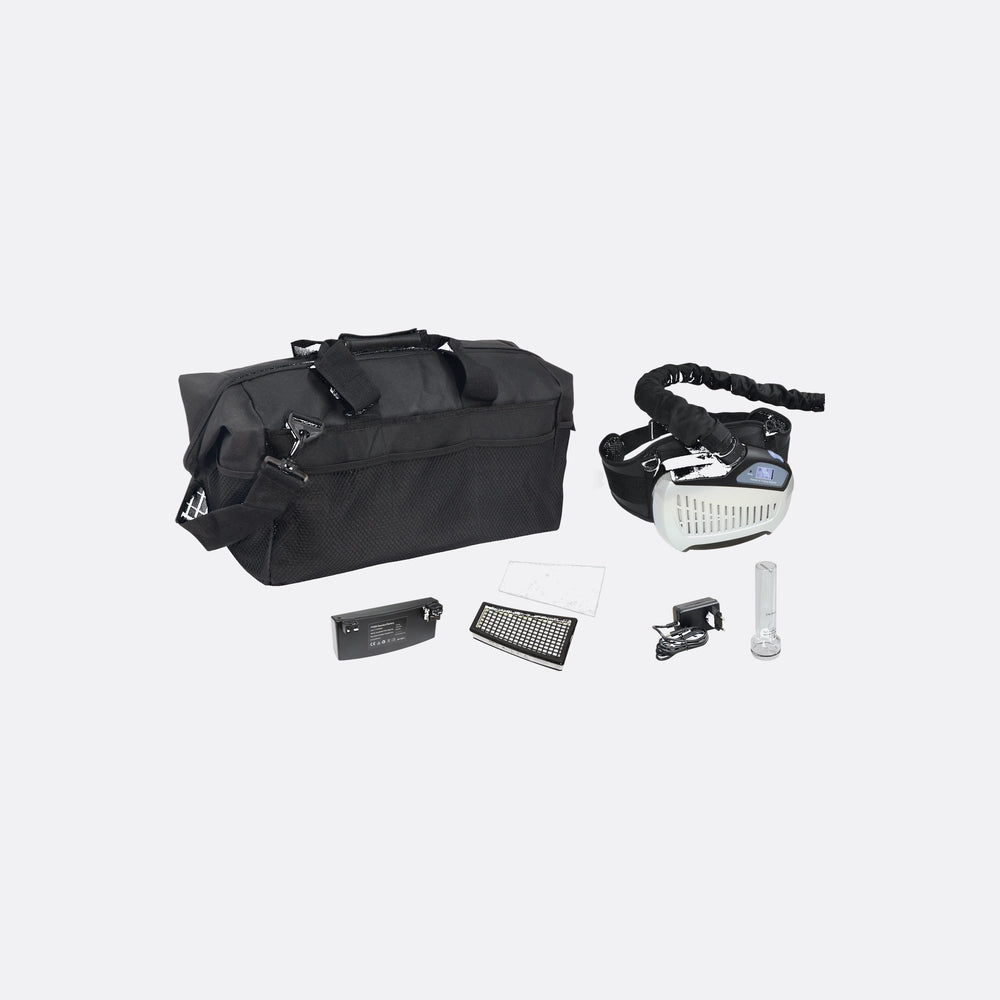

GYSMATIC 5.13 XXL + welding hood The respiratory protection system (motor + filter + waist belt) Lithium-ion battery + charger shoulder harness/airflow meter/carrying bag

Service

In-house engineers

Support

0161 223 1843

Expert Advice

Paul Jones says

This is an air-fed welding helmet designed for prolonged welding and grinding work where fume and dust exposure are a concern. In a busy bodyshop or fabrication bay, it’s typically used on MIG, TIG and MMA stations where you’re working close to the job on galvanised, high-strength steels or coated panels and need both eye and respiratory protection in one unit.

The XXL viewing area makes a real difference when you’re tacking in awkward positions or following longer seams; you see more of the joint without constantly adjusting your head angle. Correct setup of shade range and sensitivity is important, especially if you swap between lower-amperage TIG and heavier MIG work during the day, and the air unit needs routine filter checks to keep airflow consistent.

A common issue I see is users running the helmet with tired batteries or clogged filters, leading to poor reaction or reduced comfort. Used correctly and maintained, this type of helmet gives reliable protection, better visibility and steadier, safer working over long shifts.

Paul Jones, Technical Director

📄

Technical Datasheet

Download the official manufacturer datasheet for GYSMATIC XXL AIR FED WELDING HELMET including specifications, compatibility information and technical details.

Download GYSMATIC XXL AIR FED WELDING HELMET Datasheet

WHY BUY YOUR EQUIPMENT FROM US?

Our team of welding experts at BWS is ready to assist you every step of the way. Whether you have questions about specific products, need guidance on selecting the right equipment, or seek welding-related advice, our knowledgeable staff is here to help.

We also have some of the most experienced engineers in the industry who are able to offer full technical support on top of what the manufacturers offer.

Find Our More

Technical Features

Airfed powered respirator system supplying clean filtered air to the welder’s breathing zone for prolonged workshop use
2in1 protection of eyes, face and respiratory system specifically designed for welding operations

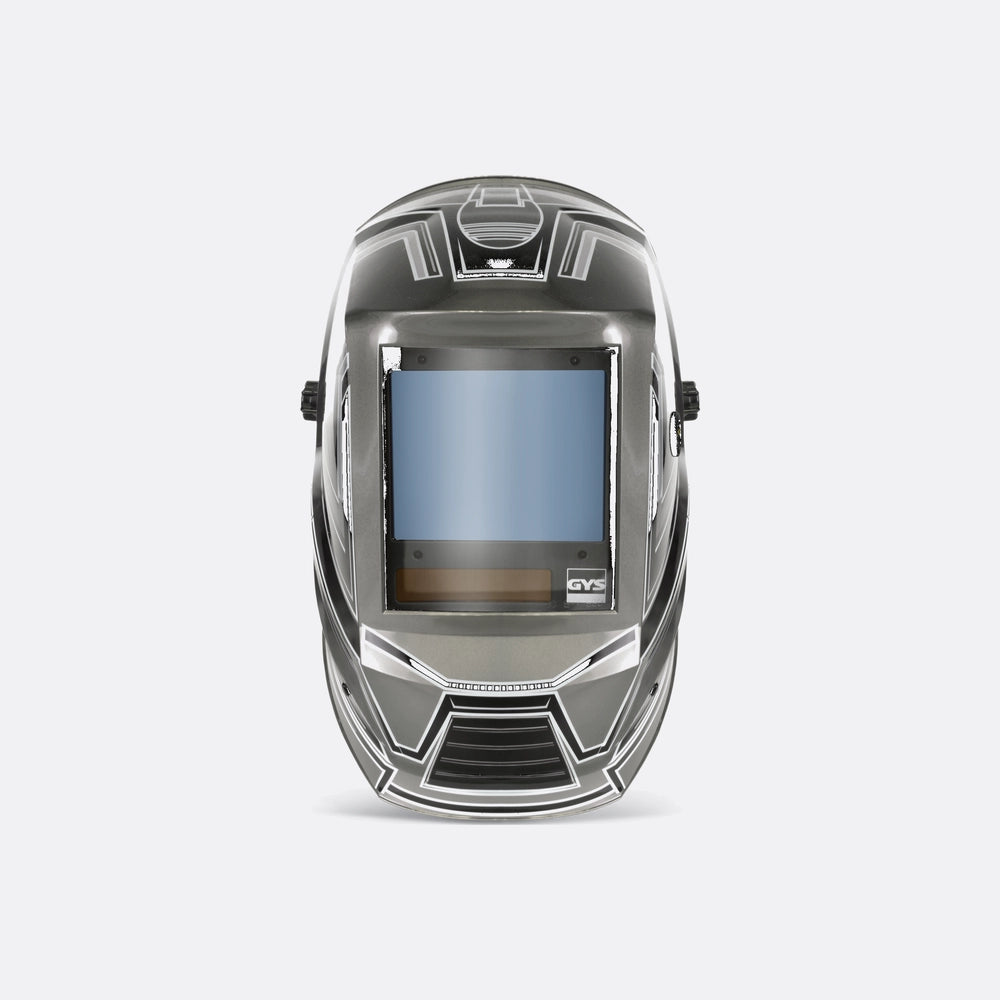

XXL truecolour autodarkening screen providing a wide 100 x 83 mm viewing area for better puddle control and joint alignment
Shade range 5–13 to cover lowamp TIG through to heavier MIG/MAG and MMA work in one helmet
Autodarkening filter with adjustable sensitivity and delay to tune the lens behaviour to your process and environment
Consistent UV/IR protection at all times, even when the lens is in light state, for safe tacking and positioning
True Color lens technology for a more natural view of the weld area, improving arc definition and defect detection
Grind mode allowing safe grinding without removing the helmet, useful for prep and dressing between weld passes
Comfortable headgear with multipoint adjustment to balance the XXL cassette and air unit for allday bodyshop work
Wellbalanced air hose and harness arrangement to reduce neck strain when working on large panels or under vehicles
Designed for professional workshop and bodyshop environments where ENcompliant respiratory and eye protection is required
Compatible with common arc processes used in repair work, including MIG/MAG, pulsed MIG, DC TIG and MMA
Helmet shell shaped to deflect spatter and grinding debris away from the lens and respirator inlet
Smooth external controls for shade and grind selection that can be operated with gloved hands
Large internal viewing area aiding peripheral awareness when moving around vehicles, jigs or benches
Supplied as a powered air unit and helmet package so the system is ready for professional use with genuine parts and filters

Specification

View Area

100 x 83 mm

Type

Air-fed welding helmet

Protection

Eyes from IR

Model Reference

047846

SKU

028852

FAQs

Is the Gysmatic Air Fed Welding Helmet XXL suitable for full-shift professional workshop use?

Yes, it is designed as a professional powered air-fed welding helmet for bodyshops and fabrication workshops. The XXL viewing area and comfortable headgear make it practical for long shifts, giving continuous eye, face and respiratory protection during MIG, TIG and MMA welding work.

What type of respiratory protection does this helmet provide?

The helmet is air-fed, using a powered respirator unit to deliver clean, filtered air into the hood while you weld. This protects the lungs from welding fumes and particulates in line with professional workshop practice, and is far more effective than a standard passive welding mask for regular bodyshop repair work.

Is the XXL viewing area useful for bodyshop and fabrication work?

The wide-view XXL visor gives a larger field of vision than standard helmets, which helps when working on larger panels, awkward positions or jig work. It makes it easier to track the weld pool, see your surroundings and maintain accuracy on fine body repairs without feeling boxed in.

What support and consumables are available from BWS for this helmet?

BWS can supply genuine GYS spares and consumables for the Gysmatic Air Fed Helmet, including outer and inner visor covers, headgear parts and respirator components where applicable. Our engineers can advise on correct setup, servicing schedules and compatibility with your existing workshop welding equipment.
