GYS ERGO DOOR LIFT

Ergonomic Door Handling Trolley for Safe and Efficient Vehicle Door Removal

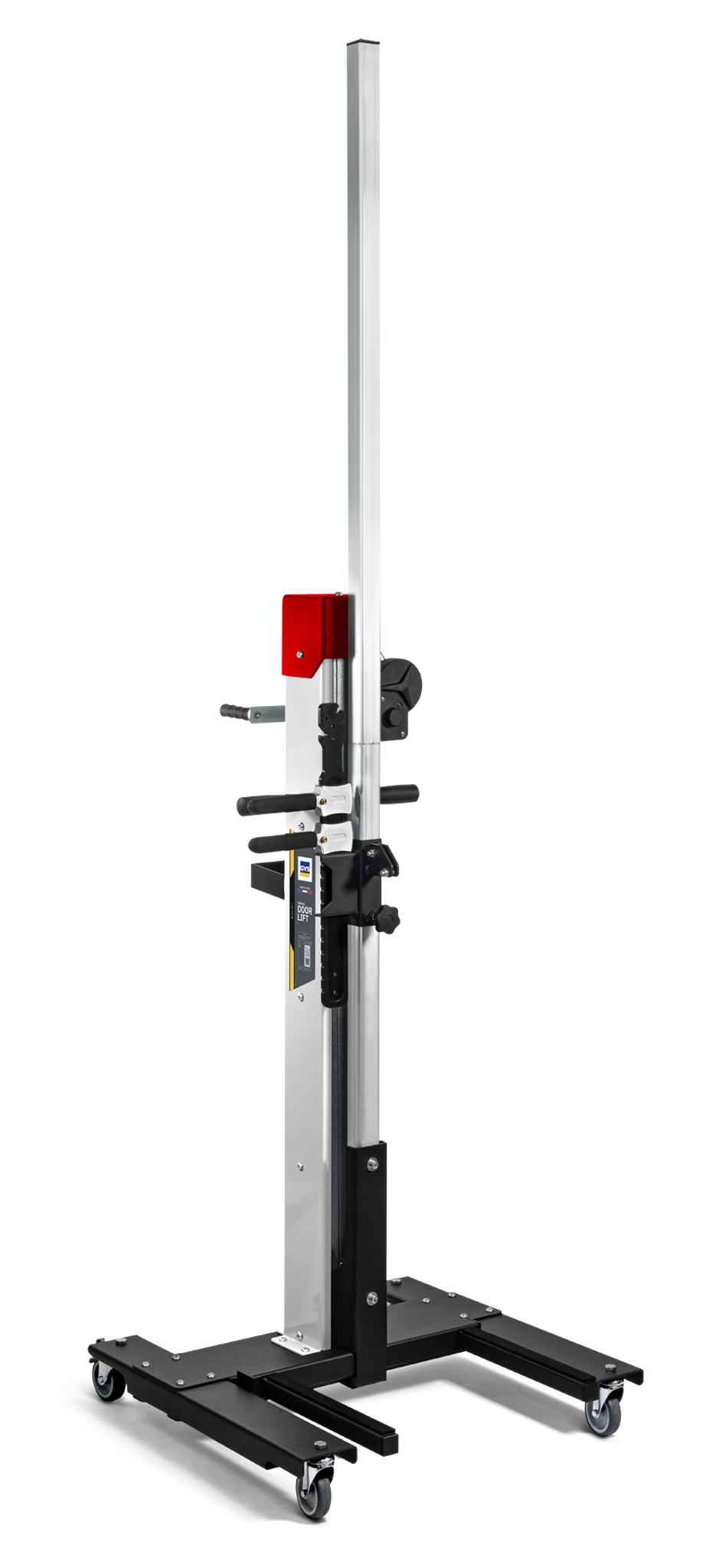

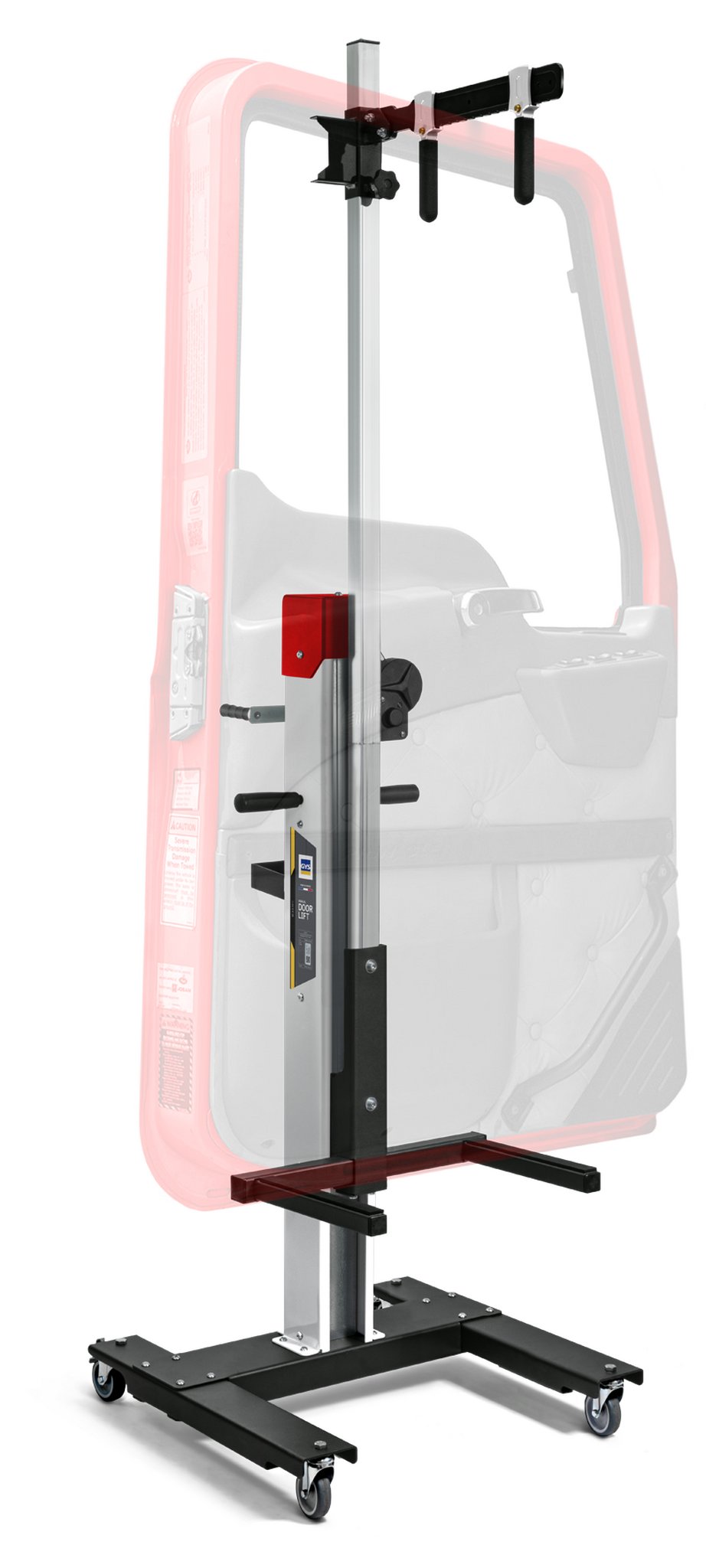

The GYS ERGO DOOR LIFT is a robust, manoeuvrable door lifting trolley designed to enable a single operator to safely remove and install vehicle doors with minimal effort. Engineered to improve workplace safety and reduce musculoskeletal strain, this precision-built trolley allows easy alignment of heavy doors — up to 50 kg — on both cars and light commercial vehicles. The hand-cranked winch provides smooth, accurate height adjustment, while the adjustable retaining bar with quick-release latches adapts perfectly to the door profile. Equipped with four swivel castors, two with brakes, the ERGO Door Lift ensures stable operation and effortless manoeuvrability.

 A soft rubber support system prevents paintwork damage, and integrated features such as a tool holder and handle make it practical for any professional bodyshop or repair workshop. Also available with a wide door option (Ref. 082700) for sliding doors and large vehicle panels.

WHY BUY FROM BWS?

Specification

• Reference: 082670
• Maximum Load Capacity: 50 kg
• Dimensions: 117 × 28 × 27 cm
• Weight: 40 kg
• Height Adjustment: 90 cm
• Width Adjustment: 68 cm (standard) / up to 173 cm (wide door option 082700)
• Door Height Compatibility: up to 206 cm (with wide option)
• Retaining Bar: Adjustable with 2 quick-release latches (max depth 30.5 cm)
• Mobility: 4 swivel castor wheels, 2 with brakes

Features

• One-Person Operation: Enables a single technician to remove or install doors safely and efficiently.

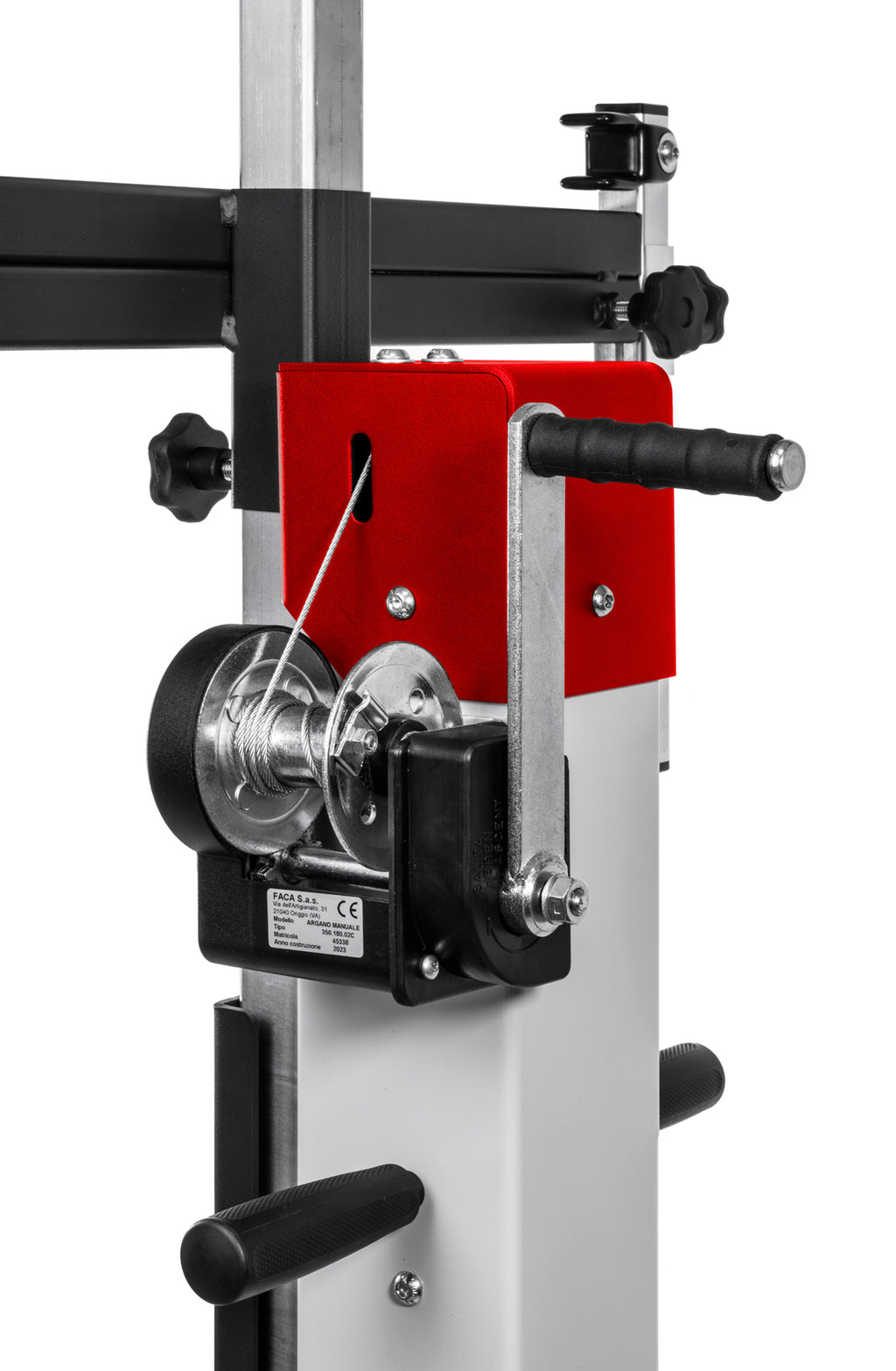

• Precision Alignment: Hand-cranked winch allows fine height adjustment for hinge alignment.
• Secure Door Retention: Adjustable bar with quick-release latches and rubber supports protect vehicle surfaces.
• Highly Manoeuvrable: Four castor wheels for smooth movement; two include locking brakes for stability.
• Integrated Tool Holder: Convenient storage for wrenches, screwdrivers, and fittings.
• Workshop-Friendly Design: Compact frame fits easily around vehicles and lifts.
• Optional Wide Door Kit: Ref. 082700 available for large or sliding door applications.
• Made in France: Quality-engineered and compliant with EN 1494 standards.

FAQs

1. What is the maximum door weight it can handle?

The ERGO Door Lift is capable of supporting doors weighing up to 50 kg.

2. Can one person operate this safely?

Yes. It is specifically designed for single-person operation, reducing strain and improving workshop efficiency.

3. Does it accommodate sliding or larger doors?

Yes. The Wide Door Option (Ref. 082700) extends compatibility for doors up to 173 cm wide and 206 cm high.

4. How does it protect vehicle paintwork?

The lift includes rubber-coated supports that securely hold the door without scratching or marking painted surfaces.
