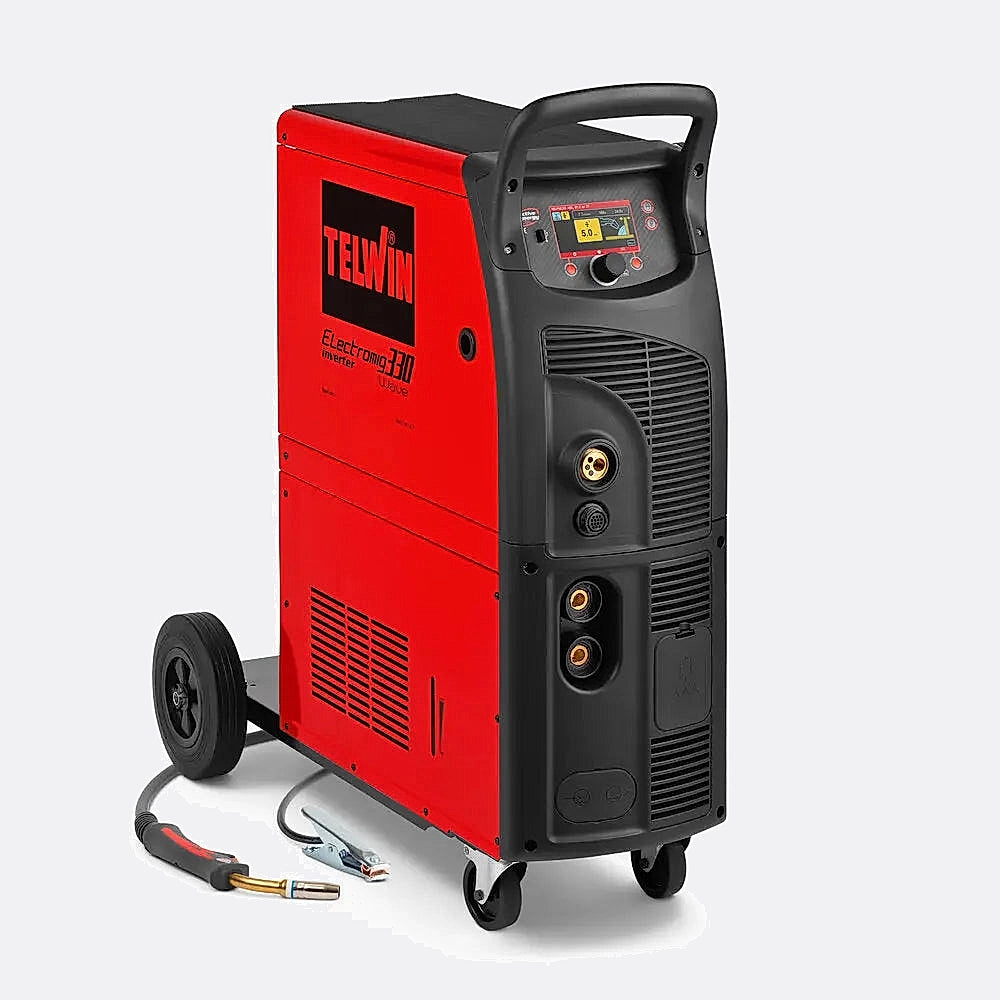

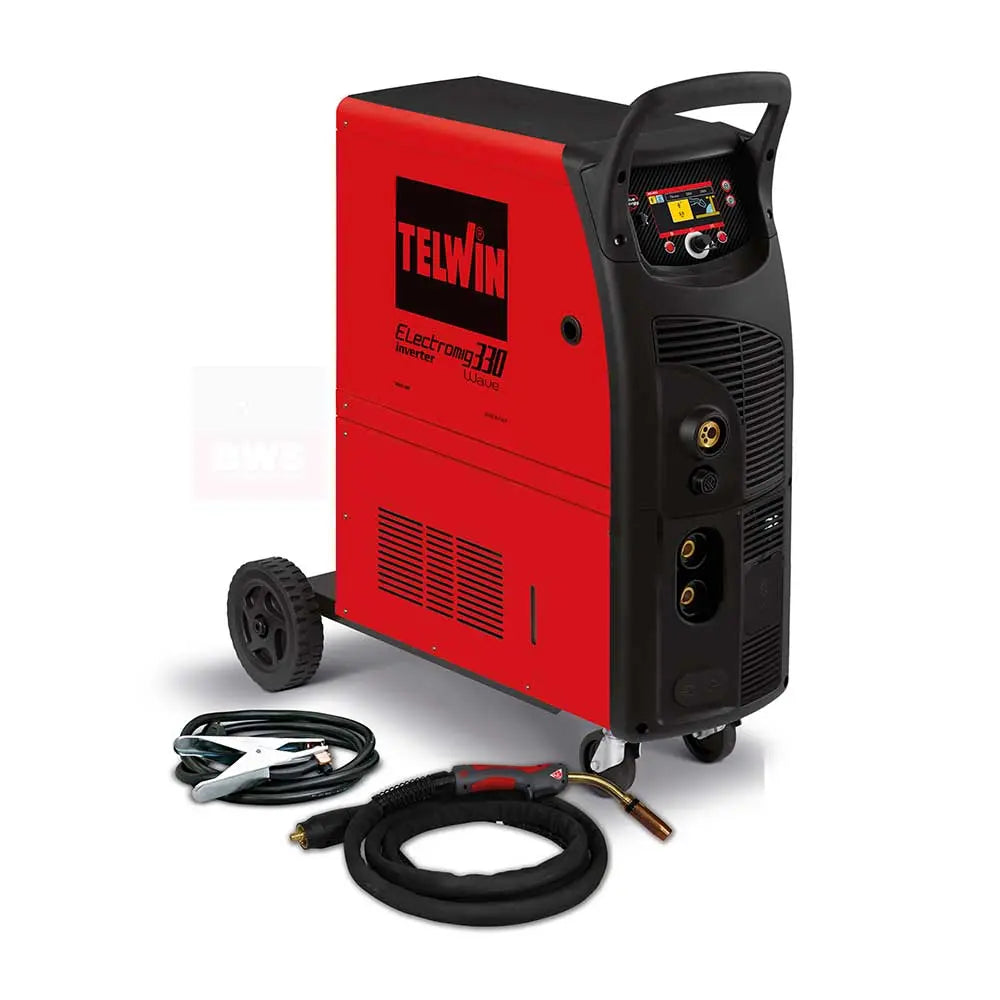

Telwin 816062 Electromig 330 Wave Aqua Mig Welder 400v
£3,283.00
Skip to product information
Telwin 816062 Electromig 330 Wave Aqua Mig Welder 400v
£3,283.00
Shipping calculated at checkout.
The TELWIN 816062 ELECTROMIG 330 WAVE AQUA MIG WELDER 400V is a professional-grade MIG/MAG welding machine designed for demanding workshop and industrial applications. Built for three-phase 400V power supply, it delivers consistent arc performance with integrated water-cooling capability, making the TELWIN 816062 ELECTROMIG 330 suitable for high-duty-cycle fabrication work.
Key Features
- Three-phase 400V power input
- Integrated AQUA water-cooling system
- High-duty-cycle MIG/MAG welding
- WAVE synergic control technology
- Suitable for steel and alloy materials
- Professional workshop and industrial use
Technical Support
Everything we sell is supported by our factory trained engineers at our premesis in Manchester or nationwide through our mobile service engineers.
Delivery + Returns
Returns details can be edited in the theme editor.
Technical Features
- Wave Control technology ensures a stable, precise arc with significantly reduced spatter output.
- Integrated water cooling system allows extended duty cycles ideal for continuous industrial welding.
- Wide current range from 30 to 330A accommodates thin sheet metal through to heavy structural work.
- Synergic control simplifies parameter setup by automatically adjusting voltage to match wire feed speed.
- Threephase 400V input delivers robust, consistent power suitable for professional workshop environments.
- Accepts wire diameters from 0.6 to 1.2 mm providing flexibility across a broad range of applications.
WHY BUY YOUR EQUIPMENT FROM US?
Our team of welding experts at BWS is ready to assist you every step of the way. Whether you have questions about specific products, need guidance on selecting the right equipment, or seek welding-related advice, our knowledgeable staff is here to help.
We also have some of the most experienced engineers in the industry who are able to offer full technical support on top of what the manufacturers offer.
Specification
Supply Voltage
400V - 50/60 Hz (3-phase)
Welding Current Range
30 - 330A
No-Load Voltage
14 - 40V
Duty Cycle at Maximum Current
60%
Wire Diameter Range
0.6 - 1.2 mm
Cooling System
Integrated water cooling (Aqua)
Protection Class
IP21S
Weight
65 kg
Dimensions (L x W x H)
900 x 480 x 810 mm
Insulation Class
H
FAQs
What materials can the Telwin Electromig 330 Wave Aqua weld, and is it suitable for stainless steel?
The Telwin Electromig 330 Wave Aqua is primarily designed for MIG/MAG welding of mild steel and stainless steel, making it highly versatile for fabrication and manufacturing applications. With the appropriate shielding gas and wire, it handles stainless steel with excellent results. Always ensure you use the correct wire type and gas mixture for the specific material being welded.
Does the Telwin Electromig 330 Wave Aqua require a dedicated water cooling unit, or is cooling built in?
The Electromig 330 Wave Aqua features an integrated water cooling system built directly into the machine, so no separate external cooling unit is required. This built-in Aqua system circulates coolant through the torch to maintain safe operating temperatures during extended welding sessions. It is a self-contained solution designed to simplify setup and reduce additional equipment costs.
What duty cycle does the Telwin Electromig 330 Wave Aqua offer at its maximum welding current of 330A?
At its maximum output of 330A, the Electromig 330 Wave Aqua delivers a duty cycle of approximately 60%, meaning it can weld continuously for six minutes in every ten-minute period at full power. The integrated water cooling system helps sustain this performance over long working shifts without overheating. At lower current settings, the duty cycle increases significantly, allowing for even longer uninterrupted welding periods.
Is the Telwin Electromig 330 Wave Aqua suitable for use in a single-phase workshop power supply?
No, the Telwin Electromig 330 Wave Aqua is designed exclusively for three-phase 400V power supplies and cannot be operated on a single-phase connection. Attempting to connect it to a single-phase supply would not provide the required power and could damage the machine. Ensure your workshop has a correctly rated three-phase electrical installation before purchasing this welder.
