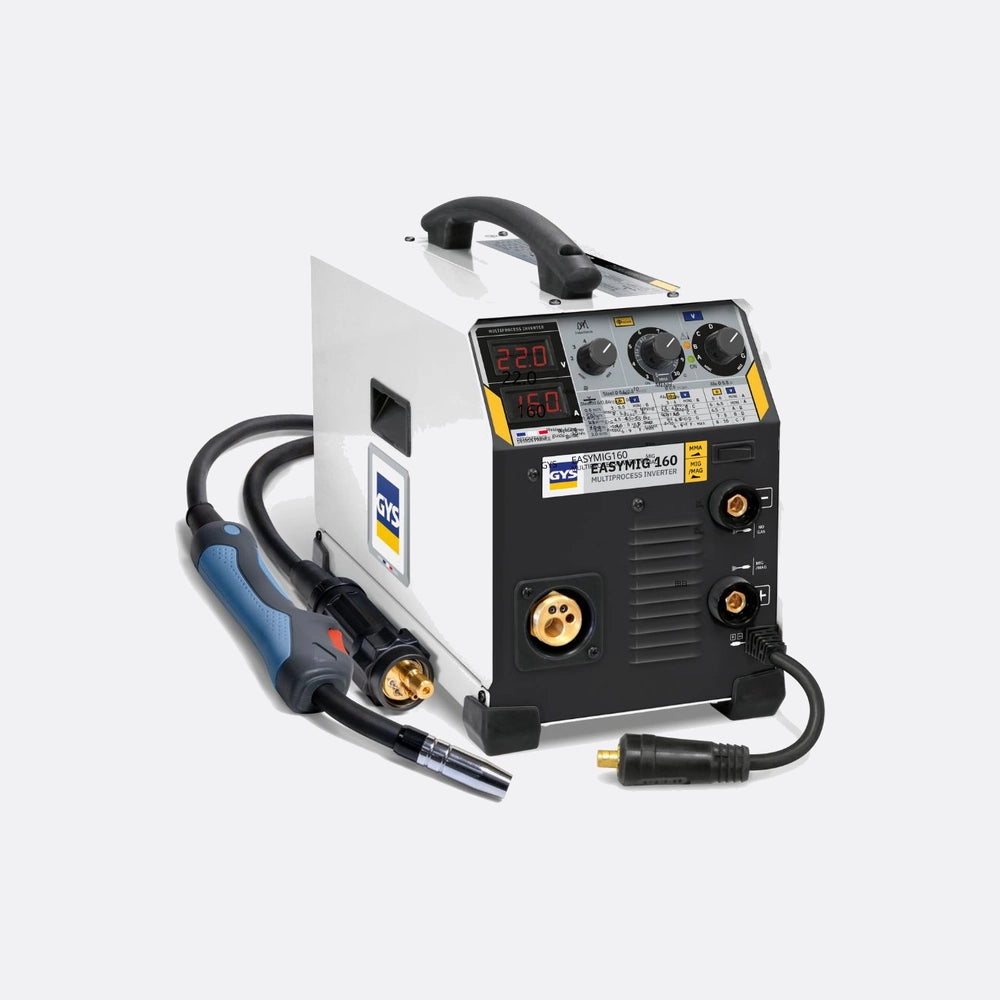

GYS Easymig 160

Professional 3-in-1 MIG-MAG, No-Gas and MMA Inverter Welder

The GYS EASYMIG 160 is a high-performance 3-in-1 inverter welding machine that combines MIG/MAG with gas, No-Gas flux-cored, and MMA (stick) processes in one portable unit. Delivering up to 160A output current, it’s ideal for automotive repairs, light fabrication, and maintenance work on steel, stainless steel, and aluminium. Its intuitive digital interface allows fast adjustment of voltage and wire feed speed, while the inverter technology ensures excellent current control and low energy consumption. The EASYMIG 160 features a Euro-connect torch system, dual 100/200 mm wire reel compatibility, and polarity reversal for seamless transition between gas and gasless welding. Lightweight at only 10.1 kg with a reinforced chassis, ergonomic handle, and shock-absorbing rubber feet, this welder offers professional-level results with true portability.

WHY BUY FROM BWS?

Specification

• Reference: 032255
• Power Supply: 230V Single Phase (16A)
• Welding Current Range: 20 – 140A (MIG/MAG) / 30 – 160A (MMA)
• Duty Cycle: 20% @ 160A / 60% @ 95A
• Wire Diameter: Ø 0.6 – 0.9 mm (Steel, Stainless, Aluminium)
• Electrode Diameter: Ø 1.6 – 3.2 mm
• Wire Feed Speed: 3 – 10 m/min
• Dimensions: 40 × 20 × 33 cm
• Weight: 10.1 kg
• Protection Class: IP21
• Compliance: EN 60974-1 (40°C)

Features

• 3-in-1 Welding Capability: Supports MIG/MAG, flux-cored (No-Gas), and MMA welding for maximum versatility.
• Digital Display Control: Easy-to-use panel with voltage and wire feed speed adjustment.
• Gas/No-Gas Ready: Includes polarity reversal cable for easy switch between solid and flux-cored wire.
• Dual Wire Reel Support: Compatible with both 100mm (1kg) and 200mm (5kg) wire reels.
• Euro Torch Connection: Quick and secure 150A detachable torch (2.2m).
• Inverter Technology: Ensures consistent arc stability and reduced power consumption.
• Reinforced Construction: Rubber feet absorb shocks and vibrations for added durability.
• Outdoor Capable: Use flux-cored wire for gas-free welding even in windy conditions.
• Thermal and Power LEDs: Provide safety monitoring and operational status at a glance.

FAQs

1. What welding processes does the EASYMIG 160 support?

It supports MIG/MAG (gas), No-Gas (flux-cored), and MMA (stick) welding — perfect for a wide range of applications from car body repair to fabrication.

2. Can I use both 1kg and 5kg wire spools?

Yes, the EASYMIG 160 is compatible with 100mm (1kg) and 200mm (5kg) wire reels, giving flexibility for light and extended welding jobs.

3. Is the torch removable?

Yes, the welder features a Euro torch connection allowing quick and easy assembly or replacement.

4. Can I weld outdoors with this machine?

Yes, by using flux-cored wire in No-Gas mode, you can weld outdoors effectively as it is not affected by wind.

Why Choose GYS from BWS Ltd

As an approved GYS Service Centre with a nationwide team of trained engineers, BWS Ltd provides complete sales, setup, and after-sales support for all GYS welding systems. Every purchase includes professional installation, calibration, and ongoing servicing from experienced field engineers. Since 1994, BWS has built its reputation as the UK’s trusted supplier for bodyshop and welding equipment — delivering expert advice, genuine products, and dependable technical support you can rely on.
