GYS BUNDLE GYSMI 160A + HELMET LCD 11 TRUE COLOR
Prices Exclude Tax

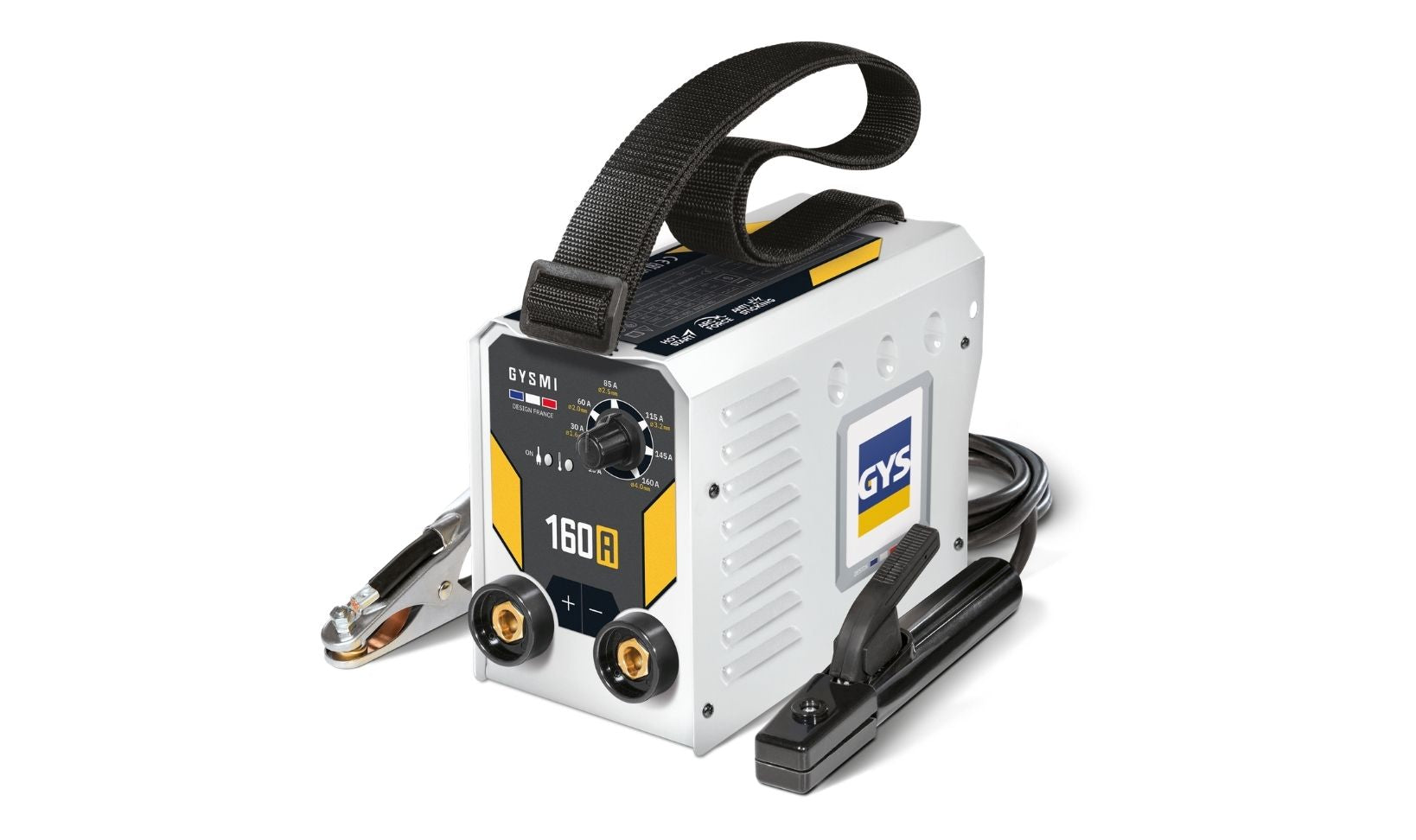

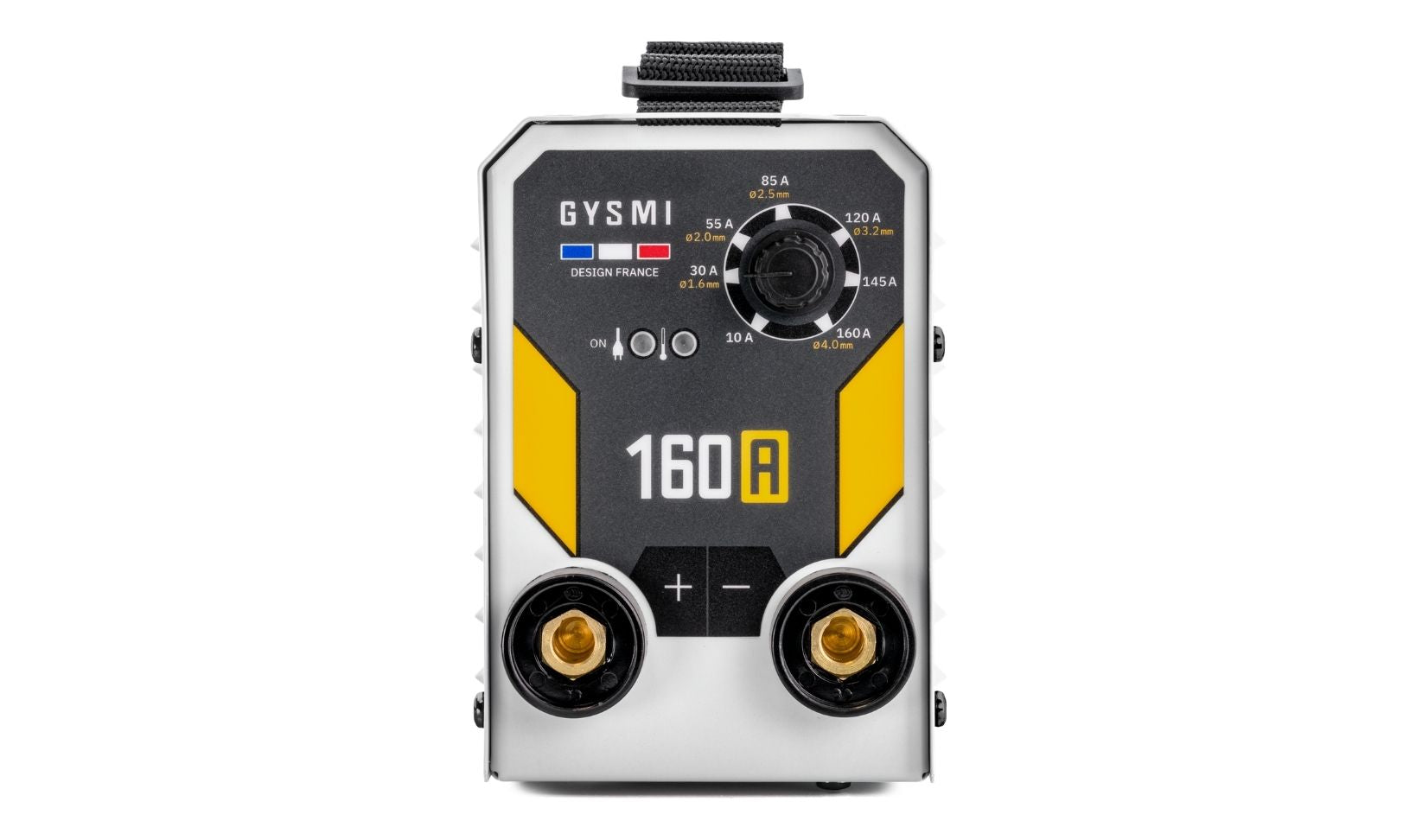

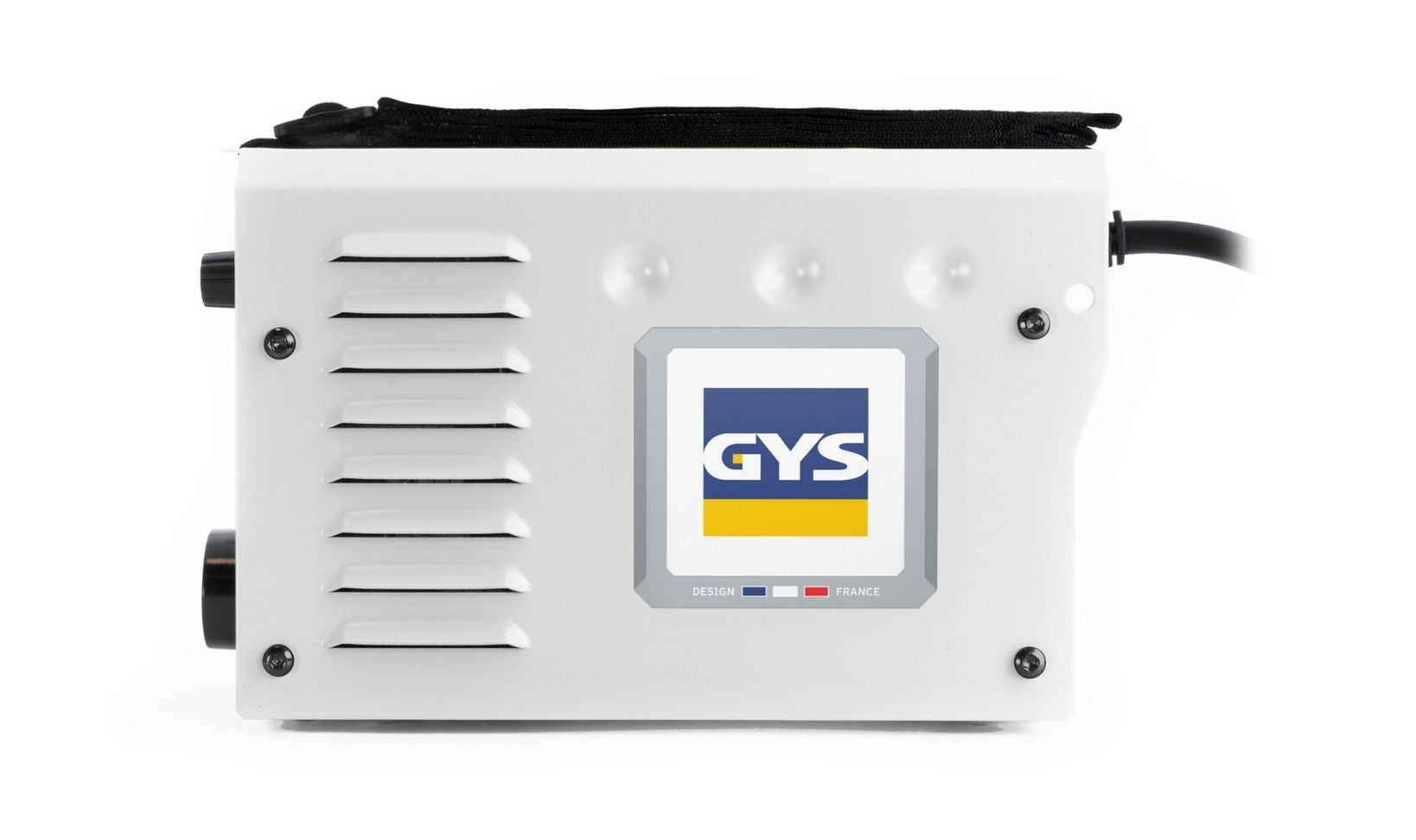

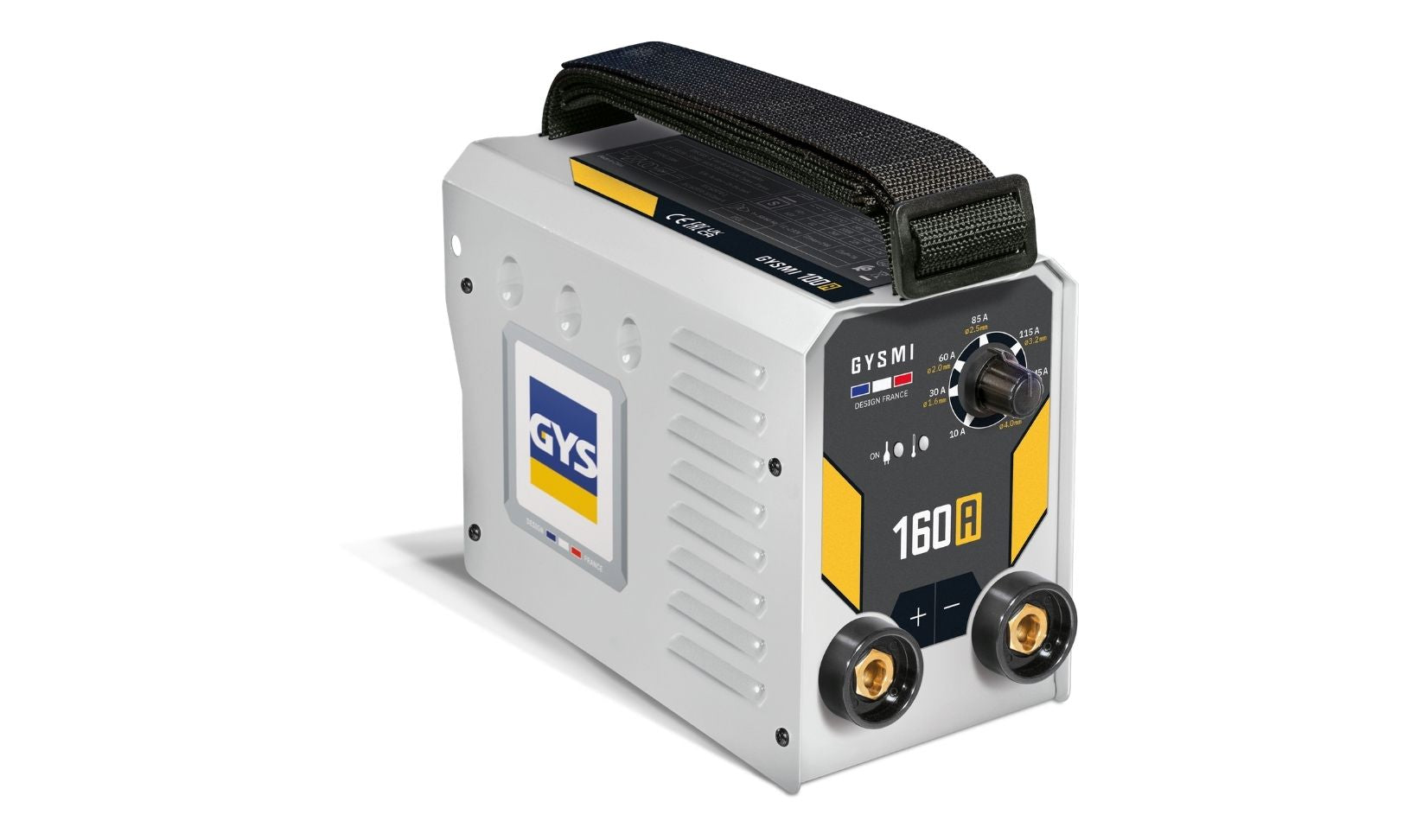

Professional 160A Single-Phase MMA Inverter with TRUE COLOR Helmet
The GYSMI 160A + Techno 11 MMA inverter welding set is a compact, high-performance solution designed for professional and maintenance welding applications. Built with advanced IGBT inverter technology and compliant with EN 60974-1, this single-phase 230V machine delivers a stable and smooth DC output from 10 to 160 amps. Its high open-circuit voltage ensures immediate arc ignition, while constant current control provides consistent fusion and excellent penetration on mild steel, stainless steel, and cast iron up to 10mm thickness. Weighing just 2.9kg, the unit is ultra-portable and generator compatible, making it ideal for site work. Integrated Hot Start, Arc Force, and Anti-Sticking functions enhance weld quality and ease of use. Supplied complete with the Techno 11 TRUE COLOR auto-darkening helmet, this package combines performance, protection, and portability.
Collections: Best Selling Products, Newest Products
WHY BUY FROM BWS?
Specification
- Input Voltage: 230V Single Phase (50/60Hz)
- Welding Current Range: 10 – 160A DC
- Duty Cycle: 160A @ 60%
- Open Circuit Voltage: 85V
- Electrode Capacity: Up to Ø4.0mm
- Generator Compatibility: 7.5 kVA (+/-15% tolerance)
- Protection Rating: IP21
- Dimensions: 23 x 15 x 10 cm
- Weight: 5.04kg
Features
- Advanced IGBT inverter technology for arc stability
- Hot Start for reliable and easy ignition
- Arc Force for improved penetration in difficult positions
- Anti-Sticking function to prevent electrode seizure
- Ultra-lightweight and compact portable design
- Suitable for rutile, basic, stainless and cast iron electrodes
- Generator safe with protection against voltage fluctuations

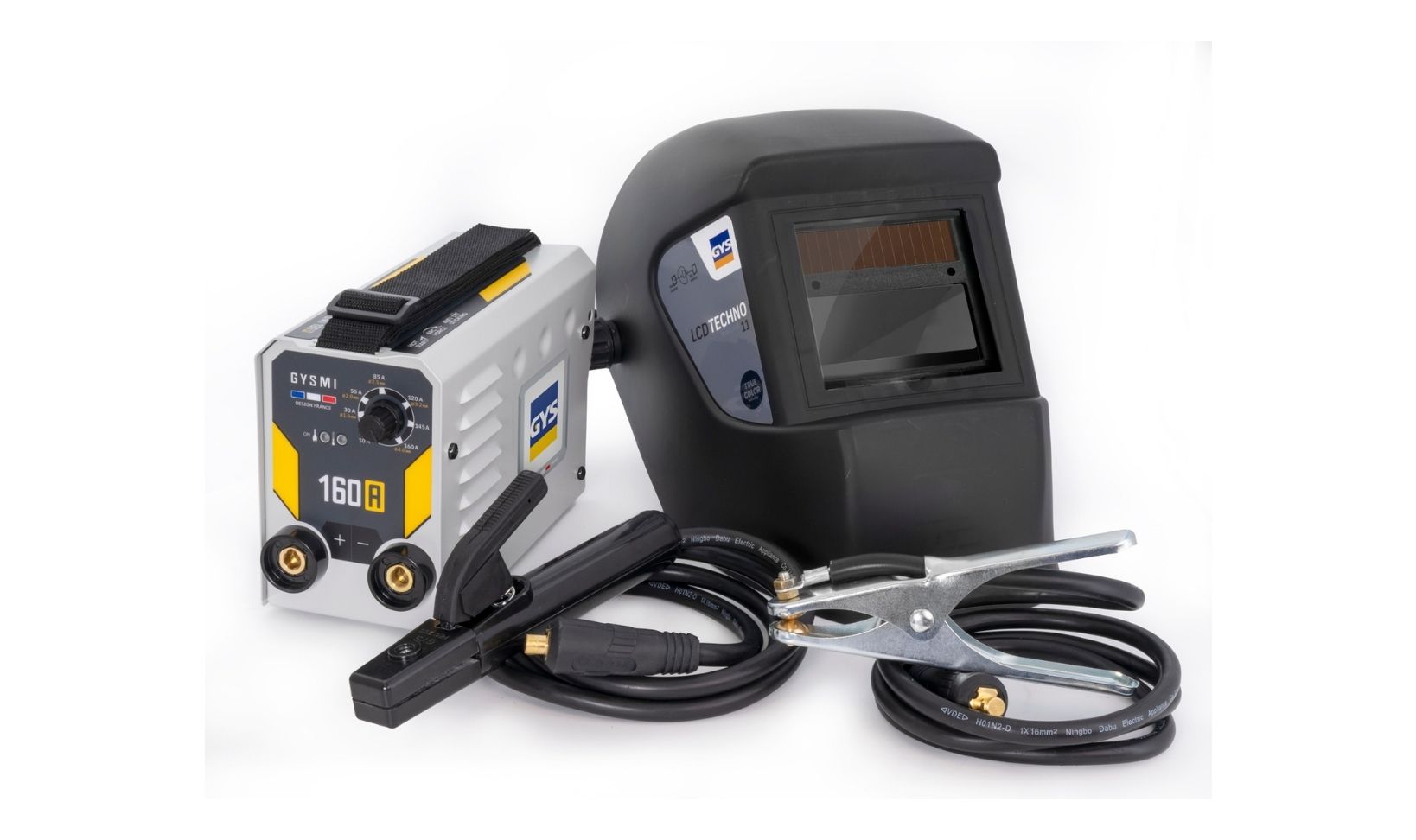

- Supplied with Techno 11 TRUE COLOR auto-darkening helmet
FAQs
1. What materials can this welder handle?
The GYSMI 160A is suitable for welding mild steel, stainless steel, and cast iron up to approximately 10mm thickness depending on electrode selection.
2. Is the machine suitable for site or generator use?
Yes, it is compatible with 7.5 kVA generators and protected against supply voltage variations of +/-15%, making it ideal for on-site work.
3. What electrode sizes can be used?
The unit can weld coated electrodes up to 4.0mm diameter, including rutile, basic (low hydrogen), stainless, and cast iron types.
4. What are the benefits of the Techno 11 helmet?
The Techno 11 helmet features a 98 x 35 mm viewing area, shade 3 light state, shade 11 dark state, 0.6 ms switching speed, and TRUE COLOR technology for improved visibility and reduced eye strain.
