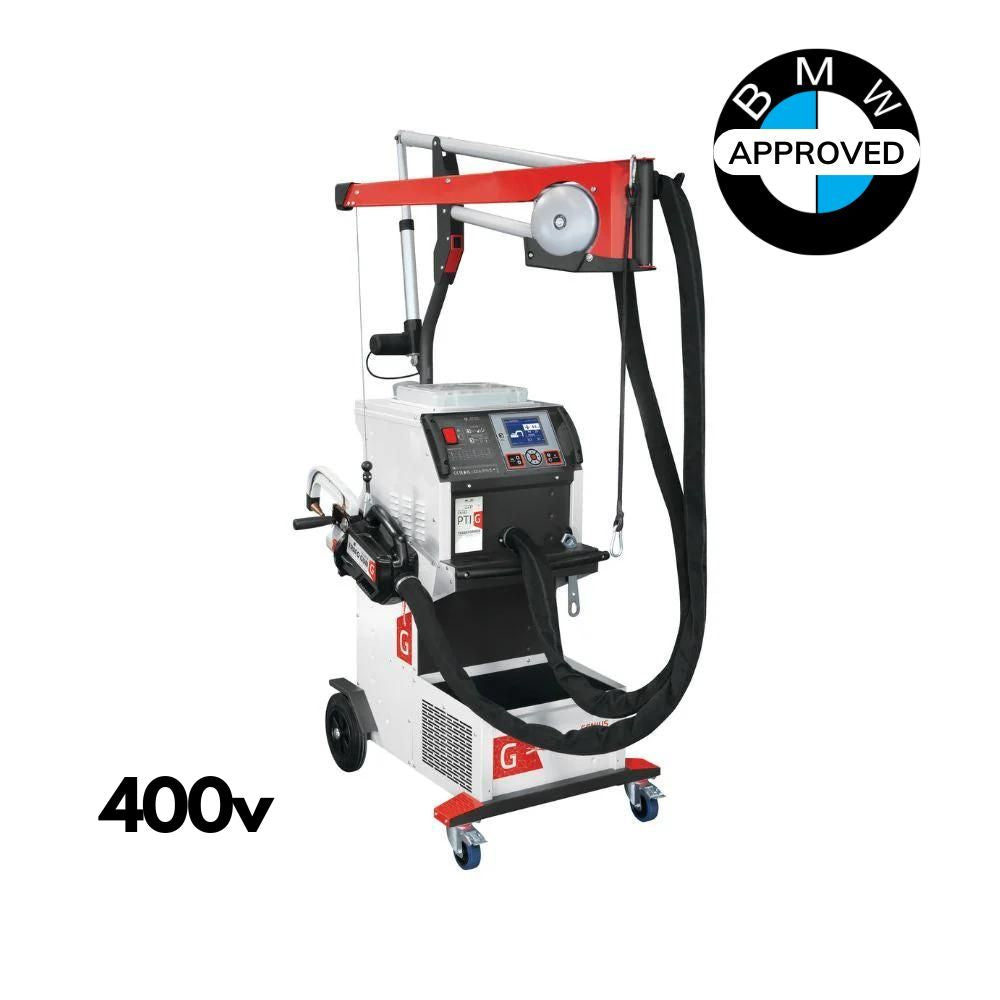

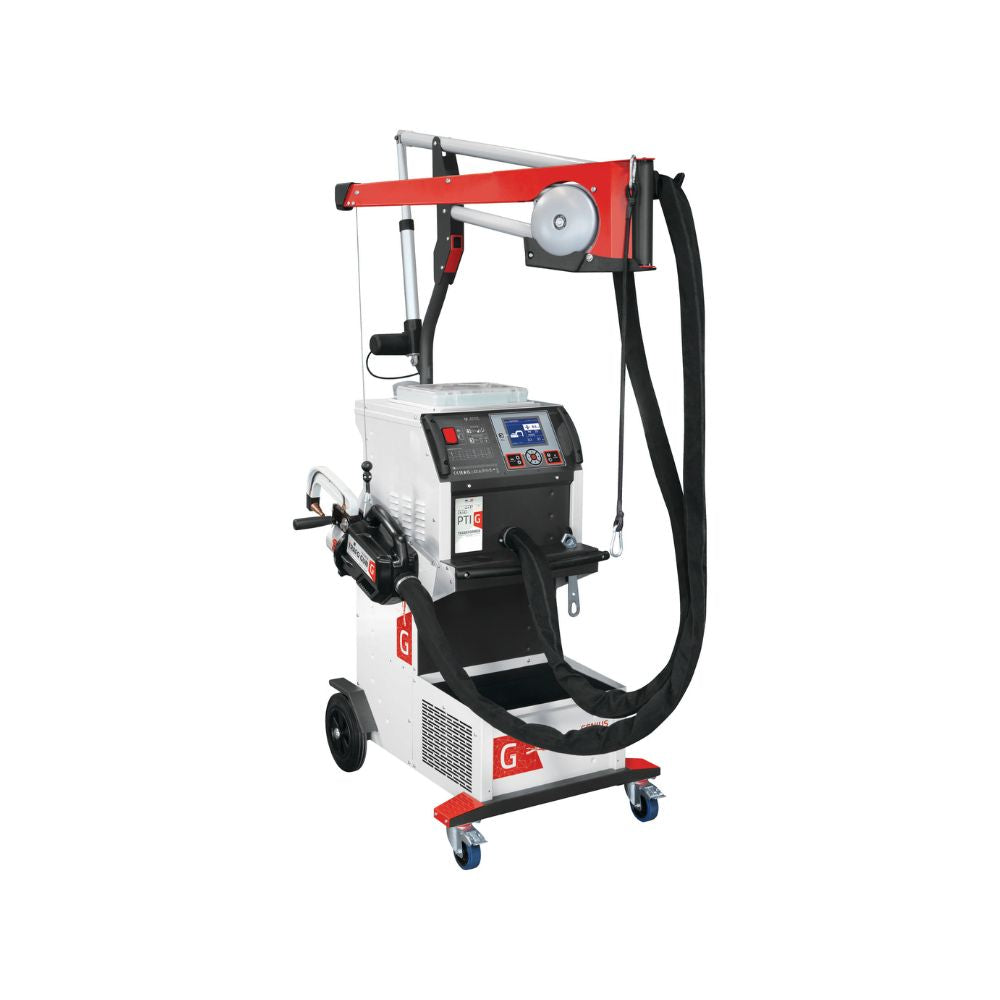

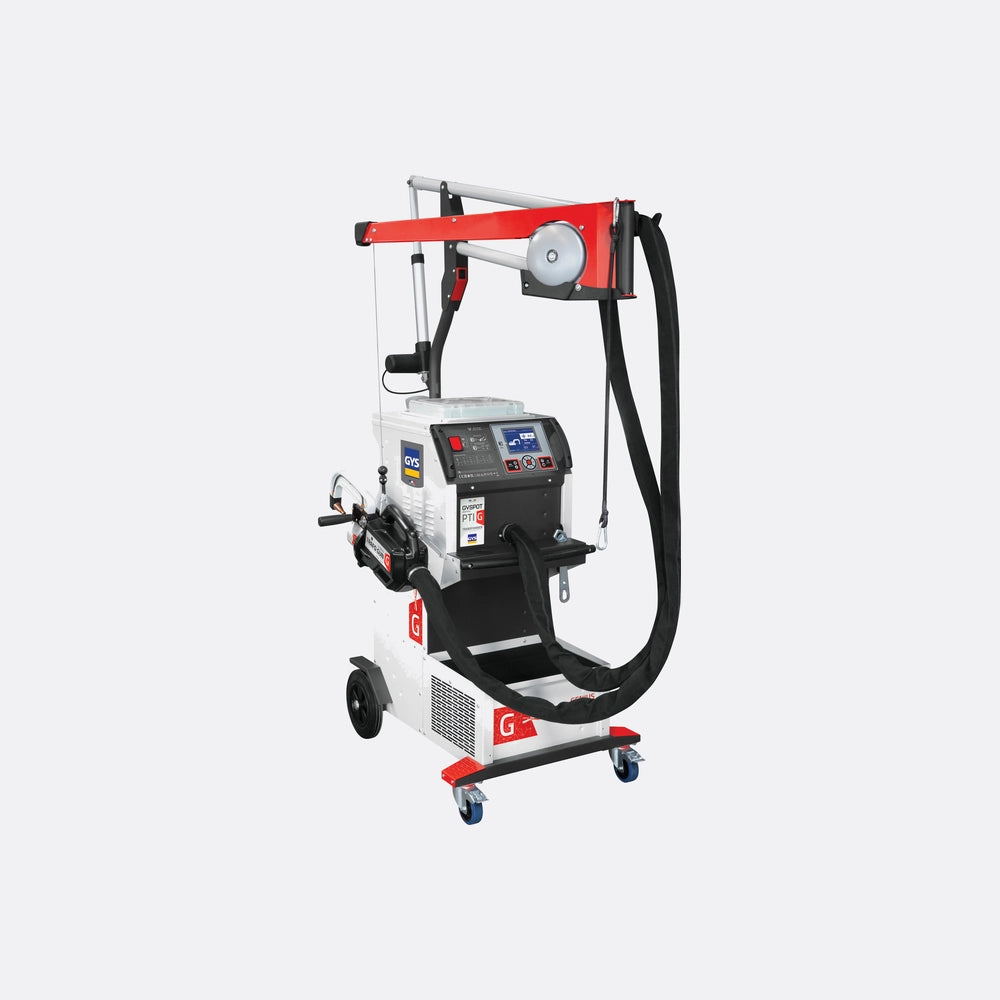

BMW C7502654 - RESISTANCE SPOT WELDER - 400 V

£13,764.32

£13,764.32 £0.00

BMW C7502654 - RESISTANCE SPOT WELDER - 400 V

Name: BMW C7502654 - RESISTANCE SPOT WELDER - 400 V
Brand: GYS
SKU: 085688
Price: 13764.32 GBP
Availability: InStock

Best Price Call 0161 223 1843

BMW C7502654 - RESISTANCE SPOT WELDER - 400 V is a manufacturer-approved spot welding system for OEM-accurate BMW body repairs in professional workshops.

Key Features

BMW-approved OEM repair welder
400 V three-phase operation
High-current resistance spot welding
Preset programs for BMW steels
Adjustable clamping force and arms
Designed for bodyshop durability

Everything we sell is supported by our factory trained engineers at our premesis in Manchester or nationwide through our mobile service engineers.

Returns details can be edited in the theme editor.

Supply

400v

Warranty

2 years

Service

In-house engineers

Support

0161 223 1843

📄

Technical Datasheet

Download the official manufacturer datasheet for BMW C7502654 - RESISTANCE SPOT WELDER - 400 V including specifications, compatibility information and technical details.

Download BMW C7502654 - RESISTANCE SPOT WELDER - 400 V Datasheet

Technical Features

BMW UK approved OEM resistance spot welder based on the GYS GYSPOT PTI GENIUS platform, ensuring processes, arms and programs match BMW body repair requirements
Fully automatic welding mode with built‑in intelligence that measures panel stack, thickness and material, then selects current, time and electrode force without the operator having to input welding parameters

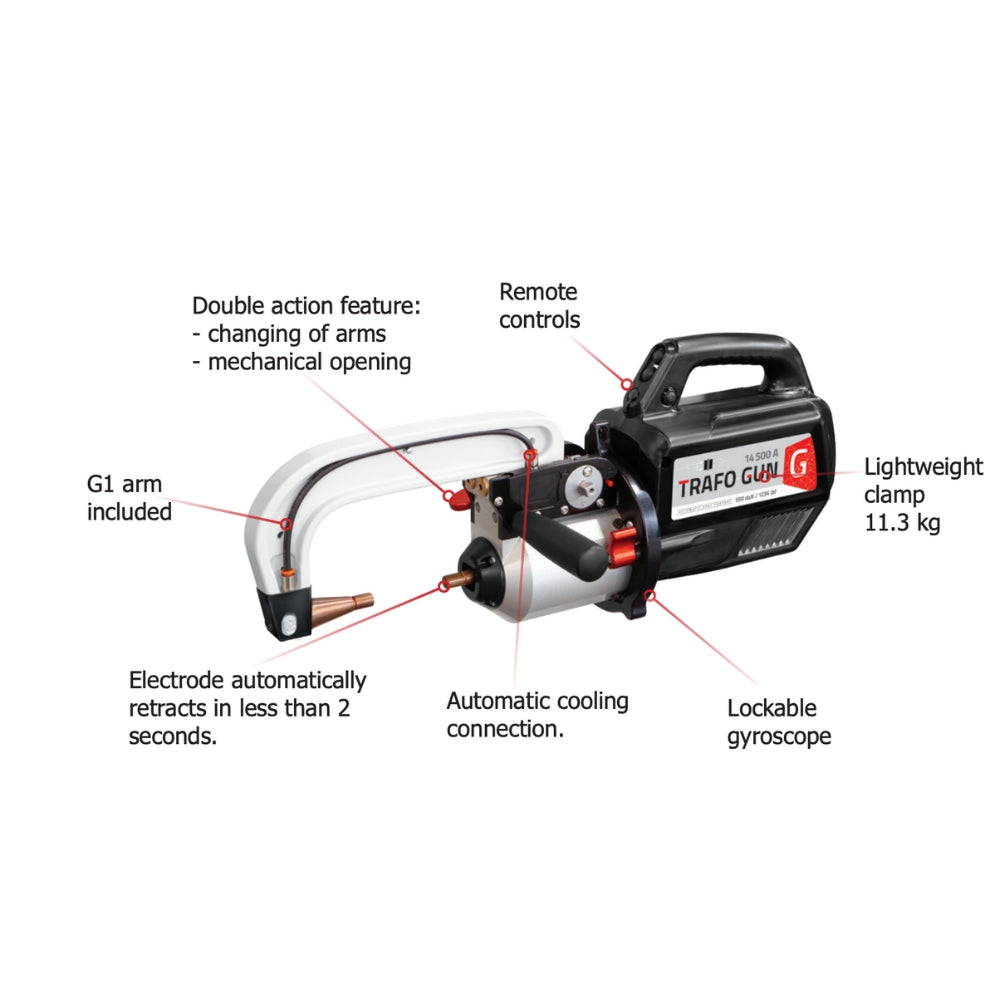

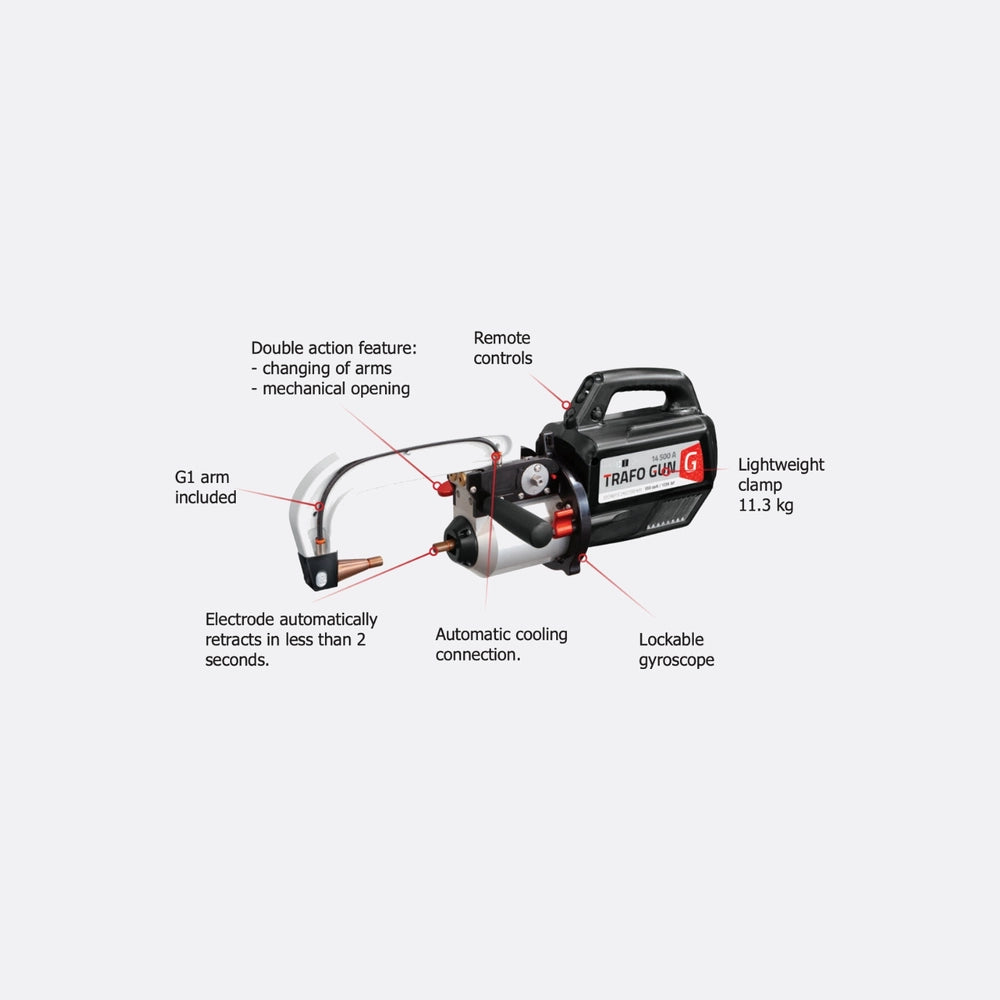

Pneumatic Genius G‑clamp with over‑opening function, allowing the arms to open wide for access around A/B/C pillars, sills and door apertures on modern BMW structures
Automatic arm recognition and arm positioning without manual adjustment, so the welder adapts its settings and clamping force to the specific arm fitted, reducing set‑up time and operator error

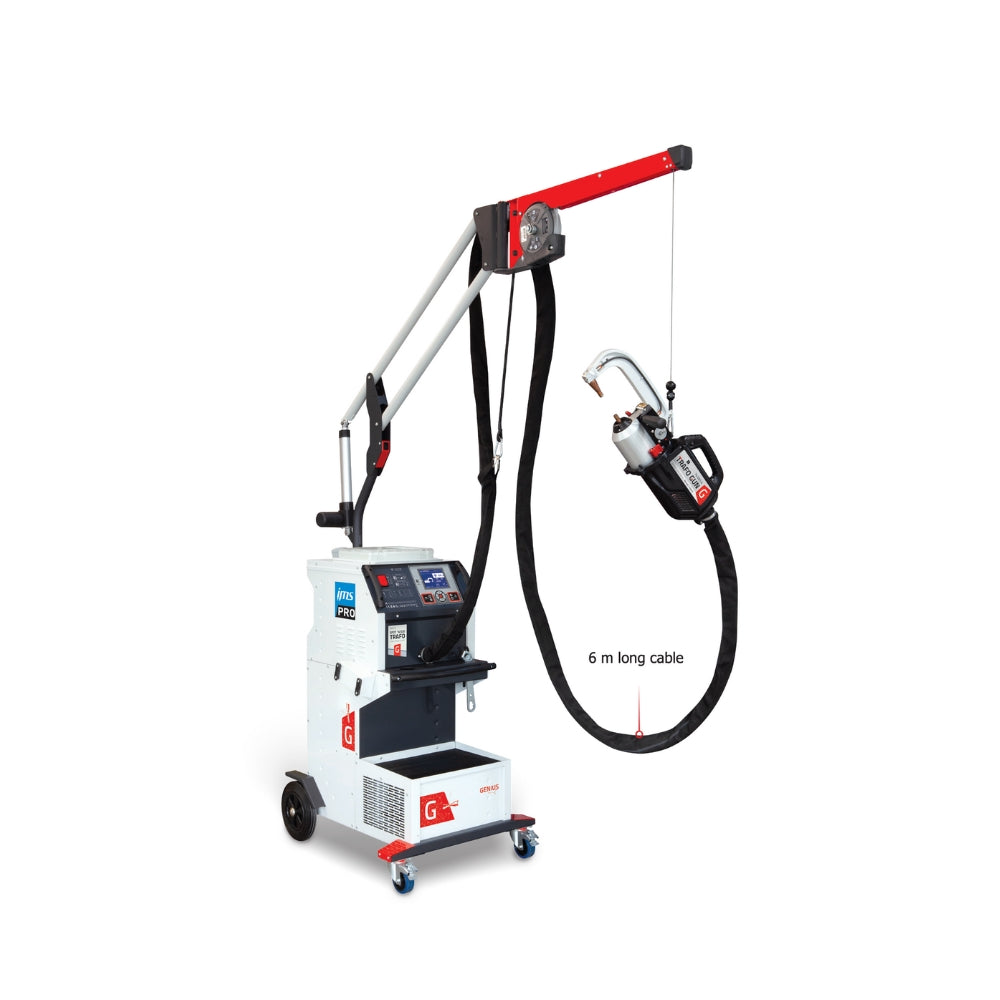

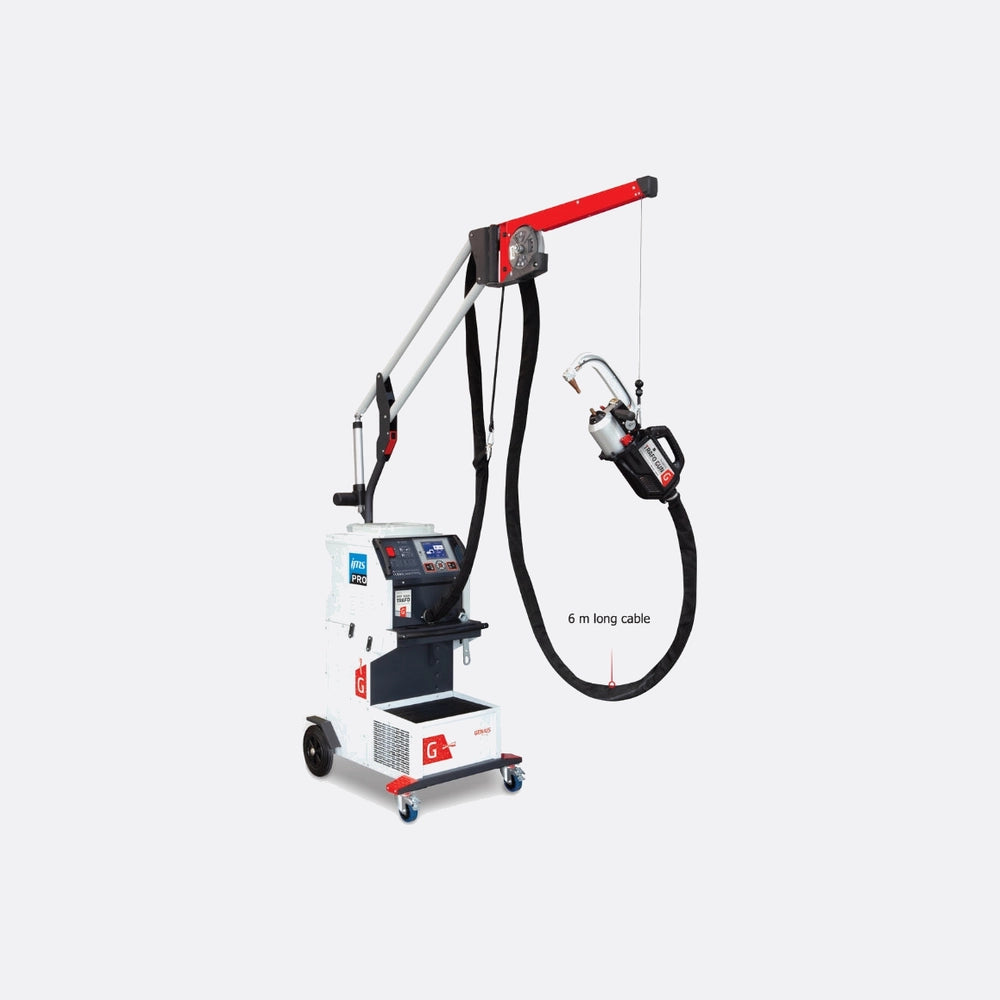

Motorised overhanging boom arm giving a large, clear working envelope around the vehicle, keeping the clamp cable set supported and reducing strain on the operator during roof, side and rear panel work
High‑force C‑clamp design suitable for high‑strength steels and multi‑layer joints used in BMW body structures, maintaining electrode pressure and weld nugget quality under production conditions
Multi‑function control user interface with guided OEM programs, allowing technicians to select the vehicle or joint type and let the machine handle the welding cycle automatically
Data logging and weld traceability capability, enabling storage and printout of weld parameters to support BMW audit and insurer compliance requirements where needed
3 x 400 V three‑phase power supply connection for stable output in professional bodyshops, giving consistent weld performance during intensive use
Water‑cooled transformer, cables and arms to keep electrode temperature under control on long runs and on high‑strength steels, extending electrode life and reducing downtime
Quick‑change arm system with a range of OEM‑approved arms and electrode configurations for access to tight areas, flanges and box sections on BMW models
Automatic thickness measurement and dynamic regulation during the weld, compensating for panel tolerances and coatings to maintain nugget size across the job
Clear on‑torch or clamp‑mounted controls (depending on arm set) so the operator can start, stop and confirm welds directly at the work area without returning to the main panel
Error and diagnostic messages on screen to guide the operator if contact, force or supply conditions are not correct, reducing poor welds and rework
Designed for continuous professional workshop duty, with construction and cooling suitable for busy BMW‑approved and general collision repair centres

WHY BUY YOUR EQUIPMENT FROM US?

Our team of welding experts at BWS is ready to assist you every step of the way. Whether you have questions about specific products, need guidance on selecting the right equipment, or seek welding-related advice, our knowledgeable staff is here to help.

We also have some of the most experienced engineers in the industry who are able to offer full technical support on top of what the manufacturers offer.

Find Our More

Specification

Welding Current

14,500 A

Clamping Force

550 daN with 8 bar air pressure

Power Supply

3 x 400V, 50

Fuse Rating

25 A (D)

Maximum Spots per Minute

20

Open Circuit Voltage

7.0 V

Protection Rating

IP 20

Weight

11.3 kg with G1 arm

Automatic Opening

80 mm (20 mm at rest)

Manual Over-opening

Up to 200 mm

Duty Cycle

18 points per minute

Electrode Caps

Type A-32 Ø16mm

FAQs

Is the BMW C7502654 GYSPOT PTI GENIUS approved for BMW bodyshop repairs?

Yes. This model is a BMW UK approved resistance spot welder and is supplied under the BMW C7502654 reference. It is designed specifically to meet BMW repair process requirements for modern steels and is suitable for active BMW body and collision centres as well as independent repairers working to OEM methods.

What power supply does this welder require and can I run it on single phase?

This version is the 3x 400 V model, so it requires a three-phase 400 V supply. It is not suitable for single-phase operation. In practice you should allow for a suitably rated three-phase circuit, correctly protected and installed by a qualified electrician. If required, BWS can advise on supply sizing and practical routing in your workshop before installation.

What are the main advantages of the Genius G-clamp and overhanging arm for workshop use?

The pneumatic over‑opening Genius G‑clamp gives a large jaw opening and high electrode force with minimal operator effort, which is important when working on thicker stack‑ups and modern high‑strength steels. Arm positioning without manual adjustment and the motorised overhanging arm give a clear working area and quick access around the vehicle, so you spend less time wrestling with the gun and more time actually welding. This is particularly useful on roof gutters, door apertures and sill areas on BMW vehicles.

Can BWS supply, install and support this BMW C7502654 spot welder?

Yes. BWS supplies this machine complete with technical advice, on‑site installation and commissioning by qualified engineers. We can help you specify the correct arms and electrodes for BMW work, train your technicians on correct settings and test procedures, and provide ongoing service, calibration and repair support to keep the welder compliant and reliable in daily bodyshop use.

Expert Advice

Paul Jones says

This is a 400 V resistance spot welder intended for OEM-Approved structural work on BMW bodies. In a proper bodyshop set-up it will usually sit in a fixed bay, with good access around the vehicle and a dedicated power and cooling supply. Day to day, it is used for replacing OEM spot welds on panels, sills and structural sections where MIG brazing or bonding is not specified.

The critical points are a stable three-phase supply and correct tip dressing and pressure. Poor copper condition or contaminated electrodes will give erratic nugget size and fail destruct tests, even if the machine is technically capable. You also need to keep the arms, caps and cables matched to the OEM procedures, otherwise access and weld quality suffer.

A common issue we see is underestimating how clean the metal needs to be between flanges, especially with zinc and factory sealers left in place. When installed correctly, checked with regular weld tests and maintained, this kind of welder gives consistent, repeatable joints and keeps BMW approval inspections straightforward.

Paul Jones, Technical Director
