PARWELD XTS163 MMA INVERTER

XTS163

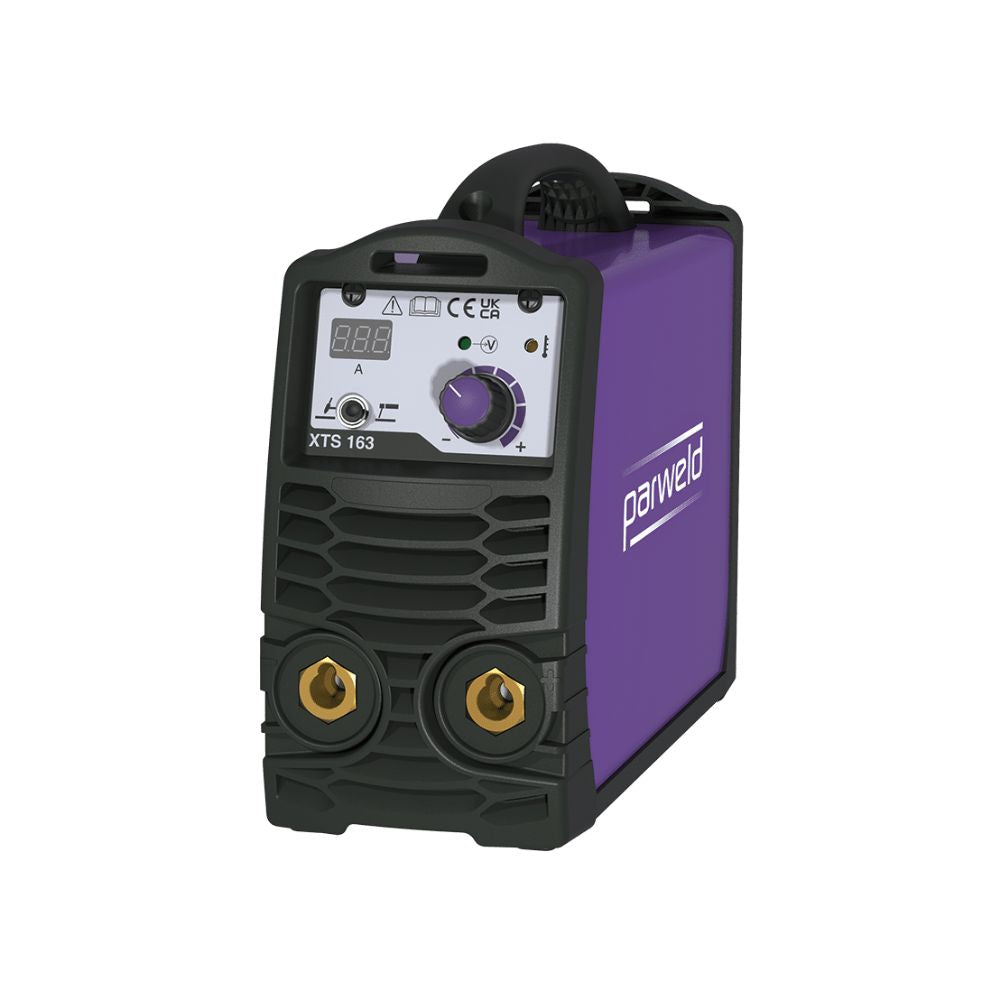

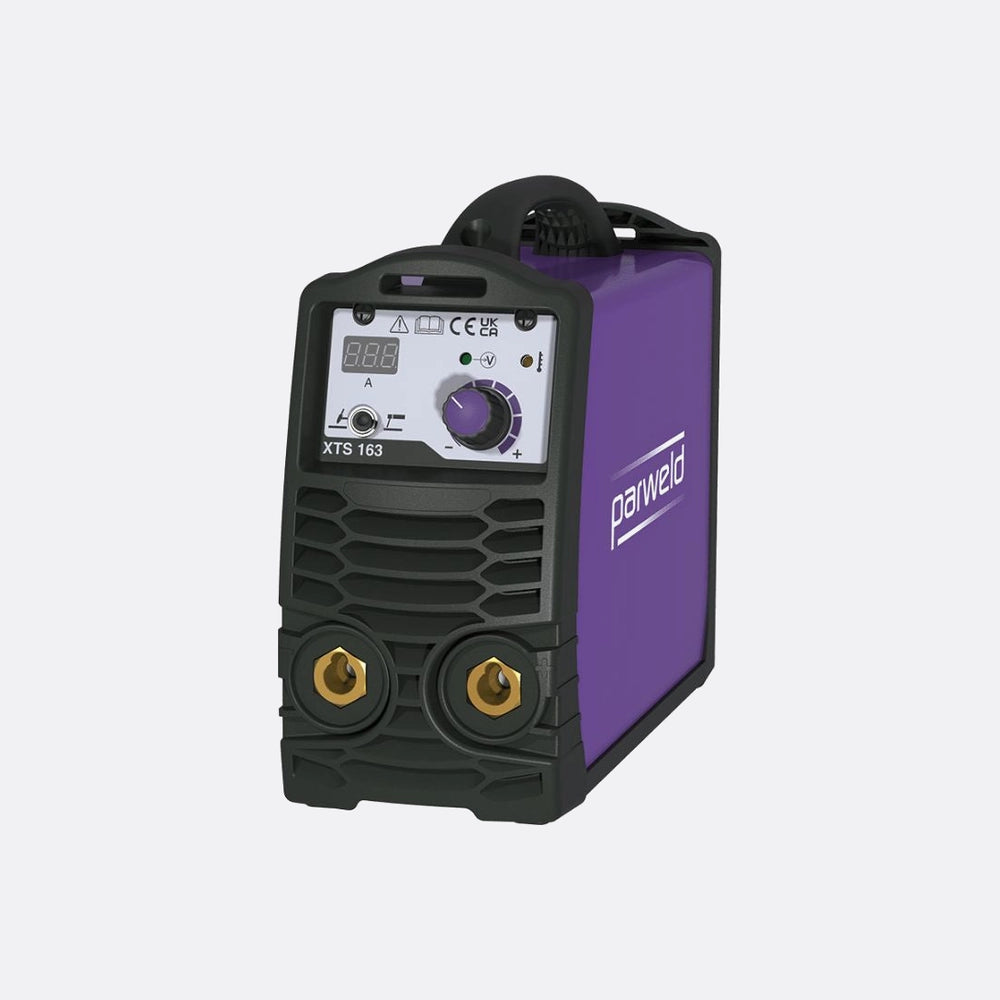

The Parweld XTS 163 Inverter Arc Welder (MMA)  230V

SKU XTS163

Parweld Inverter With MMA + TIG Torch Leads uses the latest technology to provide a compact and reliable machine, ideal for everyday applications.

The XTS 163 is generator friendly able to cope with inputs that fluctuate by +/-15% & can be used with the majority of generators.

Electrodes up to 3.2mm can be used with ease.

TIG WELDING

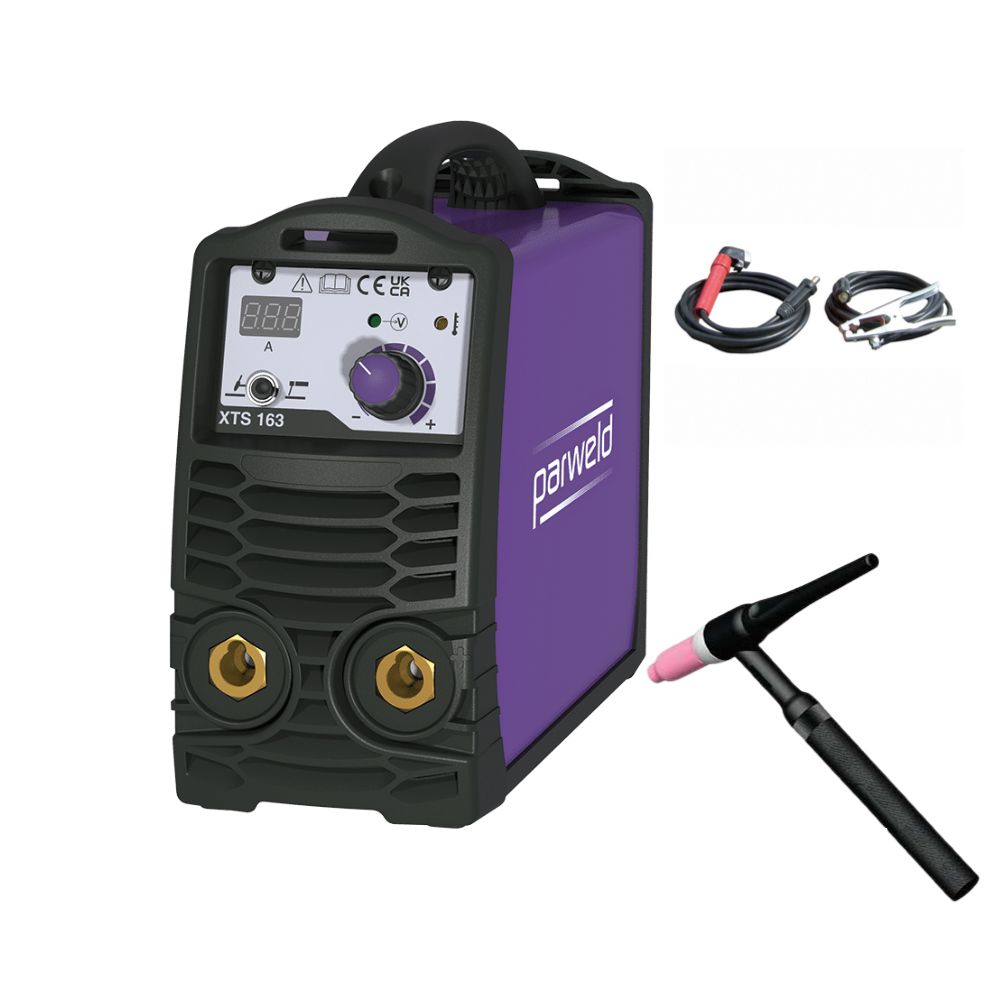

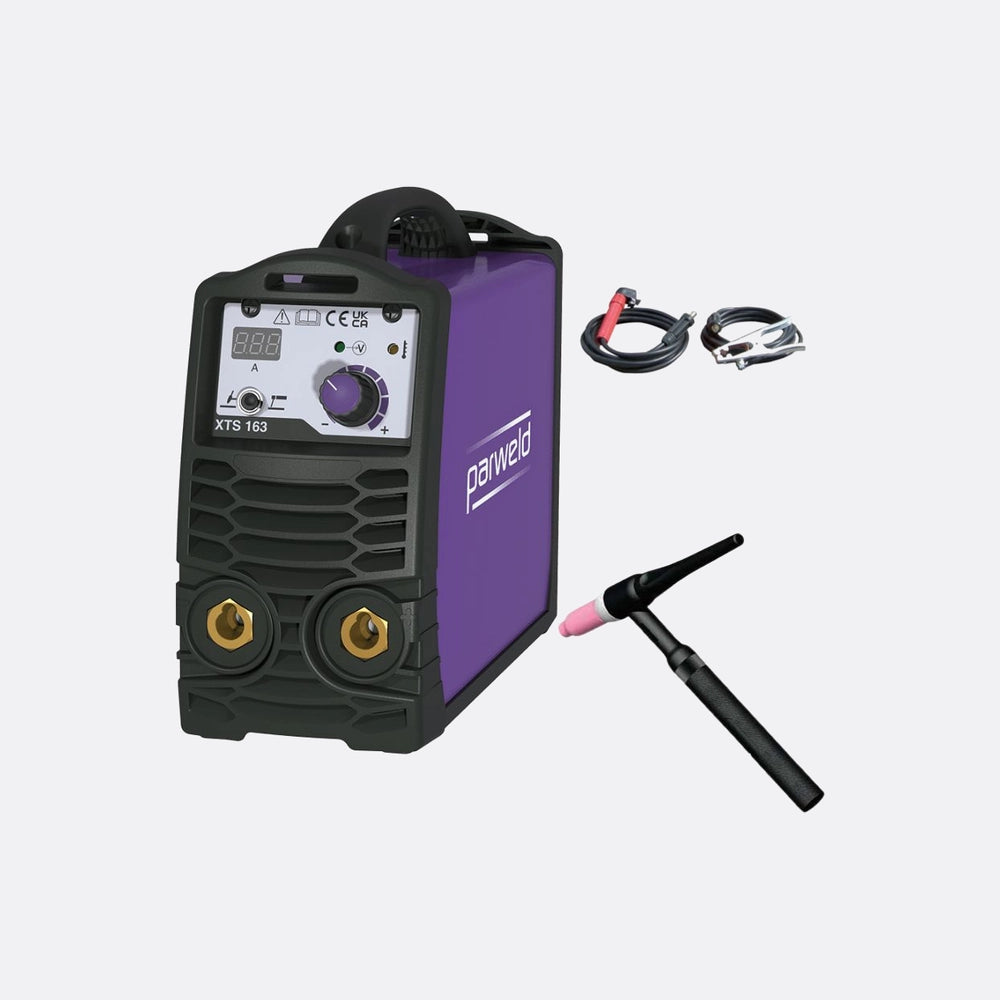

By fitting the optional TIG torch and coupling to a suitable gas supply the XTS 163 can be used for TIG welding and is suitable for welding steel and stainless steel.
The lift arc mode limits the arc current when the tungsten touches the workpiece preventing electrode damage.

Download PARWELD XTS163 MMA INVERTER


• 230V input
• Lightweight 4.7kg
• 160A @ 25% duty cycle
• Electrode striking with arc force and re-striking with hot start
• Supplied with electrode holder, 3m cable & 3m earth lead
• Connections 35-50mm dinse
• Digital amperage display
• Over voltage & over current protection
• 3 Years return to base warranty + 3 years servicing plan
• Manufactured to IP23S, ISO/IEC 60974-1, ISO/IEC 60974-6 & RoHS Compliant

Manufacturer: Parweld
Part No. XTS163-P1
Supply: 230V
Fuse: 16A
Output: 160A @ 25% Duty Cycle
