AVDEL XT2 POP BLIND RIVET TOOL

Sale Sale
Original price £990.32
Original price £990.32 - Original price £990.32
Original price £990.32
Current price £940.80
£940.80 - £940.80
Current price £940.80

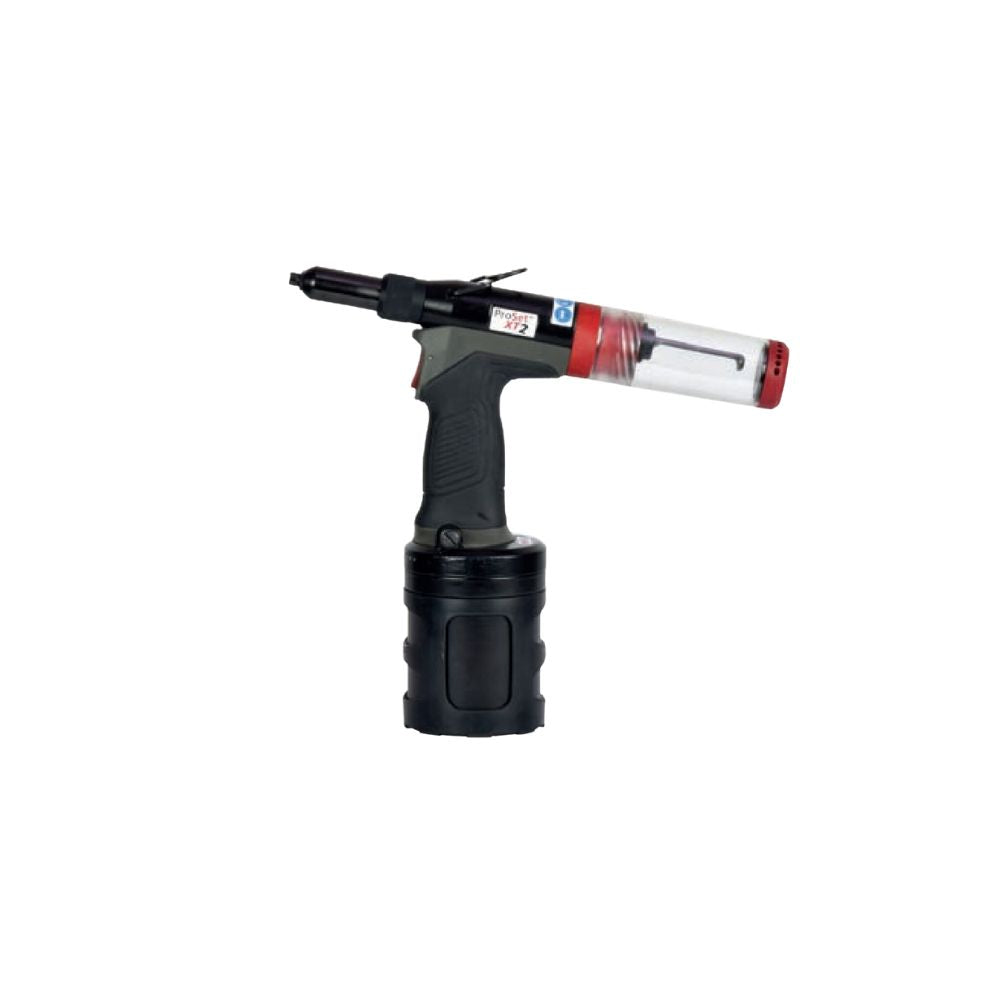

AVDEL XT2  POP BLIND RIVET TOOL

Avdel Blind (Pop) Rivet tool 3.0-4.8mm 8.9kn Force

BENEFITS

  • Lightweight, Fast Operation
  • 3.0mm - 5.0mm Setting Capacity
  • Capable Of Setting Structural Rivets
  • Nose Pieces Included

FEATURES

Compact, lightweight and reliable pneumatic/hydraulic power tool, ideal for production line environments.

The ProSet XT2 tool sets new standards for pneumatic rivet tools. Designed specifically to set a wide range of break stem rivets, this tool delivers 8.9 kN of pull force with an outstanding force-to-weight ratio of 7.18 kN/kg.

The robust tool rubber base is designed to avoid damage. Latest technology lip seals maximise re-priming intervals. Piston bearing rings ensure maximum robustness and tool life.

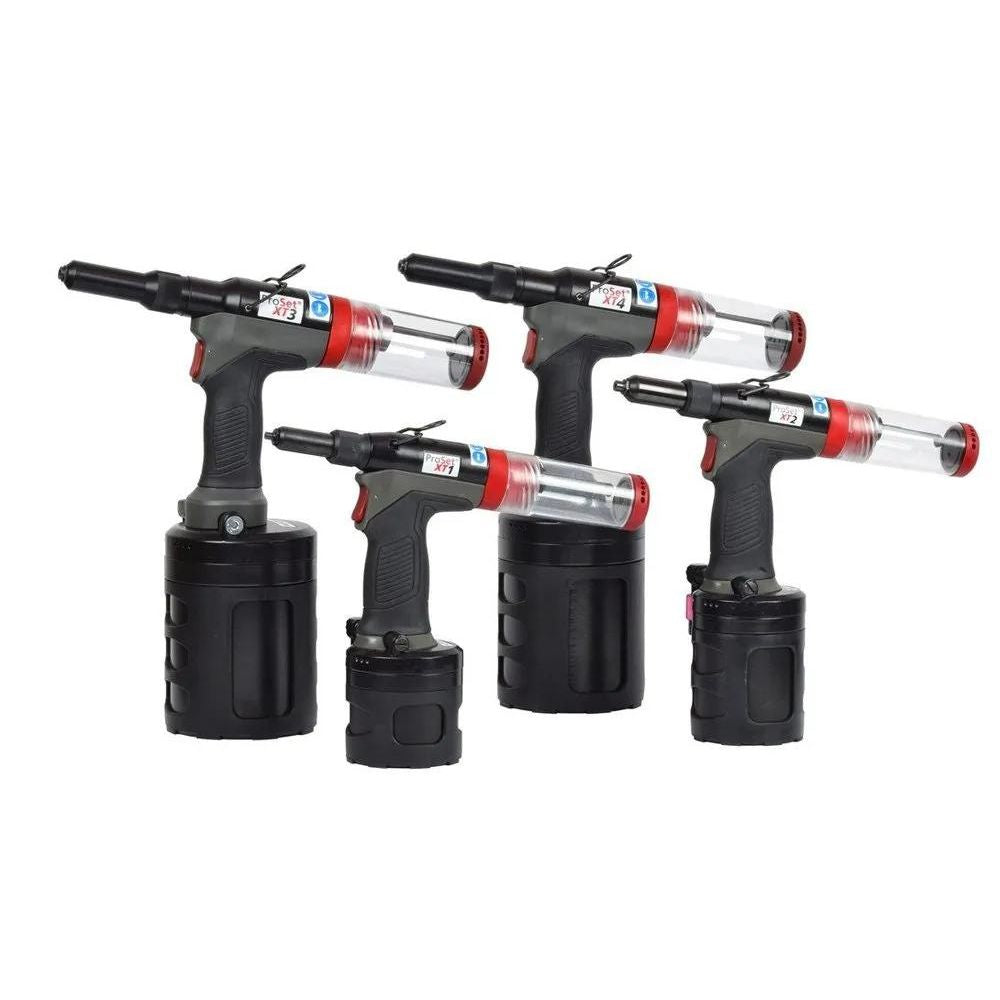

The POP Avdel ProSet® XT tool line has many innovative high-performance features including a patented "Quick Disconnect" nose housing and jaw case for rapid cleaning and maintenance of the front end without the need for any tools.

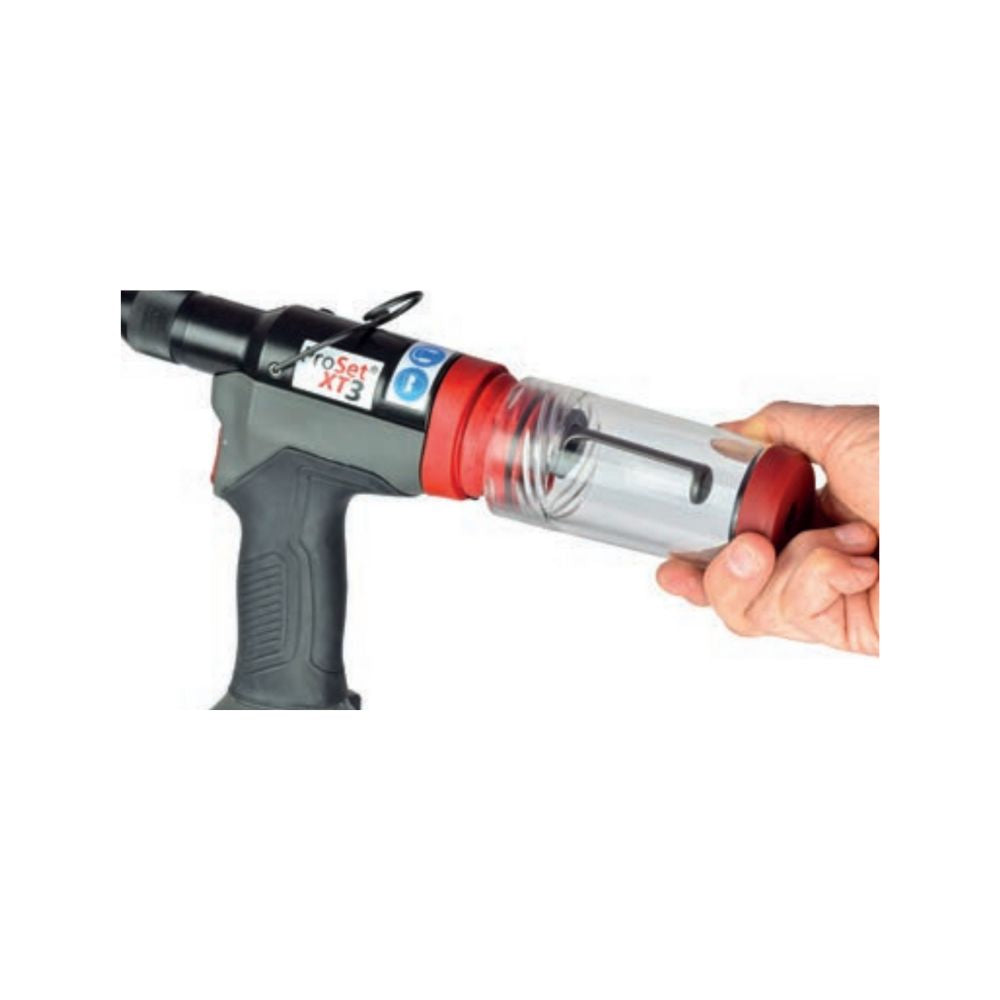

The quick disconnect Mandrel Collection System (MCS) safely collects spent mandrels for quick, easy disposal and cleaner work areas. An air-isolation switch on the MCS prevents air flow when the MCS is disconnected. A left or right 90° swivel air fitting ensures the tools can be adapted to virtually any workstation configuration, while the "on/off" switch minimises air consumption and noise.

PERFORMANCE

  • High force-to-weight ratio
  • Quick disconnect nose housing and jaw case for easy maintenance and service
  • Clear quick release mandrel collector bottle reduces downtime
  • Integral exhaust valves for fast setting cycles

ERGONOMIC

  • Class-leading lightweight construction with balanced handling
  • Comfortable, low activation force trigger
  • Adjustable vacuum exhaust direction
  • Economy & Safety
  • Air isolation switch during MCS removal
  • On/Off, left or right swivel air fitting provides flexibility and conserves energy

BENEFITS

  • Lightweight, Fast Operation
  • 3.0mm - 5.0mm Setting Capacity
  • Capable Of Setting Structural Rivets
  • Nose Pieces Included
  • New Hybrid Version POP Proset 2500 & Avdel NG1
SPECIFICATION
Model Proset XT2
Part Number 76002-00001
Type Air Riveter
Setting Capacity 3.0mm - 5.0mm
Contents POP Proset XT2 Air Riveter & Nose Pieces.
Weight 1.26kg
Operating Air Pressure 5 - 7 bar
Operating Mode Compressed air
Stroke 20mm
Traction Power 8.9 kN at 5.5 bar
