Workhorse Diesel Air Compressor Tandem 10hp 150l/ES

Name: Workhorse Diesel Air Compressor Tandem 10hp 150l/ES
Brand: wilkinsonstar247
SKU: WRDI10HP-150S/ES
Price: 3429.30 GBP
Availability: InStock

£3,429.30

Shipping calculated at checkout.

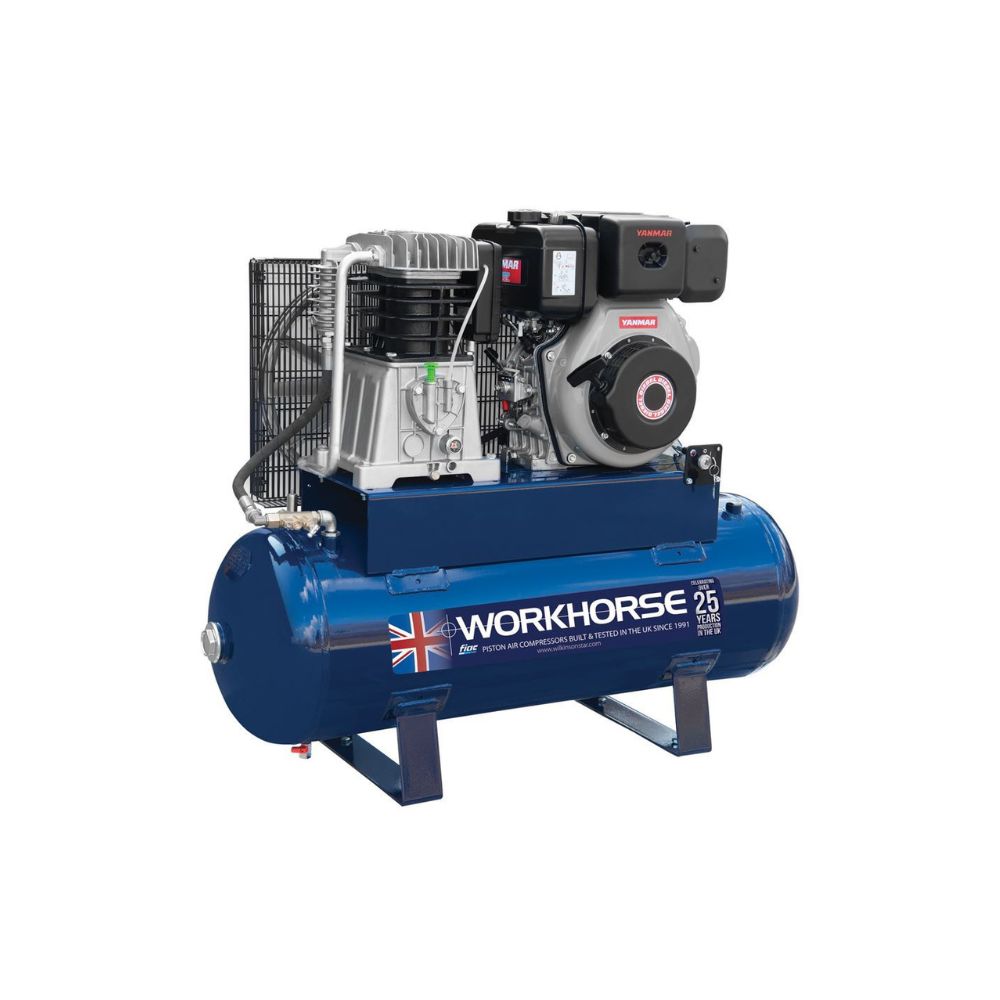

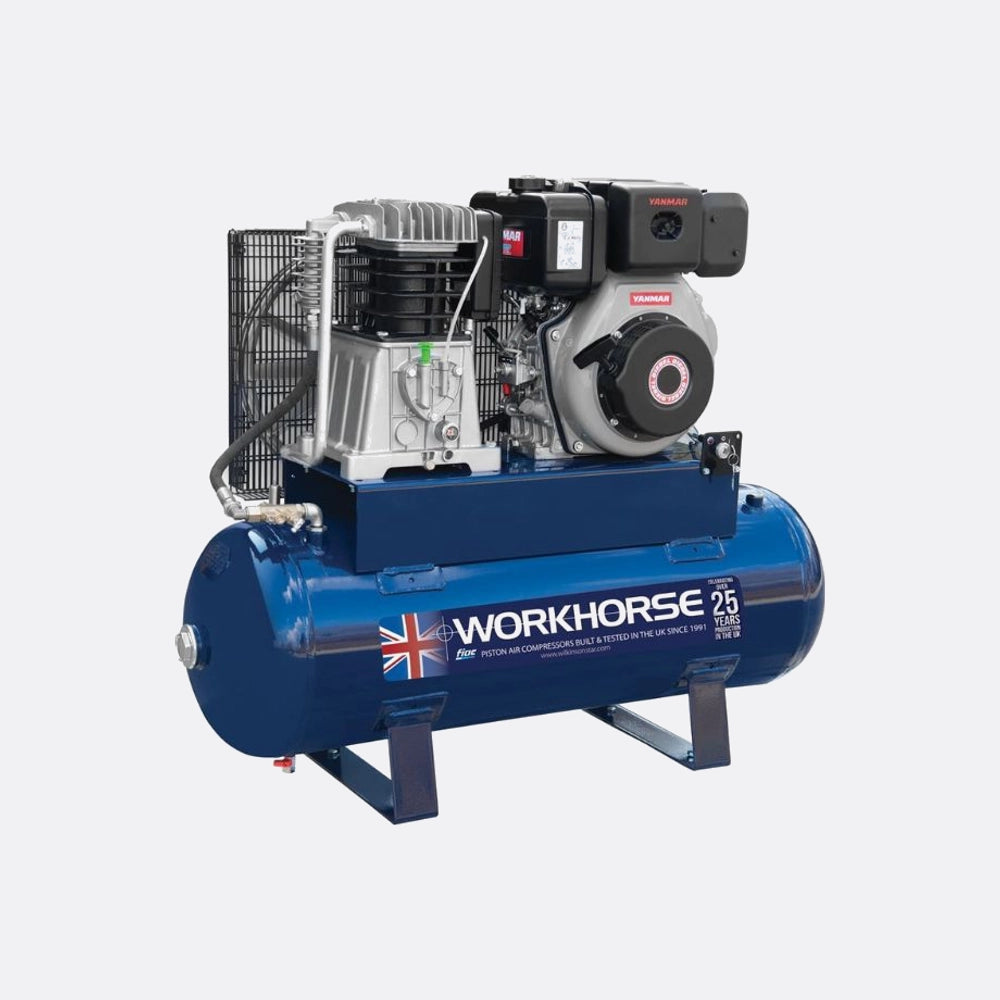

Workhorse Diesel Air Compressor Tandem 10hp 150l/ES is a belt-driven, twin-cylinder diesel compressor providing reliable 10hp air delivery from a 150 litre receiver for professional workshop and mobile use where mains power is not available.

Key Features

10hp diesel drive for remote sites
150 litre static air receiver
Twin cylinder two stage pump
Low vibration compact diesel engine
Recoil and electric start options
Cast iron block with aftercoolers

Everything we sell is supported by our factory trained engineers at our premesis in Manchester or nationwide through our mobile service engineers.

Returns details can be edited in the theme editor.

Warranty

2 years

Service

In-house engineers

Support

0161 223 1843

Expert Advice

Paul Jones says

This is a diesel-driven static air compressor designed for sites where you either have no mains supply or want to keep electrical load off the workshop. In practice I see these used for mobile body repair, farm work, remote fabrication, and as a back-up air source for small bodyshops during electrical work or outages.

Being diesel, the main considerations are fuel quality, ventilation, and noise. You’re dealing with a 10 hp unit on a 150 litre receiver, so treat it like any other engine-driven plant: solid mounting, clear airflow around the engine, and regular checks on oil, filters and drive belts. Make sure your air demands – particularly for DA sanders, spray guns and blow-off – are matched to its free air delivery, not just displacement.

A common issue I see is neglecting condensate drainage and receiver inspections because it is “only the backup compressor”. That shortens receiver life quickly. Set it up correctly, maintain it like your primary unit, and it will give reliable air when your workshop needs it most.

Paul Jones, Technical Director

📄

Technical Datasheet

Download the official manufacturer datasheet for Workhorse Diesel Air Compressor Tandem 10hp 150l/ES including specifications, compatibility information and technical details.

Download Workhorse Diesel Air Compressor Tandem 10hp 150l/ES Datasheet

WHY BUY YOUR EQUIPMENT FROM US?

Our team of welding experts at BWS is ready to assist you every step of the way. Whether you have questions about specific products, need guidance on selecting the right equipment, or seek welding-related advice, our knowledgeable staff is here to help.

We also have some of the most experienced engineers in the industry who are able to offer full technical support on top of what the manufacturers offer.

Find Our More

Technical Features

Low vibration compact diesel engine for workshop use where mains electricity is limited.
Electric start with recoil backup for straightforward starting and redundancy.
Twincylinder twostage pump for better efficiency and reduced strain on the drive system.
Cast iron cylinder block for durability and longer service life.
Fitted aftercoolers to help improve air quality and reduce moisture carryover.
Aerodynamic flywheel cooling to support stable running and better heat management.
10 bar working pressure with a 12 bar option available for applications needing extra headroom.
150litre air receiver for a useful reserve of air in workshop and mobile settings.
Low running speed design for lower noise and improved longevity.
Suitable for bodyshops, garages and fabrication work where a diesel compressor is needed away from fixed electrics.

Specification

Order Code

WRDI10HP-150S

Motor Power

10HP diesel engine

Tank Capacity

150 litres

Displacement

29.8 CFM

Free Air Delivery

23 CFM

Maximum Pressure

10 bar

12 Bar Option

Available

Start System

Recoil and electric start (battery and cables not supplied)

Pump Type

Twin cylinder two stage

Cylinder Block

Cast iron

Aftercoolers

Fitted

Cooling

Aerodynamic flywheel

Compressor Type

Static

Dimensions

1350 x 480 x 1200mm (L x W x H)

Weight

186kg

Engine Emissions Stage

Stage 5

Manufacturing Location

Built and tested in the UK

Engine Warranty

3 years

Compressor Warranty

1 year limited warranty

FAQs

Is the Workhorse Diesel Air Compressor Tandem 10hp 150l/ES suitable for workshops without a strong electrical supply?

Yes. This model is diesel engine driven with electric and recoil start, so it does not rely on mains power for the compressor drive. It is aimed specifically at workshops, garages and mobile setups where three-phase or high‑capacity electrical supply is not available, but reliable air delivery is still needed.

What air output and pressure can I expect from the Workhorse 10hp 150 litre diesel compressor?

The unit is rated at 10hp with a 150‑litre receiver. It delivers 29.8 CFM displacement and 23 CFM free air delivery at up to 10 bar as standard, with a 12 bar option available. In practice, that is enough for most professional tasks such as air tools, spray equipment and general workshop use, provided the total demand is matched to the 23 CFM FAD figure.

What are the key mechanical features that matter for workshop reliability on this compressor?

It uses a low‑vibration diesel engine driving a twin‑cylinder, two‑stage pump with a cast iron cylinder block. The compressor is belt‑driven with fitted aftercoolers and an aerodynamic flywheel for better cooling. This slow‑running, heavy‑duty arrangement reduces noise, keeps running temperatures under control and extends service life in daily professional use.

What warranty and support are available, and can BWS service this compressor on site?

Workhorse compressors are built and tested in the UK and supplied with a manufacturer warranty on the engine and compressor, plus a 150‑litre receiver built to current standards. BWS backs this up with UK‑wide mobile service engineers for installation, servicing and repair, along with technical advice on sizing, correct setup and matching the compressor to your workshop air demand.
