WORKHORSE AIR COMPRESSOR 4HP 200L 230V

WORKHORSE AIR COMPRESSOR 4HP 200L 230V

£930.30
Skip to product information
WORKHORSE AIR COMPRESSOR 4HP 200L 230V
  • WORKHORSE AIR COMPRESSOR 4HP 200L 230V
  • WORKHORSE AIR COMPRESSOR 4HP 200L 230V
WORKHORSE AIR COMPRESSOR 4HP 200L 230V

WORKHORSE AIR COMPRESSOR 4HP 200L 230V

£930.30
Shipping calculated at checkout.

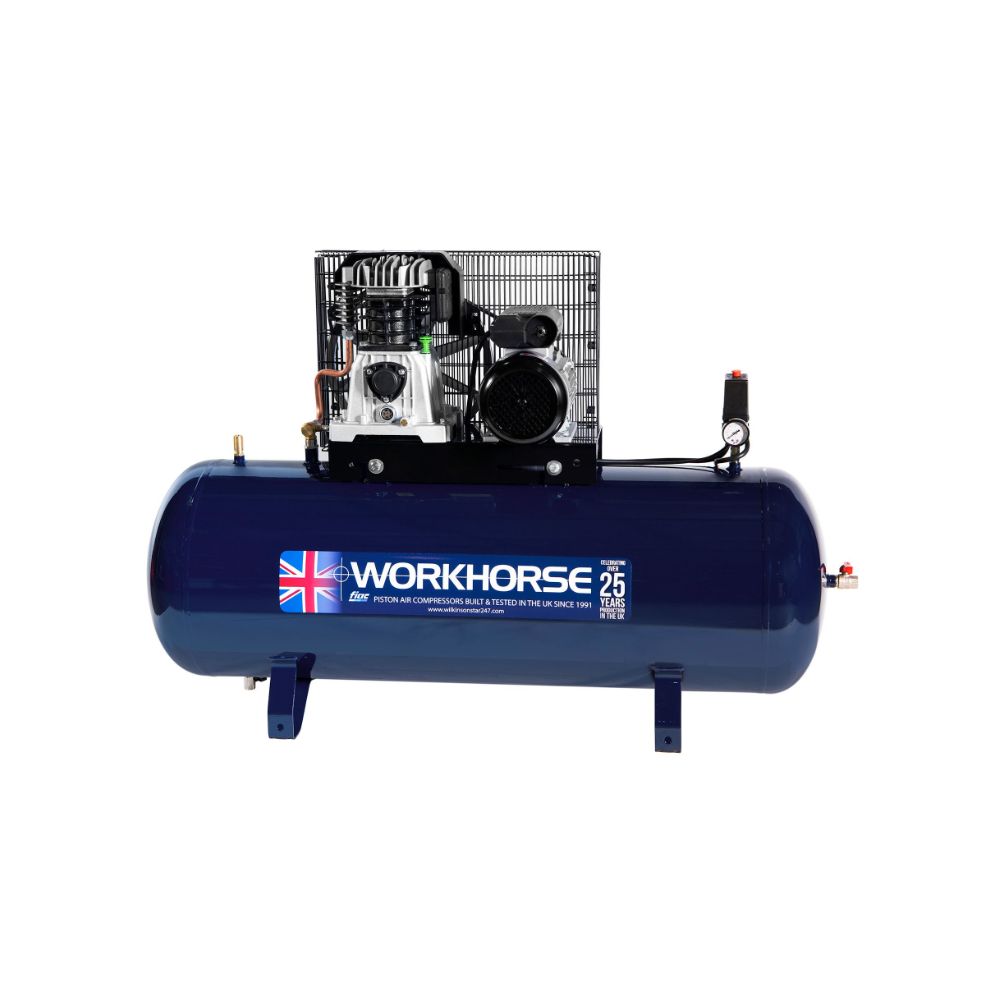

The WORKHORSE AIR COMPRESSOR 4HP 200L 230V is a belt-driven, single-phase workshop compressor designed to support multiple professional pneumatic tools from a 200 litre stationary receiver.

Key Features

  • 4HP single-phase motor
  • 200 litre static receiver
  • Belt-driven twin-cylinder pump
  • Approx 13 CFM free air delivery
  • Automatic start/stop control
  • Cast iron block, slow-running
Technical Support

Everything we sell is supported by our factory trained engineers at our premesis in Manchester or nationwide through our mobile service engineers.

Delivery + Returns

Returns details can be edited in the theme editor.
Supply voltage

Supply

230V

Warranty

Warranty

2 Years

Free delivery

Free Delivery

UK mainland delivery

Service engineers

Service

In-house engineers

Technical support

Support

0161 223 1843

Expert Advice

Paul Jones

Paul Jones says

This is a belt driven, 4 hp, 200 litre, single phase workshop compressor, intended for general air supply in a bodyshop or fabrication bay. In practice it sits as a static unit feeding spray guns, blow guns, air tools and tyre inflation, and with the right plumbing can support panel repair equipment and light blasting.

With around 13 cfm free air delivery on 230 V, it’s suitable for one main user or a couple of lighter users, not a full production line. Correct electrical supply is critical – these 4 hp single‑phase machines typically need a dedicated 30 A circuit and good cabling, or you’ll see nuisance tripping and hard starting under load.

A common issue I see is trying to run high‑demand tools (large DA sanders, continuous blasting, multiple spray guns) off a single 200 L unit; the compressor spends its life at maximum duty cycle, runs hot and wears out faster. Pipework size and water separation are also often overlooked.

Set up with proper electrics, sensible air demand and decent filtration, these compressors are a reliable workhorse and efficient for day‑to‑day bodyshop and workshop use.

Paul Jones, Technical Director

📄

Technical Datasheet

Download the official manufacturer datasheet for WORKHORSE AIR COMPRESSOR 4HP 200L 230V including specifications, compatibility information and technical details.

Download WORKHORSE AIR COMPRESSOR 4HP 200L 230V Datasheet
Bodyshop Equipment Engineers

WHY BUY YOUR EQUIPMENT FROM US?

Our team of welding experts at BWS is ready to assist you every step of the way. Whether you have questions about specific products, need guidance on selecting the right equipment, or seek welding-related advice, our knowledgeable staff is here to help.

We also have some of the most experienced engineers in the industry who are able to offer full technical support on top of what the manufacturers offer.

Find Our More

Technical Features

  • Cast iron twincylinder, beltdriven pump unit designed for continuous workshop duty with slowrunning pump speed for reduced noise and longer service life.
  • 200‑litre horizontal receiver sized for stable air delivery on bodyshop tools such as spray guns, DA sanders and small blasting or airfed mask systems.
  • Single‑phase 230 V, 4 hp heavy‑duty industrial motor with built‑in overload protection, suitable for correctly fused 30 A workshop supplies.
  • Automatic start/stop pressure switch control so the compressor cuts in and out on tank pressure with no manual intervention during normal operation.
  • Pre‑wired, static installation format supplied ready to connect to a suitable electrical supply and fixed air line, minimising setup time.
  • Integrated aftercooler and large aerodynamic flywheel to improve cooling, reduce outlet air temperature and help limit moisture carryover into the airline.
  • Air receiver built and certified to current European pressure vessel standards (09/105 CE / 2014/29EU), suitable for professional bodyshop and garage use.
  • Noise‑reduced operation from the slow‑running pump, cast iron block and belt drive layout, making it more acceptable in busy workshop environments.
  • Robust cast iron cylinder block construction for better heat dissipation, wear resistance and long service intervals under regular daily use.
  • Twin‑cylinder pump and 4 hp output giving a high displacement and free air delivery, appropriate for running multiple light air tools or a single higher‑demand tool.
  • ½" BSP female outlet on the receiver for straightforward connection into fixed workshop ring mains, filter/regulator units or quick‑release manifolds.
  • UK‑built and tested in Manchester with a 2‑year limited on‑site warranty, giving reassurance on parts, labour and long‑term service support.

Specification

Horsepower
4.0 HP
Tank Volume
200 Litres
Input Voltage
230V
Electrical Phase
Single phase
Displacement
17.7 CFM
Free Air Delivery
13.2 CFM
Dimensions
1520 x 540 x 1050 mm
Warranty
2-year conditional warranty

FAQs

Is the Workhorse 4HP 200L 230V compressor suitable for a professional bodyshop or garage?
Yes, this 4HP, 200‑litre, belt‑driven Workhorse unit is built for regular workshop use. It uses a cast iron, twin‑cylinder pump, runs at slow speed for lower noise and longer life, and has automatic stop/start control. It suits typical bodyshop and garage tasks such as spray guns, air tools and general workshop air, provided the demand matches its free air delivery. If you are unsure about your air demand (CFM) versus this compressor’s output, BWS engineers can advise based on your current and future tooling.
What power supply does the Workhorse 4HP 200L compressor need?
It is a single‑phase 230V machine and typically requires a 30A supply due to the 4HP motor’s start‑up current. In practice this means it should be wired to a dedicated 230V circuit by a qualified electrician, not run from a 13A plug. For UK workshops, we normally recommend having your electrician confirm cable size, breaker type and run length to avoid nuisance tripping and voltage drop.
What air output and pressure can I expect from this compressor, and what tools will it run?
The Workhorse 4HP 200L model has a displacement of around 17–18 CFM with a free air delivery of roughly 13 CFM at up to about 10 bar (145 psi). In real workshop terms, it will comfortably run one spray gun, most ½ inch impact wrenches, air blow guns, small grinders and typical bodyshop tools one at a time. Continuous high‑demand tools such as large DA sanders or multiple bays running together may need either a larger compressor or an additional receiver. BWS can size the compressor properly against your air tools list and duty cycle.
What installation, maintenance and warranty considerations are there for workshop use?
The unit should be installed on a level floor with good ventilation, ideally with anti‑vibration mounts and hard‑piped or quality flexible hose to your air ring main. Drain the 200L receiver daily or fit an automatic drain, and follow the oil change and service intervals to maintain the 2‑year warranty. The receiver is built and tested to current European standards and includes automatic stop/start controls and overload protection. BWS can support with installation advice, routine servicing, genuine parts and breakdown repair to keep downtime to a minimum in professional workshops.
