Thinkcar Thinktool Hd Reader

Name: Thinkcar Thinktool Hd Reader
Brand: Impact Diagnostics
SKU: TTRHD5
Price: 995.00 GBP
Availability: InStock

£995.00

Shipping calculated at checkout.

THINKTOOL READER HD is an entry-level intelligent diagnostic instrument for more than 31 commercial vehicles

Complete capabilities for codes live data, and actuation tests.

Complete capabilities for full vehicle scan, read and clear DTCs, live data stream, read version information, special function, actuation test and generate test reports.

Also includes the most common special functions integrated such as :

DPF Regeneration,

Injector Coding,

Reset Service(MIL),

Maintenance Confirmation,

Injection Quantity Adjustment,

Particulate Filter Replacement Reset,

Reset Pressure Differential Sensor,

Reset Pressure Limiting Valve,

Bleeding The Adblue Circuit,

VGT Electronic Actuator Installation And Calibration,

Trip Reset, Parked SCR Efficiency Test, DPF Ash Accumulator Reset and more.

Everything we sell is supported by our factory trained engineers at our premesis in Manchester or nationwide through our mobile service engineers.

Returns details can be edited in the theme editor.

Service

In-house engineers

Support

0161 223 1843

Expert Advice

Dan Jennings says

The THINKCAR THINKTOOL HD READER is a compact diagnostic tool for commercial vehicles, HGVs and machinery, rather than a general passenger-car scanner. In a working garage or bodyshop, I would use it for an initial full-system scan, checking live data, confirming fault codes and carrying out relevant tests before parts are replaced.

Its value depends on selecting the correct vehicle and system, then using the appropriate heavy-duty connection lead or adaptor. Coverage includes many common truck and machinery makes, but technicians still need to check the exact model, engine and communication system before relying on a particular function. The unit supports useful operations such as DPF regeneration, injector coding and AdBlue-related procedures where the vehicle software allows them.

A common issue is treating a stored code as a failed component. Live readings, freeze-frame data and an actuation test should be checked together, particularly on emissions and aftertreatment systems. Used correctly, it provides a practical first-line diagnostic check and can reduce unnecessary component changes.

Dan Jennings, Senior Engineer

WHY BUY YOUR EQUIPMENT FROM US?

Our team of welding experts at BWS is ready to assist you every step of the way. Whether you have questions about specific products, need guidance on selecting the right equipment, or seek welding-related advice, our knowledgeable staff is here to help.

We also have some of the most experienced engineers in the industry who are able to offer full technical support on top of what the manufacturers offer.

Find Our More

Technical Features

Designed for diagnostics on more than 31 commercial vehicle, heavyduty truck, bus and machinery brands
Supports full vehicle scans across supported vehicle systems
Reads and clears diagnostic trouble codes
Displays live data streams for realtime system monitoring
Reads freezeframe data to help assess fault conditions
Runs actuator and component activation tests
Displays vehicle and ECU version information
Provides trip information for supported vehicles
Generates diagnostic test reports for workshop records
Includes DPF regeneration functions
Supports commercial vehicle injector coding
Provides service and MIL reset functions
Confirms maintenance procedures after servicing
Supports injection quantity adjustment
Resets particulate filter replacement information
Resets pressure differential sensor values
Resets pressure limiting valve values
Bleeds the AdBlue circuit on supported systems
Supports VGT electronic actuator installation and calibration
Provides trip reset functions
Runs parked SCR efficiency tests
Resets the DPF ash accumulator
Supports parameter reset and parameter programming
Provides idle speed adjustment
Supports speed limit and cruise control adjustment
Supports idlestop system and PTO parameter settings
Provides coolant level switch and exhaust brake valve adjustments
Supports intake air preheating and vehicle speed controller settings
Provides airconditioning and oil pressure sensor parameter adjustment
Supports electronic fan, ABS and automatic transmission parameter calibration
Supports full HD OBD and EOBDII functions
Uses a practical entrylevel format for routine HGV and commercial vehicle diagnostics in professional workshops

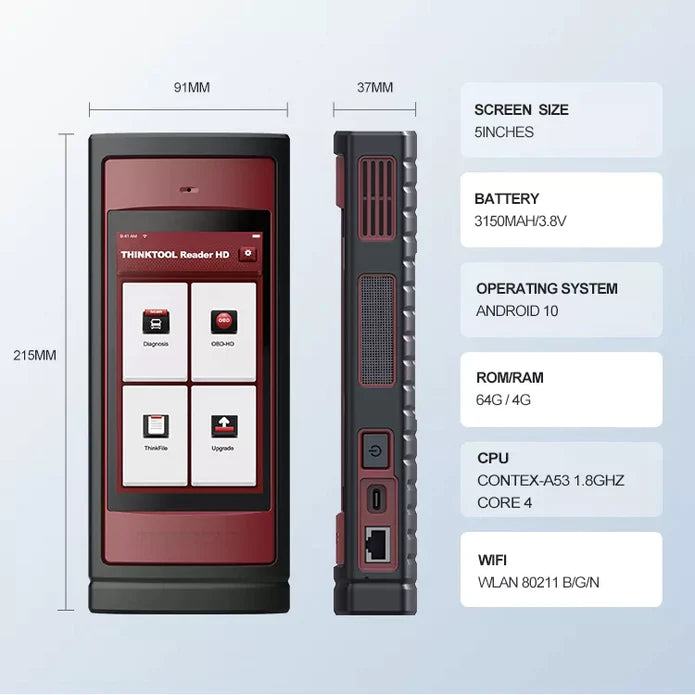

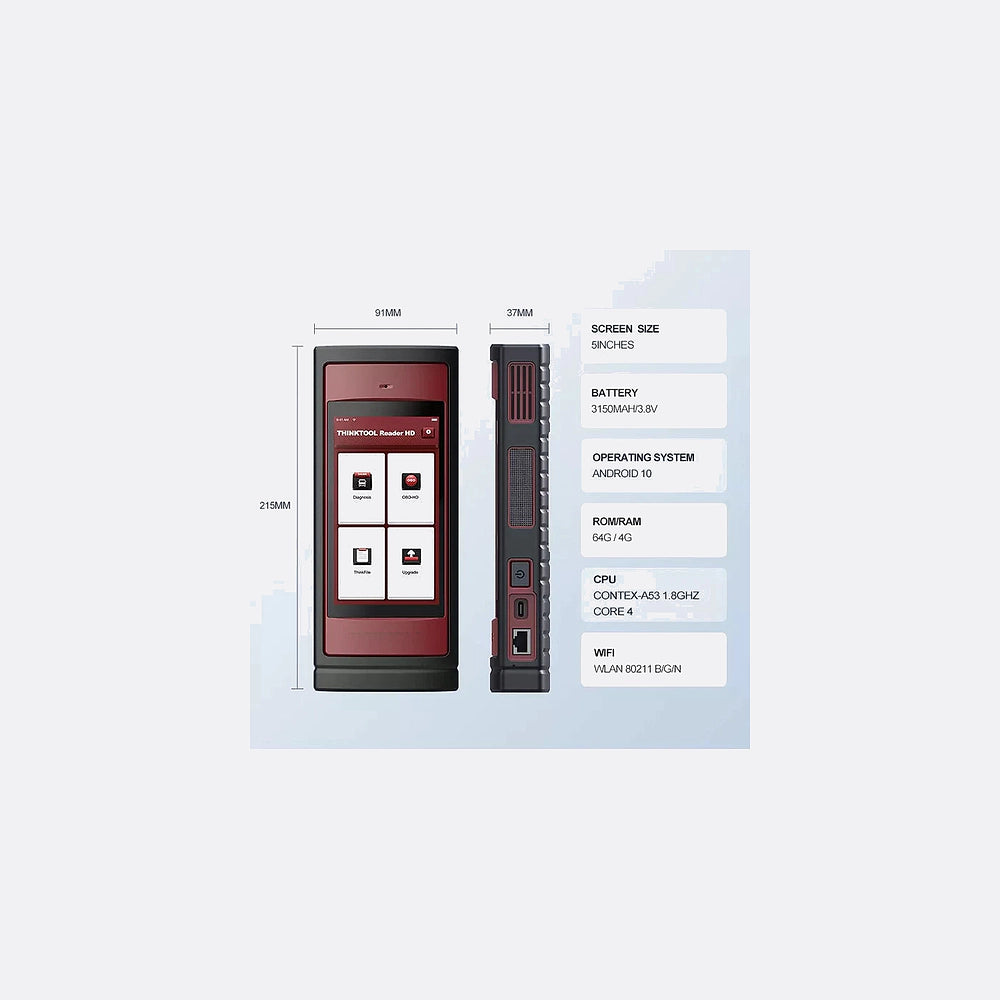

Specification

Model

THINKTOOL READER HD

Product Type

Commercial vehicle diagnostic instrument

Vehicle Coverage

31+ commercial vehicle, heavy-duty truck and machinery brands

Operating System

Android 10.0

Processor

Quad-core 1.8GHz

RAM

4GB

Storage

64GB

Display Size

5 inch

Battery

3150mAh

Network Connection

Wi-Fi

Bluetooth

BT5.1

Working Temperature

0°C to 50°C

Storage Temperature

-20°C to 60°C

Diagnostic Functions

Full vehicle scan, read and clear DTCs, live data stream, read version information, special functions, actuation tests and test report generation

Supported Protocols

HD OBD and EOBDII

Supported Data

Fault codes, live data stream and freeze-frame data

Updates

1 year of free updates for heavy-duty software

Weight

2kg

FAQs

What vehicles can the THINKTOOL HD READER diagnose?

It is intended for commercial vehicles, heavy-duty trucks, buses and machinery, with coverage for more than 31 makes including DAF, MAN, Mercedes-Benz, Scania, Volvo, Iveco, Renault, Isuzu, Hino, Cummins, Caterpillar, JCB, Wabco and others. Check the current vehicle coverage before purchase, as available functions vary by make, model and system.

What diagnostic functions does it provide?

The tool supports full-vehicle scans, reading and clearing diagnostic trouble codes, live data, freeze-frame information, version information, actuation tests and generated diagnostic reports. It also provides full HD OBD and EOBDII functions for supported vehicles.

Can it carry out DPF, AdBlue and injector-related service functions?

Yes. Supported service functions include DPF regeneration, injector coding, injection quantity adjustment, particulate filter replacement reset, DPF ash accumulator reset, pressure differential sensor reset, AdBlue circuit bleeding, parked SCR efficiency testing and VGT electronic actuator installation and calibration. Exact availability depends on the vehicle and control system.

Does it support parameter calibration and what is included with the tool?

It supports parameter calibration and programming functions such as idle-speed adjustment, speed-limit and cruise-control settings, PTO, exhaust-brake valve, coolant-level switch, air-conditioning, electronic-fan, ABS and automatic-transmission parameters where supported. The unit is specified with a 5-inch screen, 4GB memory, 64GB storage and a 3150mAh battery, with one year of free updates for the heavy-duty software.
