Thinkcar Mobile Ev Battery Lift 1500kg

Name: Thinkcar Mobile Ev Battery Lift 1500kg
Brand: Rotary Blitz
SKU: EVP501
Price: 2993.00 GBP
Availability: InStock

£2,993.00

Shipping calculated at checkout.

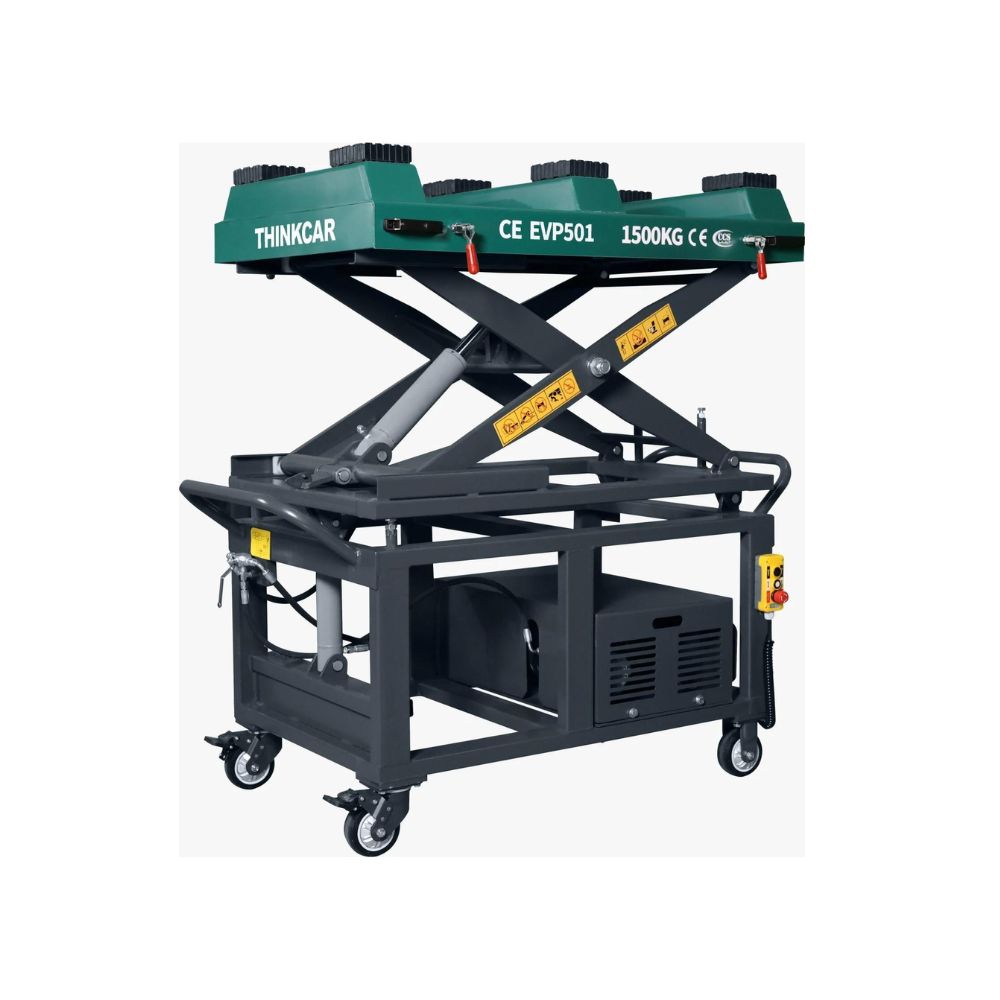

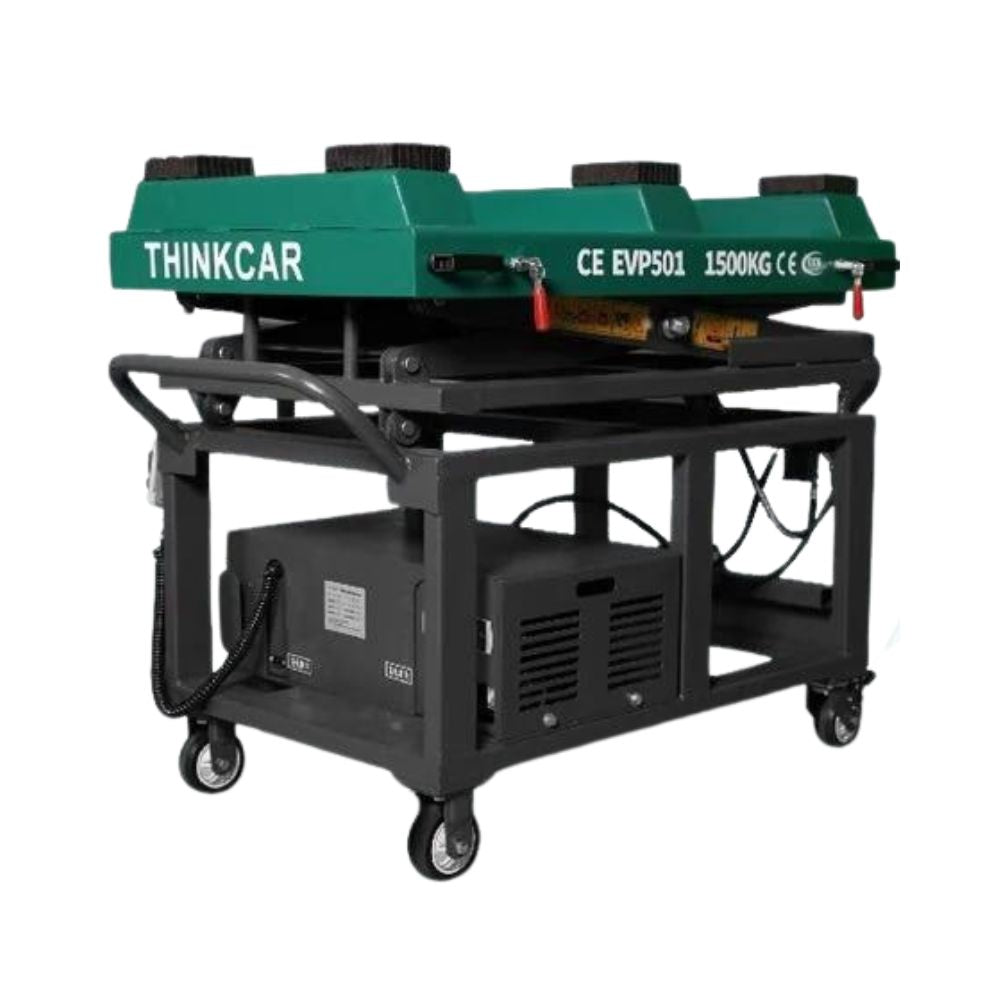

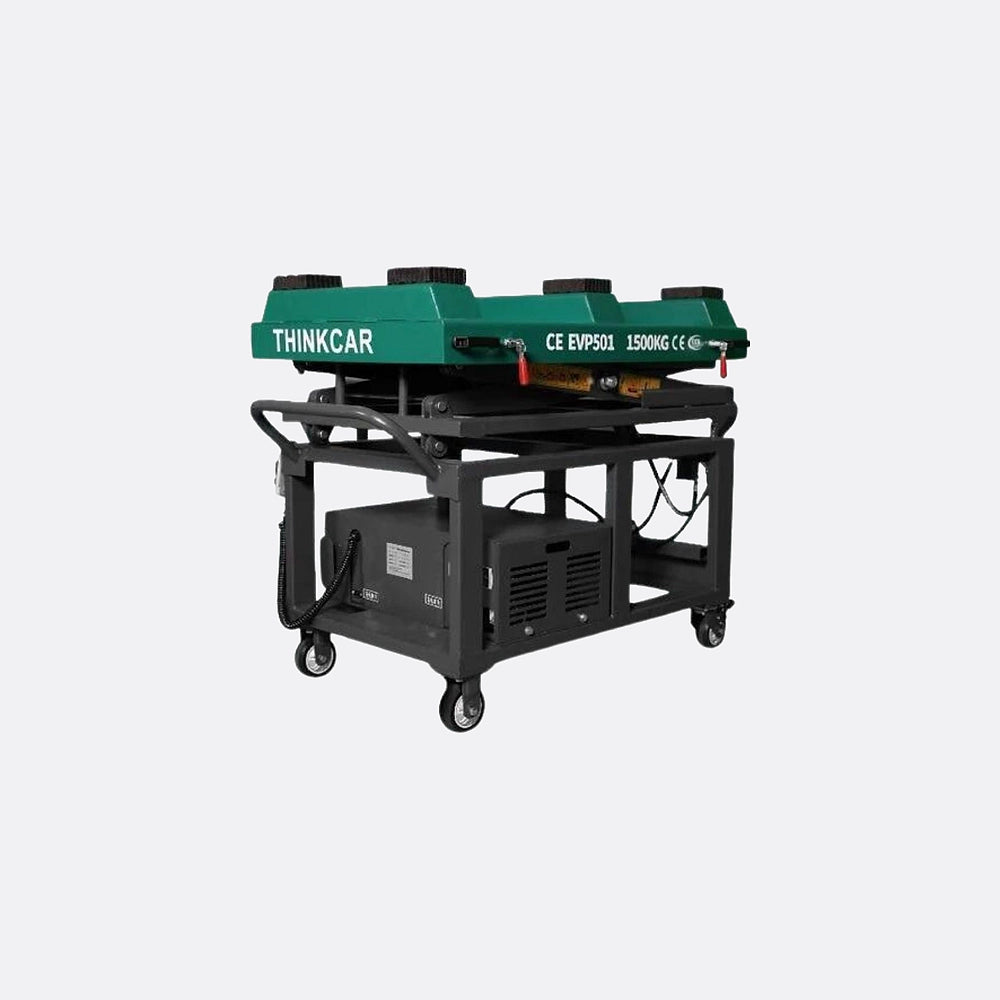

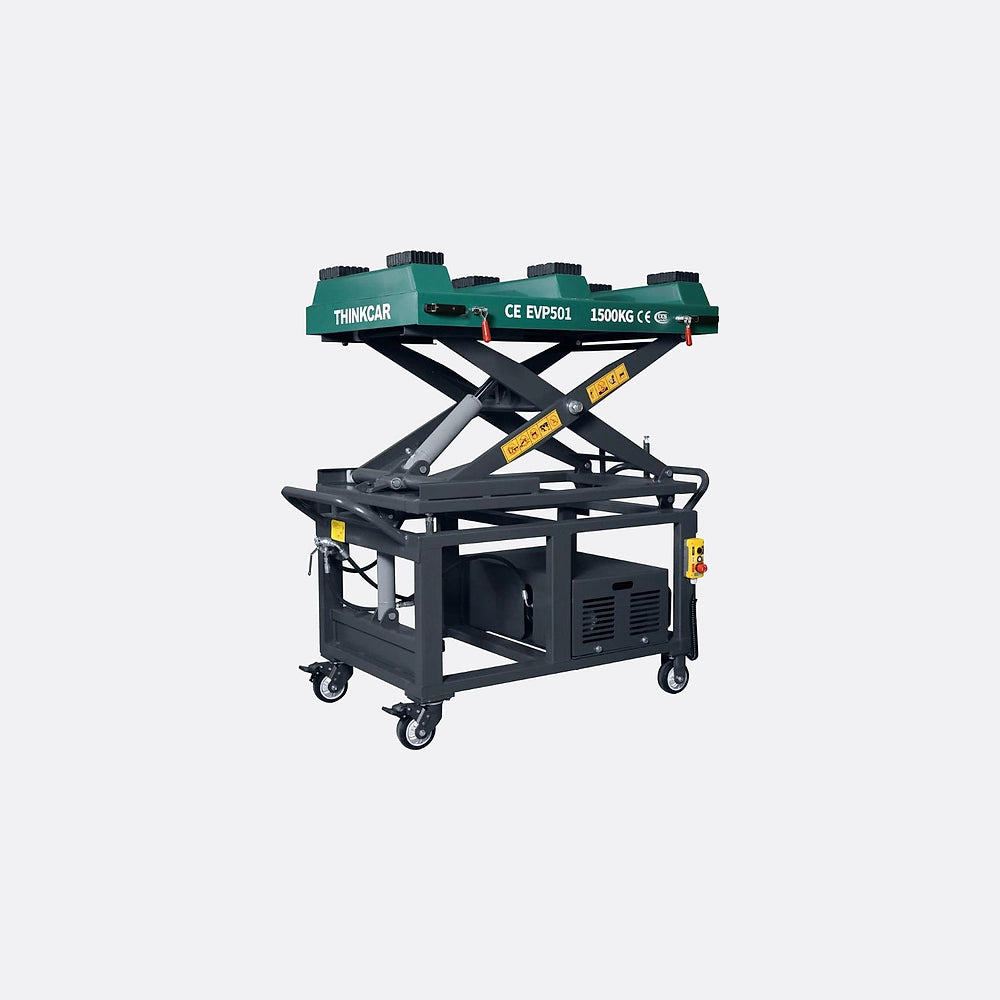

THINKCAR MOBILE EV BATTERY LIFT 1500Kg is a mobile workshop lift for controlled removal, positioning and installation of electric vehicle battery packs.

Key Features

1,500kg rated lifting capacity
Mobile design for workshop manoeuvrability
Adjustable platform for battery positioning
Controlled electric raising and lowering
Mechanical safety locking system
Suitable for professional EV servicing

Everything we sell is supported by our factory trained engineers at our premesis in Manchester or nationwide through our mobile service engineers.

Returns details can be edited in the theme editor.

Service

In-house engineers

Support

0161 223 1843

Expert Advice

Dan Jennings says

This is a mobile lifting table for removing, positioning and refitting electric vehicle battery packs, with a rated capacity of 1,500 kg. In a bodyshop or EV workshop, it is positioned beneath the vehicle, adjusted to support the pack evenly, then lowered clear of the chassis for inspection, repair or replacement.

The platform needs to be set up square to the vehicle before taking the battery weight. Any tilt adjustment should be used for accurate alignment, not to compensate for poor positioning. Check that the pack is fully supported, particularly where its casing or mounting points are uneven, and confirm the lift is compatible with the available workshop access and vehicle height.

A common issue is trying to move a battery before its fasteners, wiring and cooling connections are completely free. This can place unnecessary load on the pack or lift. Keeping the table stable, using the mechanical safety lock correctly and lowering under controlled operation are essential.

Used with the right vehicle support equipment and procedures, it provides a controlled and repeatable method of handling heavy battery assemblies safely and efficiently.

Dan Jennings, Senior Engineer

WHY BUY YOUR EQUIPMENT FROM US?

Our team of welding experts at BWS is ready to assist you every step of the way. Whether you have questions about specific products, need guidance on selecting the right equipment, or seek welding-related advice, our knowledgeable staff is here to help.

We also have some of the most experienced engineers in the industry who are able to offer full technical support on top of what the manufacturers offer.

Find Our More

Technical Features

Designed for electric vehicle battery pack removal, installation and routine maintenance
1500 kg maximum lifting capacity for handling heavy EV battery assemblies
Electric raising and lowering controlled from a dedicated electric controller
Mechanical safety interlock for secure support during lifting operations
Mobile design for moving the lift around the workshop and positioning it beneath vehicles
Compact construction suited to restricted workshop spaces
Telescopic platform extends 310 mm outwards to improve access beneath the vehicle

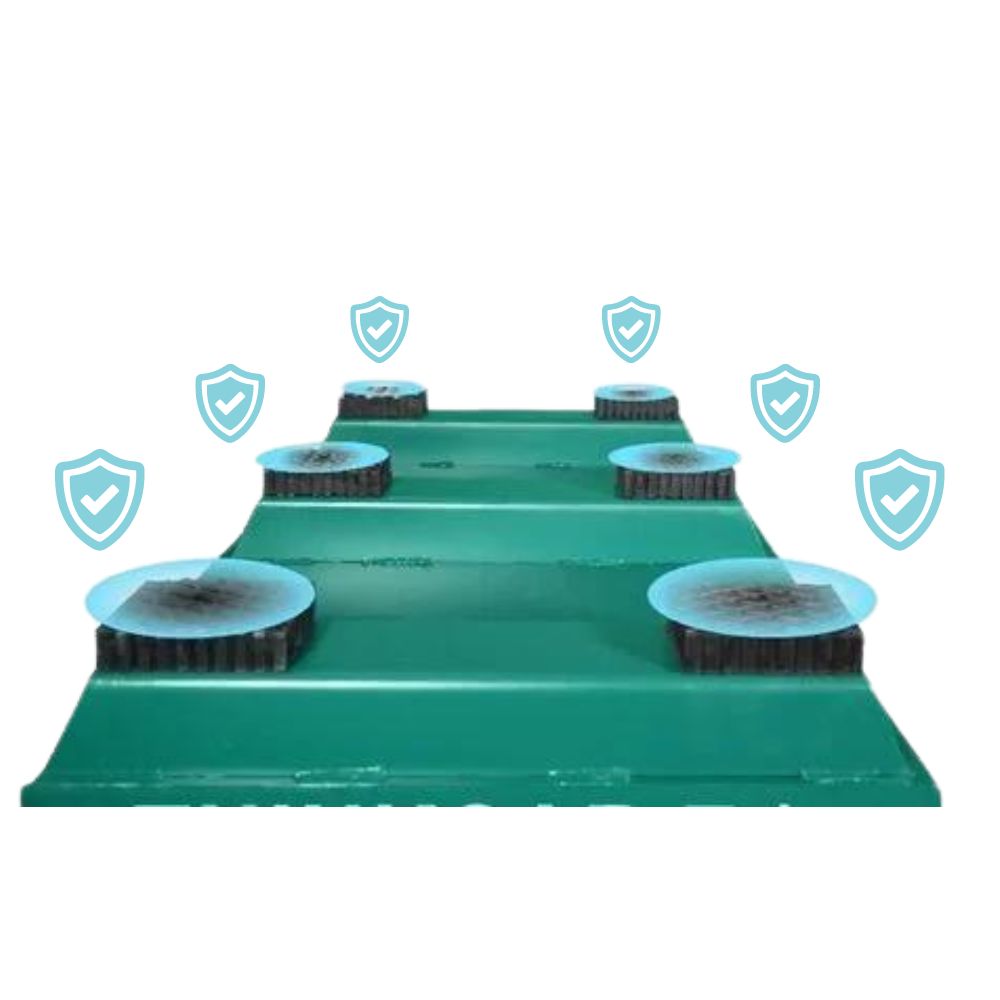

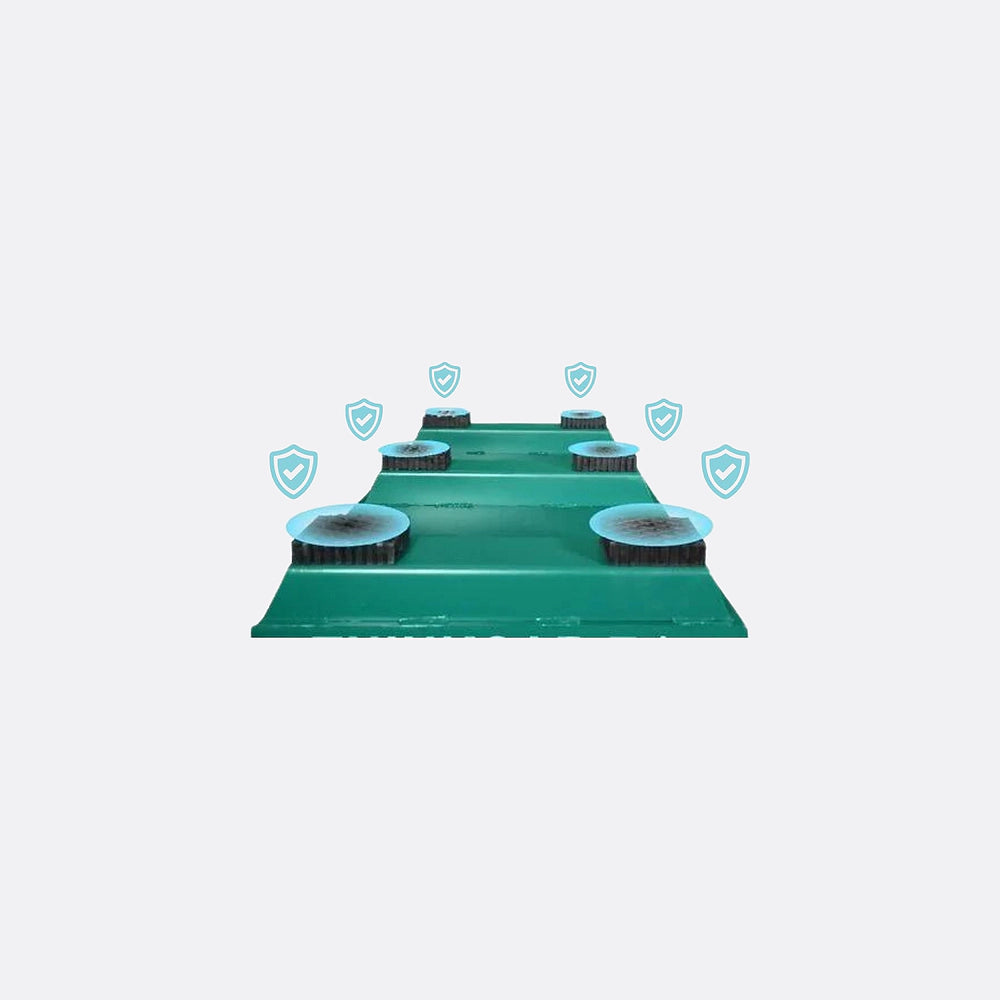

Tilting platform adjusts forwards, backwards, left and right to help align with different battery pack positions
Platform movement helps maintain a firm, stable hold on uneven or differently shaped battery assemblies
Maximum lifting height of 1785 mm for practical underbody access
Tubular steel construction designed to withstand workshop impact, abrasion and shock loading
Autonomous batterypowered operation for use without a fixed electrical connection
Dedicated support for controlled battery pack removal and refitting
Suitable for professional EV servicing, battery replacement and underbody repair work
Mobile lifting support helps reduce manual handling of heavy battery packs
Compact footprint helps preserve working space around the vehicle during battery work
Suitable for use by bodyshops, vehicle repair centres and automotive workshops with technical support from BWS engineers

Specification

Model

EVP501

Product Type

EV battery lift

Maximum Load Capacity

1500kg

Maximum Lifting Height

1785mm

Power Supply

10V battery

Platform Extension

310mm

Material

Tubular steel

Safety System

Mechanical safety interlock

Control

Electric controller

Platform Adjustment

Telescopic and tilting platform

Mobility

Mobile

Brand

Thinkcar

FAQs

What is the maximum lifting capacity of the Thinkcar EVP501?

The EVP501 is rated to lift up to 1500 kg, making it suitable for supporting heavy electric vehicle battery packs during removal, installation and routine maintenance. Confirm the battery pack weight and load distribution before lifting.

How high does the Thinkcar EV battery lift raise a vehicle battery?

The maximum lifting height is 1785 mm, with a working height range reported from 1135 mm to 1785 mm. This provides useful clearance for battery pack work beneath vehicles, subject to the vehicle lift and workshop setup.

Can the platform be adjusted to suit different battery packs?

Yes. The telescopic platform can extend by 310 mm and can be tilted forwards, backwards, left and right to help maintain firm, even support under different battery pack shapes and mounting positions.

What safety and operating features does it have?

The mobile lift uses an electric controller for raising and lowering and includes a mechanical safety interlock or lock to secure the load. It is built from tubular steel and uses an onboard battery for autonomous operation, so position the lift correctly, engage the mechanical lock and follow the workshop's EV isolation and lifting procedures.
