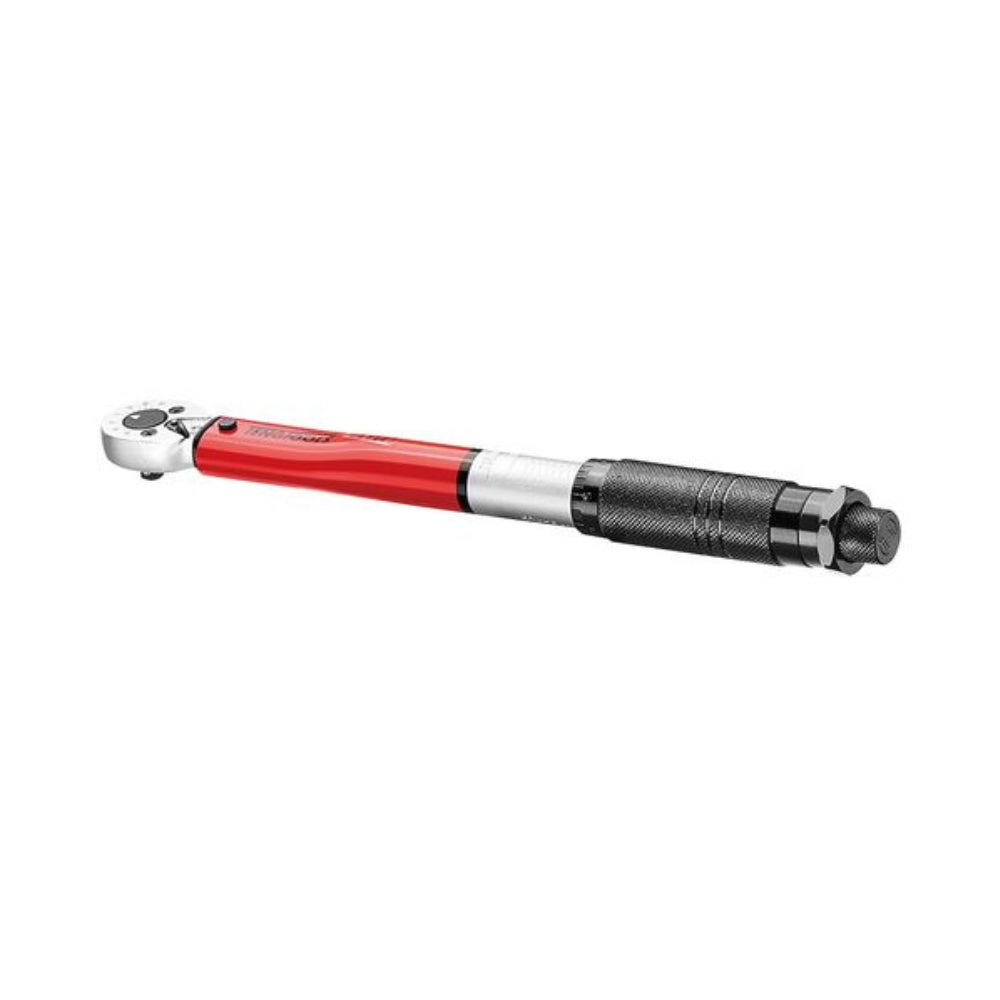

1/4" TORQUE WRENCH 5 - 25NM CT

Teng Tools Calibrated Torque Wrench 1/4”

SKU:  1492AG-E



Classic Torque

Industrial grade torque wrenches designed and manufactured to exceed DIN3122 with an accuracy of +/- 4% maximum. Each torque wrench is supplied with an individual, a fully traceable calibration certificate is produced on the day of despatch.

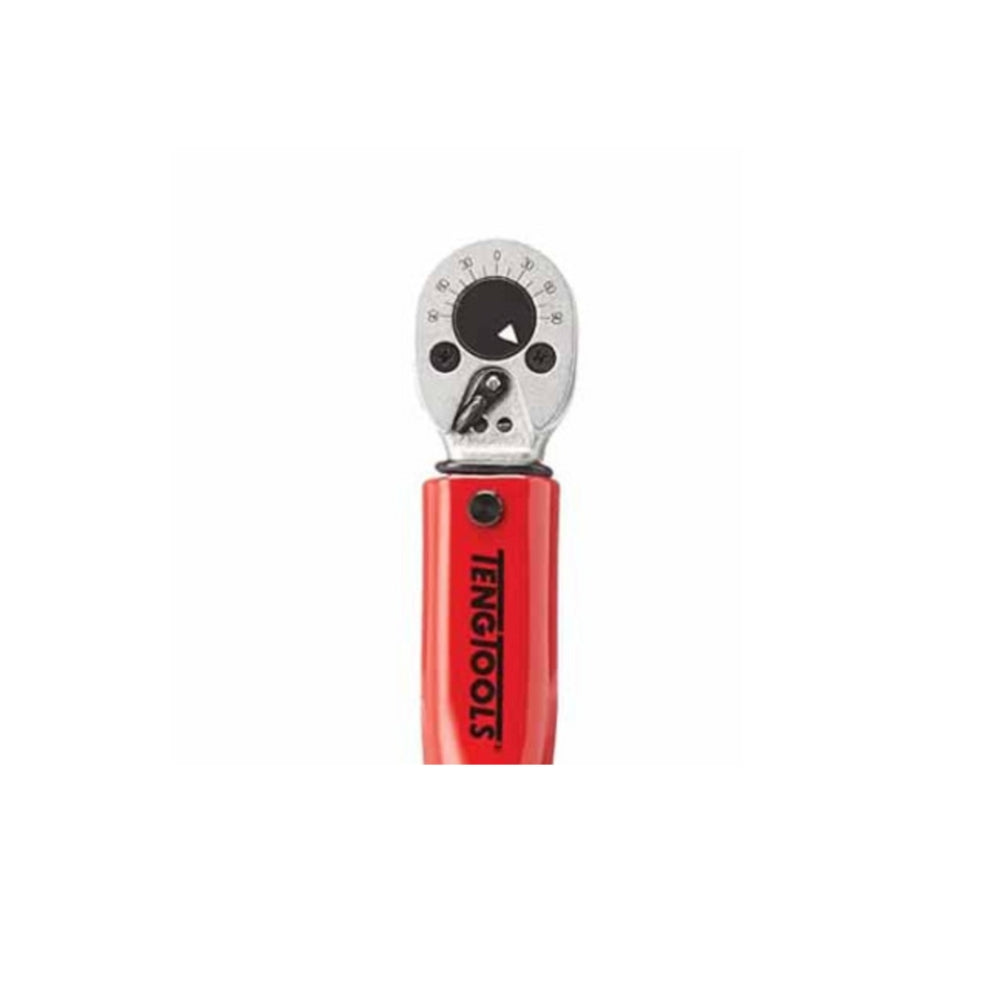

A 72 teeth ratchet mechanism allows for greater access even in confined spaces and incorporates a quick-release mechanism and twist reverse for changing direction but torque is only measurable in the conventional right-hand direction.

The scale is an easy to read window style in Nm while the handle has an ergonomically designed bi-material grip for added comfort and a hanging facility. The Plus range of torque wrenches also features a safety locking button to enable reliable locking of the torque setting.

Everlasting Power Guarantee

Teng Tools offer an 'Everlasting Power Guarantee' which means that all Teng Tools products will be replaced or repaired should they break during normal usage due to a manufacturing or material fault. We do sell products that contain moving parts like ratchets & torque wrenches that need to be serviced regularly.

Service kits are available for these items.

Where are Teng Tools Torque Wrenches made?

Teng Tools products are designed in Sweden and manufactured in Taiwan.

Equipped with an in-built angular gauge for easier after tightening
Click type mechanism to signal when the required torque is reached
Additional ft/lb reference scale
Marked to show the correct place where pressure should be applied
Twist locking facility to ensure the set torque is maintained
Reversible 24 teeth ratchet mechanism (DIN3122) giving 15° increments
Designed to torque right hand (clockwise) fasteners
Accurate to +/- 4% and conforms to ISO6789 for assured accuracy
Each torque wrench has it's own individual certification number
Supplied in a handy storage case

Attribute
Product Type Torque Wrenches
Length 277 mm
Drive 1/4"
No. of teeth 24
Range 5-25 Nm
Scale resolution 0,1
Range 2 4-18 ft-lb
Scale 2 resolution 0,075
Accuracy ± 4%
Conformance certificate Factory
Reverse direction Flip reverse lever
Preset No
Angular gauge Yes
Digital No
Bi-directional No
Mechanism Click
Tethering facility No
Width (mm) 27,6 mm
