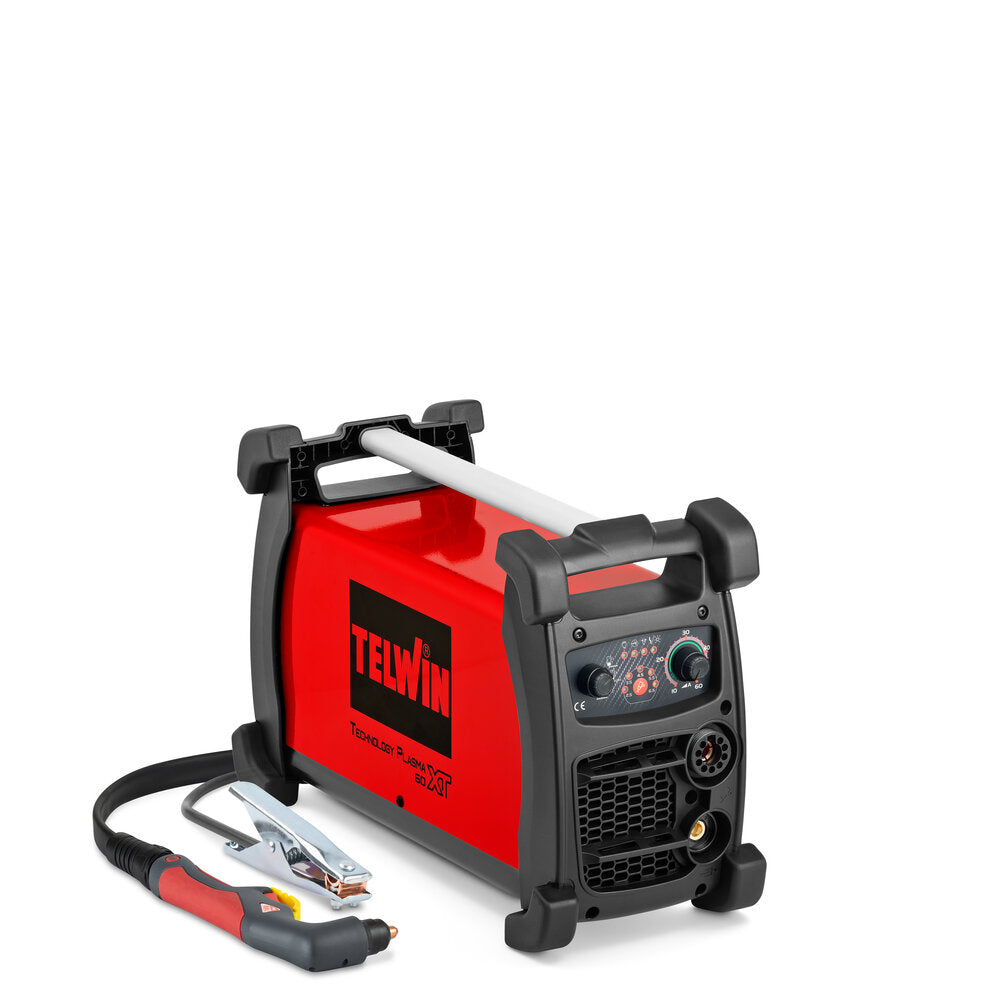

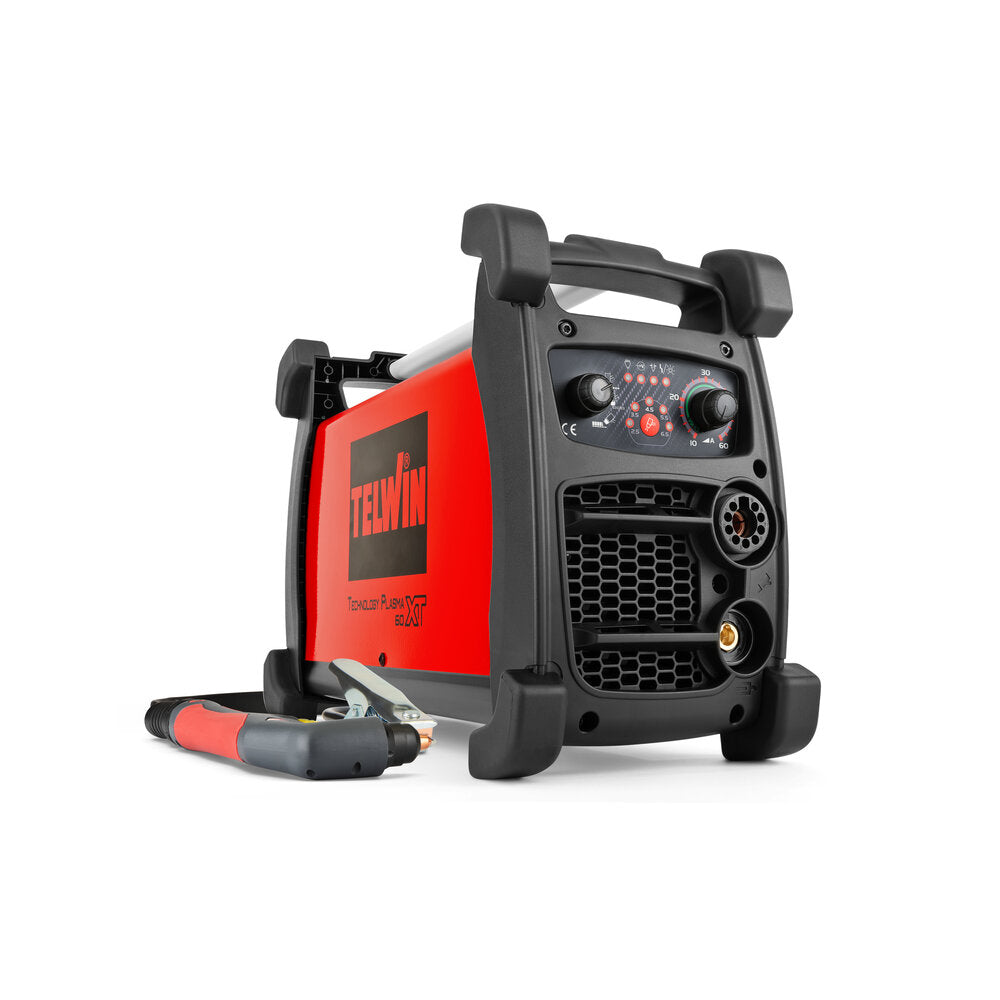

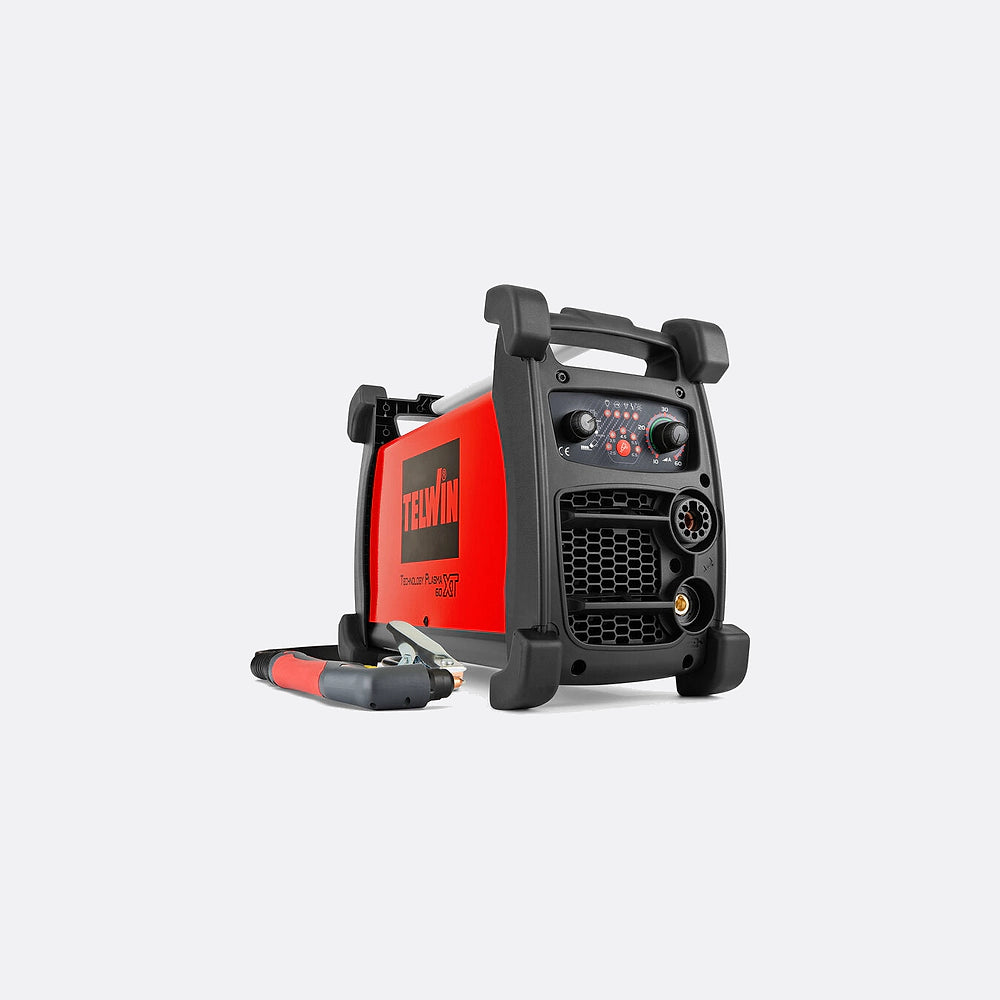

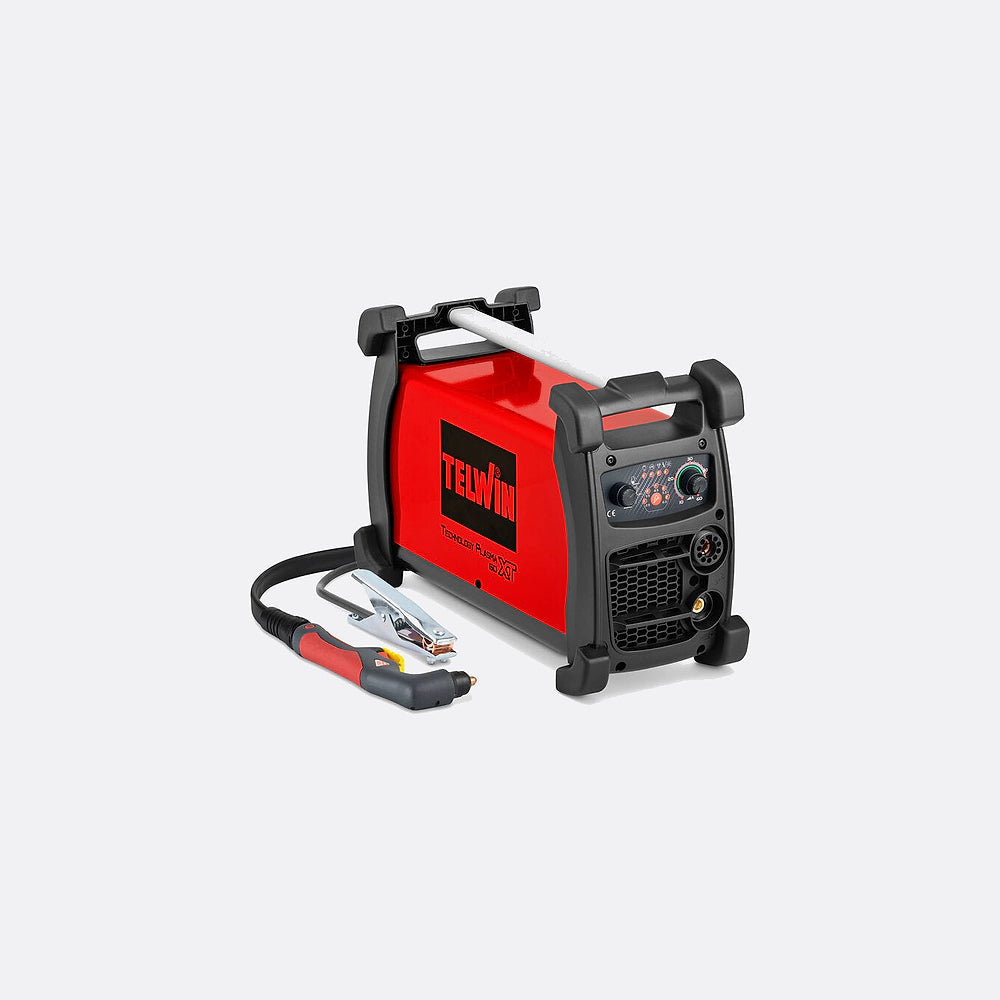

Telwin Technology Plasma 60 Xt

Name: Telwin Technology Plasma 60 Xt
Brand: Telwin
SKU: 816148
Price: 930.00 GBP
Availability: InStock

£930.00

Shipping calculated at checkout.

TELWIN TECHNOLOGY PLASMA 60 XT is a professional 60A compressed-air plasma cutting system for bodyshops, fabrication and workshop repair applications.

Key Features

60A plasma cutting inverter
Compressed-air operation
Advanced grid cutting function
Integrated digital pressure gauge
Gouging capability with suitable consumables
Robust anti-shock workshop construction

Everything we sell is supported by our factory trained engineers at our premesis in Manchester or nationwide through our mobile service engineers.

Returns details can be edited in the theme editor.

Supply

230V

Service

In-house engineers

Support

0161 223 1843

Expert Advice

Jason says

As Sales Director at BWS, I see the Telwin Technology Plasma 60 XT as a practical 60 amp plasma cutter for bodyshop and fabrication work where clean, controlled cutting is needed on conductive metals. It uses compressed air and a contact-start pilot arc, making it suitable for cutting mild steel, stainless steel and aluminium when repairing panels, brackets, sections and general workshop fabrications.

The important point is correct air preparation. Moisture, oil or insufficient flow will affect the cut and shorten consumable life, so the compressor, filtration and airline need to be suitable for the duty. Current control from 10 to 60 amps also allows the operator to match the setting to the material thickness rather than simply running maximum output.

In daily use, poor earth connection and worn torch consumables are common causes of unstable cutting and excessive dross. Keeping the work area clean and checking the torch before starting avoids much wasted time.

Used with a sound air supply and maintained consumables, it provides reliable cutting for professional workshop repairs and fabrication.

Jason, Sales Director

WHY BUY YOUR EQUIPMENT FROM US?

Our team of welding experts at BWS is ready to assist you every step of the way. Whether you have questions about specific products, need guidance on selecting the right equipment, or seek welding-related advice, our knowledgeable staff is here to help.

We also have some of the most experienced engineers in the industry who are able to offer full technical support on top of what the manufacturers offer.

Find Our More

Technical Features

60A inverter plasma cutting system for professional bodyshop, maintenance and light fabrication work
Cuts conductive materials including mild steel, stainless steel, galvanised steel, aluminium, copper and brass
Adjustable cutting current from 10A to 60A for controlled work across different material thicknesses
Maximum cutting thickness of up to 20mm
Compressedair operation with contact striking of the pilot arc for quick, reliable starts
Advanced gridcutting function maintains the arc across discontinuous or mesh sheet
Gouging mode for removing and shaping metal using suitable gouging consumables

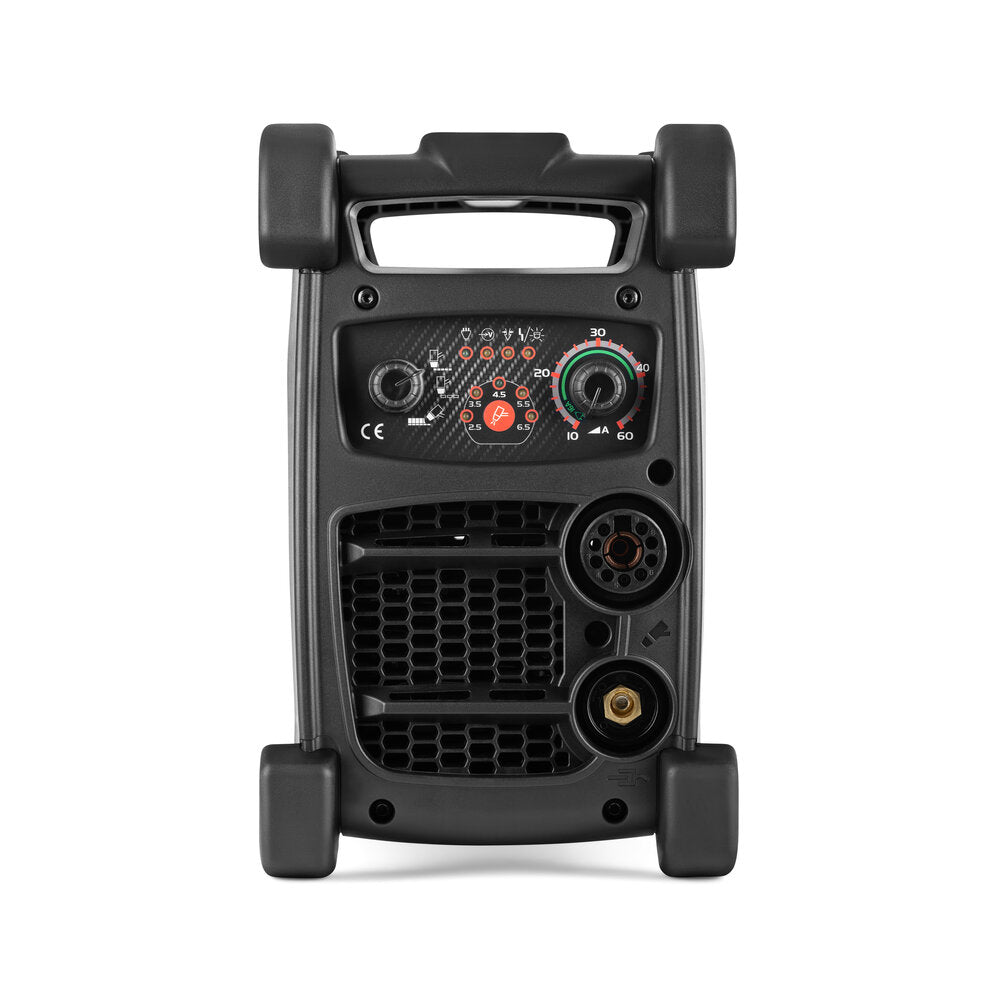

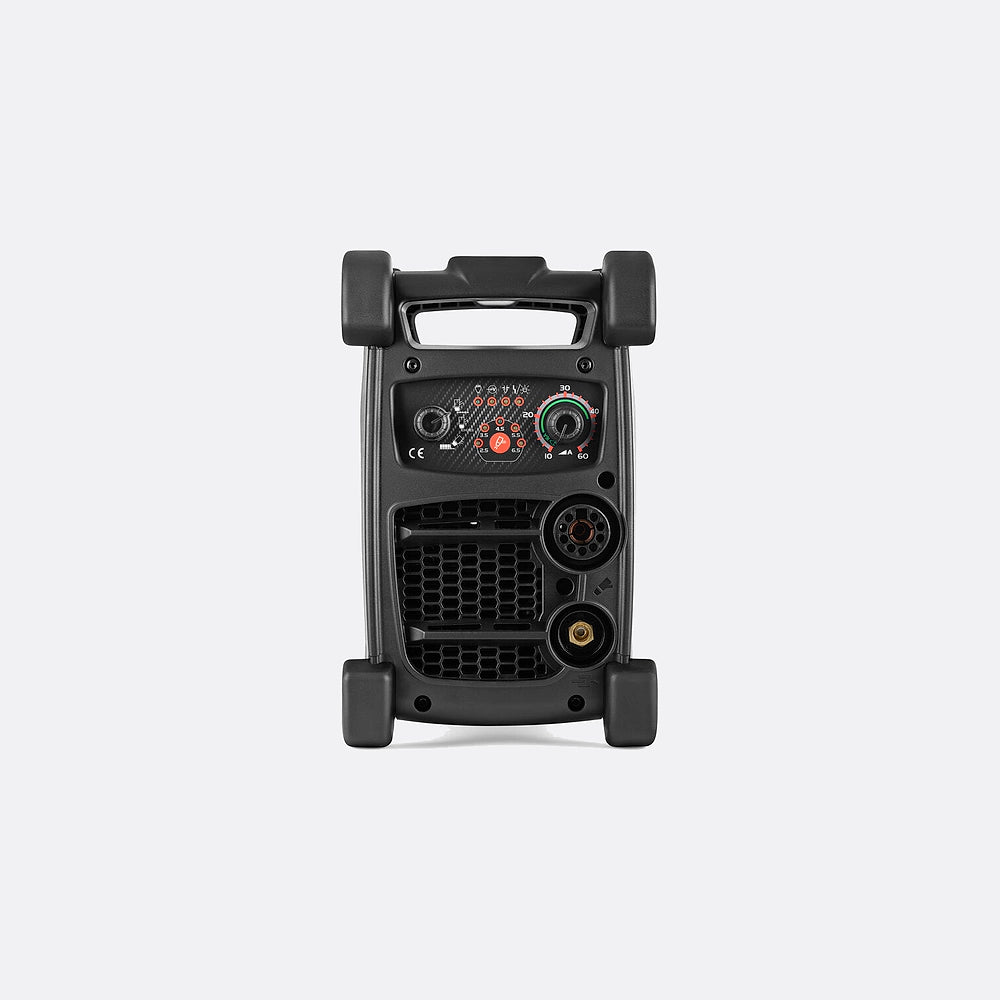

Integrated digital manometer provides clear airpressure adjustment guidance at the front panel
Consumableschange warning helps maintain cutting performance and identify when torch parts need attention
Thermostatic, overvoltage, undervoltage, overcurrent and airfailure protection
Centralised torch connection helps keep setup straightforward and accessible in workshop use
Metal carrying handle and antishock bumpers improve handling and protection during transport
Suitable for professional use where fast, lowdistortion plasma cutting is required
Supplied with a 4m plasma torch for practical reach around vehicles, fabrication benches and larger workpieces

Specification

Input Voltage

230V, 1ph, 50

Cutting Current Range

10–60A

Maximum Cutting Current

50A at 30% duty cycle

Cutting Current at 60% Duty Cycle

35A

Cutting Current at 100% Duty Cycle

30A

Maximum No-Load Voltage

313V

Maximum Absorbed Current

34A

Maximum Absorbed Power

5.5kW

Maximum Cutting Thickness

20mm

Compressed Air Capacity

100l

Compressed Air Pressure

4–5bar

Protection Rating

IP23

Dimensions

50.6 x 18.2 x 29.2cm

Weight

10.3kg

Standard Torch Length

4m

Torch Connection

Centralised DINSE socket, Ø25mm

Applicable Materials

Steel, stainless steel, galvanised steel, aluminium, copper and brass

Applicable Standard

EN 60974-1

SKU

816148

FAQs

What materials can the Telwin Technology Plasma 60 XT cut?

It cuts conductive metals including mild steel, stainless steel, galvanised steel, aluminium, copper and brass. The contact-start pilot arc gives quick, distortion-reduced cutting for fabrication, maintenance and bodyshop work.

What thickness can it cut?

The rated maximum cutting thickness is 20mm. Actual results depend on the material, air supply, consumable condition and whether the job requires a clean production cut or severance cut.

What power and air supply does it need?

It runs from a single-phase 230V supply and uses compressed air. The cutting current is adjustable from 10 to 60A, with maximum absorbed power listed at 5.5kW. Use clean, dry air and suitable filtration to protect the torch consumables and maintain cut quality.

What features are useful in a professional workshop?

The machine has an integrated digital pressure gauge, consumable-change warning and protections for thermal overload, overvoltage, undervoltage, overcurrent and air failure. Grid-cutting mode maintains the arc across discontinuous or mesh sheet, while gouging mode is available with the correct gouging consumables.
