Telwin T-charge 12 Evo 6v/12v

Telwin T-charge 12 Evo 6v/12v

£95.00
Skip to product information
Telwin T-charge 12 Evo 6v/12v
  • Telwin T-charge 12 Evo 6v/12v
  • Telwin T-charge 12 Evo 6v/12v
  • Telwin T-charge 12 Evo 6v/12v

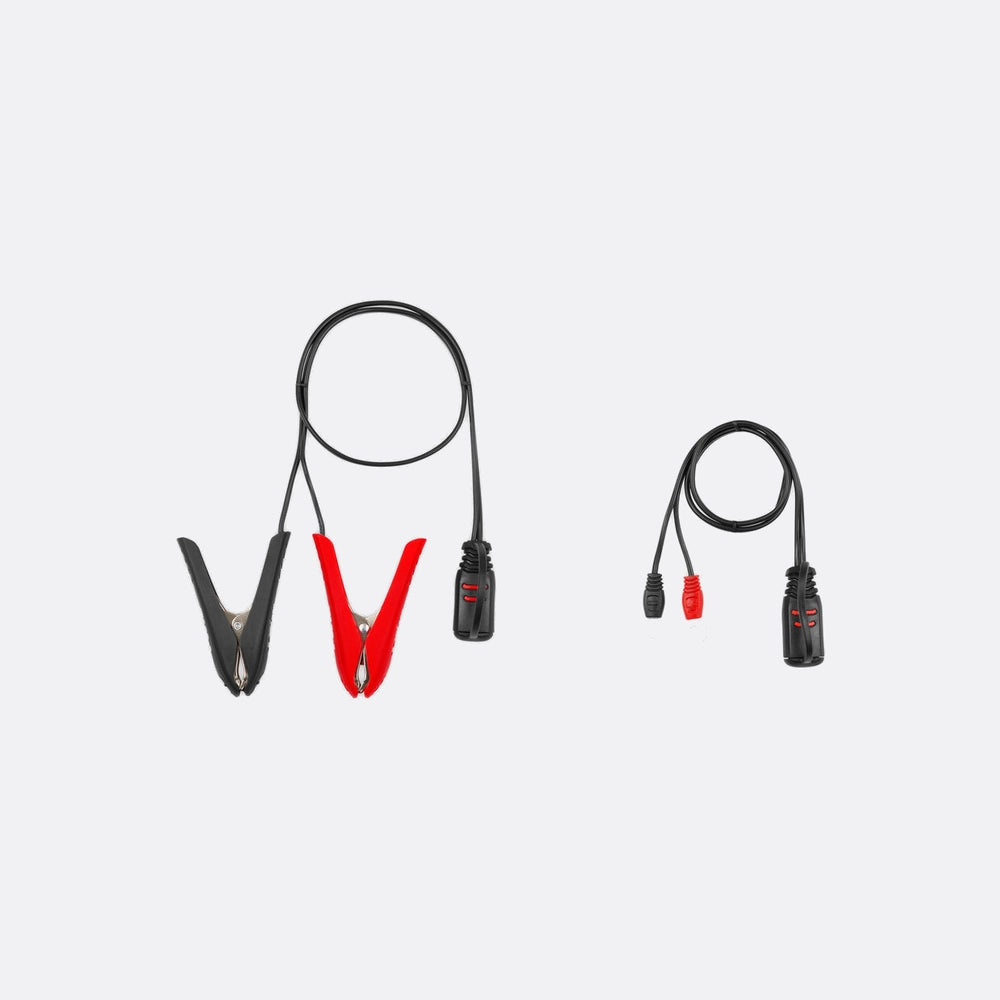

  • Telwin T-charge lead set
  • Telwin T-charge 12 Evo 6v/12v
  • Telwin T-charge 12 Evo 6v/12v
  • Telwin T-charge 12 Evo 6v/12v
  • Telwin T-charge lead set
Telwin T-charge 12 Evo 6v/12v

Telwin T-charge 12 Evo 6v/12v

£95.00
Shipping calculated at checkout.

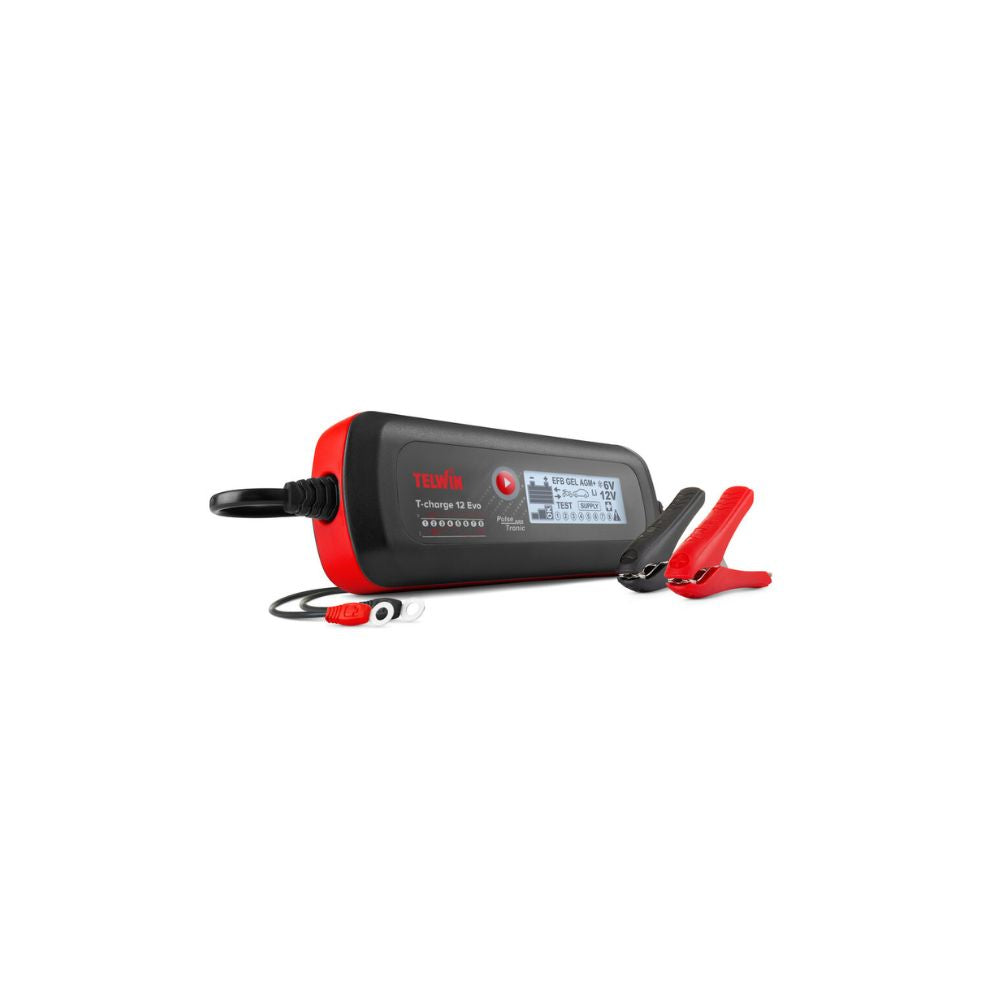

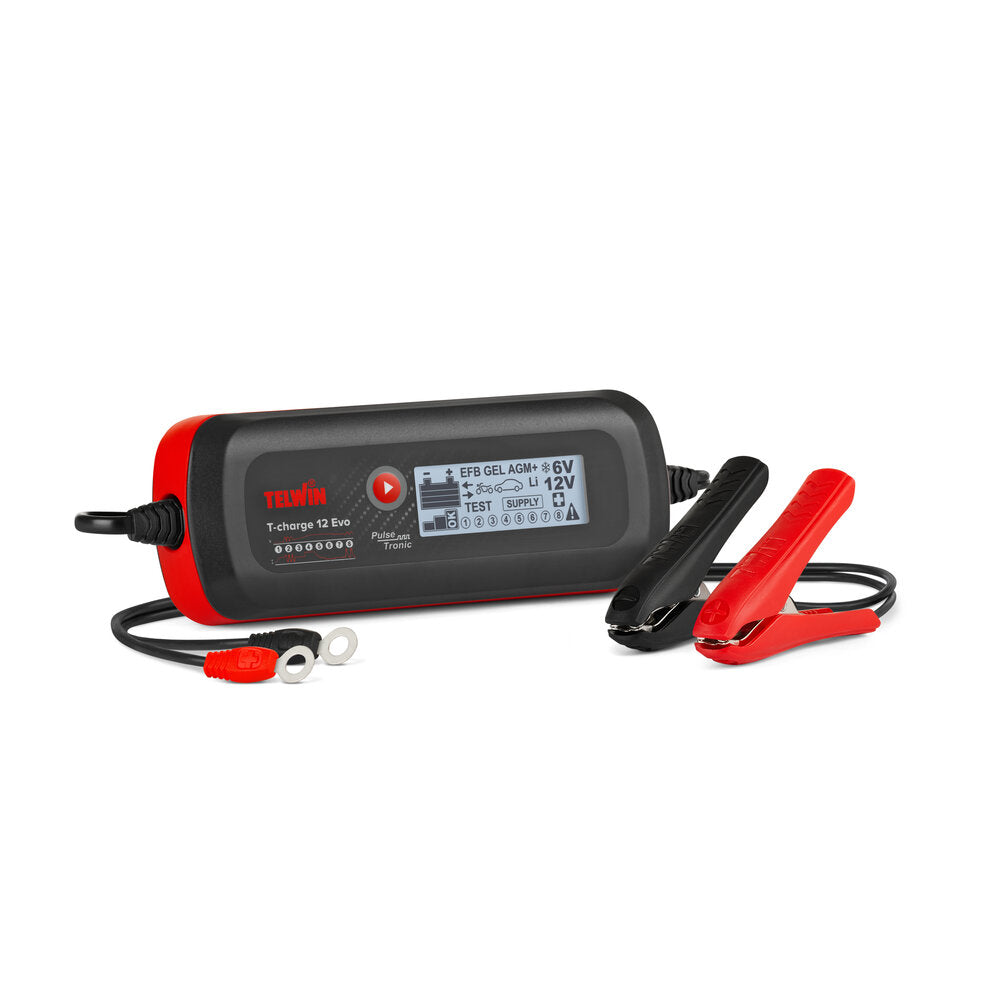

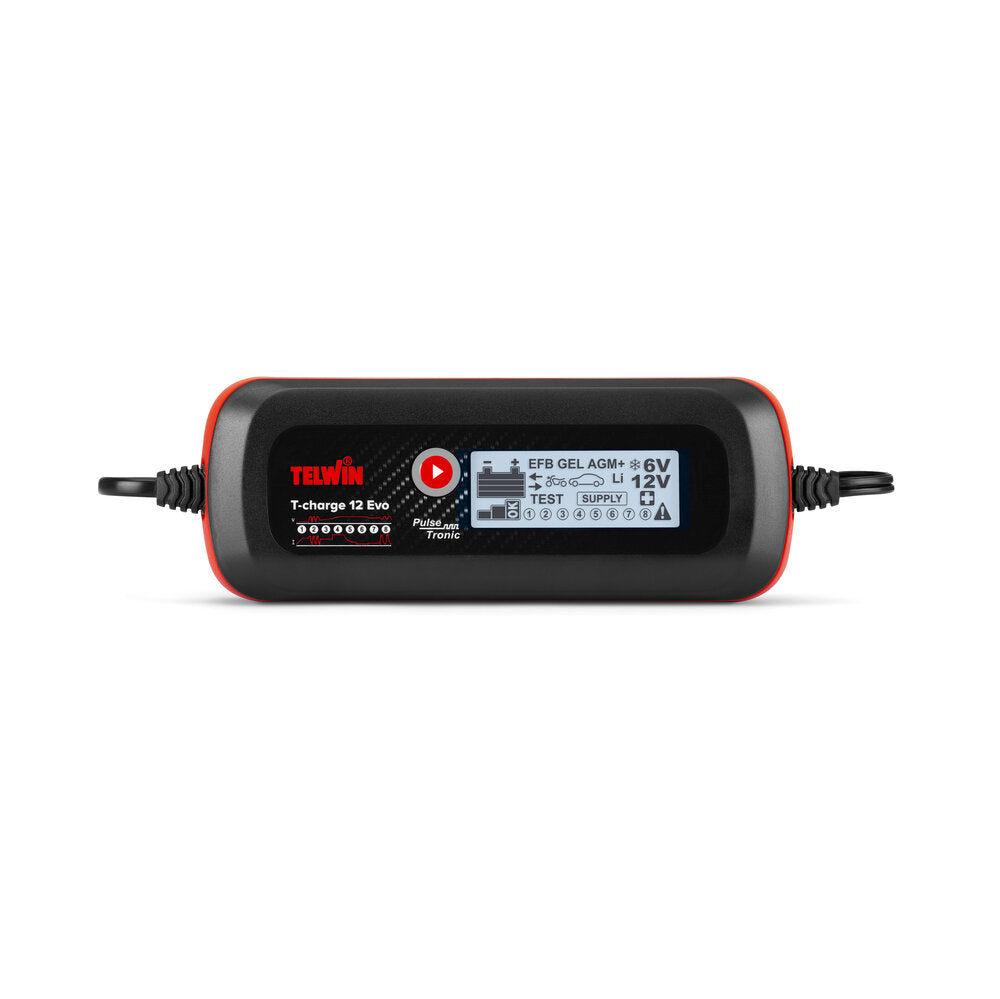

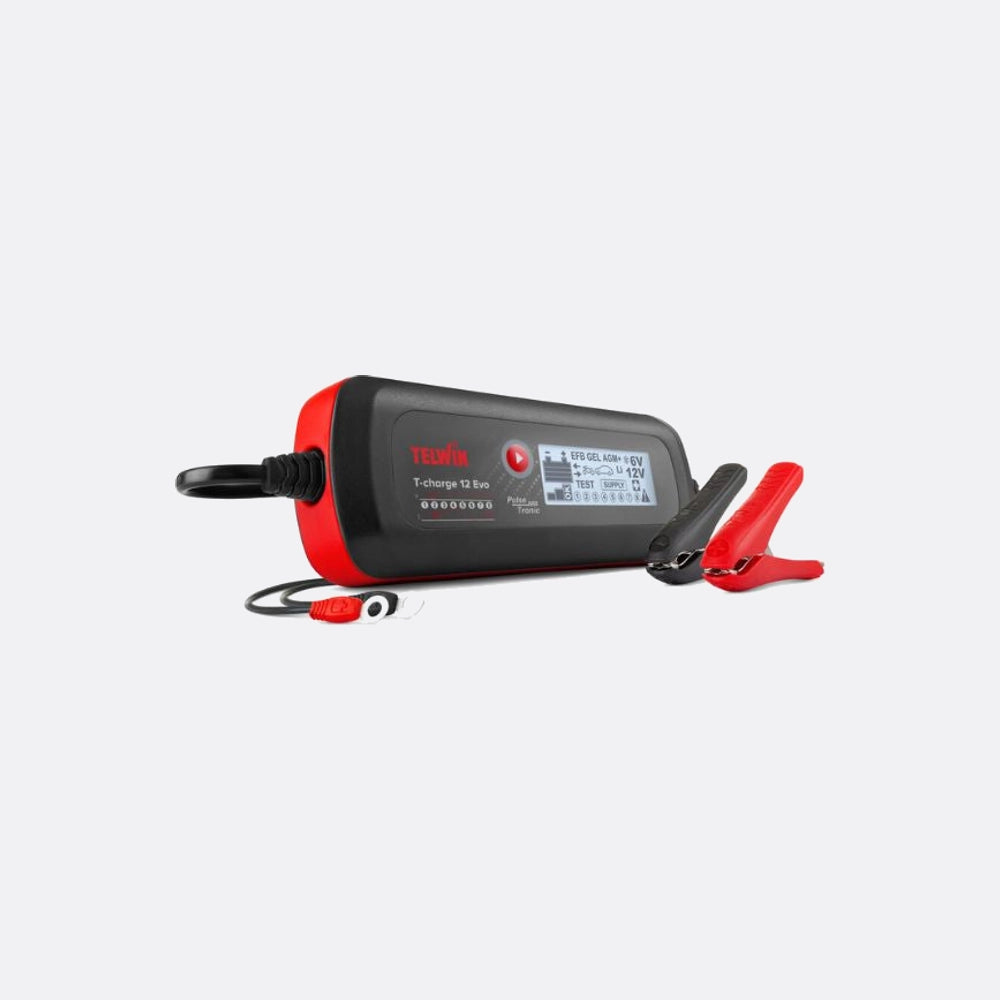

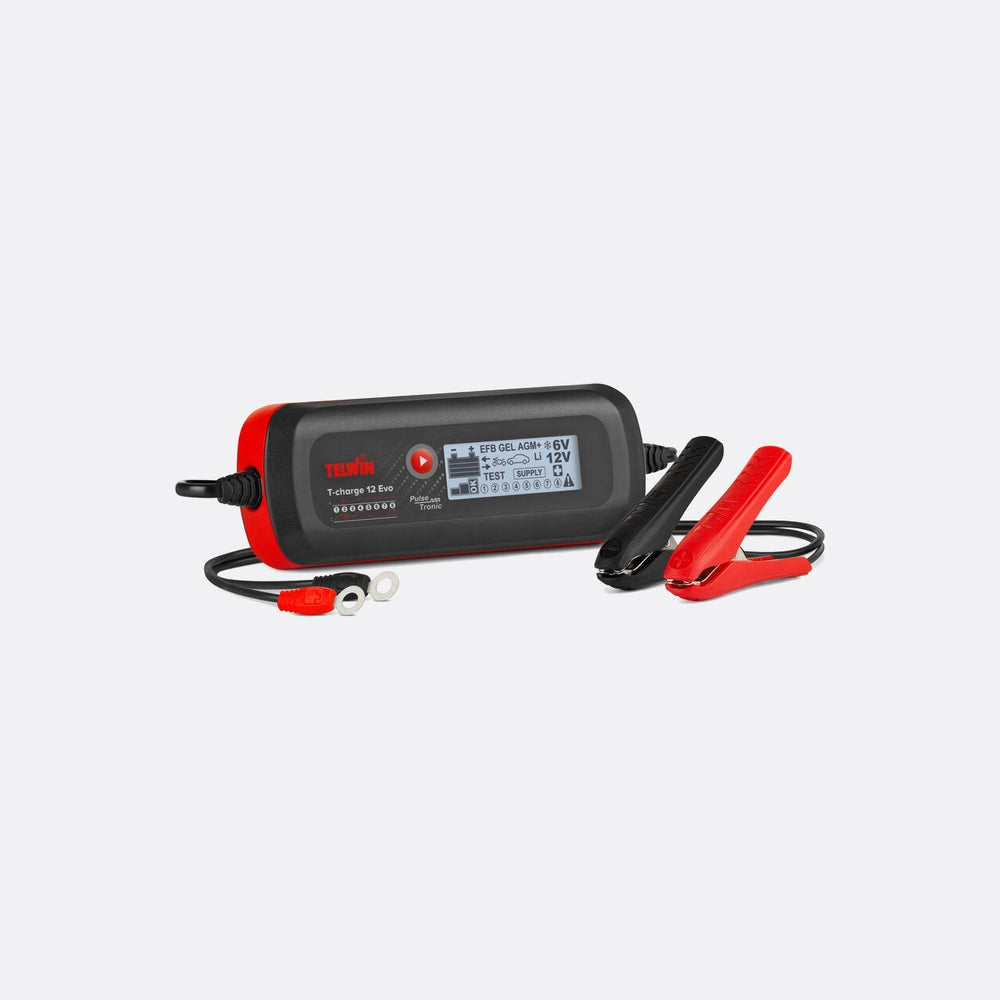

Telwin T-charge 12 Evo 6v/12v is a compact electronic battery charger, maintainer and tester for professional workshop use on 6V and 12V vehicle batteries.

Key Features

  • 6V and 12V battery support
  • Pulse Tronic charging management
  • COLD mode for low temperatures
  • RECOVERY for sulphated batteries
  • Battery and alternator test
  • IP65 dust and moisture protection
Technical Support

Everything we sell is supported by our factory trained engineers at our premesis in Manchester or nationwide through our mobile service engineers.

Delivery + Returns

Returns details can be edited in the theme editor.
Warranty

Warranty

12 months

Service engineers

Service

In-house engineers

Technical support

Support

0161 223 1843

Expert Advice

Paul Jones

Paul Jones says

This is a compact smart charger for 6 V and 12 V vehicle batteries, used mainly for keeping modern lead-acid and lithium batteries in good condition rather than rescuing completely dead ones. In a bodyshop or workshop I’d use it on cars, bikes and light commercials where vehicles sit for periods, or when carrying out diagnostic work and battery checks between jobs.

In practice, it’s a good match for typical start-stop AGM/EFB batteries and standard WET, GEL and MF types in the 2–70 Ah charging range, with support for lithium variants as well. The important point is to select the correct battery type and voltage, and let the Pulse Tronic control handle the staged charge and maintenance rather than forcing high current.

A common issue I see is techs clipping one of these on a badly sulphated or undersized battery and expecting it to behave like a heavy booster – it won’t, and that’s not its job. Used correctly, it’s a reliable tool for maintaining batteries, supporting light electrical work and extending battery life in a busy workshop.

Paul Jones, Technical Director

📄

Technical Datasheet

Download the official manufacturer datasheet for Telwin T-charge 12 Evo 6v/12v including specifications, compatibility information and technical details.

Download Telwin T-charge 12 Evo 6v/12v Datasheet
Bodyshop Equipment Engineers

WHY BUY YOUR EQUIPMENT FROM US?

Our team of welding experts at BWS is ready to assist you every step of the way. Whether you have questions about specific products, need guidance on selecting the right equipment, or seek welding-related advice, our knowledgeable staff is here to help.

We also have some of the most experienced engineers in the industry who are able to offer full technical support on top of what the manufacturers offer.

Find Our More

Technical Features

  • Multifunctional electronic charger, maintainer and electronic tester for 6V and 12V WET, GEL, AGM, MF, PbCa, EFB and lithium (Li/LiFePO4) batteries, suitable for typical bodyshop vehicles, bikes and light plant.
  • Automatic Pulse Tronic charging and maintenance programmes that adapt charge profile to the selected battery technology, helping avoid overcharge and extend battery life in workshop use.
  • Integrated trickle/maintenance mode for keeping seldomused vehicles and workshop equipment batteries topped without needing manual intervention.
  • COLD function for correct charging and maintenance of batteries at low ambient temperatures, useful for unheated workshops or winter storage.
  • RECOVERY function specifically aimed at desulphating and recovering sulphated batteries, giving a realistic chance of saving weak workshop batteries instead of replacing them.
  • TEST mode for battery condition, cranking performance and alternator output, allowing quick diagnostics of starting and charging issues directly at the vehicle.
  • SUPPLY mode providing a stable DC power source during battery changes or when maintaining voltage during ECU updates and memorycritical jobs.
  • Electronic charge current control with automatic interruption and reset, reducing risk of operator error and protecting both battery and charger during daytoday use.

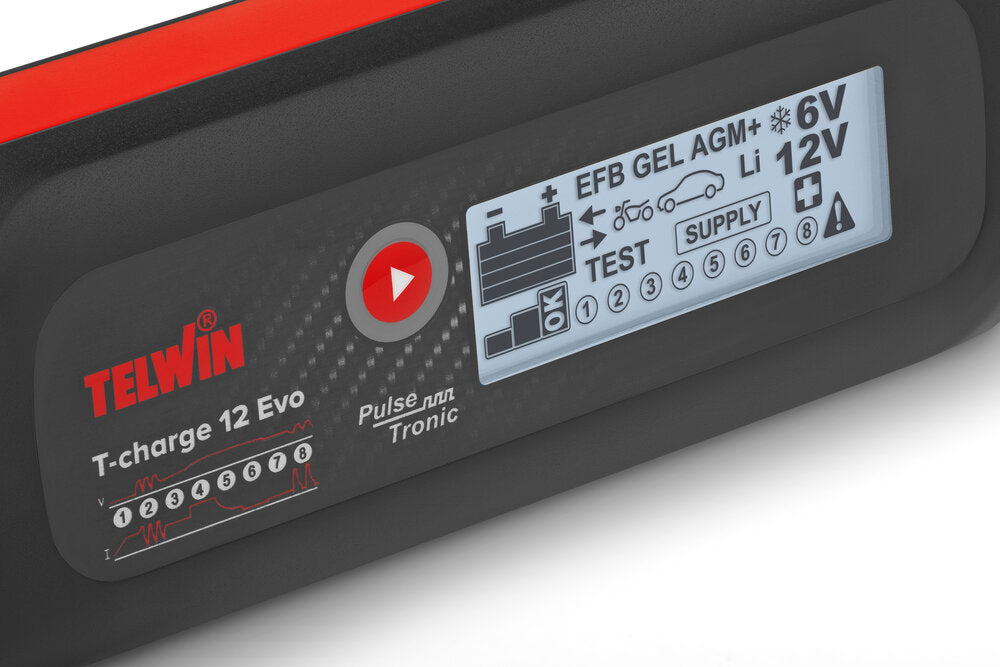

  • LCD screen with clear status and parameter display, making mode selection and reading battery/alternator test results straightforward for technicians.
  • Compact, lightweight housing with IP65 protection against dust, water and humidity, suitable for hard workshop environments and mobile use around the bodyshop.
  • Builtin protections against overload, short circuit and polarity reversal, improving safety when working quickly or in cramped engine bays.
  • Compatible with a wide capacity range (approx. 2–70Ah), covering motorcycle, car and light commercial auxiliary batteries commonly found in professional workshops.

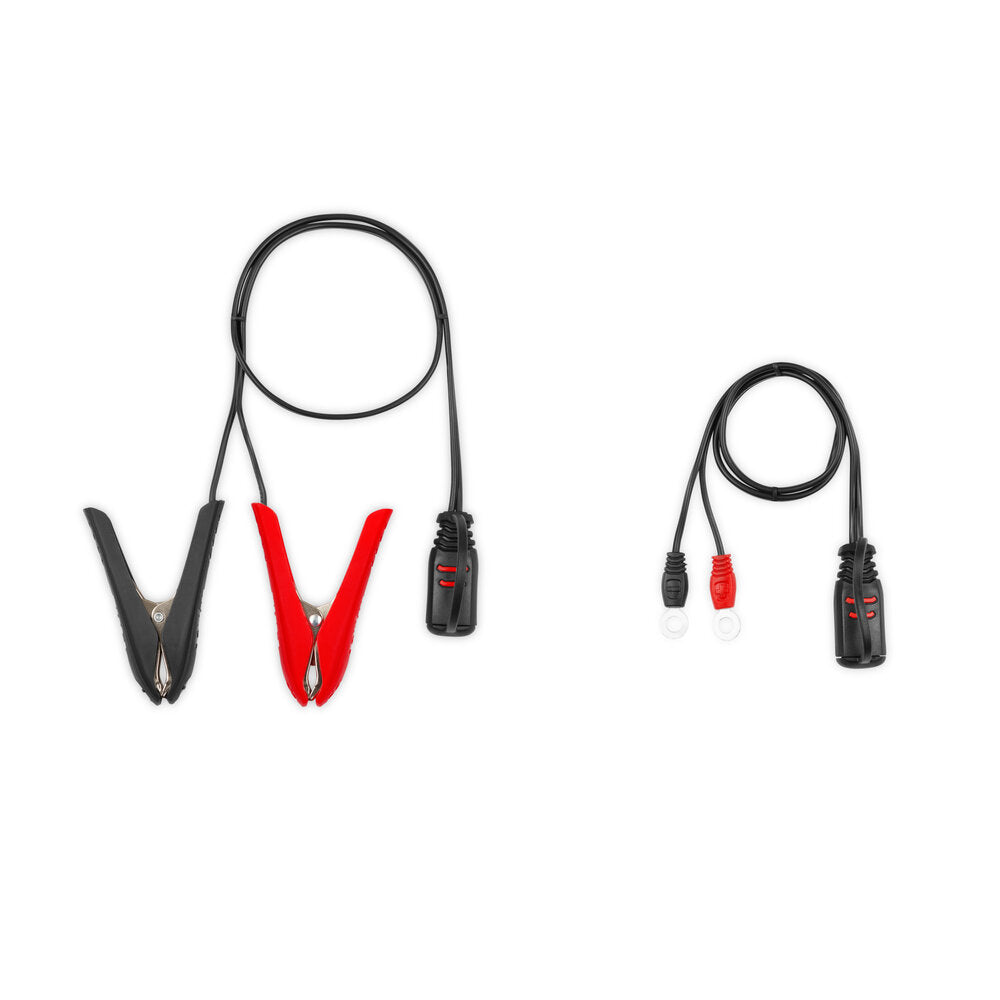

  • Delivered with clamp leads and eyelet leads, allowing both quick connect to batteries invehicle and permanent connection on frequently maintained batteries.
  • Selector with multiple charging current levels to suit smaller motorcycle batteries and larger vehicle batteries without stressing the cells.
  • Useful as a continuous and reliable support unit for maintaining system power while replacing batteries on modern vehicles with sensitive electronics.
  • Suitable for charging and maintaining lithium starter batteries used on performance bikes and specialist vehicles, when set to the correct programme.

Specification

Manufacturer
Telwin SPA
Model
T-Charge 12 Evo
Code
807578
Battery Types
WET, GEL, AGM, MF, PbCa, EFB, Li
Battery Voltage
6V
Singlephase Mains Voltage
230V
Mains Frequency
50
Charging Voltage
6V
Effective Charging Current
1A (6V)
Rated Charging Current EN60335-2-29
1A
Minimum Rated Reference Capacity
2Ah
Maximum Rated Reference Capacity
70Ah
Charging Absorbed Power
55W
Protection Degree
IP65
Adjustment Positions
Automatic
Dimensions (L x W x H)
17 x 6.5 x 3.5cm
Weight
0.6kg
Supplied Accessories
Cable with clamps, cable with eyelets
Optional Accessories
Battery connector with eyelets M6, battery connector with eyelets M8, connector with car and motorbike 12V cigarette lighter plug

FAQs

What does the T-CHARGE 12 EVO do in a workshop?
It is a 6V/12V electronic battery charger, maintainer and tester for WET, GEL, AGM, MF, PbCa, EFB and Li batteries. In practice that makes it useful for routine charging, battery support during swaps, checking battery and alternator condition, and recovering some sulphated batteries.
What size batteries is it suitable for?
Telwin rates it for batteries from 2Ah up to 70Ah, with a 4A maximum charging current. That suits motorcycles, cars, small vans and similar light workshop applications rather than large commercial or deep-cycle batteries.
Does it have any battery care functions beyond charging?
Yes. It has Pulse Tronic automatic charging and maintenance, a COLD mode for low-temperature charging, a RECOVERY function for sulphated batteries, a TEST function for battery and alternator checks, and a SUPPLY mode for keeping power stable during battery changes.
What comes in the box and what should I order with it?
It comes with clamp leads and eyelet leads as standard. For regular workshop use, battery connectors with M6 or M8 eyelets and a 12V cigarette-lighter lead are available as optional accessories, which is handy if you want quick hook-up on repeat jobs.
