Telwin Smart Inductor 5000 - Classic Package

Name: Telwin Smart Inductor 5000 - Classic Package
Brand: Telwin
SKU: 865011
Price: 1325.00 GBP
Availability: InStock

£1,325.00

Shipping calculated at checkout.

Telwin Smart Inductor 5000 - Classic Package is an automotive induction heater for flameless, localised heating used in professional bodyshops and collision repair.

Key Features

Telwin Smart Inductor 5000 controls
Flameless electromagnetic induction heating
AutoCheck microprocessor intensity control
Digital user-friendly control panel
Telwin Smart Inductor 5000 accessories
Pad Inductor and Heat Twister

Everything we sell is supported by our factory trained engineers at our premesis in Manchester or nationwide through our mobile service engineers.

Returns details can be edited in the theme editor.

Supply

230V

Warranty

1

Free Delivery

UK mainland delivery

Service

In-house engineers

Support

0161 223 1843

Expert Advice

Jason says

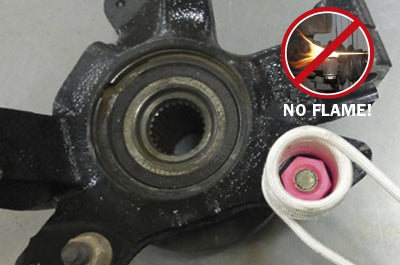

I regard the Telwin Smart Inductor 5000 Classic as an automotive induction heater for flameless, localised heating in professional bodyshops. I use it to heat and remove bonded items — glass, trims, sound deadening, stickers — and to release seized bolts and bearings without an open flame. It is supplied with Super Remover, Heat Twister, Pad Inductor and three levers, which cover most panel and confined-space tasks. Two technical points matter: it runs from single-phase 200–240 V supplies and its AutoCheck Smart Power adjusts output automatically, so correct positioning of the inductor and choice of tool affect heat transfer more than brute power. In my experience operators often expect instant release; poor contact or incorrect tool selection leads to long cycle times or localised paint overheating. Use the digital control to choose automatic or manual mode and work in short bursts near sensitive materials. Used with sensible technique it delivers reliable, repeatable flameless heating and reduces intervention time.

Jason, Sales Director

WHY BUY YOUR EQUIPMENT FROM US?

At BWS, we do more than supply equipment. Our experienced engineers work with the products we sell every day, providing practical advice to help you choose the right equipment for your workshop.

From installation and training to servicing, calibration and repairs, we’re here to support you long after your purchase. You’re not simply buying a machine — you’re gaining access to a team that understands how to keep it working.

See What We Do!

Technical Features

Flameless localised electromagnetic heating for removal of glued or seized vehicle parts
Rapid transfer of heat to a focused area in seconds using electromagnetic induction
AutoCheck microprocessor with Smart Power for intelligent automatic intensity adjustment

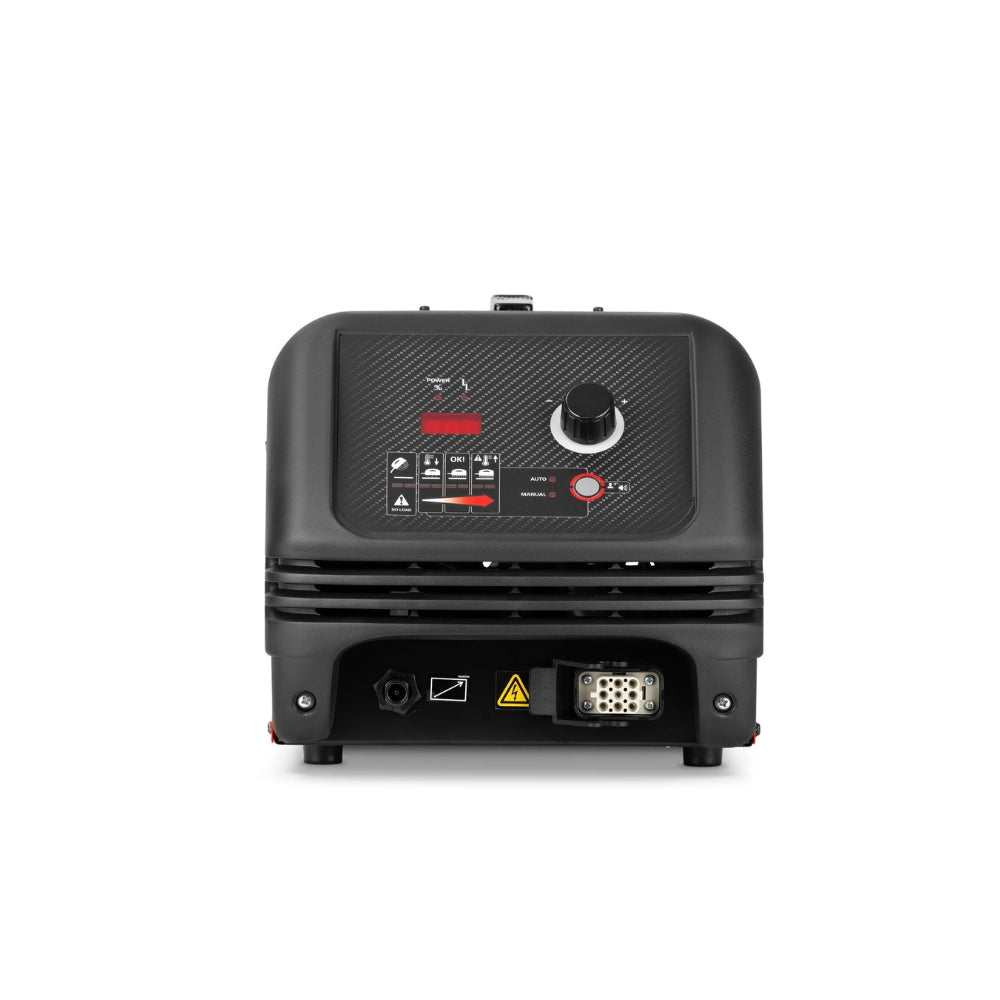

Digital, userfriendly control panel with both automatic and manual operating modes
Smart Activation: unit activates automatically when positioned near the work area
Smart Protection concentrates heating on the target area to avoid damage to glass, rubber, plastic and painted surfaces
Provides activation and correctoperation signals to guide the operator
Pushbutton control for glass remover and confinedspace remover functions on the control panel','Foot control compatibility for handsfree operation','Supplied with Super Remover, Heat Twister, Pad Inductor, three levers and remote control for common bodyshop tasks','Upgradeable to Deluxe package by adding additional inductor tools','Operates from singlephase mains 200–240 V at 50/60 Hz','Rated max heating power 2.3 kW with heating frequency range 35–100 kHz','Compact portable chassis (39 x 26 x 23 cm) and weight 10.4 kg for workshop mobility','Protection degree IP21 and insulation class F for typical workshop environments

Specification

Manufacturer

Telwin SPA, Via della Tecnica, 3 36030 Villaverla (VI) - ITALY

Part Number

865011

Heating Frequency

35 - 100 kHz

Dimensions (L x W x H)

39 x 26 x 23 cm

Mains Voltage

200 - 240 V

Mains Frequency

50 / 60 Hz

Max Heating Power

2,3 kW

Max Absorbed Power

2,4 kW

Weight

10,4 kg

Insulation Class

F

Protection Degree

IP21

Fuse

13A

Supplied Accessories

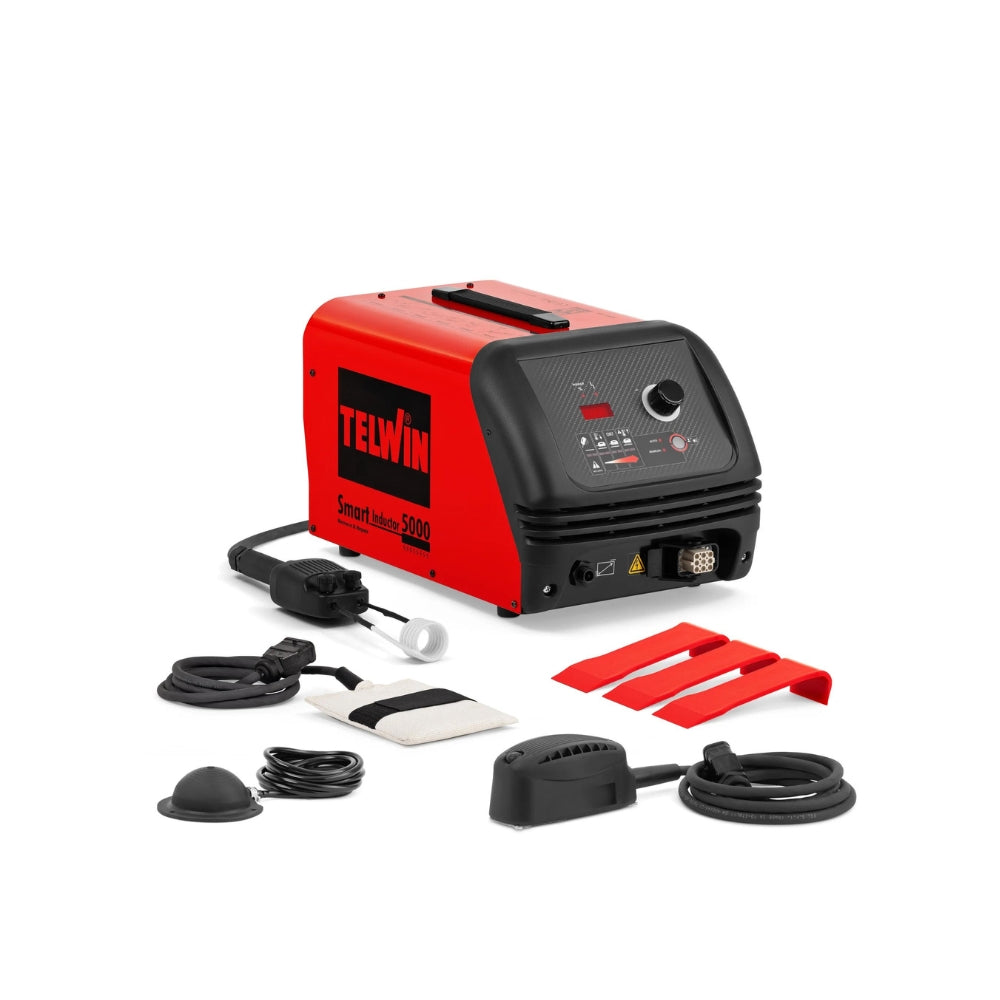

Super Remover, Heat Twister, Pad Inductor, 3 levers, remote control

FAQs

What comes in the Telwin Smart Inductor 5000 Classic Package?

The Classic package is supplied with a Super Remover, Heat Twister, Pad Inductor, three levers and a remote control. The machine also offers foot-control operation and pushbutton control functions as part of its user controls.

What are the electrical requirements and power ratings?

Single-phase mains 200–240 V, mains frequency 50/60 Hz. Heating frequency 35–100 kHz. Max heating power 2.3 kW, max absorbed power 2.4 kW. Product specification lists a 13 A fuse.

Is the induction heater suitable for use around glass, rubber and painted areas?

Yes. The unit uses electromagnetic induction for fast, localised flameless heating and is designed with Smart Protection to concentrate heat on the work area without damaging glass, rubber, plastic or painted surfaces in the surrounding area.

How is the Smart Inductor 5000 controlled and what applications is it intended for?

Control is via a user-friendly digital panel with automatic (Smart Power using an AutoCheck microprocessor) and manual modes, with activation near the work area (Smart Activation). It provides operation signals and can be used with the supplied remote and foot control. It is described for removal tasks on vehicle bodies, including glued items (windows, trims, stickers) and freeing blocked components such as bolts and bearings.

📄

Technical Datasheet

Download the official manufacturer datasheet for Telwin Smart Inductor 5000 - Classic Package including specifications, compatibility information and technical details.

Download Telwin Smart Inductor 5000 - Classic Package Datasheet
