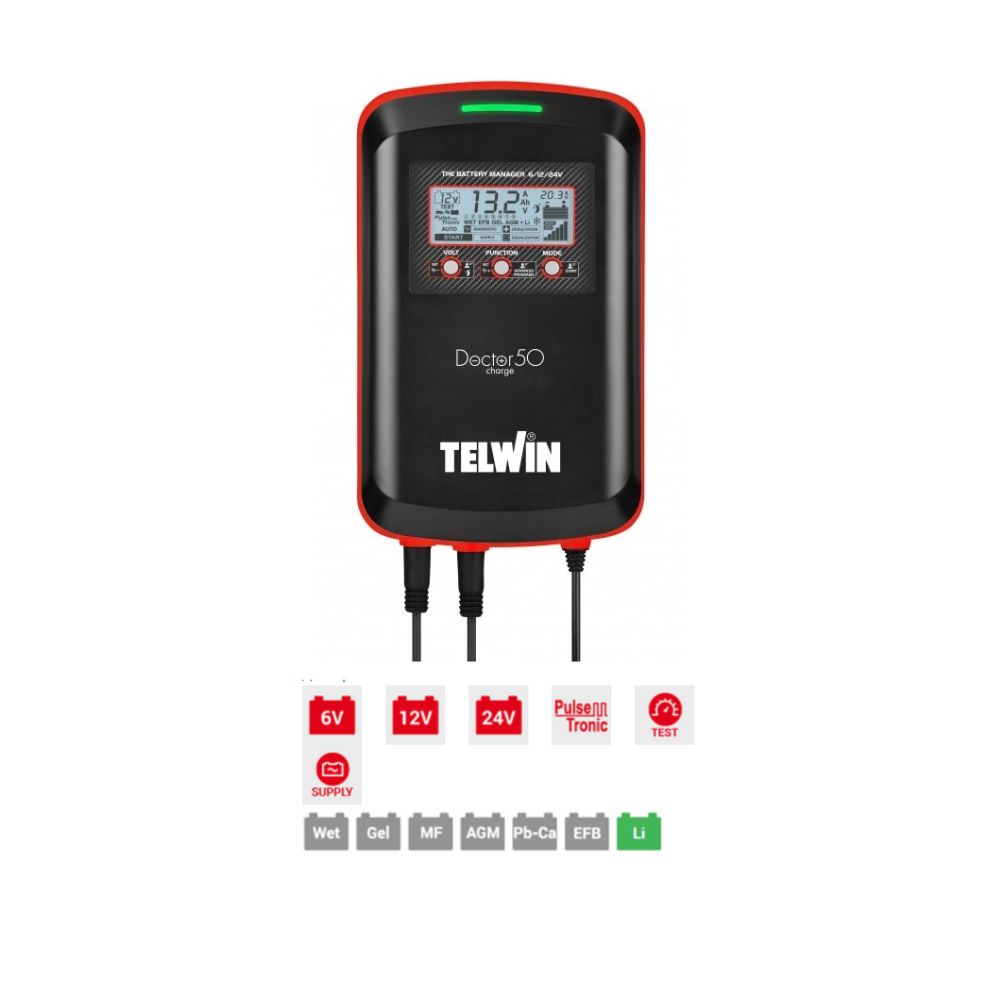

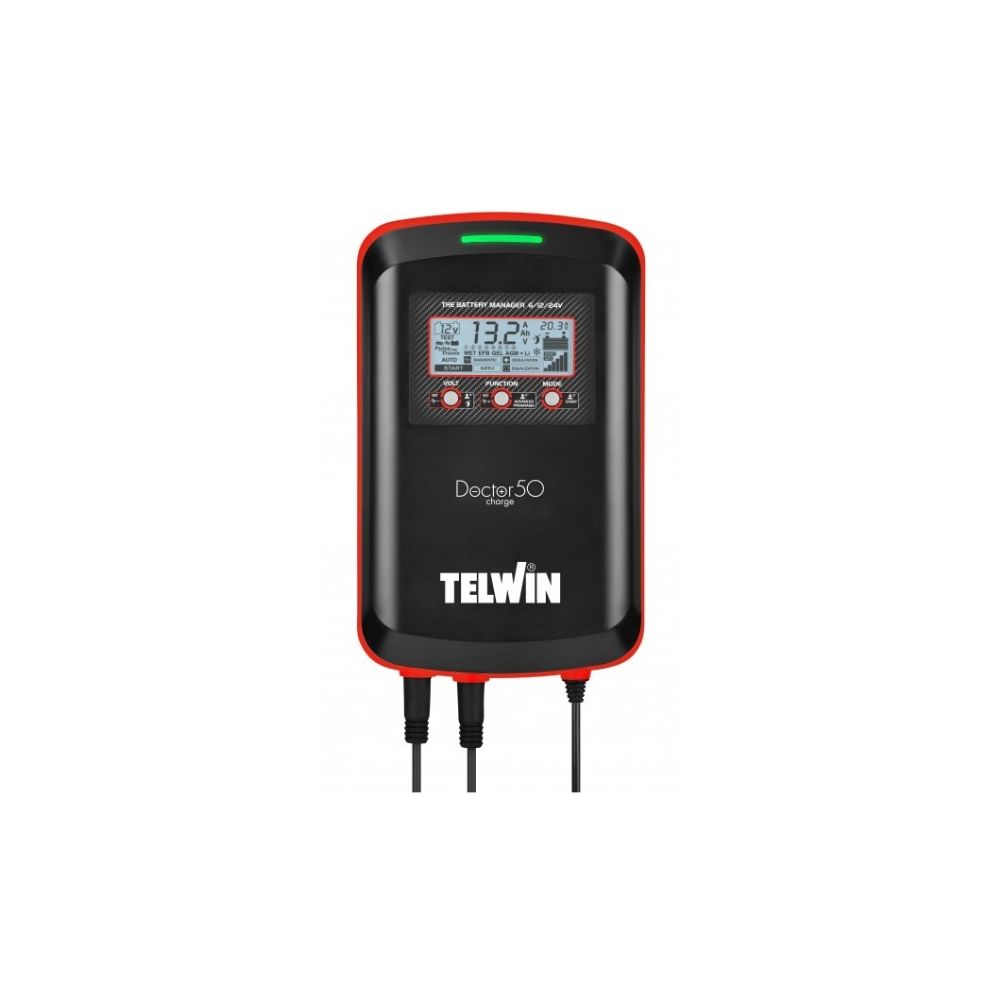

Telwin Doctor Charge 50 Battery Manager

Name: Telwin Doctor Charge 50 Battery Manager
Brand: Telwin
SKU: 807613
Price: 343.64 GBP
Availability: OutOfStock

£343.64

Shipping calculated at checkout.

Telwin Doctor Charge 50 Battery Manager is a professional 6/12/24V battery manager for charging, maintenance and recovery in repair workshops.

Key Features

Compatible with WET, GEL, AGM
Pulse Tronic eight-stage charging
Battery recovery and equalisation
Telwin Doctor Charge 50 start assist
Stable BSU power supply
Telwin Doctor Charge 50 diagnostics

Everything we sell is supported by our factory trained engineers at our premesis in Manchester or nationwide through our mobile service engineers.

Returns details can be edited in the theme editor.

Supply

230V

Warranty

1

Free Delivery

UK mainland delivery

Service

In-house engineers

Support

0161 223 1843

WHY BUY YOUR EQUIPMENT FROM US?

At BWS, we do more than supply equipment. Our experienced engineers work with the products we sell every day, providing practical advice to help you choose the right equipment for your workshop.

From installation and training to servicing, calibration and repairs, we’re here to support you long after your purchase. You’re not simply buying a machine — you’re gaining access to a team that understands how to keep it working.

See What We Do!

Technical Features

Multifunction battery manager for professional use supporting 6V, 12V and 24V batteries.
Pulse Tronic microprocessor‑controlled 8‑stage charging for WET, GEL, AGM, MF, PbCa, EFB and Li battery types.
Power Stream technology providing up to 50% greater efficiency compared with traditional chargers (as stated by manufacturer).
BOOST mode for accelerated charging and COLD mode for optimised charging in low temperatures.
RECOVERY function for sulphated or deeply discharged batteries and EQUALISATION function for periodic regeneration to restore performance.
Stabilised BSU (power supply) mode with precisely adjustable voltage for diagnostic activities, battery replacement and powering vehicles on display.
Tester functions for checking terminal voltage, cold cranking amps (CCA) and alternator operation.

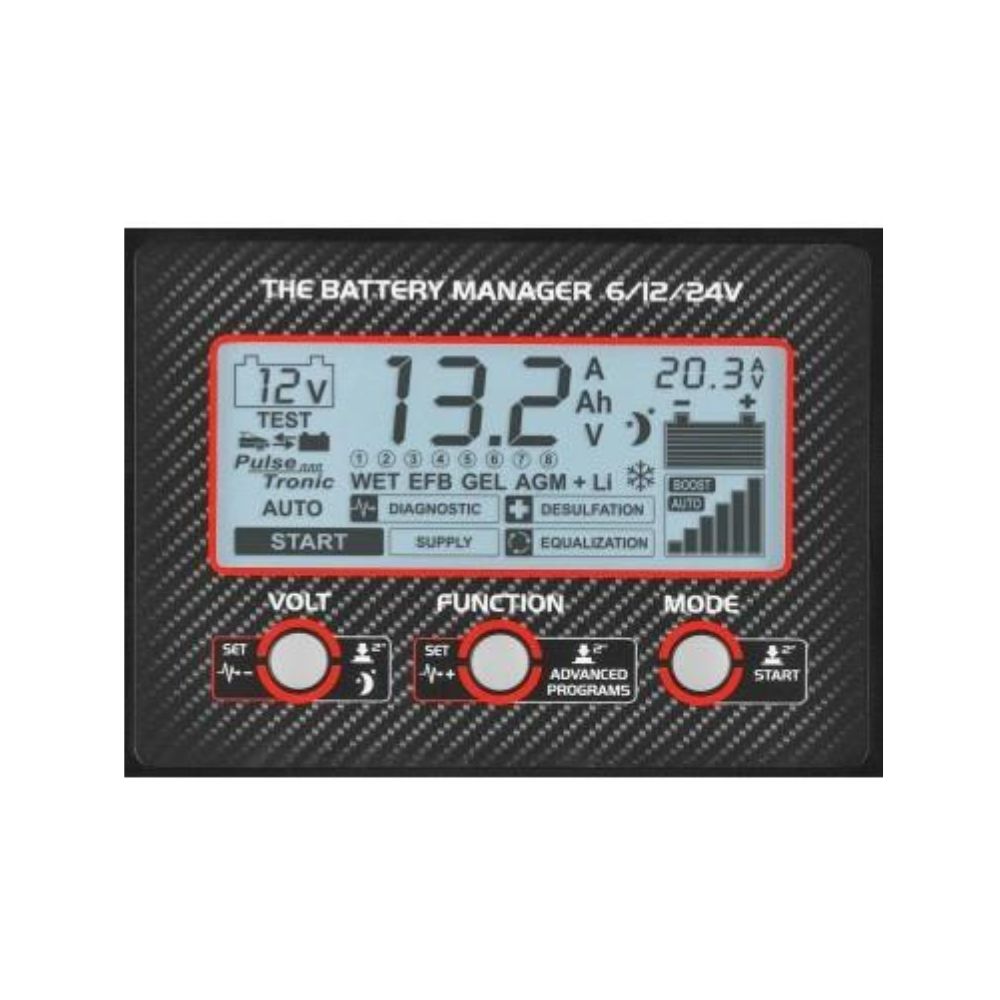

Start assist (jump‑start aid) to deliver high starting current when required for engine ignition support (start assist/jump‑start).","Cable length compensation to offset voltage drop on long leads and maintain correct charging performance.","LCD display providing real‑time information on charging status, selected modes and diagnostic results.","Protections including overload, short circuit and reverse‑polarity protection; includes PFC for improved input behaviour.","Designed for workshop, bodyshop and dealership environments and specified to support bench testing and simulation of battery presence to protect vehicle electronics during tests.","Supplied with cables and clamps (manufacturer states 3m cables) and compatible with optional longer cable kits and wall‑mount support.

Specification

Manufacturer Address

Telwin SPA, Via della Tecnica, 3 36030 Villaverla (VI) - ITALY

Code

807613

Input Voltage

230 V

Mains Frequency

50 / 60 Hz

Charging Voltage

6 / 12 / 24 V

Efficient Charging Current

45 / 45 / 23 A

Rated Charge Current (EN60335-2-29)

40 / 40 / 20 A

Charge Current (product page)

40/40/12 A

Boost Current

40 A

Start Current (EN60335-2-29)

50 (12V) A

Start Current (product page)

70 A

Charging Absorbed Power

610 W

Protection Degree

IP33

Dimensions (LxWxH)

9,2 x 20 x 33 cm

Weight

3,77 kg

Minimum Rated Reference Capacity

10 Ah

Maximum Rated Reference Capacity

600 Ah

Charging Technology

Pulse Tronic, 8-stage

Supported Battery Types

WET, GEL, AGM, MF, PbCa, EFB, Li

Advanced Functions

BOOST, COLD, RECOVERY, EQUALISATION

Protections

overload, short circuit, reverse polarity, PFC

Supplied Accessory Kit

982497 KIT CABLE 6 MMQ 2M POSITIVE/NEGATIVE

Supplied Cables

3m cables with clamps

Cable Length Compensation

Yes

Diagnostic Support

Adjustable voltage for BSU and vehicle diagnostics

FAQs

Which battery voltages and chemistries does the Telwin Doctor Charge 50 support?

It supports 6V, 12V and 24V systems and is suitable for WET, GEL, AGM, MF, PbCa, EFB and Li batteries. The product literature also refers to spiral and Start‑Stop batteries where applicable.

What charging modes and professional functions does it provide?

Pulse Tronic 8‑stage automatic charging and maintenance, BOOST mode for fast charging, COLD mode for low temperatures, RECOVERY for sulphated or deeply discharged batteries and EQUALISATION for periodic regeneration. It also provides tester functions (terminal voltage, CCA and alternator check), start assist and a stabilised power supply mode for diagnostic activities and battery changes (BSU).

What mains supply and charge/current figures are shown in the technical data?

Mains is single‑phase 230V. The documentation lists rated charge currents variously (efficient charging current 45/45/23 A and EN60335‑2‑29 rated values 40/40/20 A). Boost current is listed as 40 A. Start/assist currents appear in the supplied material (start assist values shown as 50 A at 12V in one table and 70 A in the product summary). Maximum reference capacity is shown as 600 Ah and absorbed charging power as 610 W.

What accessories and protections are supplied or available?

Supplied with 3m cables with clamps and a 982497 kit cable (2m, 6 mmq). Optional accessories listed include longer charge cables (codes 804390 6m, 804391 10m), diagnostic trolley 803107, wall support kit 803086 and magnet kit 803087. Built‑in protections and features include LCD display, cable length compensation, overload, short‑circuit and reverse‑polarity protection and PFC.

📄

Technical Datasheet

Download the official manufacturer datasheet for Telwin Doctor Charge 50 Battery Manager including specifications, compatibility information and technical details.

Download Telwin Doctor Charge 50 Battery Manager Datasheet
