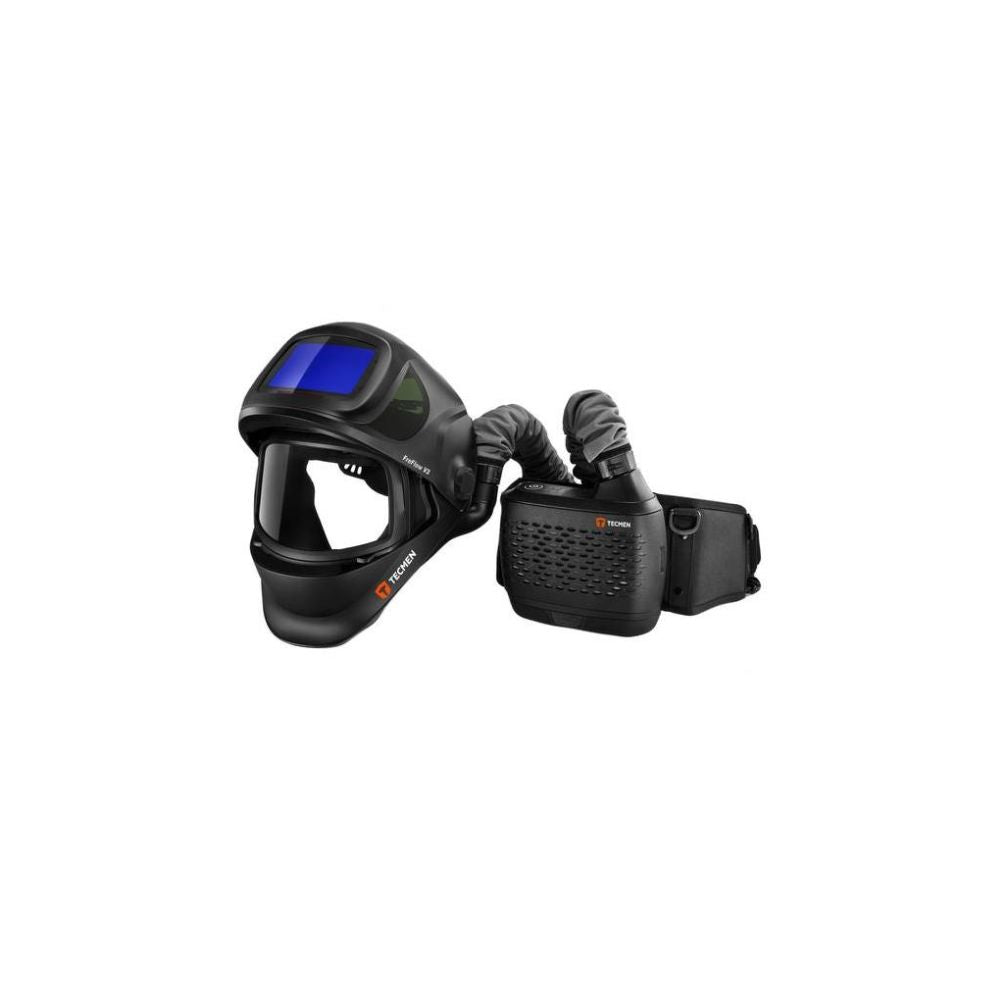

TECMAN FREFLOW V3 AIR FED WELDING HELMET

Price Exc Tax

Tecmen Air Fed Freflow V3 PAPR System

SKU SAFE4033

The Tecmen V3 helmet is equipped with an excellent performance true colour Auto Darkening welding filter. In addition, it has shade 5 side panels on both sides which gives your helmet a more open feel. Easy use cutting, welding and grinding modes, with a memory function for storing your favourite settings.

Standardized to an optical class of 1/1/1/1; No distortion, no double vision, no darkening variation, consistent shade from any angle. Fully adjustable shade settings on the main lens, ranging from shade 5 to shade 13, suitable for detailed TIG and heavy stick welding alike.

Simple, practical and clear iEXP LED screen on the inside of the visor to display your current settings.

Welding visor (viewing area: 10.7cm x 7.5cm) can be smoothly lifted and securely held in place by a spring-loaded mechanism. The large view (20cm x 12cm) grinding lens is made from clear anti-fog glass, which substantially reduces the need to regularly remove your helmet while grinding to clean the visor. A quick lift of the welding visor allows the user to do all the marking and fitting up without the need to keep removing the helmet. Due to the way the front screen lifts upwards rather than outwards like when flipping up a conventional helmet, it reduces force put on the users neck.

Featuring 6 adjustable head gear settings for a well-balanced, maximum comfort fit.

Shade 5 screens either side of the welding auto darkening filter provides a 90° peripheral view whilst welding. The clear grinding visor allows a 160° view.

Easily switch between welding and grinding with the lift up visor.

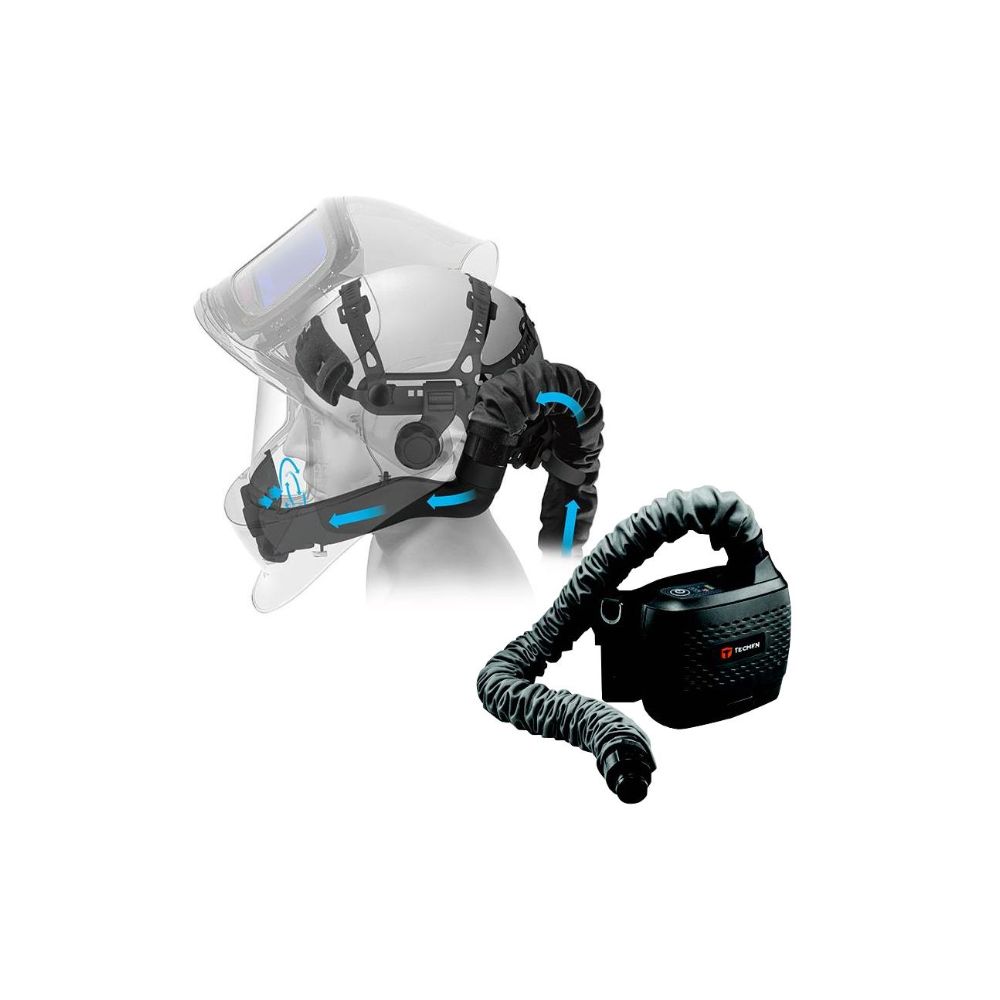

Air is supplied to the mouth/nose area of the wearer rather than over the top of the head and down the face like some other helmets eliminating that drying of the eyes effect.

The TECMAN FREFLOW V3 AIR FED WELDING HELMET is the perfect choice for welding, cutting, and grinding: it comes standard with an excellent performance auto darkening welding filter and a range of 5 to 13 shades for TIG and heavy stick welding. Its iEXP LED screen on the inside of the visor shows your settings in an easy to read format, while comfortable side panels and an anti-fog grinding lens ensures clear vision throughout the job.

Perfect optical classification 1/1/1/1
Shade 5 side panels for peripheral vision during welding
6 point adjustable head band for premium comfort
Flip front for welding or grinding
≥99.97 filter efficiency P3
Low air flow or high air flow settings
inward leakage rating of TH2

Optical class: 1 /1 /1 /1
Viewing area: 107 x 75mm
Cartridge size: 156 x 123 x 33mm
Arc sensor: 4
Light state: DIN 3.5
Dark state: DIN 5 – 8 / 9 – 13
Shade control: Internal, Digital Display Control
Power on/off: Manually On/Off, Auto-off
Sensitive control: Low-High, Digital Display Control
UV/IR Protection: Up to shade DIN16 at all times
Power Supply: Solar cell. Battery Replaceable, 2 x CR2450 lithium battery
Switching Time: 1/25,000 s. From light to dark
Delay (Dark to Light): 0.1 ~1.0s by dial control knob
Low Amperage TIG Rated: >= 2 amps (DC) ; >= 2 amps (AC)
Grinding: Yes
Application range: MMA, TIG, TIG Pulse, MIG, MIG Pulse, Plasma Cutting, Plasma Welding, Arc Air Gouging, Grinding
Approved by: DINplus, CE, ANSI Z87.1, CSAZ94.3, AS/NZS 1338.1
