SWIVEL ELECTRODE

Sale Sale
Original price £32.98
Original price £31.34 - Original price £32.98
Original price £32.98
Current price £31.34
£31.34 - £31.34
Current price £31.34

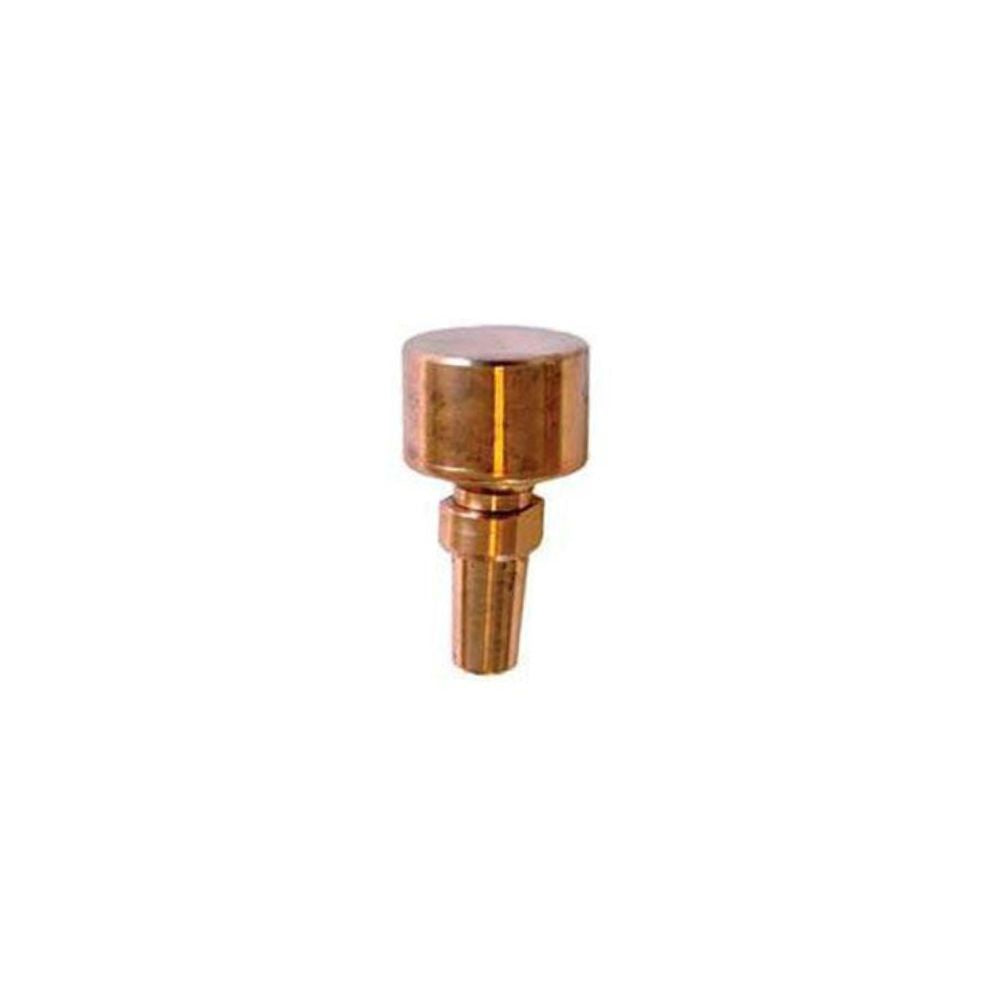

 SPOT WELDING SWIVEL ELECTRODE -COOLED BALL PAD

The top swivel part of the electrode is directly water-cooled.

1/2 inch Swivel Electrode
Electrode Dia 22mm/30mm, Taper Dia 12.7mm, Hole Dia 8mm, Taper Length 13mm, Overall Length 50mm

5/8 inch Swivel Electrode
Electrode Dia 22mm/30mm, Taper Dia 16.0mm, Hole Dia 9mm, Taper Length 20mm, Overall Length 60mm

3/4 inch Swivel Electrode
Electrode Dia 22mm/30mm, Taper Dia 19.0mm, Hole Dia 9mm, Taper Length 22mm, Overall Length 60mm

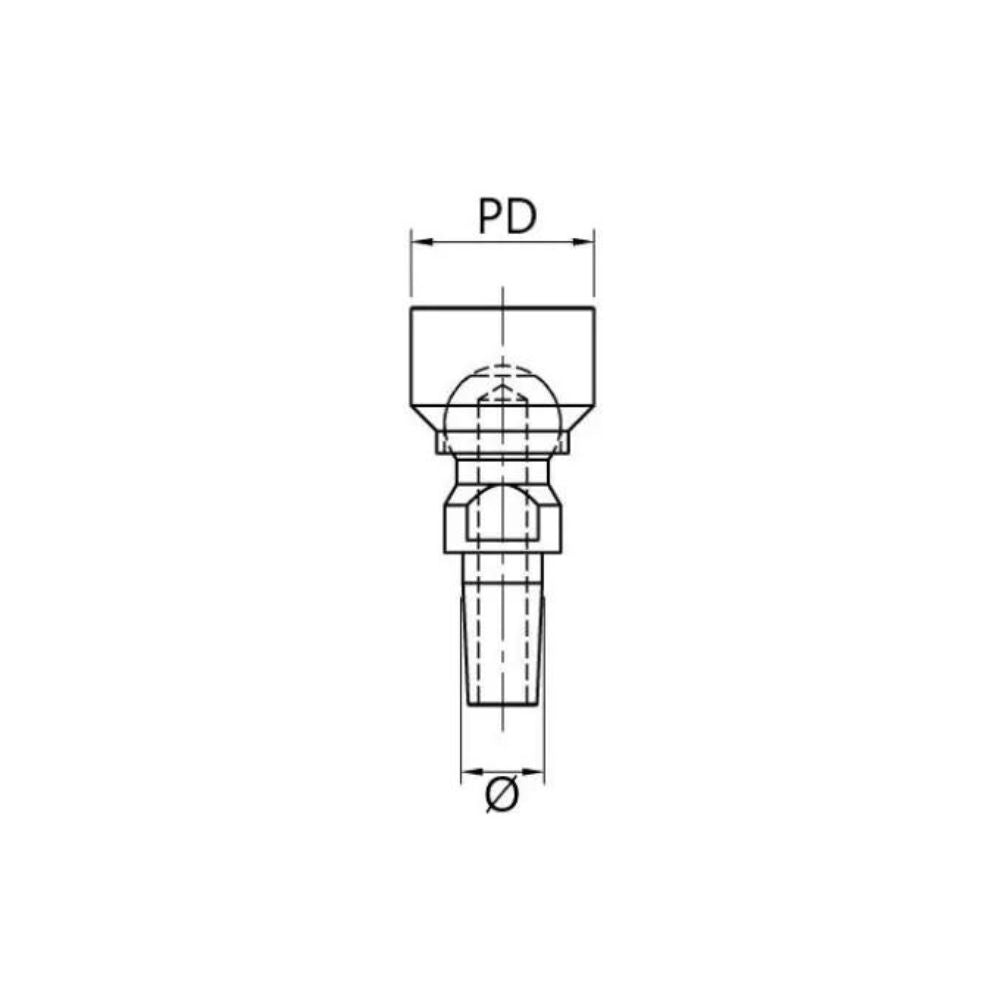

Diameter shaft (O) 13/16/19mm
Head Width ( PD) 30mm
Taper BS807
