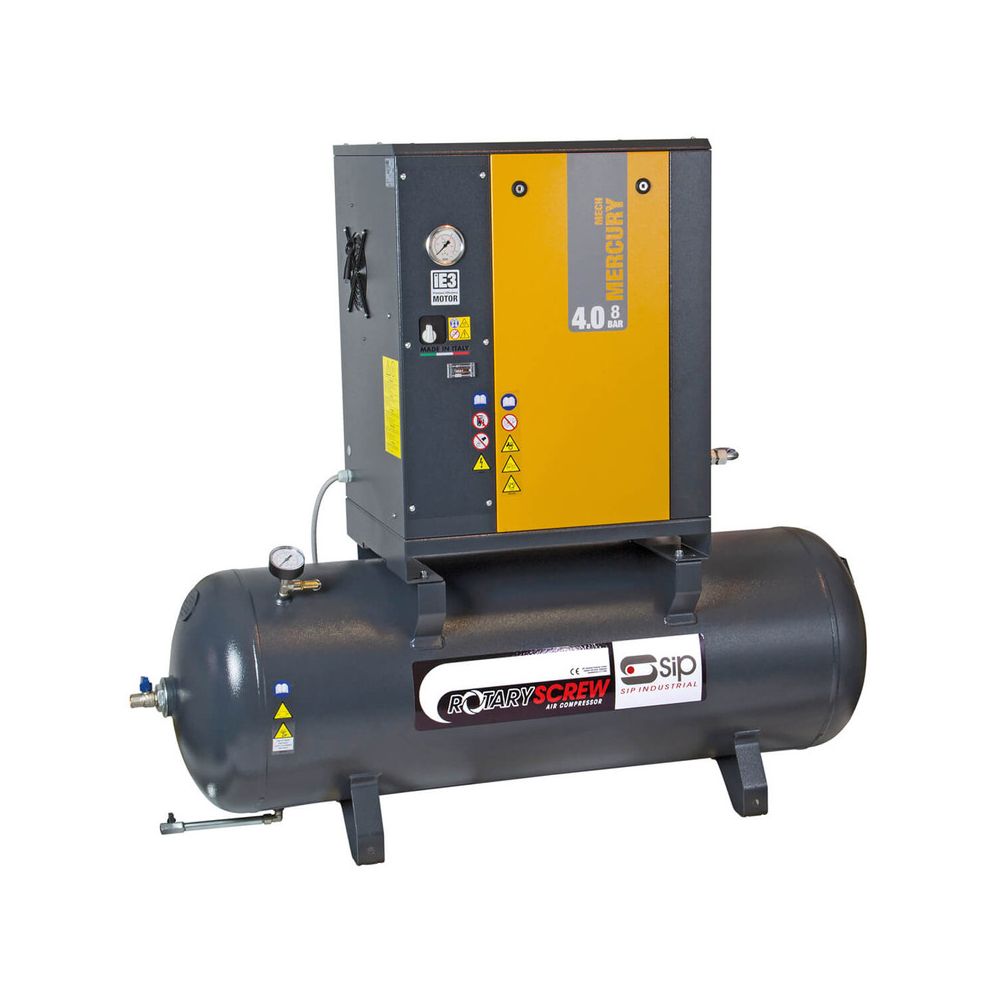

SIP RS4.0-08-200BD ROTARY SCREW COMPRESSOR

Price Exc Tax

Sip Rotary Screw Compressor For Industrial Use

SKU  05372A

The SIP RS4.0-08-200BD Rotary Screw Compressor has an IE3 motor for reduced costs and lowers CO2 emissions, offering high performance whilst having 95% efficiency and 100% duty cycle.

 Each RS4.0-08-200BD is built to the highest standard in Italy and then tested by experienced SIP technicians in the UK prior to dispatch for added peace of mind.

PRO INSTALLATION  AND DELIVERY BY QUALIFIED ENGINEERS AVAILABLE

Calculating CFM for a compressor
 SITE SURVEY Download






    400v (20A) 3-phase input supply
    200ltr large receiver; 116psi (8bar) max. pressure
    20.5CFM (580ltr/min) max. free air delivery (FAD)
    5.5hp (4.1kW) IE3 motor with Italian-made air ends
    for constant airflow, reduced costs and CO2 emissions
    Mechanical control; simple, easy-to-use, and reliable
    POLY-V belt-driven transmission for lower power losses
    Silenced cabinet enclosure; helps maintain the internal
    temperature and reduce overall noise levels; 60dB(A)
    Front and rear access panels for easy maintenance
    High 95% efficiency and 100% duty cycle
    100% UK tested before dispatch
    Made in Italy / 2-year warrant

    Input Supply 400v(20amp)
    Motor Power 5.5hp (4kW)
    Receiver Size 200litres
    Piston Displacement
    20.5CFM (580 litres/min)
    Max. Free Air Delivery 8.5CFM (240 litres/min)
    Max. Pressure 116psi (10 bar)
    Noise Level 60dB(A)
    Gross Weight 178kg
    Packaged Dimensions 1460 x 1525 x 610m
