SKU 25169

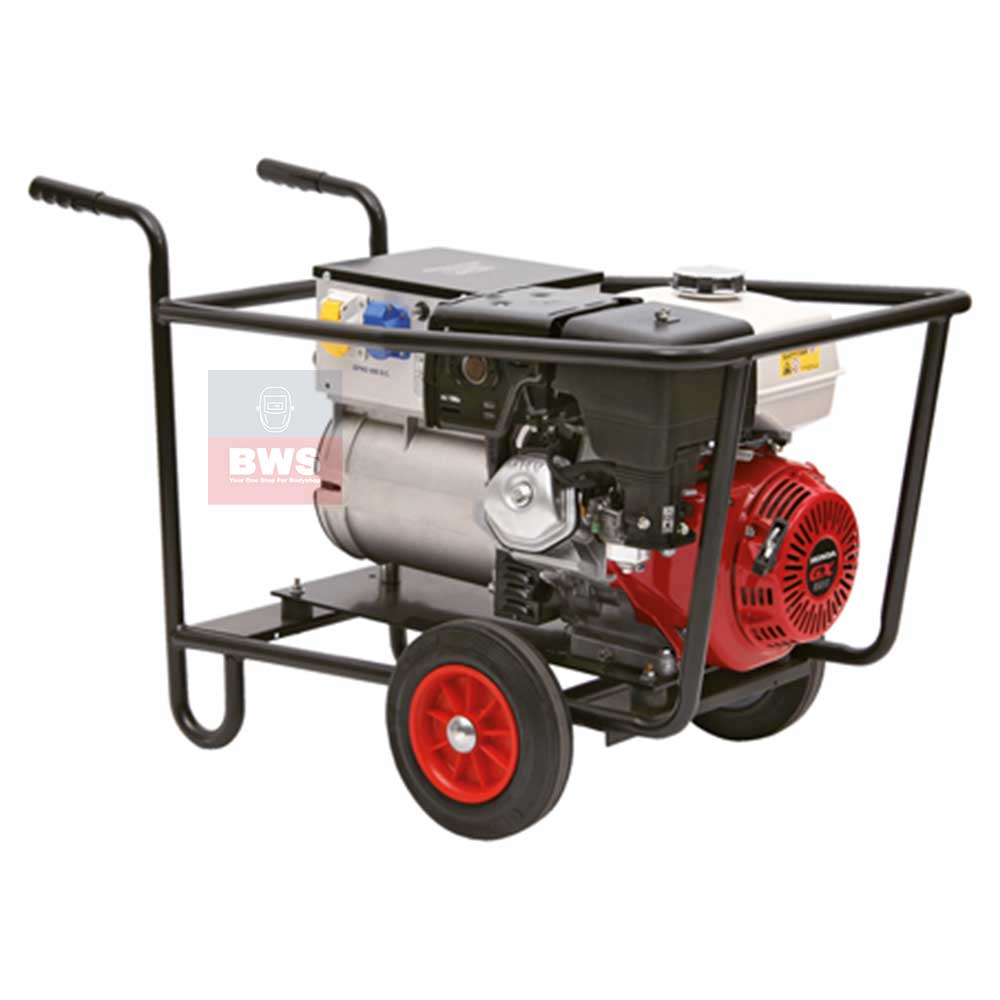

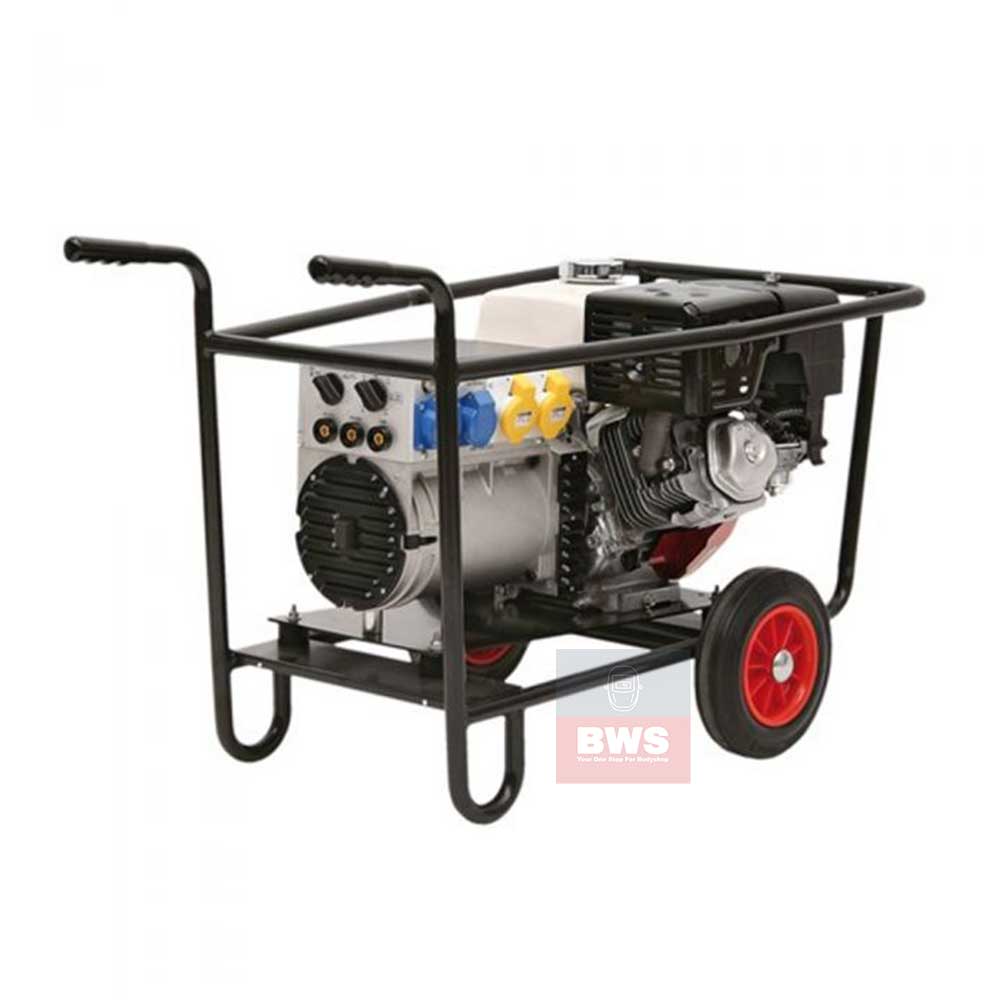

The SIP HP200W-AC ES is a powerful petrol welder generator designed to provide mobile welding solutions for various tasks, as well as offer auxiliary outputs for use as a standalone generator.

  • Electric-starting model
  • 230v / 115v input supply
  • Honda GX390 petrol engine
  • 7KVA max. rated generator output
  • 60A - 200A ARC (AC) output current
  • High 180A @ 60% generator duty cycle
  • 7.3litres (2.45hours) fuel tank and runtime
  • 1.5mm - 8mm approx. weld thickness range
  • 1.6mm - 5mm maximum electrode diameter
  • Inclined cylinder and a counterbalance shaft
  • Low oil shutdown helps prevent damage
  • Hot spark ignition, splash-fed lubrication
  • Excellent and efficient fuel consumption
  • Reduced oil consumption for longer life
  • Assembled and tested by SIP in UK
  • 3 year Honda engine warranty
      Electric Start Yes
      Engine Type HONDA GX390
      Output Current 60A - 200A (AC)
      Open Circuit Voltage 45v - LO / 60v - HI
      Generator Duty Cycle 180A @ 60%
      Electrode Diameter ∅ 1.6mm - 5mm
      Welding Thickness 1.5mm - 8mm
      Generator Supply 230v / 115v
      Generator Output 7KVA
      Fuel Tank Capacity 7.3litres
      Full Load Run Time 2.45hours
      Insulation Class H
      Protection IP21
      Gross Weight 90kg
      Packaged Dimensions 820(H) x 800(W) x 1200mm(D)
