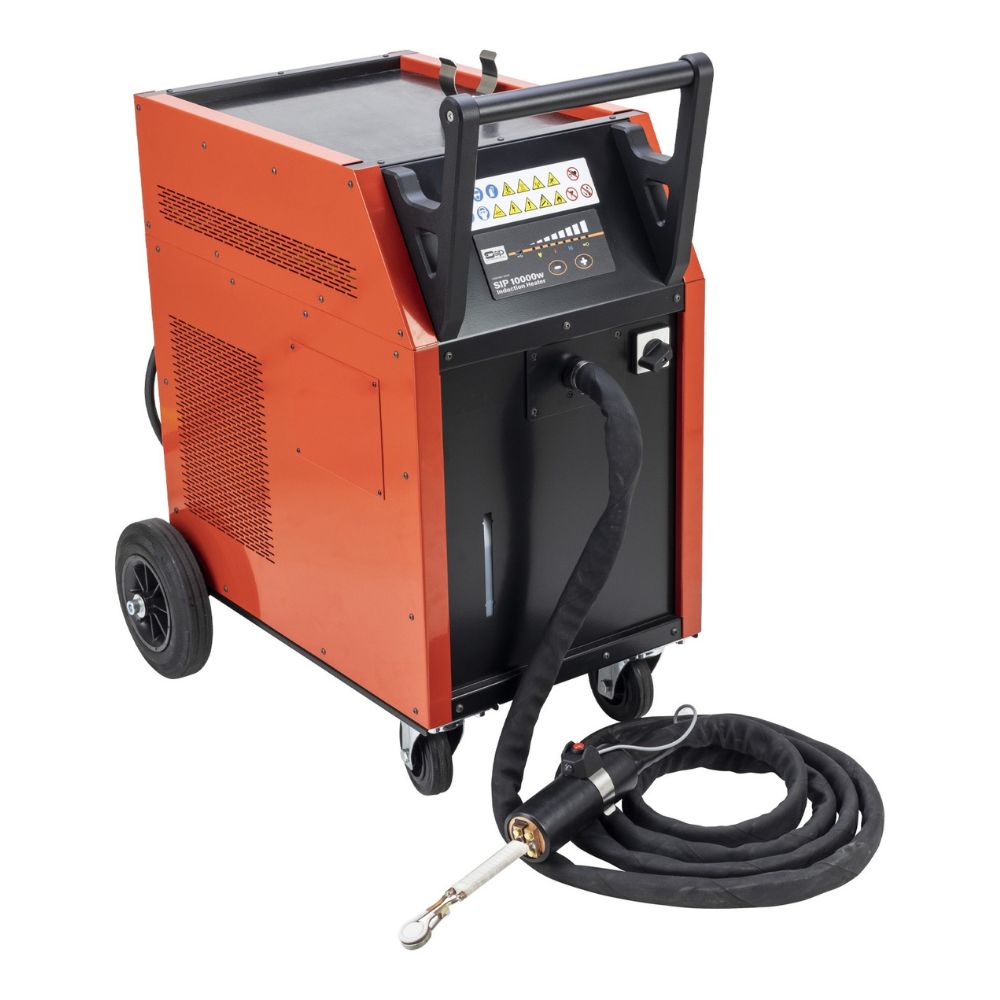

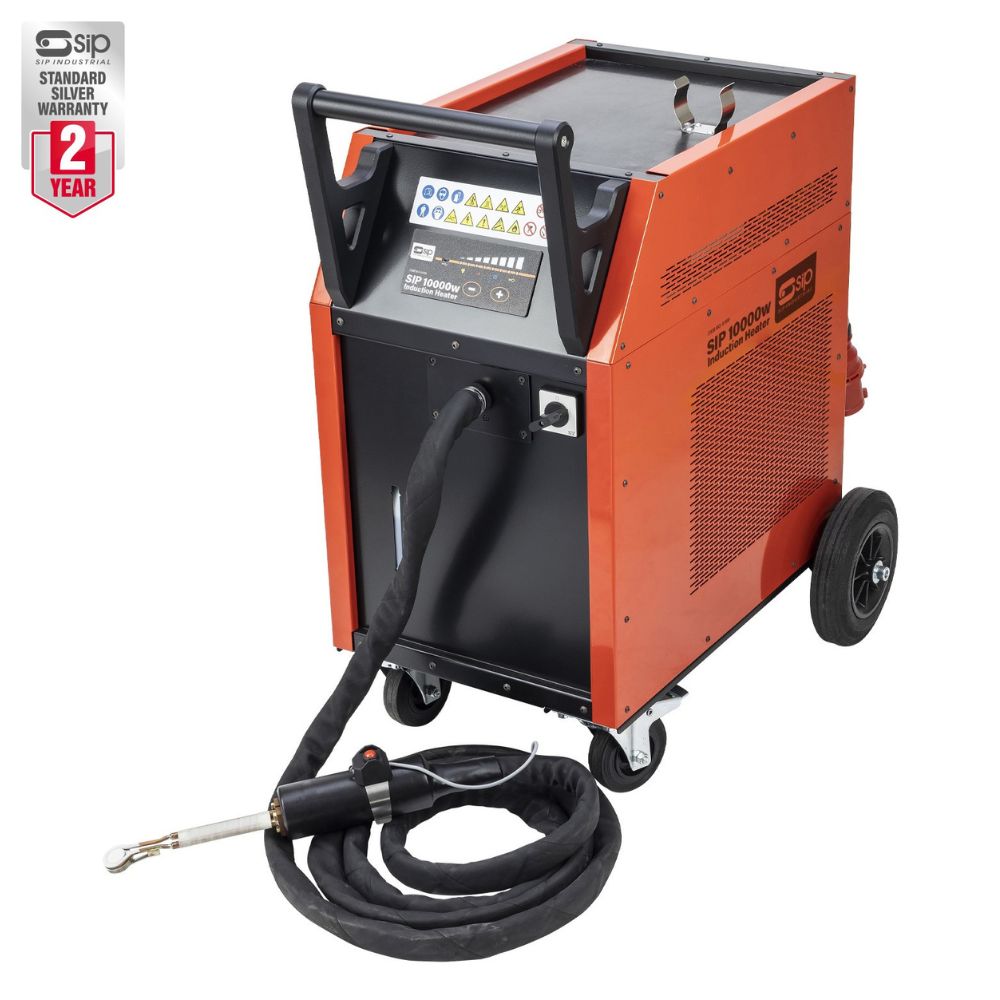

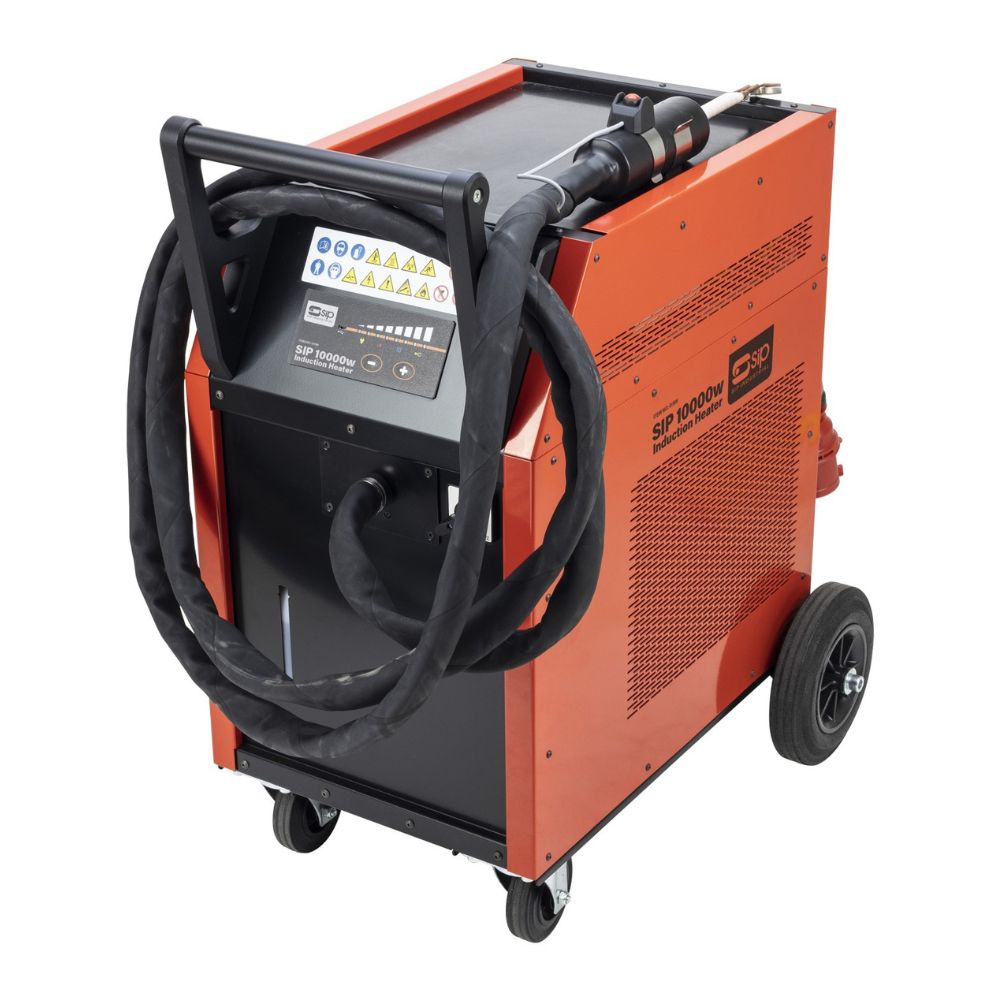

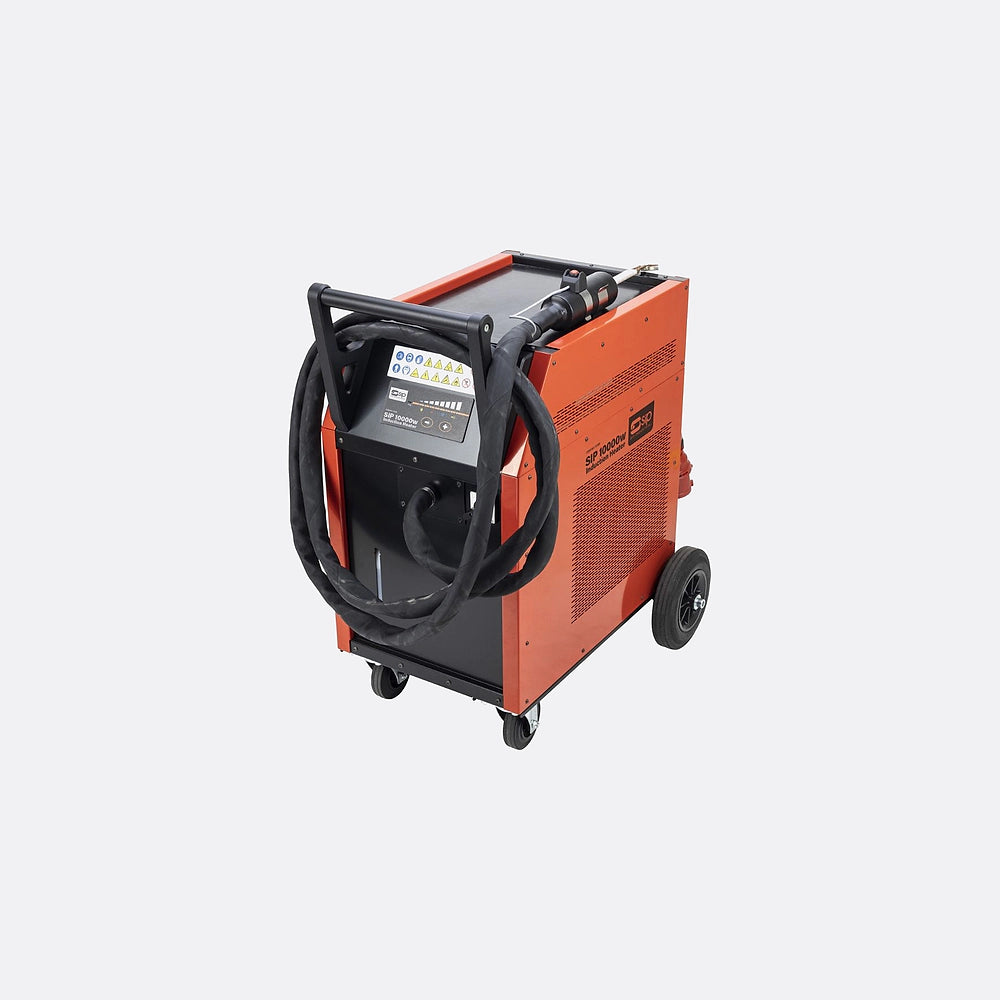

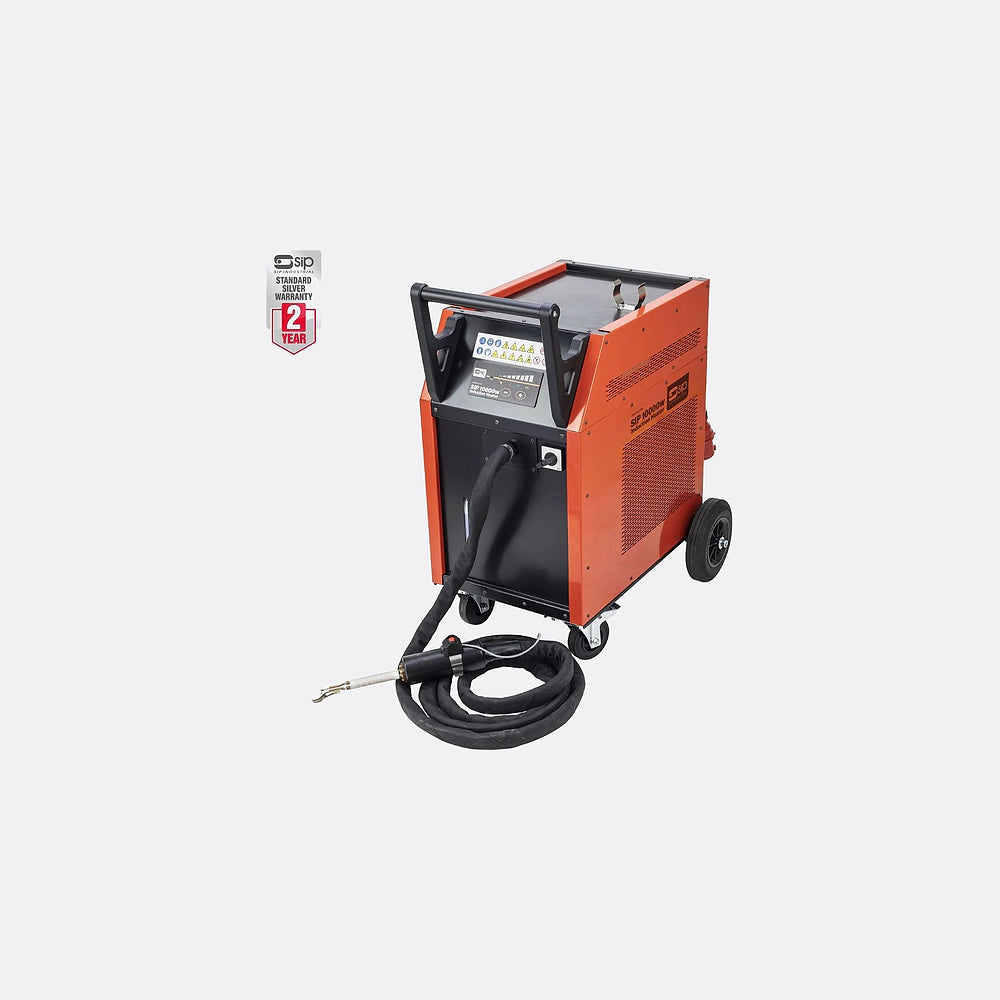

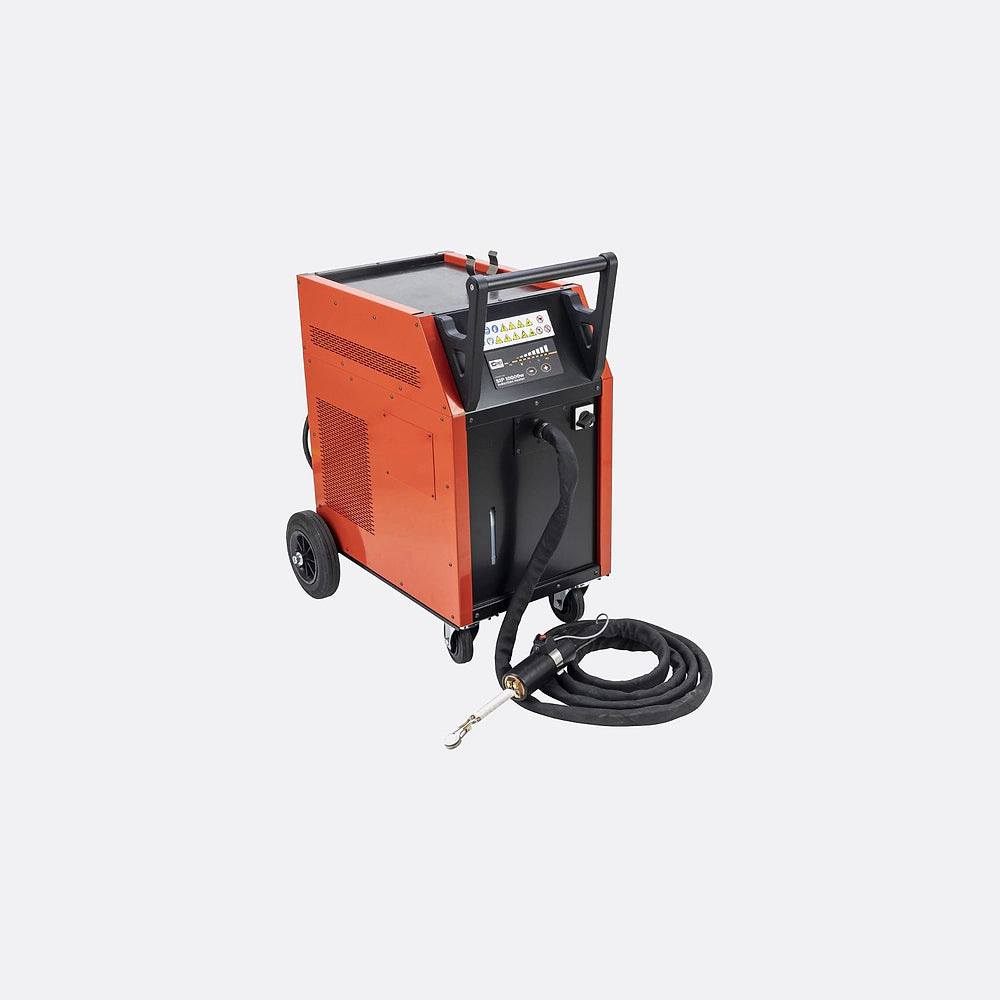

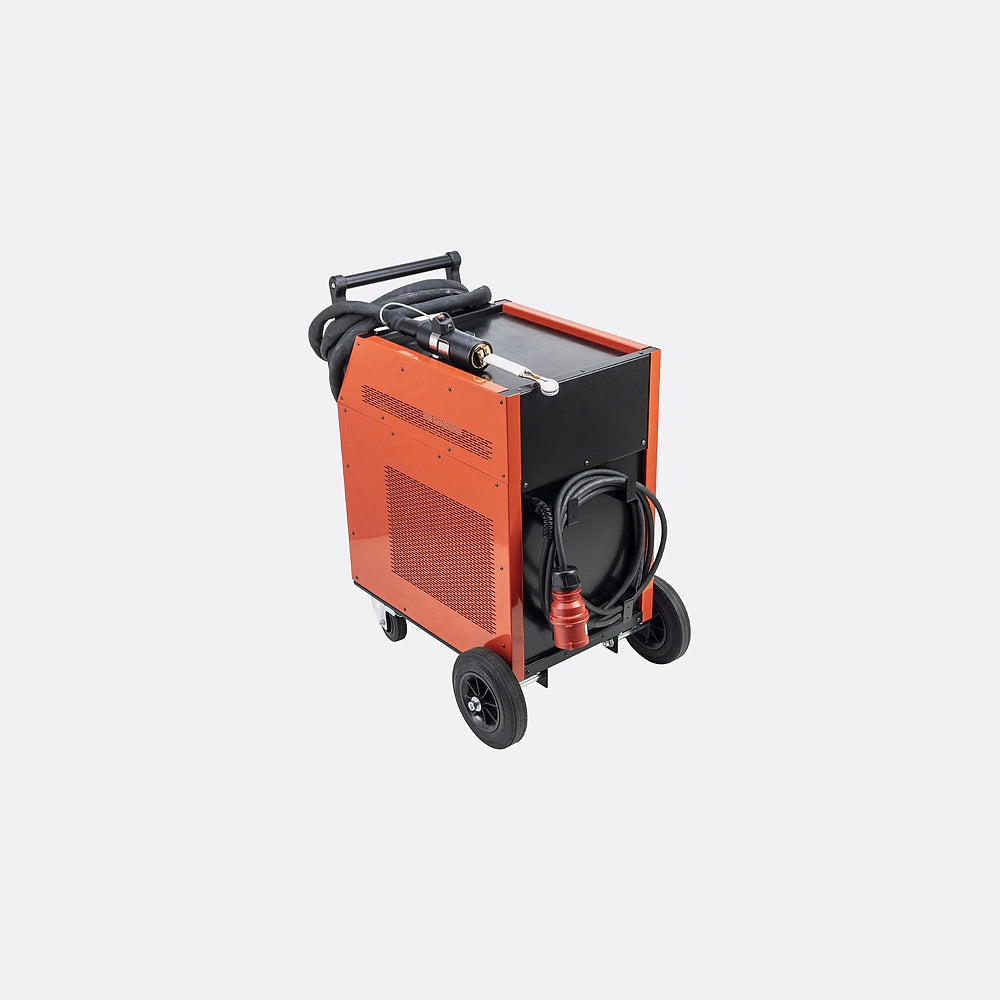

Sip 01158 10000w Induction Heater Kit

Name: Sip 01158 10000w Induction Heater Kit
Brand: SIP
SKU: 01158
Price: 5499.00 GBP
Availability: InStock

£5,499.00

Shipping calculated at checkout.

SIP 01158 10000W INDUCTION HEATER KIT is a heavy-duty induction heating system for welded fabrication, heat treatment, distortion control and component assembly in professional workshops.

Key Features

10kW three-phase induction power
Liquid-cooled torch and cable
Integrated fan-cooled radiator system
Four-metre induction cable
Multi-level power control
Mobile heavy-duty workshop design

Everything we sell is supported by our factory trained engineers at our premesis in Manchester or nationwide through our mobile service engineers.

Returns details can be edited in the theme editor.

Supply

230V

Warranty

2 Years

Service

In-house engineers

Support

0161 223 1843

Expert Advice

Mark Allen says

This is a 10kW, three-phase induction heating system for controlled heating of conductive metal parts, welded fabrications and seized components.

In a bodyshop or fabrication workshop, I would use it for releasing seized fixings, localised heat treatment, correcting welding distortion and preheating assemblies before welding. The electric heating process avoids an open flame, which is useful around vehicles, painted panels and workshop areas where flame heating would create unnecessary risk.

The 400V three-phase supply must be checked before installation, as this is not a standard single-phase machine. Correct coil selection and positioning are also important: keep the applicator close to the work without touching unsuitable surfaces, and heat only the required area. The liquid-cooled torch and cable need the specified coolant level and unobstructed airflow through the radiator.

A common issue is expecting induction to heat every material equally. It works on electrically conductive metals, but thickness, steel grade, access and coil fit all affect the result. Used with the correct setup, it provides repeatable localised heat and avoids wasting time heating surrounding components.

Mark Allen, Senior Engineer

WHY BUY YOUR EQUIPMENT FROM US?

Our team of welding experts at BWS is ready to assist you every step of the way. Whether you have questions about specific products, need guidance on selecting the right equipment, or seek welding-related advice, our knowledgeable staff is here to help.

We also have some of the most experienced engineers in the industry who are able to offer full technical support on top of what the manufacturers offer.

Find Our More

Technical Features

10kW induction heating for heavyduty industrial applications
Suitable for preheating welded fabrications and heat treatment work
Supports manufacturing processes including stress relieving, welding distortion control and component assembly
Allelectric heating process avoids the naked flame associated with oxyacetylene heating

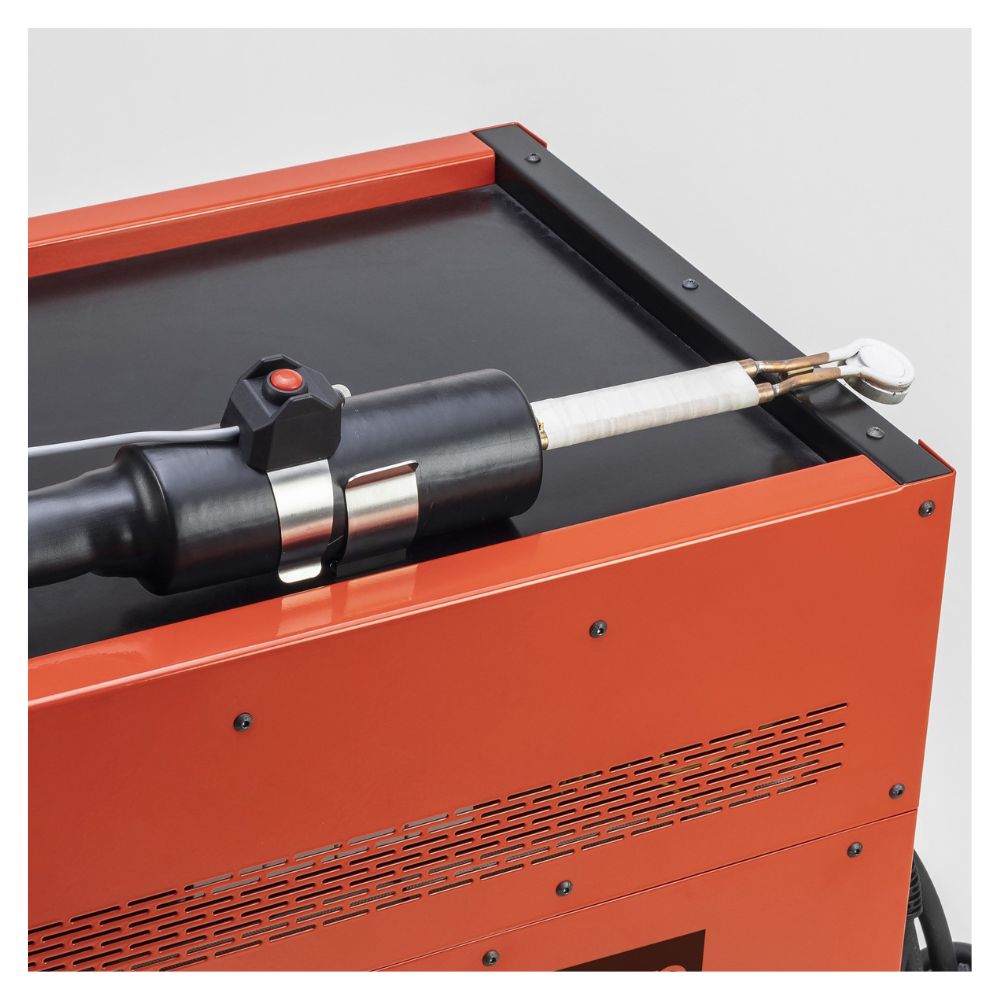

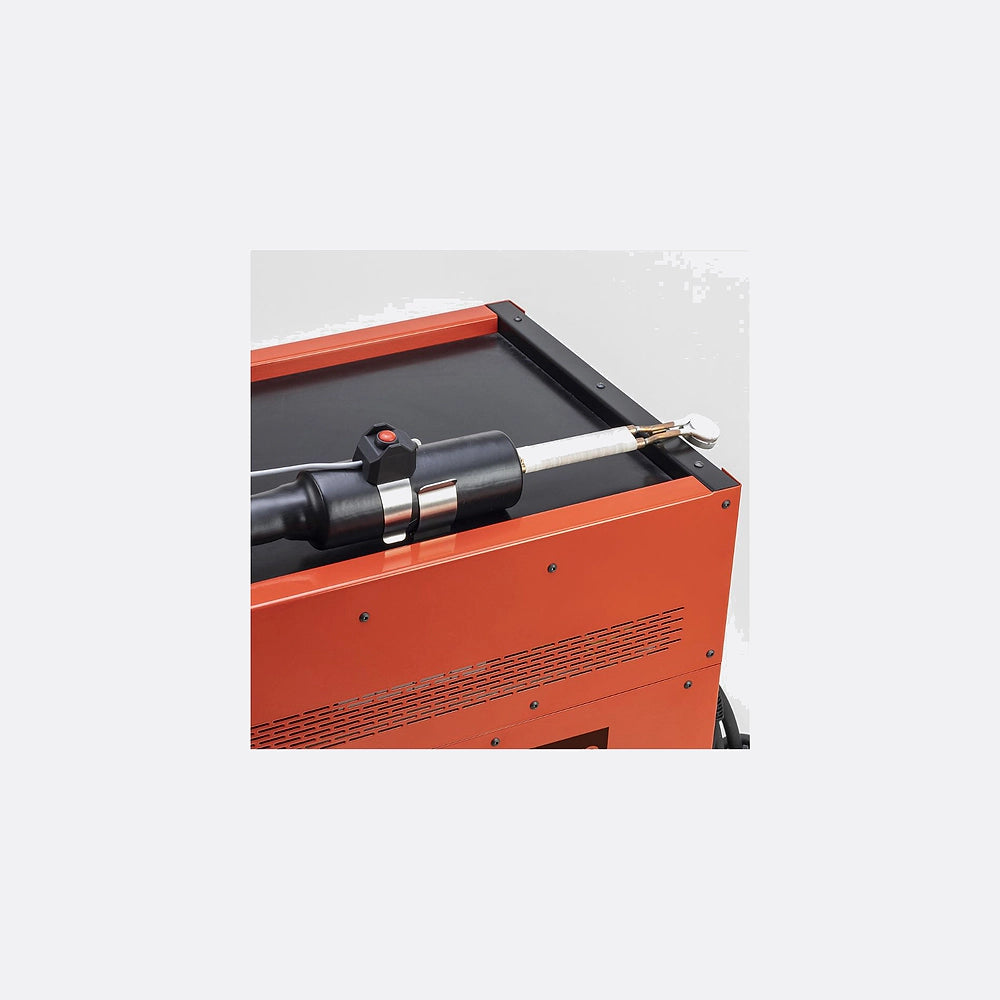

4m induction cable and torch with onetouch trigger
Contact heating pad included for direct heat application
Liquidcooled torch and induction cable help prevent overheating during extended use

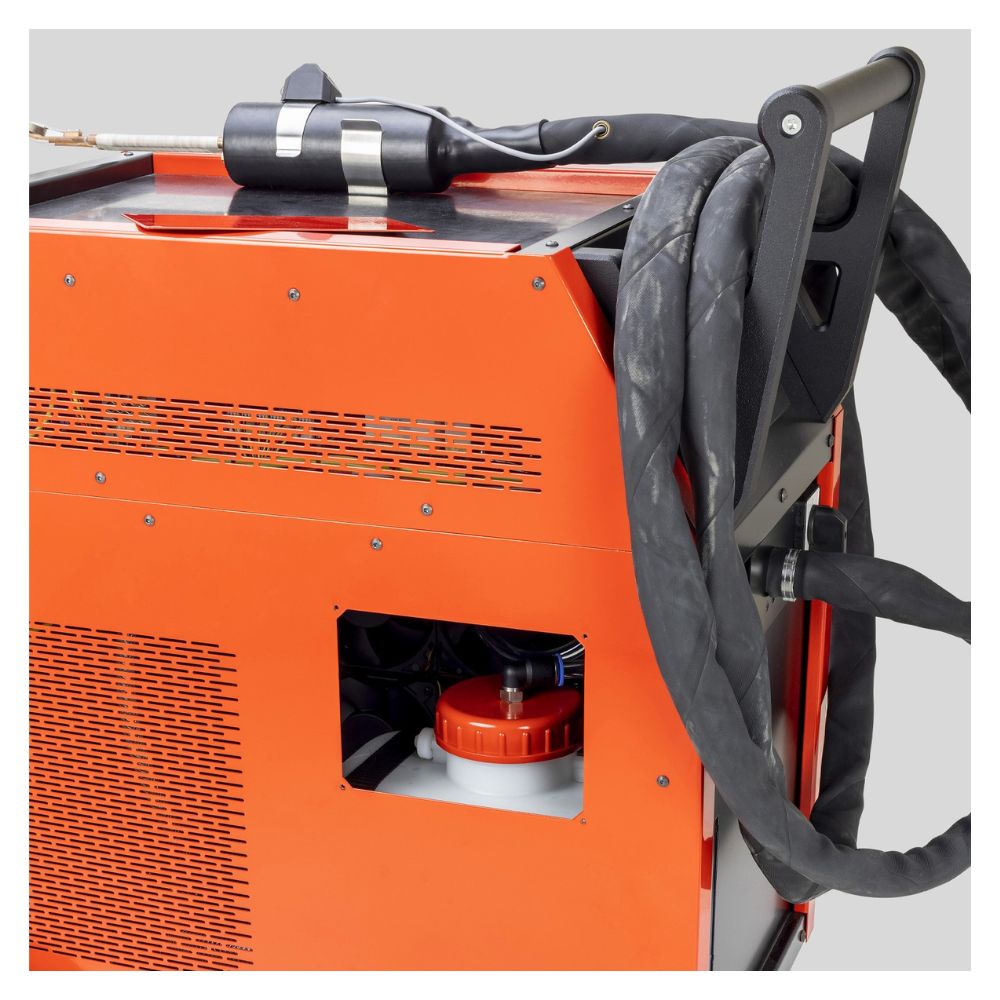

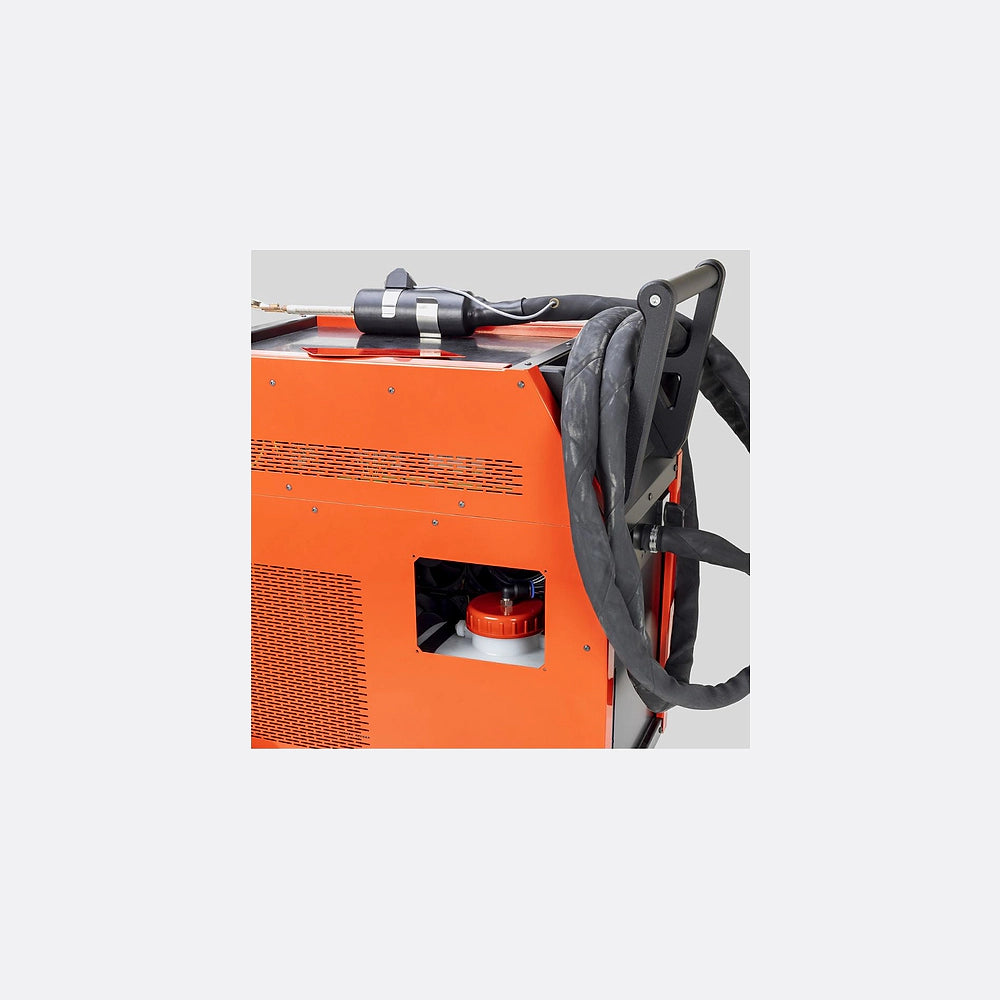

10litre coolant tank maintains cooling performance and protects the induction components
Coolant flow switch helps protect the machine by checking the coolingfluid level

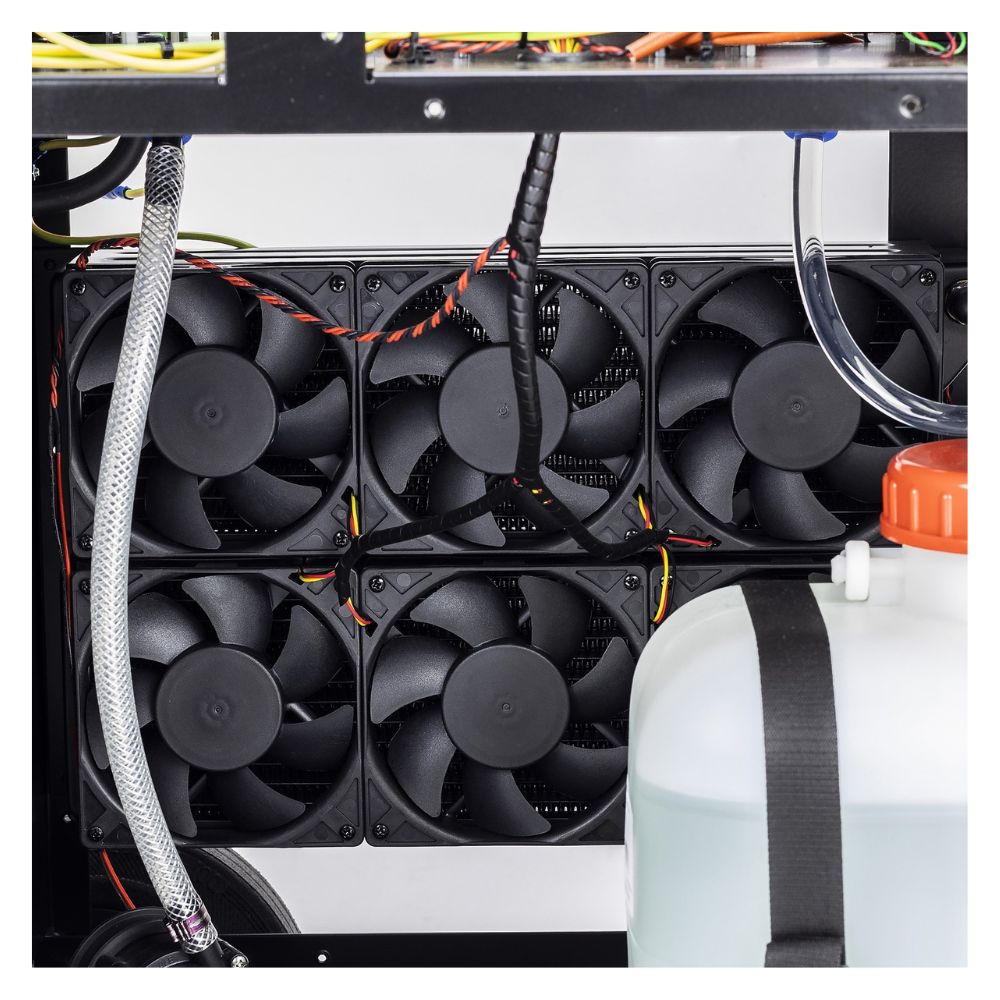

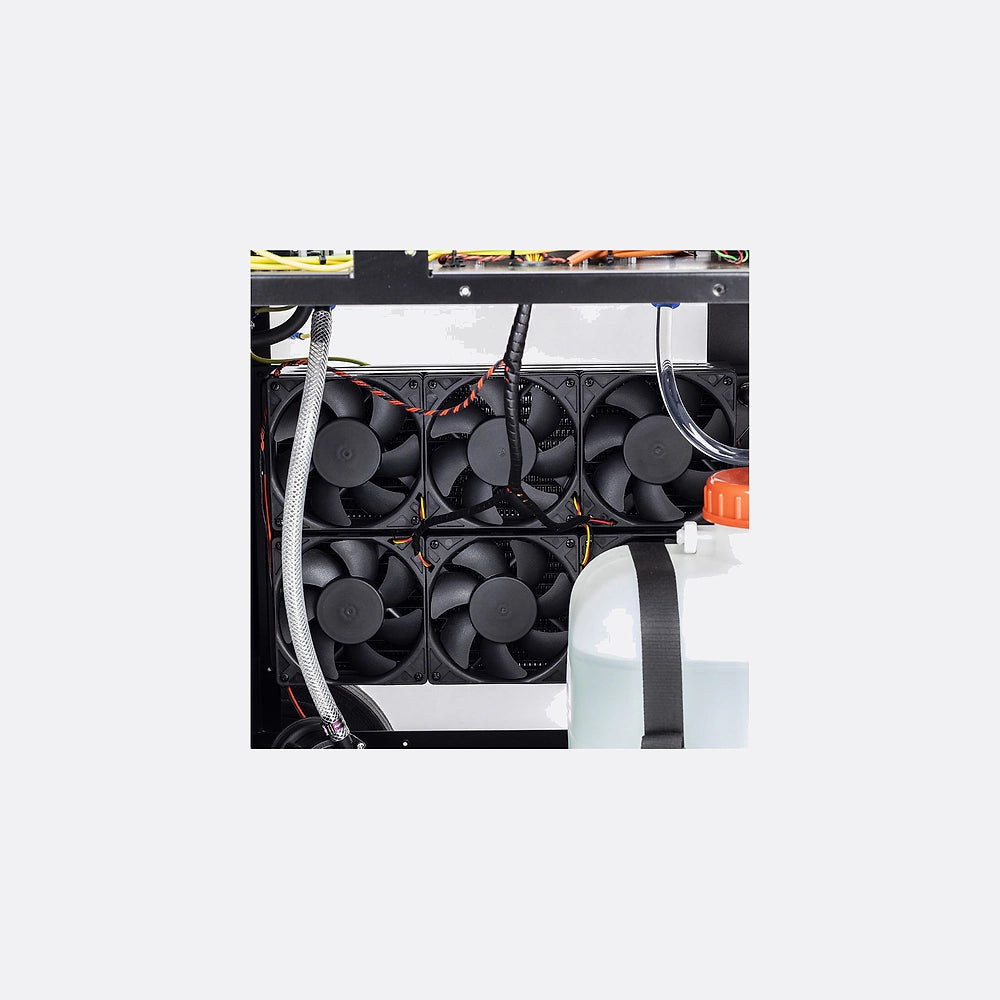

Integrated sixfan radiator system removes heat from returned coolant
Eightsetting multilevel power control allows the heating output to be adjusted for the job
Touchpad controls provide straightforward operation at the machine
LED indicators show mains supply, cooling and heating status

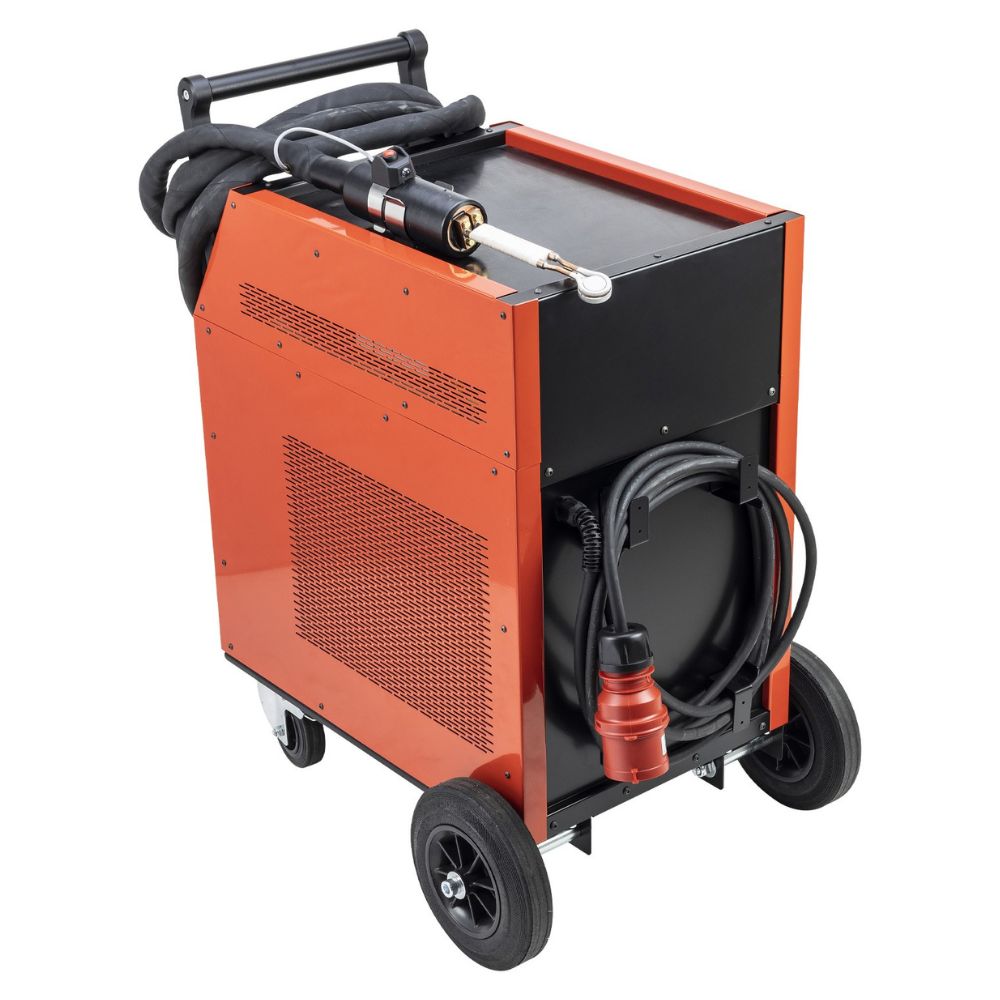

Mobile wheelmounted design with hardwearing tyres, swivel castors and pull handle
Solid frame and internal enclosure provide protection for workshop use
Suitable for professional fabrication, repair and industrial workshop applications

Specification

Input Supply

400V 3-phase

Induction Power

10kW

Power Control

Multi-level

Induction Cable Length

4m

Power Cable Length

5m

Inverter Ventilation

6 cooling fans

Liquid Cooling System

Torch and induction cable

Coolant Tank Capacity

10L

Inverter Frequency Range

18kHz–45kHz

Net Weight

58kg

Gross Weight

61.5kg

Product Dimensions

700(H) x 400(W) x 760mm(D)

Packaged Dimensions

860(H) x 590(W) x 790mm(D)

Torch Temperature

1000°C within 15 seconds

FAQs

What is the SIP 01158 10000W Induction Heater used for?

It is designed for heavy-duty heating work including preheating welded fabrications, heat treatment, releasing welding distortion, component assembly and other manufacturing processes. It can also suit suitable automotive and workshop heating applications where controlled, flame-free heat is required.

What electrical supply does the SIP 01158 require?

The unit requires a 400V three-phase supply. It is intended for properly equipped industrial workshops, fabrication facilities and professional vehicle repair environments rather than a standard single-phase garage socket.

How is the induction torch kept cool during extended use?

The 4m induction cable and torch use a liquid-cooling system supplied from an integrated 10-litre coolant tank. A flow switch helps protect the machine by checking coolant flow, while the returned coolant is cooled through a fan-assisted radiator system.

What is included and how easy is it to move around the workshop?

The kit includes the mobile 10kW induction unit, liquid-cooled 4m torch and 5m power cable. It has multi-level power control, an eight-setting display, a one-touch torch trigger, swivel castors and a pull handle, making it practical to position near fabrication or repair work.
