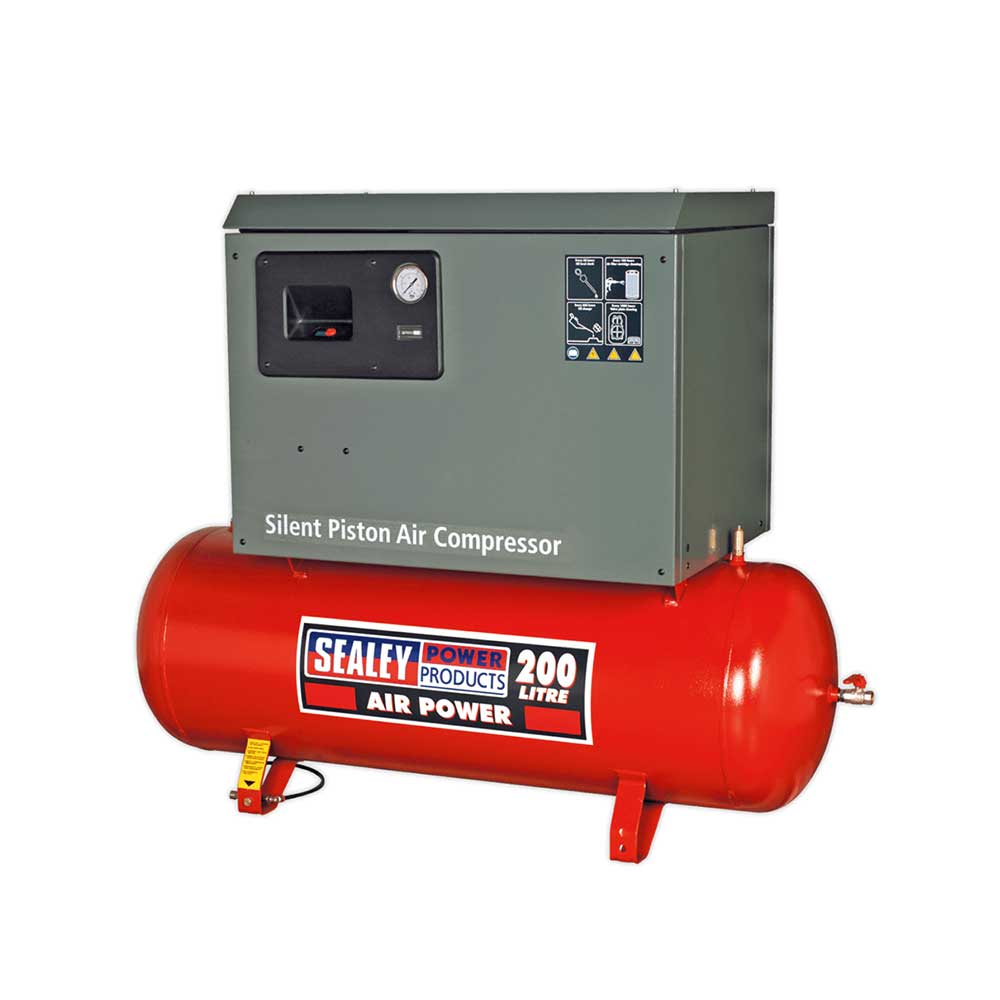

Sealey Low Noise Compressor 200l - 230v-3hp

Name: Sealey Low Noise Compressor 200l - 230v-3hp
Brand: Sealey
SKU: SAC2203BLN
Price: 3090.00 GBP
Availability: InStock

£3,090.00

Shipping calculated at checkout.

Sealey Low Noise Compressor 200l - 230v-3hp is a professional belt-drive air compressor with a 200L receiver, designed for low-noise workshop and bodyshop air supply on a 230V single-phase, 3hp motor.

Key Features

Low noise workshop operation
200L horizontal receiver tank
230V single-phase 3hp motor
Belt-driven cast pump unit
Suitable for bodyshop air tools
Heavy-duty workshop construction

Everything we sell is supported by our factory trained engineers at our premesis in Manchester or nationwide through our mobile service engineers.

Returns details can be edited in the theme editor.

Supply

230v-16A

Warranty

3 years

Free Delivery

UK mainland delivery

Service

In-house engineers

Support

0161 223 1843

Expert Advice

Mark Allen says

This is a low noise, 200 litre, 3hp, single-phase workshop compressor, suited to sustained air use on a 230V supply in a bodyshop or garage. In practice it sits as the main air source for spraying, air tools, small blast cabinets and general workshop air, where you need decent reserve without the usual racket of an open-frame unit.

Being a low noise, belt drive machine with cast cylinders, it’s designed to run slower and quieter, which helps pump life and keeps heat under control in a busy shop. The 200L receiver gives a good buffer for intermittent high-demand use, but you still need to match it sensibly with your air tool and spray gun requirements rather than assuming it’s limitless.

A common issue we see is installers under-rating the electrical supply or ignoring cable length and voltage drop on single‑phase compressors, which leads to hard starting and nuisance tripping. When this unit is wired correctly and maintained on oil and drain-down, it’s a reliable, efficient air source for professional bodyshop work.

Mark Allen, Senior Engineer

📄

Technical Datasheet

Download the official manufacturer datasheet for Sealey Low Noise Compressor 200l - 230v-3hp including specifications, compatibility information and technical details.

Download Sealey Low Noise Compressor 200l - 230v-3hp Datasheet

WHY BUY YOUR EQUIPMENT FROM US?

Our team of welding experts at BWS is ready to assist you every step of the way. Whether you have questions about specific products, need guidance on selecting the right equipment, or seek welding-related advice, our knowledgeable staff is here to help.

We also have some of the most experienced engineers in the industry who are able to offer full technical support on top of what the manufacturers offer.

Find Our More

Technical Features

Heavyduty low noise compressor designed for professional garages, bodyshops and industrial workshops, providing 200L air capacity with a genuine 3hp singlephase motor for sustained use with spray guns and air tools.
Fully enclosed, insulated body significantly reduces noise (around 68dB at 1m), making it suitable for use inside busy bodyshops or near other workstations without being intrusive.
Beltdrive pump with heavyduty full cast cylinders and alloy cylinder head gives slower running speeds, improved heat dissipation and long service life under regular workshop load.
Twin start capacitors and centrifugal start switch provide reliable startup on a good 13A supply, reducing nuisance tripping compared with basic compressors.
Recommended setup using a 16A plug on a 20A type C protected supply for easier motor starting and reduced volt drop in realworld workshop installations.
Heavyduty drive guard fully encloses belt and flywheel, improving operator safety and forcing cooling air over the pump to maintain operating temperature during longer duty cycles.
Integrated automatic pressure switch and tank pressure gauge provide straightforward control, cutting the motor in and out at set pressure without operator intervention.
Control box includes a tachometer so workshop engineers can monitor running hours and speed to plan oil changes and service intervals properly.
High output singlephase motor and 200L receiver give enough air delivery for most panel shop and mechanical tasks, including DA sanders, small blast cabinets and general air tools when correctly regulated.
Supplied with full CE certification, test certificates and an operating/maintenance manual, supporting professional installation, insurance compliance and routine servicing by BWS engineers.

Specification

Tank Capacity

200L

Motor Output

3hp

Supply

230V

Phase

1ph

Minimum Rated Supply

16A

Speed

1075rpm

Noise Level

68dB(A)

Air Displacement

15cfm (425L

Maximum Free Air Delivery

10.9cfm (309L

Maximum Pressure

145psi (10bar)

Receiver Capacity

200L

Outlet

1

Dimensions

1440 x 440 x 1210mm (W x D x H)

Weight

175kg

Oil Capacity

0.72L

Barcode

5051747570382

FAQs

Is the Sealey SAC2203BLN suitable for a professional bodyshop or garage?

Yes, this low noise belt drive 200L compressor is designed for professional use in garages, bodyshops and industrial workshops. It has a genuine 3hp single-phase motor, a 200L receiver and a cast cylinder pump, giving enough air for typical workshop tasks such as spray guns, DA sanders, air chisels, small blast cabinets and general air tools, provided the tools are matched to its free air delivery. For continuous high-demand use (multiple high cfm tools at once), we would review your exact air requirements and duty cycle to ensure this model is correctly sized.

What electrical supply does the Sealey low noise 200L 230V 3hp compressor need?

The compressor runs on 230V single-phase and is fitted with a 3hp motor. Although the manufacturer notes it can start from a good 13A supply with twin capacitors and a centrifugal switch, for reliable workshop use we recommend fitting a 16A plug on a 20A supply protected by a type C breaker to minimise nuisance tripping on start-up. As with any fixed workshop compressor, it should be on a dedicated circuit, correctly wired by a qualified electrician.

How quiet is this Sealey low noise compressor and where is it best installed?

The SAC2203BLN uses a fully enclosed, insulated design to reduce noise significantly compared with a standard open-frame belt drive unit. The manufacturer quotes around 68 dB(A) at 1m, so it is suitable for workshops where compressors are installed in the main working area or close to staff. In practice we still advise siting it against a solid wall, away from office areas, with adequate ventilation and access for service. Rubber feet or pads help reduce transmitted vibration into the floor.

What maintenance does the SAC2203BLN require and can BWS support it?

This is an oil-lubricated, belt-driven compressor, so it needs regular checks of oil level and condition, periodic oil changes, belt tension and condition checks, and routine draining of condensate from the 200L receiver. The cast cylinder pump and alloy head are designed for long life, but like any workshop compressor it will last longer if filters are kept clean and service intervals are followed. BWS engineers can support installation, commissioning, servicing and repairs, and we can advise on genuine Sealey parts, oil type, filters and any additional air treatment (dryers, filters, regulators) needed to suit your specific bodyshop or fabrication setup.
