Price Exc Tax

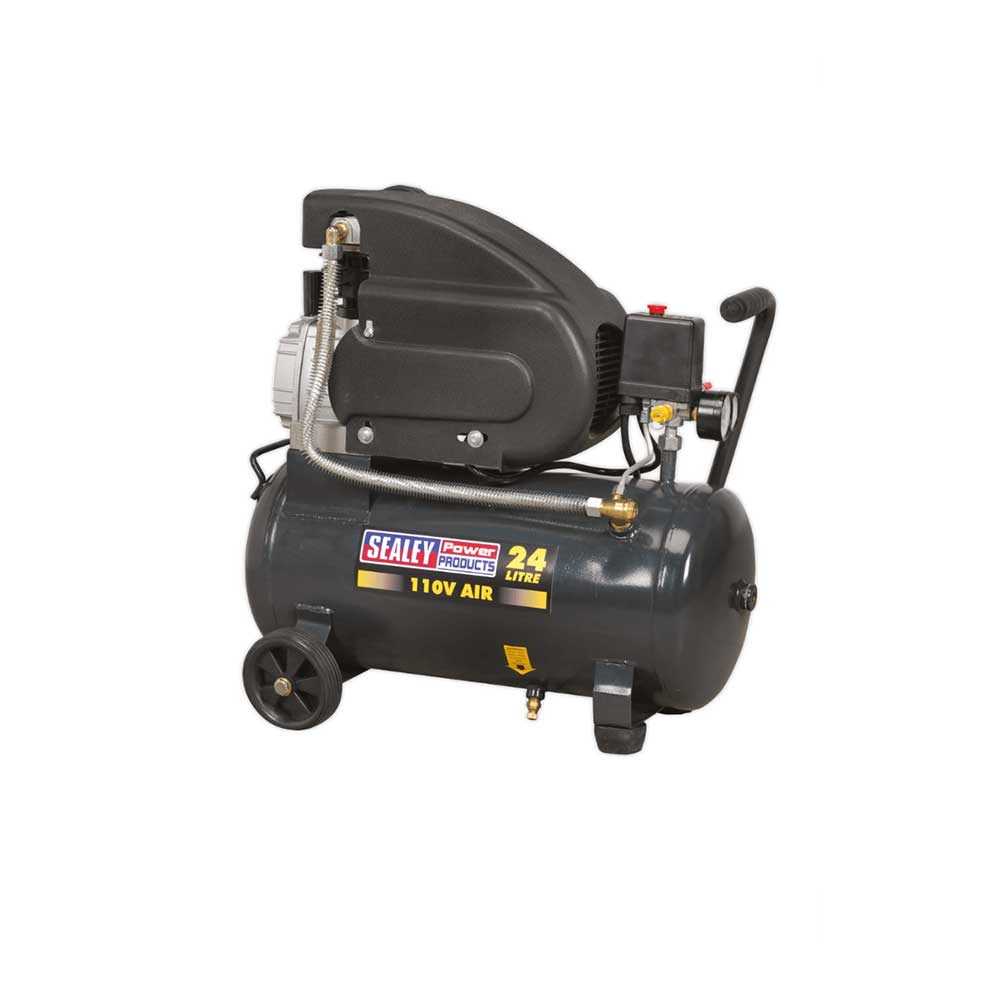

Sealey SAC2420E Direct Drive  Compressor 24L

110V air compressor suitable for site work

Aluminium cylinder head with cast iron cylinder gives added resistance to wear. Suitable for on-site applications or anywhere that requires 110V. Pump head directly coupled to heavy-duty induction motor for reliable and smooth operation. Precision welded receiver tank manufactured to meet Pressure Vessel Directive. Fitted with fully automatic pressure cut-out switch and twin gauges displaying tank and working pressures. Copper wound motor provides longer-lasting performance.

Part No. SAC2420E

Calculating CFM for a compressor
 Parts Diagram SAC2420E110V  Parts diagram

Air Displacement cfm: 6.3
Maximum Free Air Delivery cfm: 4.6
Maximum Pressure: 145psi(10bar)
Minimum Rated Supply: 16A
Motor Output: 2hp
Nett Weight: 26.5kg
Outlet: 1/2"BSP Female Tap
Phase: 1ph
Receiver Capacity: 24L
Size (W x D x H): 600 x 290 x 585mm
Supply: 110V
