Thinkcar Scope Box For 10" Master/master X
Thinkcar Scope Box For 10" Master/master X

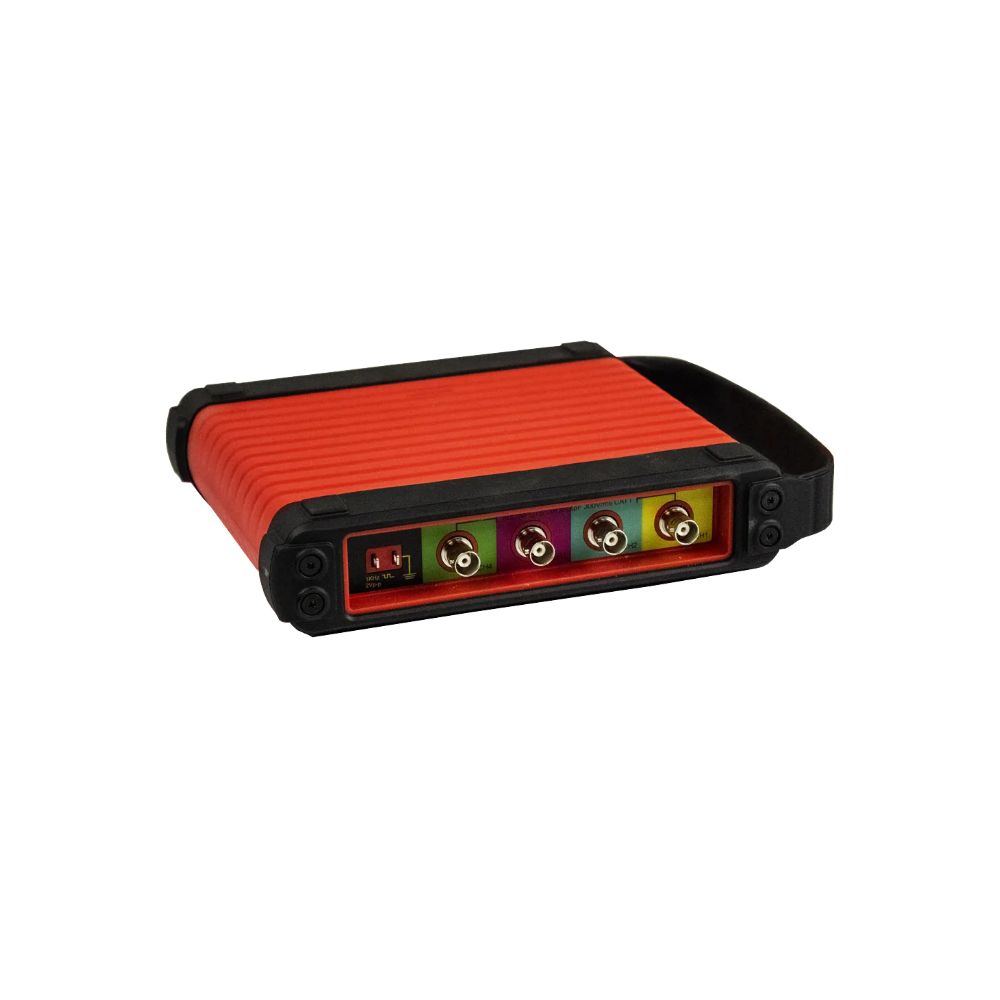

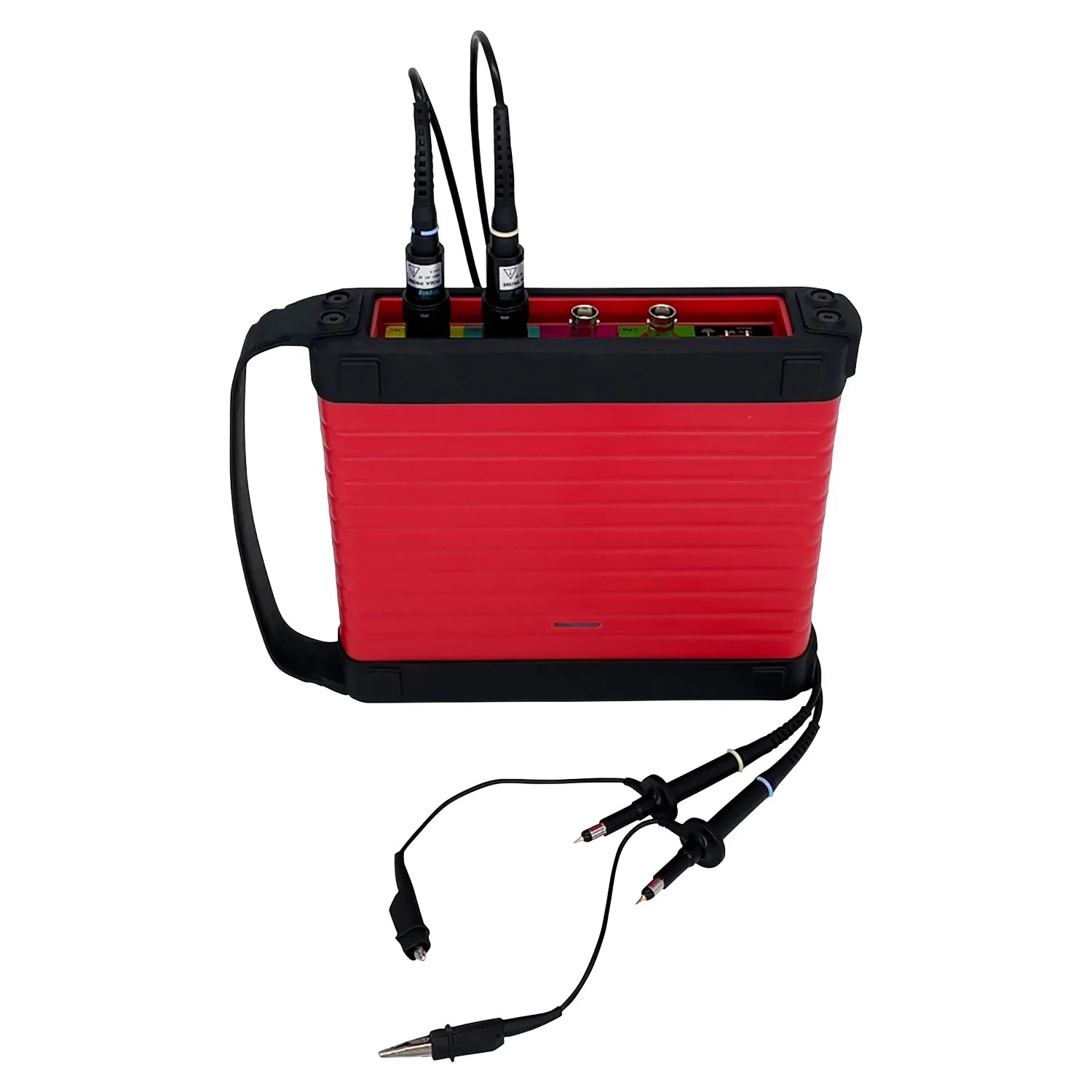

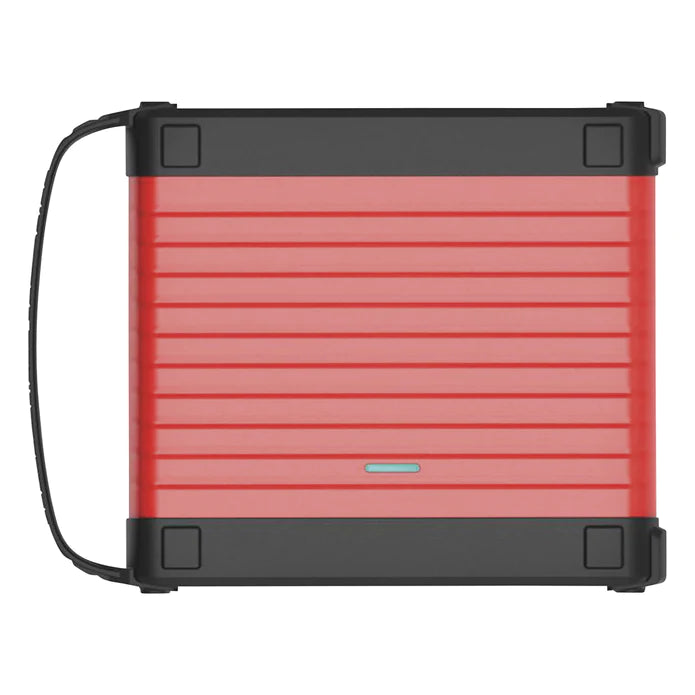

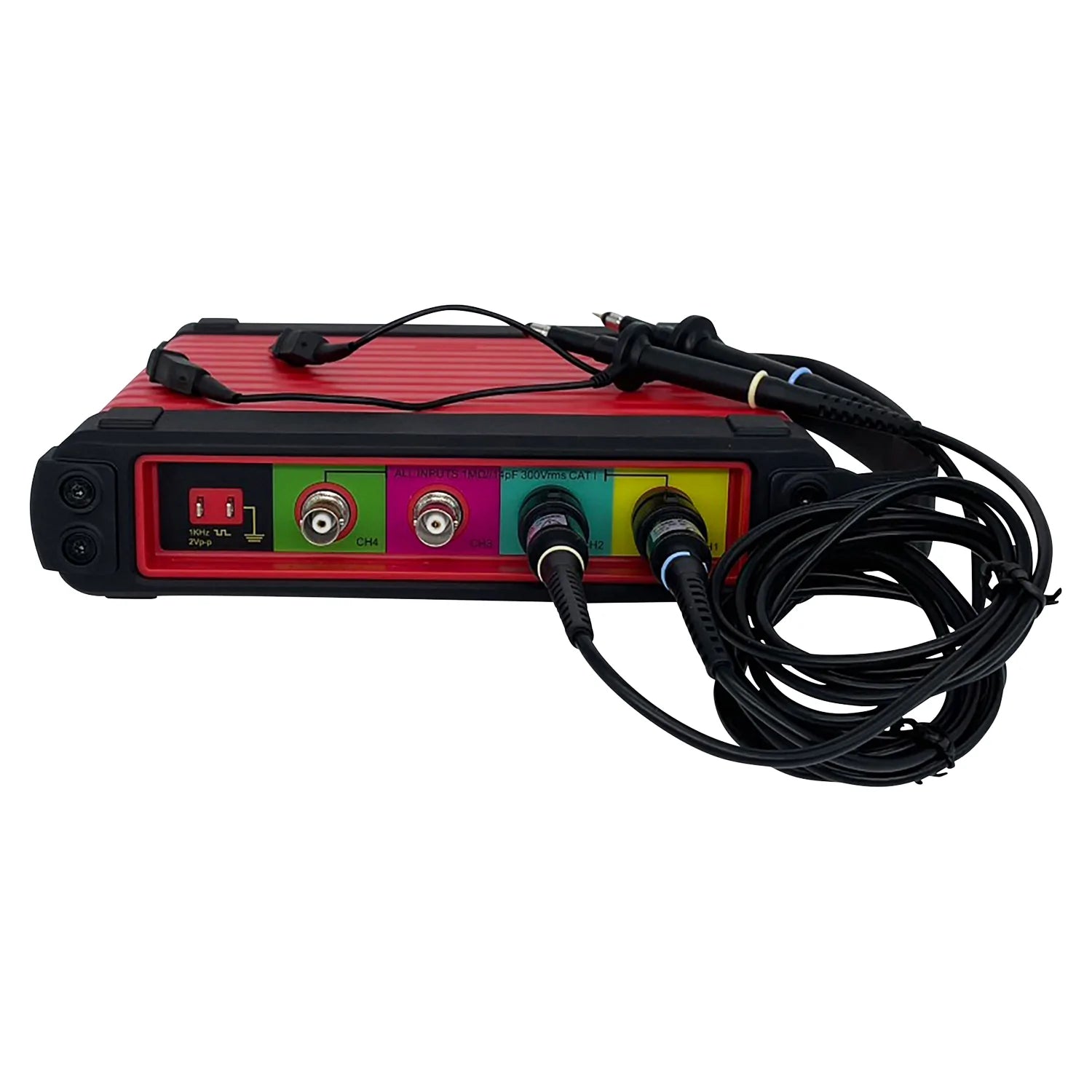

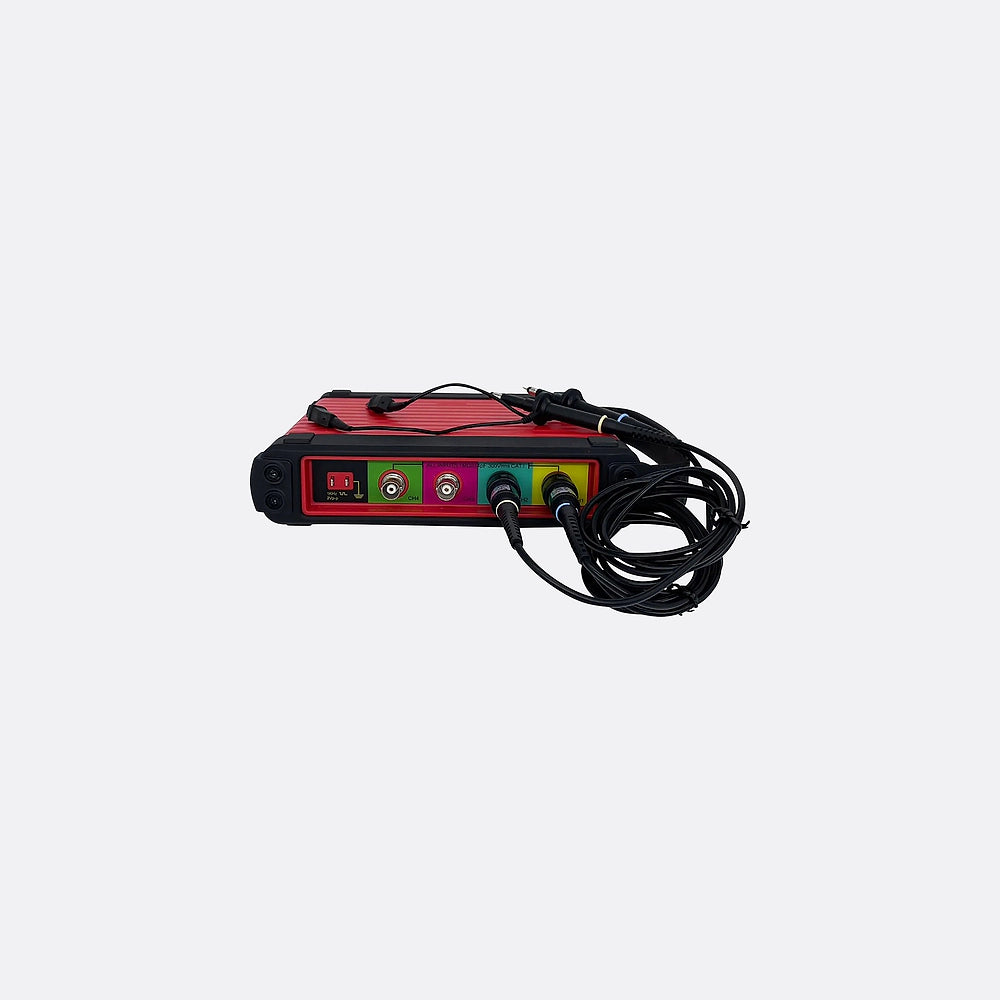

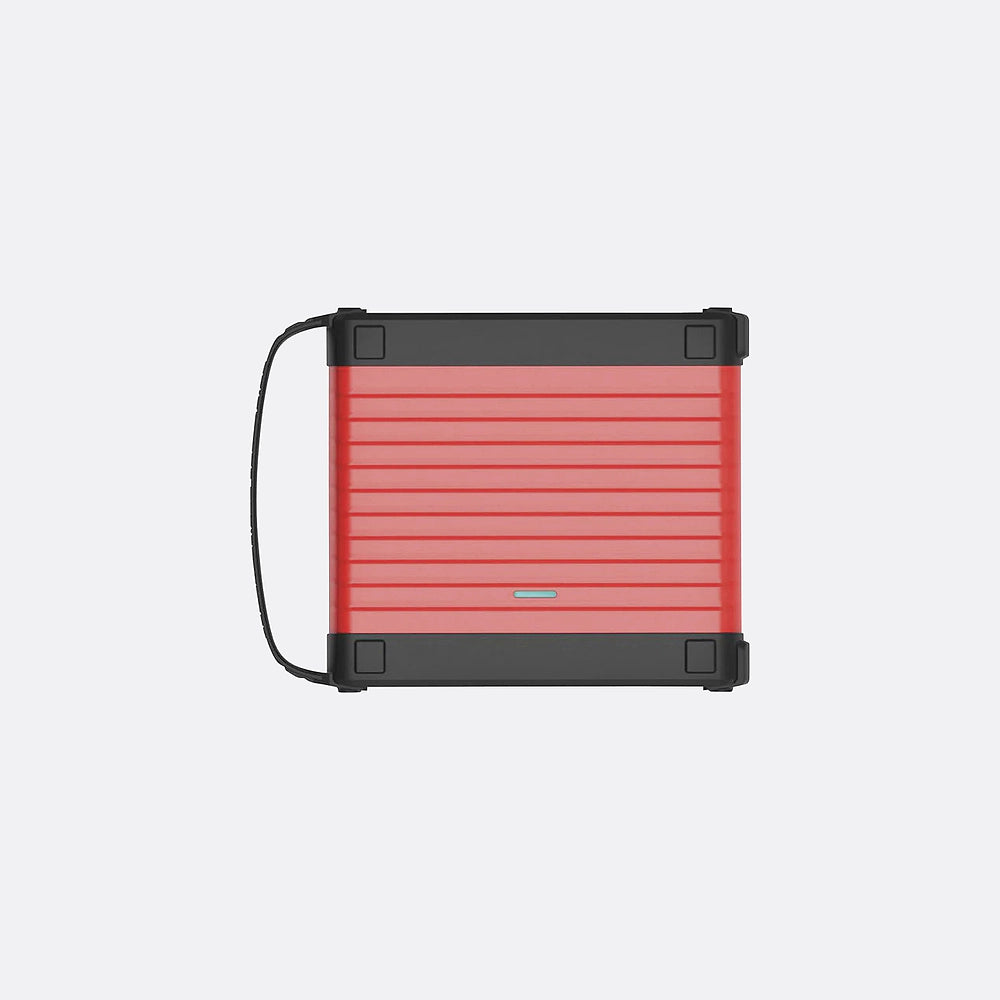

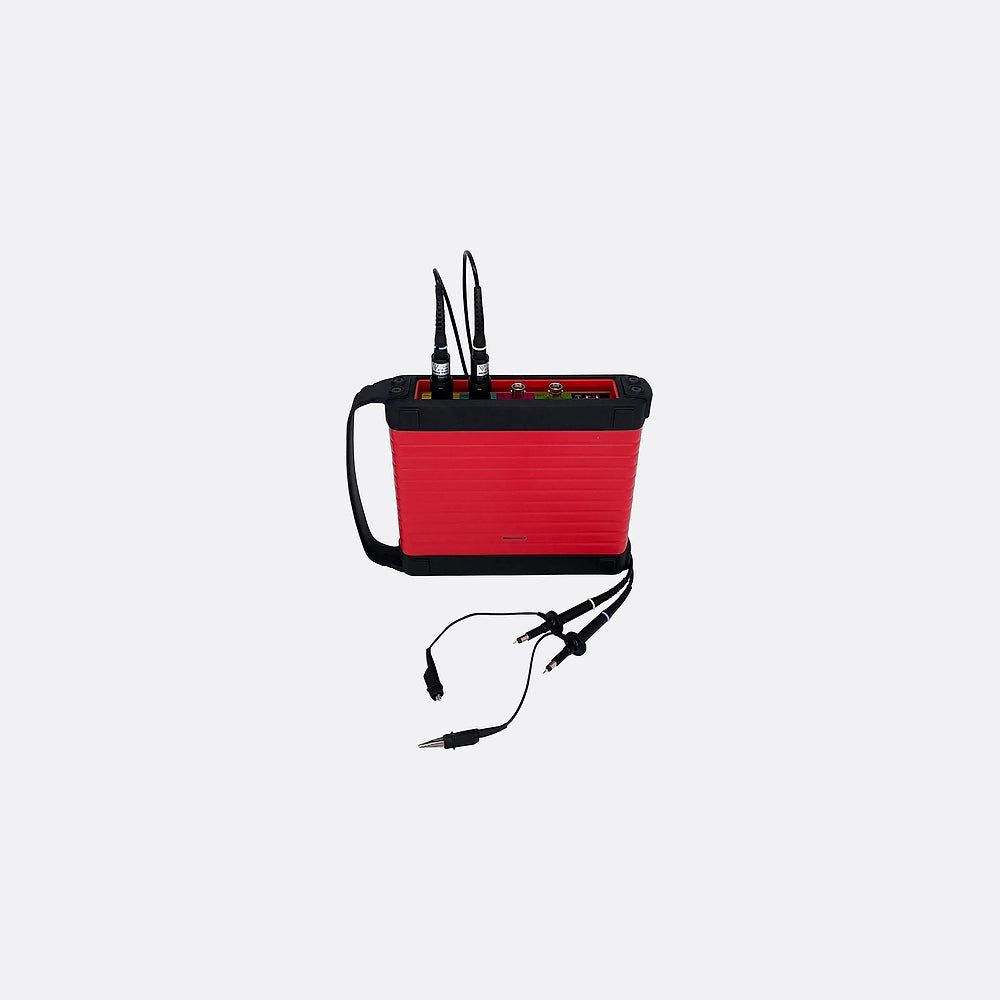

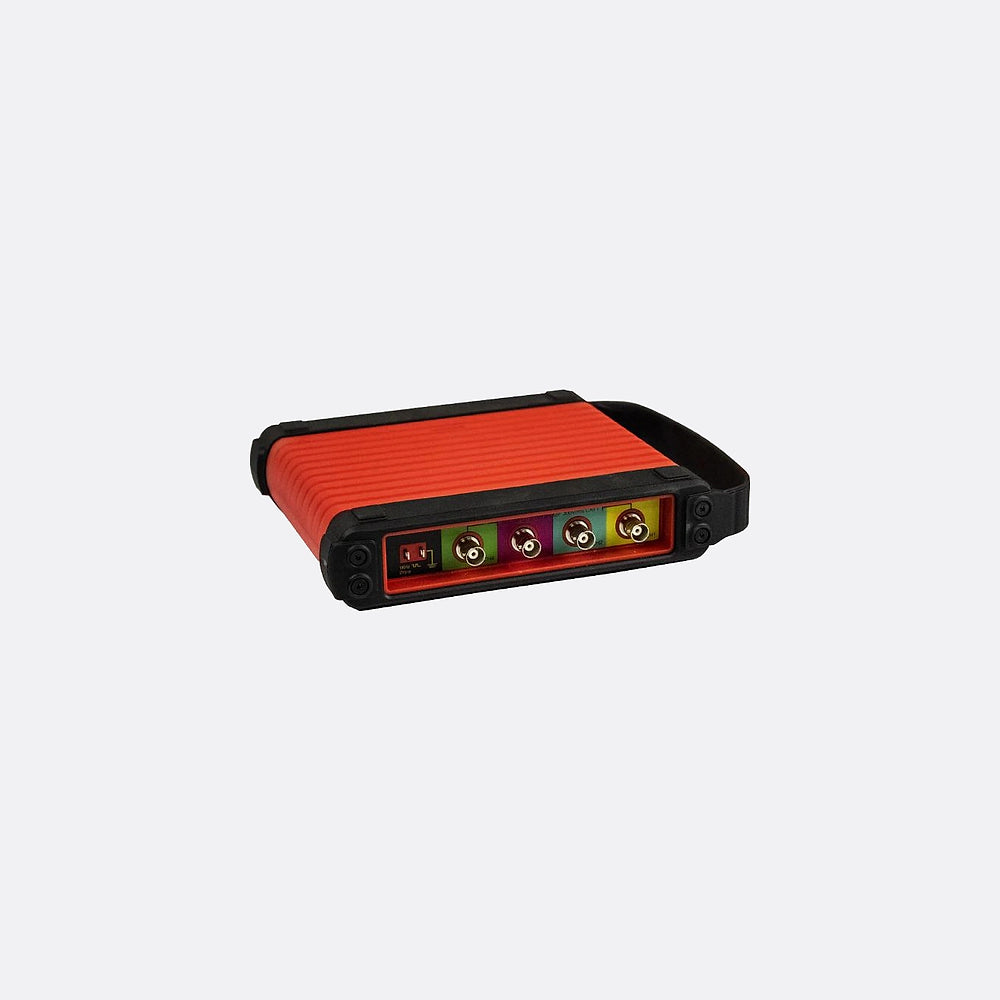

THINKCAR SCOPE BOX FOR 10" MASTER/MASTER X is a professional four-channel oscilloscope module for diagnosing vehicle sensors, actuators, control modules and circuits.
Key Features
- Four-channel automotive oscilloscope module
- Designed for Master and Master X
- Sensor and actuator testing
- Vehicle circuit fault diagnosis
- Multi-vehicle BUS signal decoding
- Modular integration with diagnostic tablet
Nationwide Engineers
Technical Support
Fast Delivery
Engineer Approved
Shipping
We aim to dispatch all in-stock items for next working day delivery when ordered before 1pm. Larger or heavier equipment may require a 48-hour delivery service.
Mainland UK Delivery
Orders over £70 (excluding VAT) qualify for free delivery.
Orders under £70 (excluding VAT) are charged at £6.95.
Remote & Offshore Locations
Deliveries to the Scottish Highlands, Islands, Northern Ireland, Isle of Man, Channel Islands and Isles of Scilly are subject to additional carriage charges. These typically start from £18.95 and may increase depending on size and weight.
If you need urgent delivery or want to confirm stock availability before ordering, please contact our team.
Returns
We offer a 14-day approval period from the date of delivery to ensure the goods meet your expectations.
Returned items must be in new, unused condition and in their original packaging. Return carriage costs are the responsibility of the customer.
We strongly recommend using a tracked and insured delivery service, as we cannot be held responsible for items lost or damaged in transit.
Items ordered incorrectly and returned for credit may be subject to a 15% restocking fee. This may be waived on orders at our discretion.
Engineer Advice
Dan Jennings says
The important point is correct compatibility and connection. The scope box must be supported by the diagnostic tablet and connected using the supplied leads and suitable test points. Probe connection, voltage range, time base and signal grounding all need setting correctly before interpreting a waveform. On modern vehicles, care is also needed around CAN wiring and low-voltage signal circuits to avoid disturbing the system under test.
A common issue is replacing components based on a code without confirming the actual electrical fault. A clean waveform comparison can often separate a wiring problem from a failed sensor or control unit. Used methodically, the module makes electrical diagnosis more efficient and reduces unnecessary parts replacement, provided the technician understands the circuit and sets the scope correctly.
Dan Jennings, Senior Engineer
