Scangrip UNI-EX

Name: Scangrip UNI-EX
Brand: Scangrip
SKU: 03.5600
Price: 275.63 GBP
Availability: InStock

£275.63

Shipping calculated at checkout.

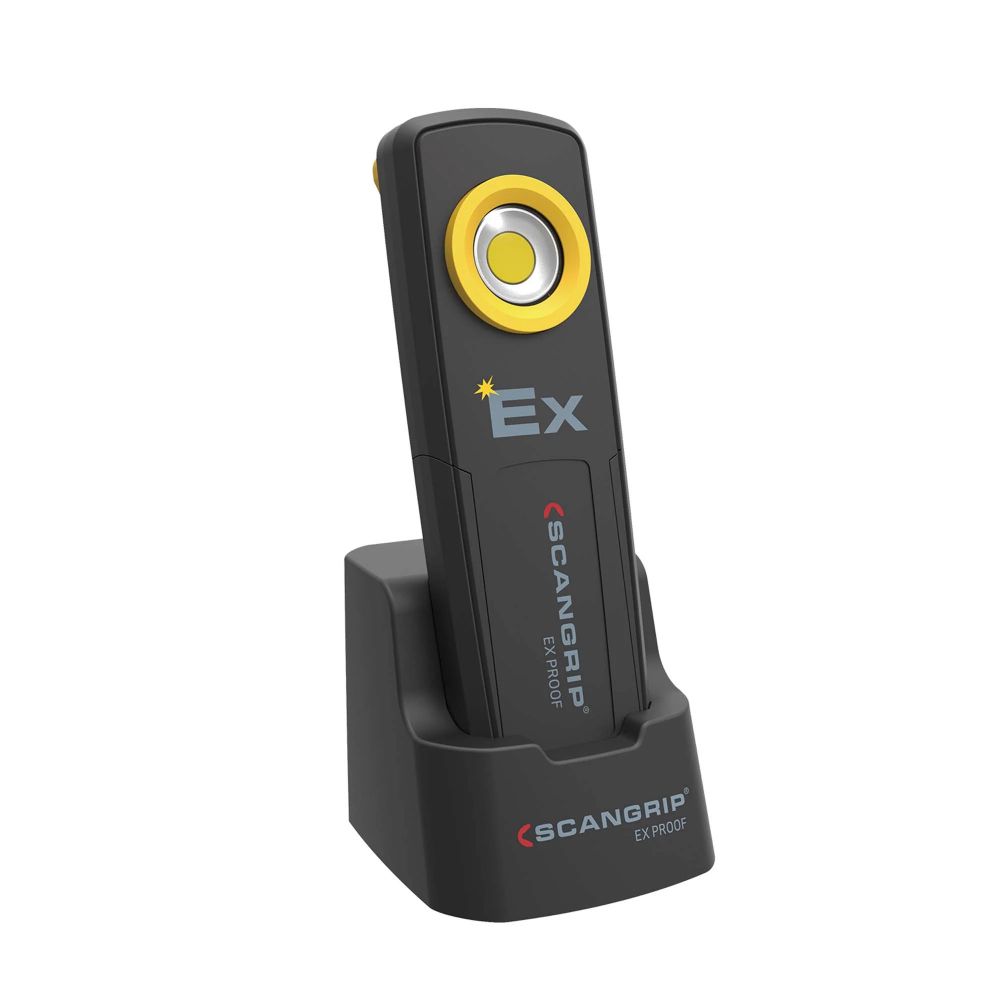

Scangrip UNI-EX is a rechargeable, explosion-proof COB LED handheld work light for professional inspection and maintenance in workshops and hazardous areas. Scangrip UNI-EX provides uniform COB illumination with two-step output and a tilting head for close-in and spot inspection.

Key Features

Rechargeable explosion-proof handheld lamp
COB LED main and spot
Two-step output 50% and 100%
Tilting head up to 180°
Built-in magnet belt clip
Scangrip UNI-EX charging base

Everything we sell is supported by our factory trained engineers at our premesis in Manchester or nationwide through our mobile service engineers.

Returns details can be edited in the theme editor.

We will work quickly to ship your order as soon as possible. Once your order has shipped, you will receive an email with further information. Delivery times vary depending on your location.

Supply

3.6V

Warranty

5 years

Free Delivery

UK mainland delivery

Special Offer

* 2 week lead time for this product*

Service

In-house engineers

Support

0161 223 1843

Engineer Advice

Jason says

I’m Jason Bowes, Sales Director at BWS. The Scangrip UNI-EX is a handheld, rechargeable explosion‑proof COB LED work light intended for inspection and maintenance in hazardous areas. In a bodyshop or workshop I use it for close‑up inspection, tank or engine access and any task where even, shadow‑free illumination and both hands are needed. It runs from a charging base and offers two output steps (50% and 100%), a tilting head up to 180°, plus a hook, belt clip and strong base magnet for positioning. Key technical points are its Zone 0/20 classification and IP65 resistance, and the battery indicator which requires a three‑second press to show charge level; keep the lamp in its base between jobs to maintain readiness. From experience the lamp is robust but users often misjudge run time on long jobs, so plan charging into the shift. Correctly used and charged, the UNI‑EX is a reliable, practical light for controlled hazardous environments.

Jason, Sales Director

Technical Features

Rechargeable, explosion‑proof handheld work light certified for use in hazardous areas (Zone 0/20)
High‑efficiency COB LED main light with an integrated SMD spot for close inspection work
Two‑step main‑light output selectable: Step 1 = 50% and Step 2 = 100%
Supplied with both main light and top light to cover task and inspection needs

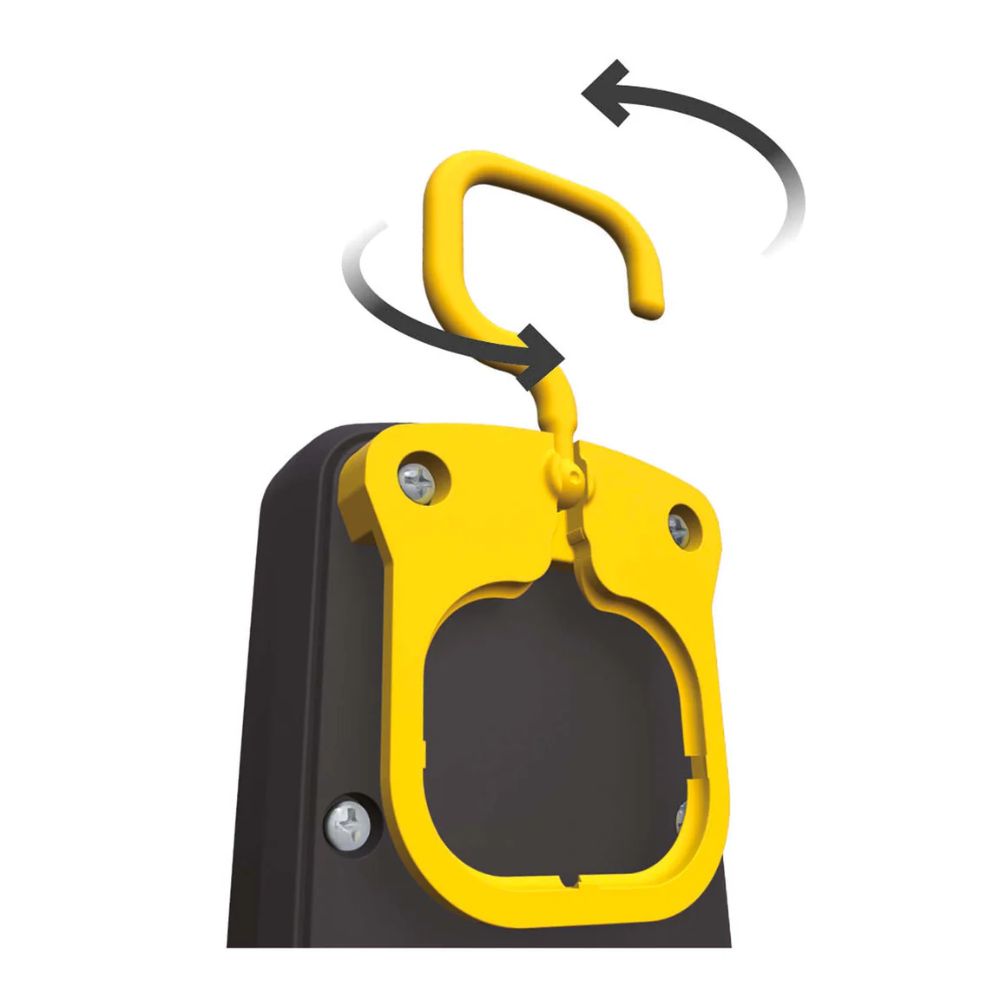

Built‑in magnet, robust turnable hook and belt clip for hands‑free positioning and secure carrying

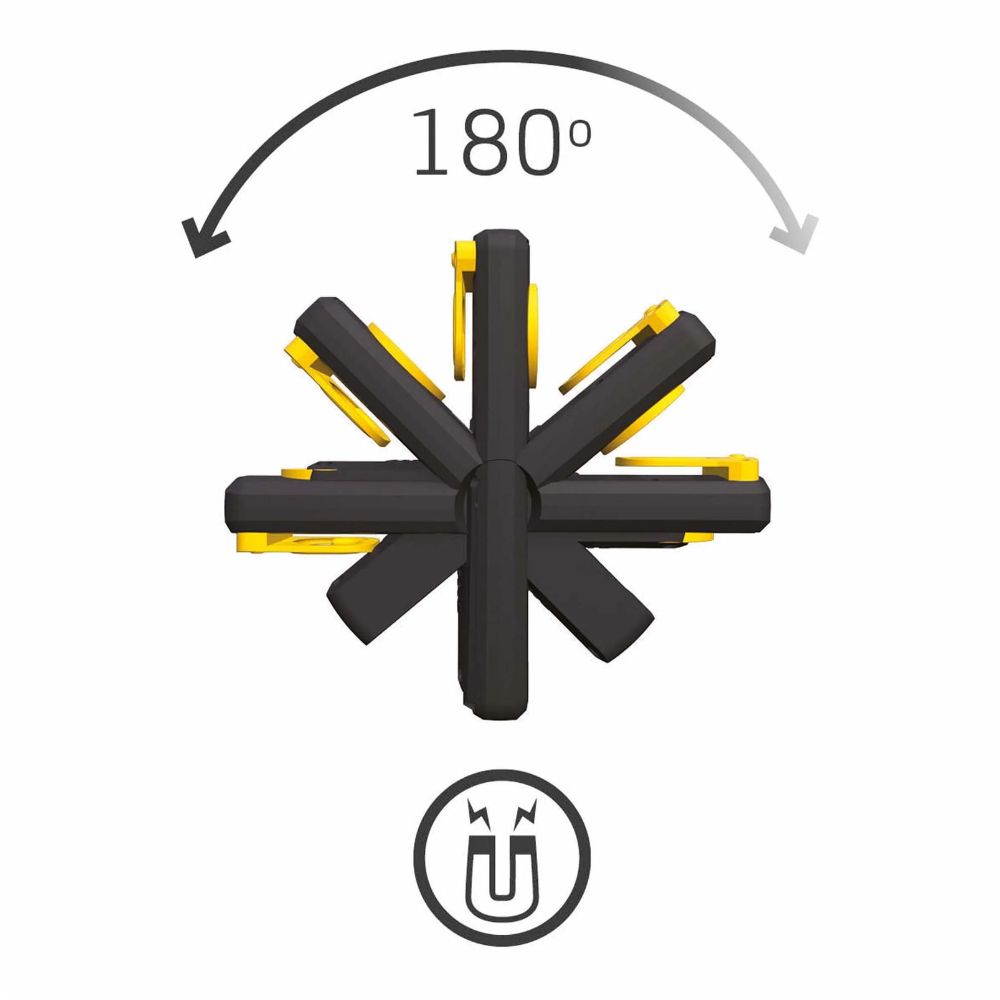

Lamp head tilts up to 180° to aim illumination in confined or awkward spaces

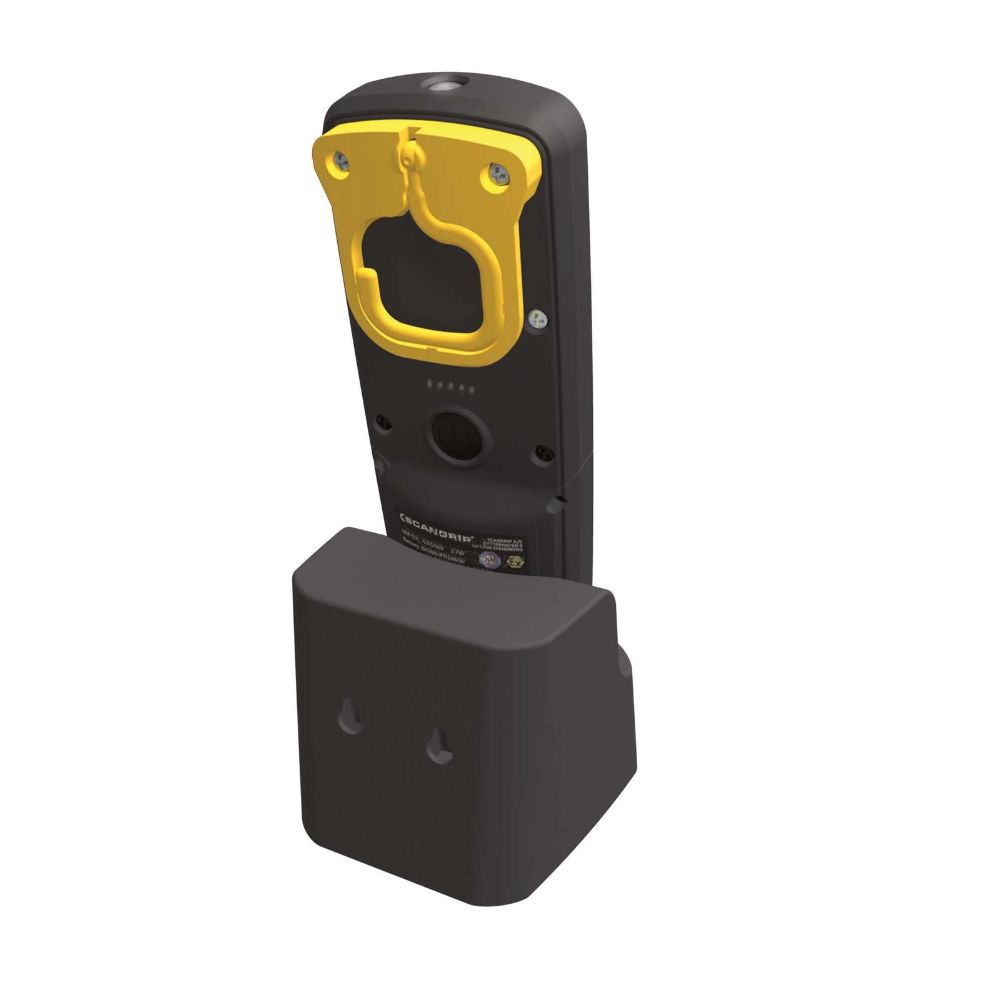

Charging base supplied and prepared for wall mounting for storage and charging
Intelligent battery‑level indicator at the rear; press the on/off switch for 3 seconds to display remaining charge during use](Note: retained single line)

WHY BUY YOUR EQUIPMENT FROM US?

Our team of welding experts at BWS is ready to assist you every step of the way. Whether you have questions about specific products, need guidance on selecting the right equipment, or seek welding-related advice, our knowledgeable staff is here to help.

We also have some of the most experienced engineers in the industry who are able to offer full technical support on top of what the manufacturers offer.

Find Our More

Specification

Product number

03.5600

Barcode

5708997356005

Light source

COB-LED, Spot: SMD LED

Luminous flux

150-290 lumen (main), Spot: 95 lumen

Illuminance @0.5 m

190-380 lux (main), Spot: 350 lux

Adjustable light output

2 levels (Step 1 = 50%, Step 2 = 100%)

Beam angle

110°, Spot: 60°

CRI

Ra > 80

CCT

6500K

Operating time

Up to 6 h

Charging time

4 h

Battery

3.2V / 2800 mAh Li-ion

Protection class

IP65

Impact resistance

1 m

EX zone

0 and 20

Cable

1 m USB

Operating voltage AC

-

Charging voltage/current DC

-

Power consumption

Max 2.5W

Charger included

Yes

Temperature range

-20° to +45°C

Dimensions

220 x 70 x 39 mm

Net weight

404 g

Lamp head tilt

Up to 180°

Mounting/attachments

Built-in magnet, belt clip, turnable hook

In the box

Lamp, charge cable, charger, certificates, manual

FAQs

Is the UNI-EX certified for use in explosive atmospheres?

Yes. The UNI-EX is certified for hazardous areas and listed for Zone 0/20. Certification markings on the technical data include II 1G Ex ia IIC T3 Ga and II 1D Ex ia IIIC T130°C Da and IECEx TPS 17.0003X with the corresponding ATEX reference shown in the product documentation.

What light output and run times can I expect on a single charge?

UNI-EX has two output steps (50% and 100%). Main light luminous flux is specified as 150–290 lumen with illuminance about 190–380 lux at 0.5 m. The spot is a separate SMD LED (spot output listed in the technical table). Operating time is up to 6 hours on the stated configuration and charging time is shown as approximately 4 hours in the technical specifications.

How does the UNI-EX mount or attach while you are working?

The lamp has a strong built-in magnet in the base, a turnable sturdy hook and a belt clip for carry or positioning. The lamp head tilts up to 180° to aim the beam. The charging base is made for wall mounting so the lamp can be kept on charge and positioned when not in use.

What is supplied in the box and how is the lamp charged?

The product listing states the box contains the lamp, charge cable, charger, certificates and manual. The UNI-EX charges in its charging base (charger included). The standard cable length in the specification table is 1 m USB and the product is rated IP65 and for workshop conditions as shown in the technical data.
