Scangrip Nova-Ex

Name: Scangrip Nova-Ex
Brand: Scangrip
SKU: 03.5602
Price: 499.90 GBP
Availability: InStock

£499.90

Shipping calculated at checkout.

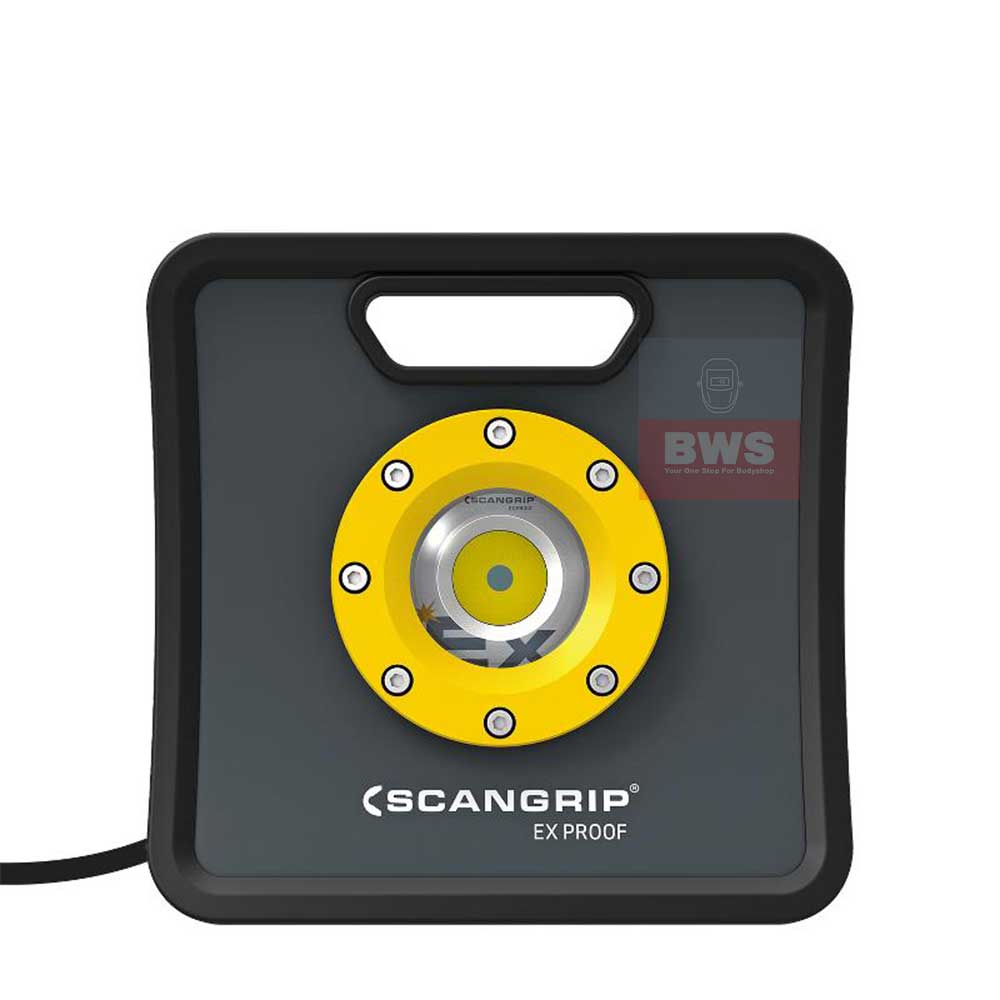

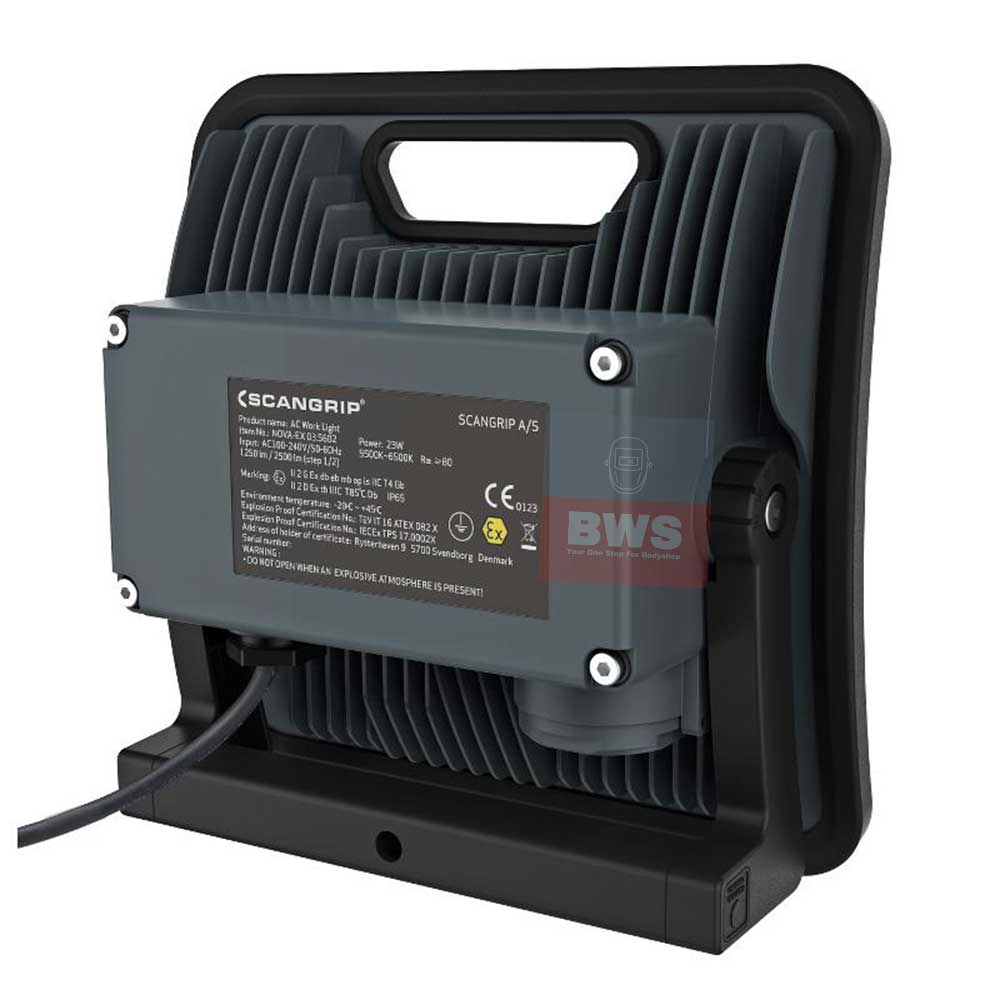

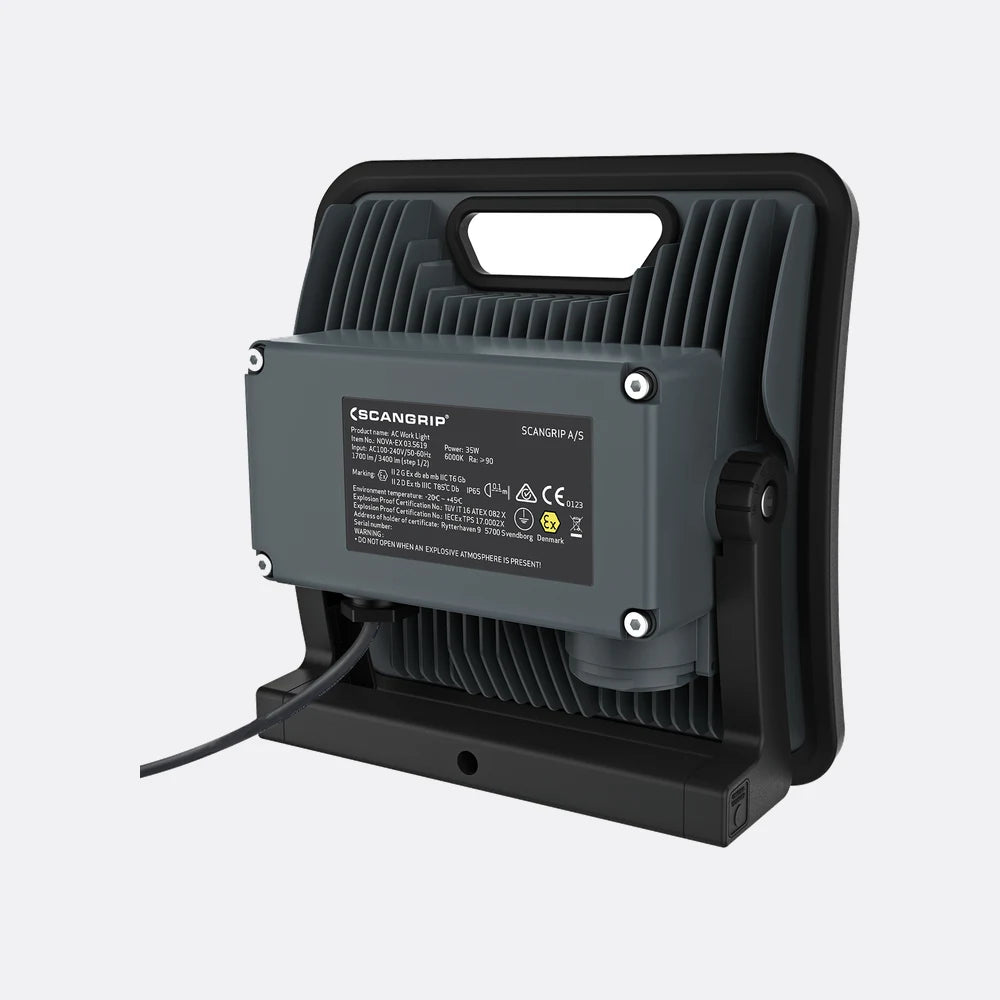

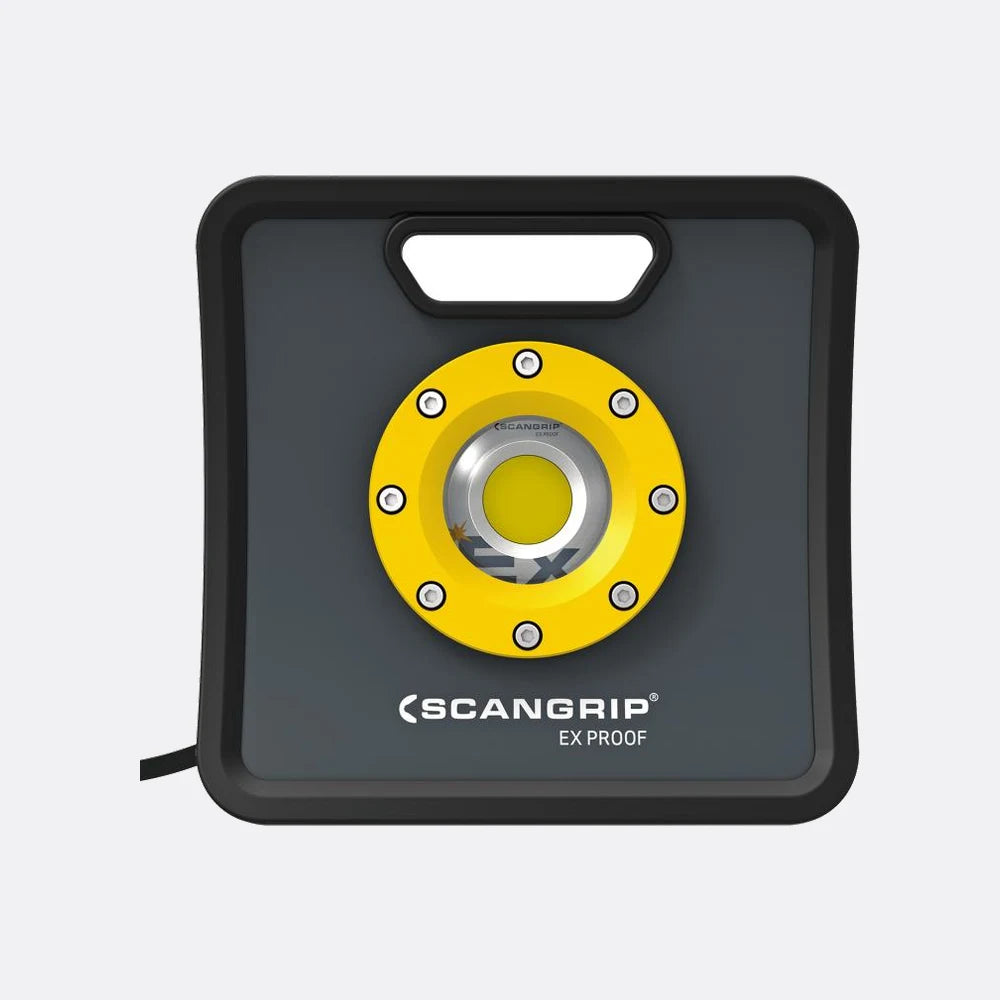

Scangrip Nova-Ex is an explosion-proof COB LED work light for professional use in hazardous areas with permanent mains supply.

Key Features

Scangrip Nova-Ex, COB LED
High CRI for accurate colour
Two light modes: 50% / 100%
Supplied with 10m mains cable
Scangrip Nova-Ex, die-cast aluminium
IP65 protection, Zone 1/21 use

Everything we sell is supported by our factory trained engineers at our premesis in Manchester or nationwide through our mobile service engineers.

Returns details can be edited in the theme editor.

Warranty

5 years

Free Delivery

UK mainland delivery

Service

In-house engineers

Support

0161 223 1843

Expert Advice

Paul Jones says

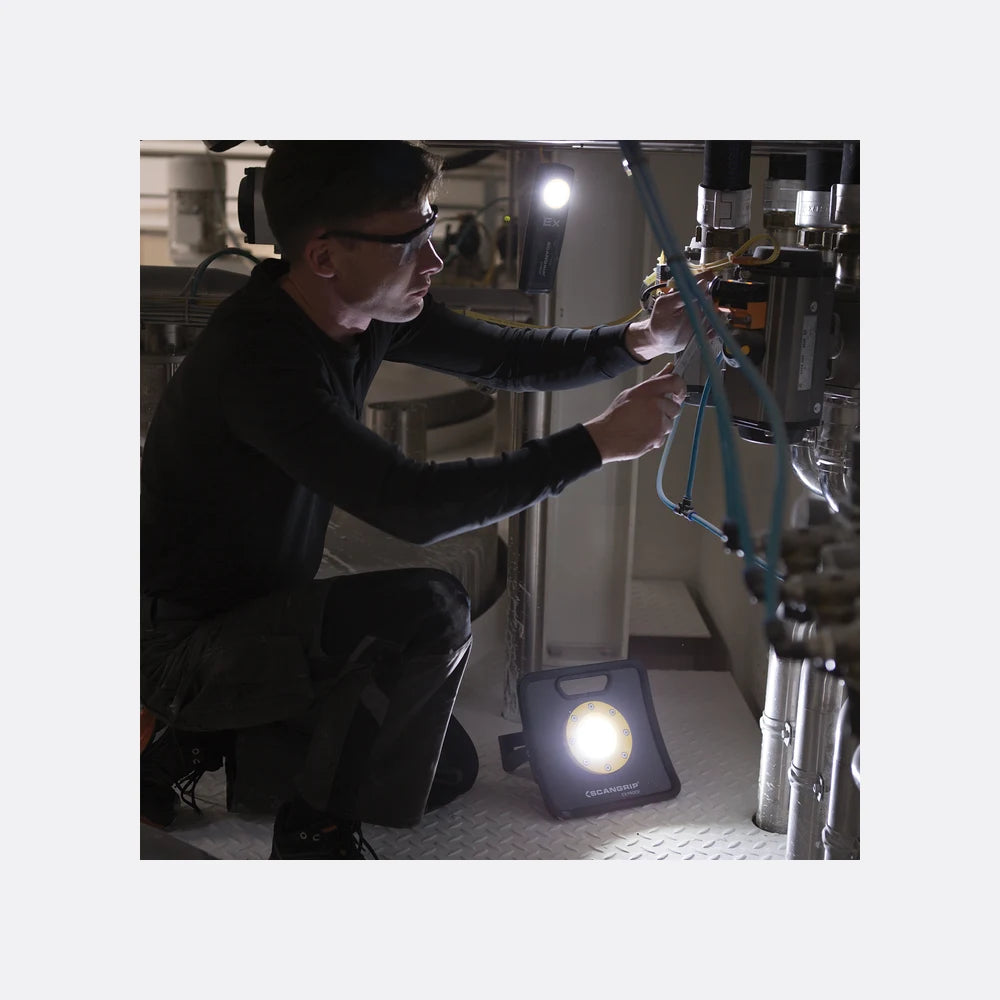

I’m Paul Jones, BWS Technical Director. The Scangrip Nova-Ex is an explosion‑proof COB LED work light supplied with a 10 m mains cable for use where permanent electricity is available. In a workshop or bodyshop context I use it for broad-area illumination in hazardous zones – inspection, preparation and colour-critical tasks – its high CRI and wide 110° beam give even, daylight‑like light and reduce false colour perception. Key technical points are its Zone 1/21 classification and mains operation (AC 100–240V, 50/60 Hz) with a 3x1 mm² H05RN‑F cable; the luminaire is die‑cast aluminium, IP65 and rated for 1 m impact, with two output levels (50%/100%). From experience the common issue is cable routing and secure positioning: the lamp is heavy and bright, so use the EX tripod or magnetic bracket and keep the cable in clips to avoid trip hazards and reflections on painted panels. Properly mounted and used in the correct zone, it is a robust, dependable mains light for demanding environments.

Paul Jones, Technical Director

WHY BUY YOUR EQUIPMENT FROM US?

Our team of welding experts at BWS is ready to assist you every step of the way. Whether you have questions about specific products, need guidance on selecting the right equipment, or seek welding-related advice, our knowledgeable staff is here to help.

We also have some of the most experienced engineers in the industry who are able to offer full technical support on top of what the manufacturers offer.

Find Our More

Technical Features

Explosionproof design certified for hazardous areas Zone 1 and 21 (II 2G Ex db eb mb op is IIC T4 Gb; II 2D Ex tb IIIC T85°C Db; IECEx TPS 17.0002X; TÜV IT 16 ATEX 082 X).
HighCRI COB LED light source, Ra >95, with 6500 K correlated colour temperature for uniform, even illumination across the work area.
Two selectable output levels (50% and 100%) to match task requirements and control glare and runtime.
Luminous flux range 1,000–2,000 lm with illuminance 1,600–3,200 lux measured at 0.5 m for strong, focused working light.
110° beam angle providing broad, even coverage suited to general inspection and workshop tasks.
Mainspowered design supplied with 10 m H05RNF 3x1 mm² cable; accepts AC 100–240 V 50/60 Hz input with 23 W power consumption.
Diecast aluminium body construction for mechanical durability and resistance to impact and rough handling.

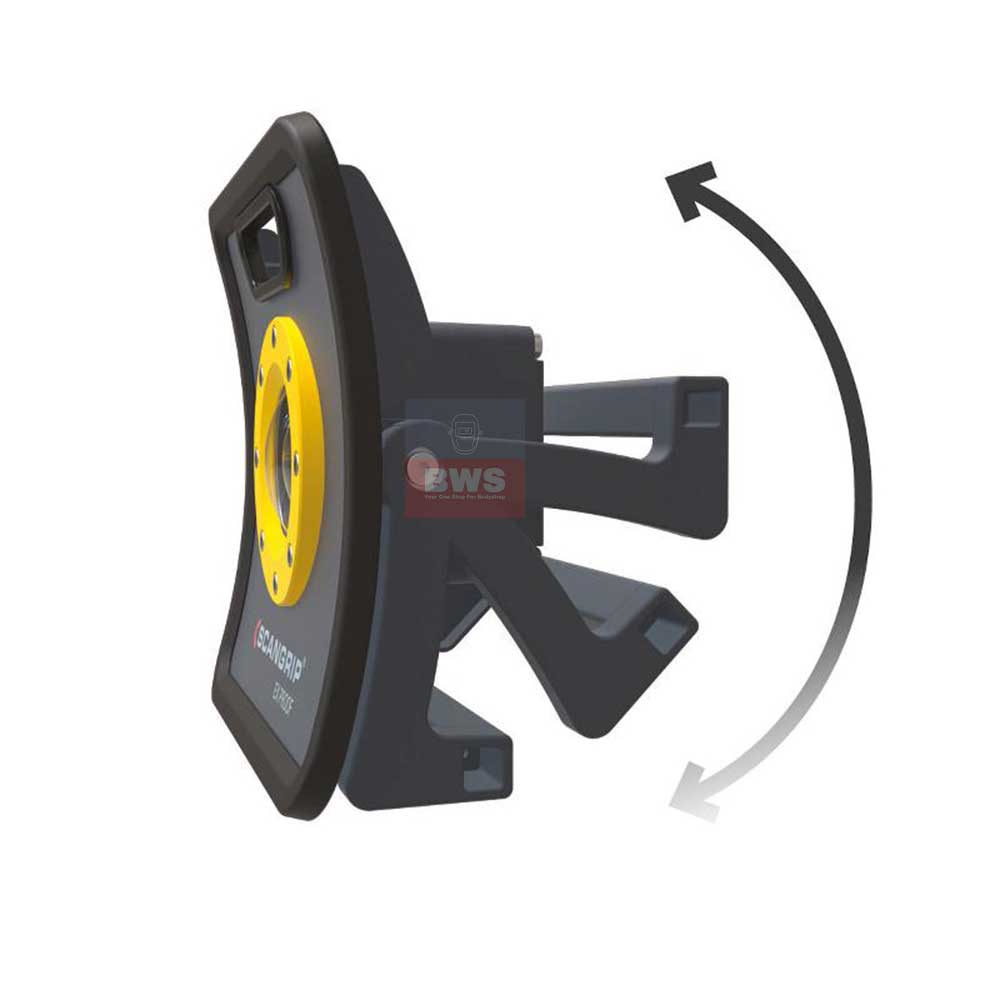

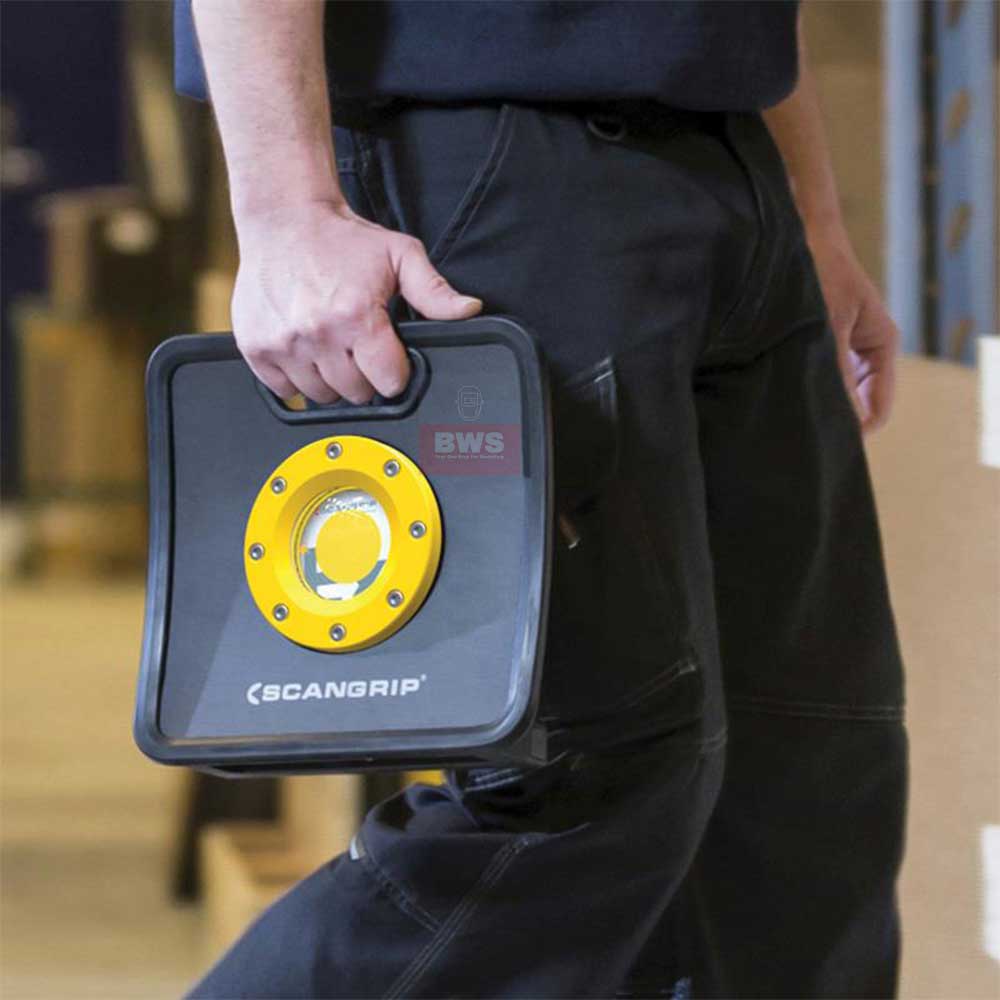

Rated IP65 for protection against dust and water ingress in wet or dirty work environments; impact resistance rated to 1 m.","Integrated carrying handle and a flexible stand that doubles as a hanger and allows angle positioning for handsfree use.","Compatible with Scangrip EX mounting accessories designed for NOVAEX (tripod, magnetic bracket, scaffolding bracket) for fixed or magnetic mounting solutions.","No internal battery — intended for permanent electricity supply locations where continuous power is required.","Operating temperature range −20 °C to +45 °C for use in common industrial environments.","Product dimensions 270 x 266 x 123 mm and net weight 5.3 kg for a robust, portable worklight footprint."]} PMID: none. Newport: none. Additional info: none. Continuous: none. Continuous. Continuous. Continuous. Continuous. Continuous. Continuous. Continuous. Continuous. Continuous. Continuous. Continuous. Continuous. Continuous. Continuous. Continuous. Continuous. Continuous. Continuous. Continuous. Continuous.

Specification

Manufacturer

Scangrip

Product number

03.5602

Model

NOVA-EX

Light source

High CRI COB LED

Luminous flux

1000-2000 lumen

Illuminance @0.5 m

1600-3200 lux

Adjustable light output

2 levels

Beam angle

110°

CRI

Ra > 95

CCT

6500K

Power consumption

23W

Operating voltage AC

100-240V 50/60 Hz

Cable

10 m / 3x1 mm 2 H05RN-F

Plug

Schuko plug

Protection class

IP65

Impact resistance

1 m

EX Zone

1 and 21

Operating temperature

-20° to +45°C

Dimensions

270 x 266 x 123 mm

Net weight

5.3 kg

Barcode

5708997356029

Price

€ 499.90

ATEX/IECEx

II 2G Ex db eb mb op is IIC T4 Gb; II 2D Ex tb IIIC T85°C Db IP65; IECEx TPS 17.0002X TÜV IT 16 ATEX 082 X

FAQs

What is the Scangrip Nova-Ex and where is it intended to be used?

The NOVA-EX is an explosion-proof COB LED work light supplied with a 10m cable. It is certified for use in hazardous areas (EX Zone 1 and 21), has an IP65 rating and a diecast aluminium body with 1 m impact resistance suitable for demanding, wet and dirty professional environments.

What power supply and cable does the NOVA-EX require?

The NOVA-EX is mains powered. It is supplied with a 10 m cable with Schuko plug (cable spec 10 m / 3x1 mm2 H05RN-F). Operating voltage is 100–240 V AC, 50/60 Hz and power consumption is 23 W.

What are the light output and beam characteristics?

Luminous flux is stated as 1,000–2,000 lumens with illuminance of 1,600–3,200 lux at 0.5 m. The lamp provides two adjustable output levels (50% and 100%), a 110° beam angle, CRI Ra >95 and a correlated colour temperature of 6,500 K.

What mounting and accessory options are available for workshop use?

Scangrip offers approved EX accessories for the NOVA-EX including a tripod (Tripod EX, product 03.5607), a magnetic bracket (Magnetic Bracket EX, product 03.5616) and a scaffolding bracket for Ø40–50 mm. These accessories are approved for use in explosive atmospheres in combination with NOVA-EX and NOVA-EX R; the magnetic bracket is supplied with two magnets (holding force given in the product literature).

📄
