PREVOST RSI - PARALLEL FEMALE BALL VALVE

Price Exc Tax

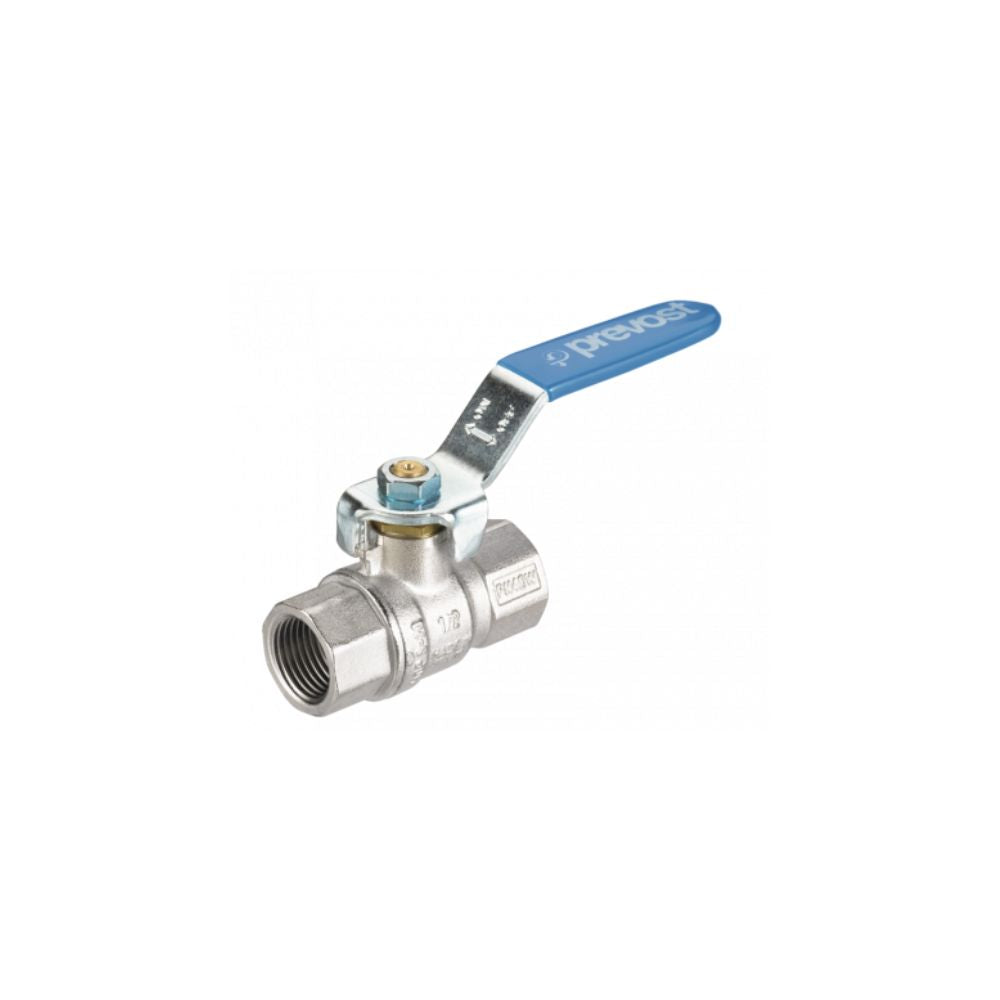

Prevost  RSI - Parallel brass lever ball female-female valves

The PREVOST PPS1 RSIM Valve provides a durable and lightweight pipe and coupling solution for compressed air networks. The parallel female thread valve features a reliable shut-off and is constructed from brass for quick and easy installation. This high-quality connector meets safety standards and is ready for immediate use after pressurisation.

 REFERENCE BSPP female thread Max Pressure
RSI 13 G 1/4 40
RSI 17 G 3/8
40
RSI 21
G 1/2 40
RSI27
G 3/4 40
RSI 34
G 1 40
RSI 42
G 1 1/4 40
RSI49
G 1 1/2 40
RSI60
G 2 40
RSI 76
G 2 1/2 40
RSI90 G3 40



DESCRIPTION

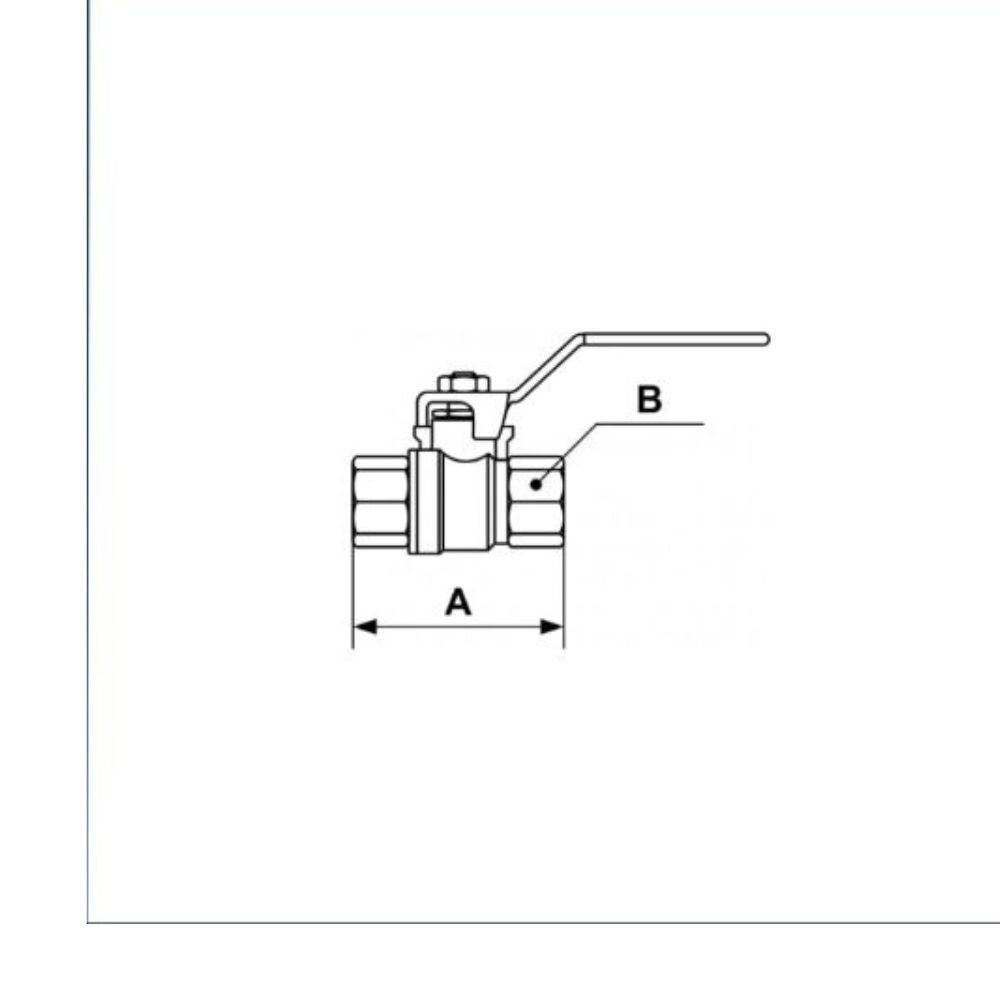

 REFERENCE A mm B mm
RSI 13 G 1/4 20
RSI 17 G 3/8
20
RSI 21
G 1/2 25
RSI27
54 31
RSI 34
67 38
RSI 42
77 48
RSI49
90 54
RSI60
106 66
RSI 76
136 85
RSI90 157 99
