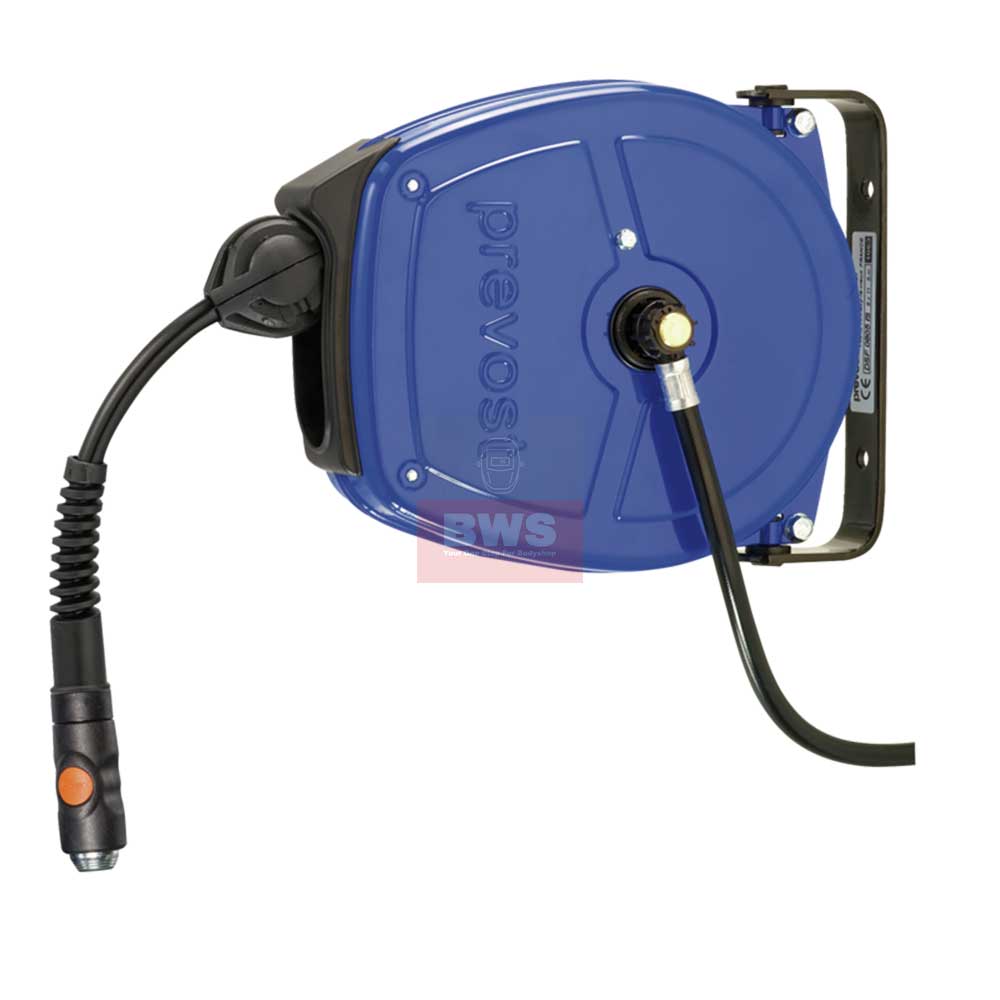

PREVOST DSF RATCHET TYPE ENCLOSED HOSE REEL-BSI CONNECTOR

Original price £152.40 - Original price £154.80
Original price
£152.40
£152.40 - £154.80
Current price £152.40

PREVOST DSF Ratchet Type Enclosed Hose Reel-Bsi Connector

TECHNICAL SPECIFICATIONS
Technology Pipe locked with ratchet stop
Max operating pressure 12 bar
Construction Epoxy-coated steel case
Connection 1 m of inlet supply hose
Movement 180° swivelling bracket
Inlet 3.3 ft hose
Outlet with PrevoS1 safety quick coupling BSI06
Temperature 5°F to 104°F

SPECIFICATION
ID/OD (mm) Length (m) Coupler Flow rate (l/min) Swivel inlet (mm) Weight (kg)
Reference
8 x 11 5 BSI 06 650 8 x 11 3 DSF 0805BS
10 x 14 3 BSI 06 750 10 x 14 3 DSF 1003BS
