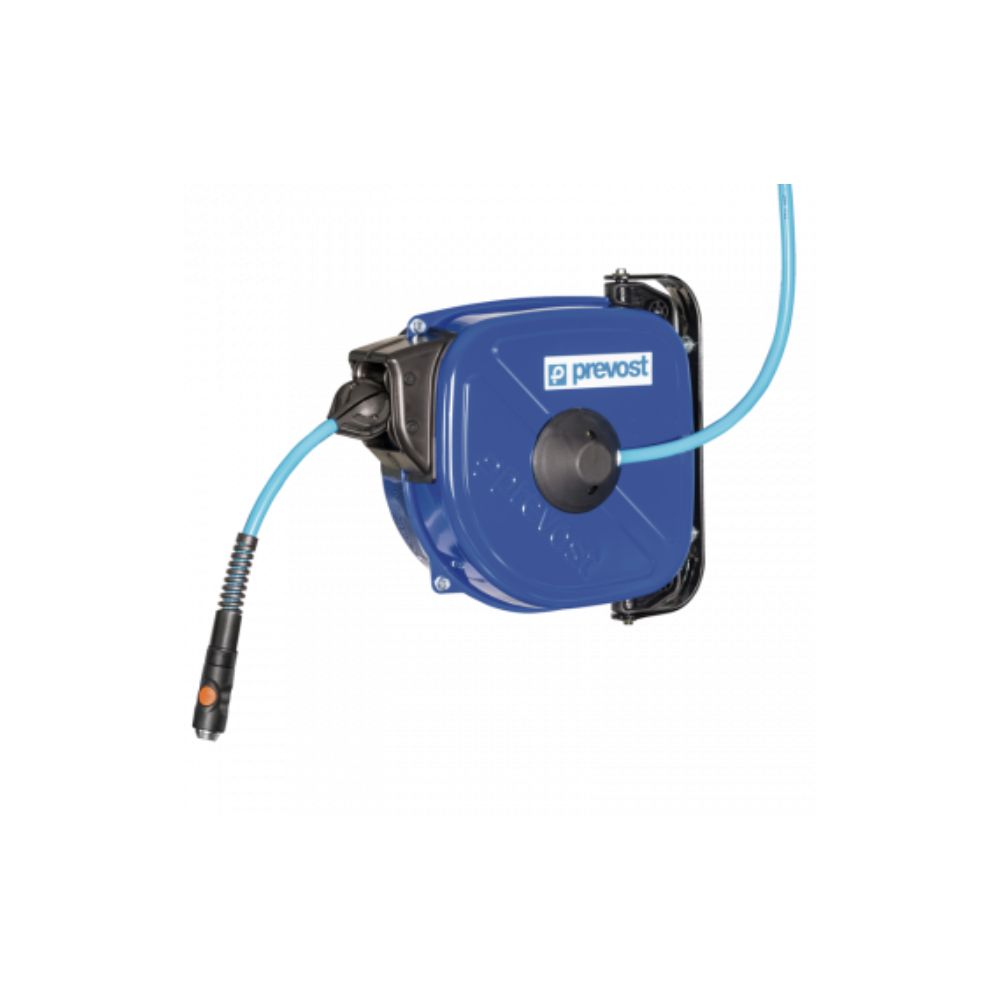

PREVOST DRF RATCHET TYPE ENCLOSED HOSE REEL-ESI CONNECTOR

DESCRIPTION

PREVOST DRF Pneumatic Ratchet Type Enclosed Hose Reel

FOR PROFESSIONAL WORKSHOP AND BODYSHOP USE

TECHNICAL SPECIFICATIONS
Technology Pipe locked with ratchet stop
Max operating pressure 12 bar
Construction Epoxy-coated steel case
Connection 1 m of inlet supply hose
Material PU/PVC
Movement 180° swiveling bracket
Inlet 3.3 ft hose
Outlet  with PrevoS1 safety quick coupling-ESI7.4
Temperature 5°F to 149°F

SPECIFICATION
ID/OD (mm) Length (m) Coupler Fixed inlet (mm) Flow rate (l/min) Weight (kg) Reference
8x12 12 ESI07 8x12 500 6 DRF 0812ES
8x12 15 ESI07 8X12 350 7 DRF 0815ES
10 x 14 10 ESI07 10 x 14 900 5.7 DRF 1010ES
10 x 14 12 ESI07 10 x 14 800 6.8 DRF 1012ES
10 x 14 15 ESI07 10 x 14 800 7.2 DRF 1015ES
