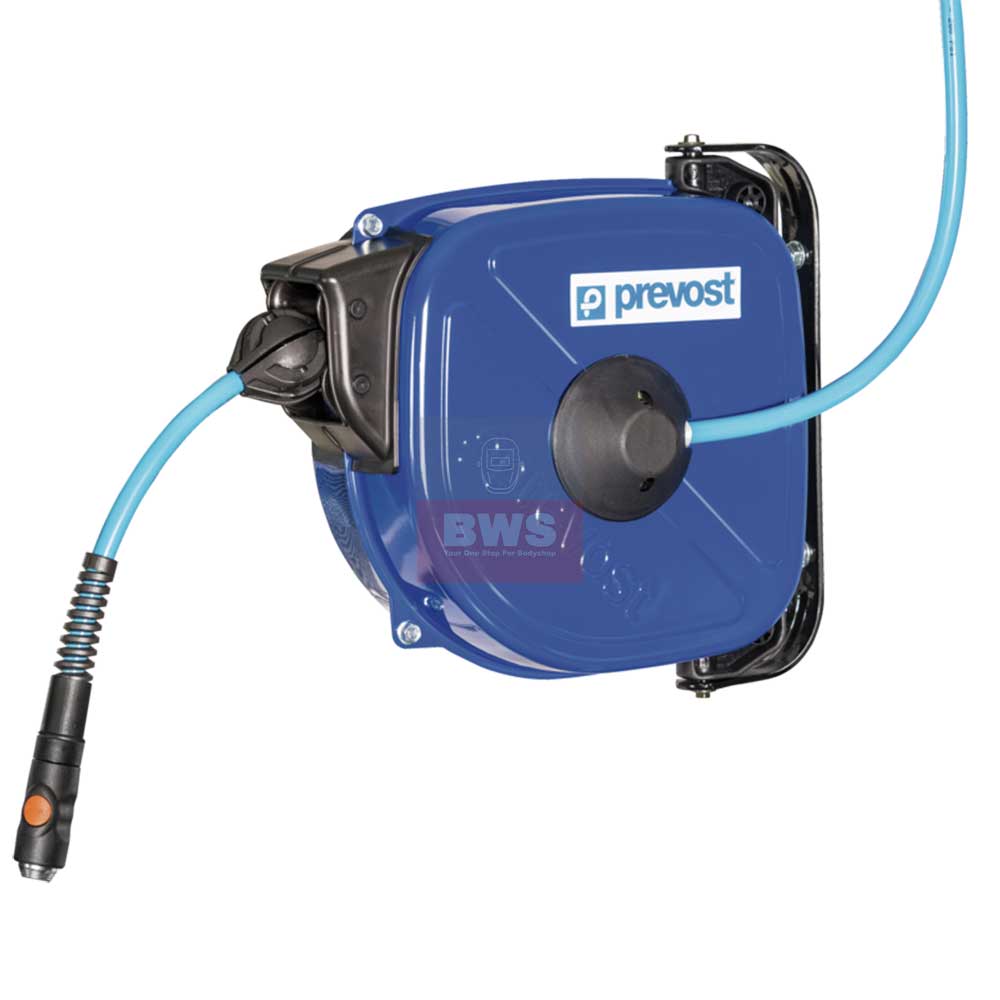

PREVOST DRF RATCHET TYPE ENCLOSED HOSE REEL-BSI CONNECTOR

£184.15

PREVOST DRF PNEUMATIC RATCHET TYPE ENCLOSED HOSE REEL FOR PROFESSIONAL WORKSHOP AND BODYSHOP USE

TECHNICAL SPECIFICATIONS
Technology: Pipe locked with ratchet stop
Max operating pressure: 12 bar
Construction: Epoxy-coated steel case
Connection: 1 m of inlet supply hose
Material: PU/PVC
Movement: 180° swiveling bracket
Inlet:  3.3 ft hose
Outlet: with PrevoS1 safety quick coupling-BSI06
Temperature: 5°F to 149°F

SPECIFICATIONS
ID/OD (mm) Length (m) Coupler Fixed inlet (mm) Flow rate (l/min) Weight (kg) Reference
8 x 12 12 BSI 06 8 x 12 500 6 DRF 0812BS
8 x 12 15 BSI 06 8 x 12 350 7 DRF 0815BS
10 x 14 10 BSI 06 10 x 14 750 5.7 DRF 1010BS
10 x 14 12 BSI 06 10 x 14 800 6.8 DRF 1012BS
10 x 14 15 BSI 06 10 x 14 800 7.2 DRF 1015BS
