PREVOST ALTO 1 - G 1/8 - G 1/4 COMPRESSED AIR TREATMENT 2pc
KTB SM1BS
Price Exc Tax

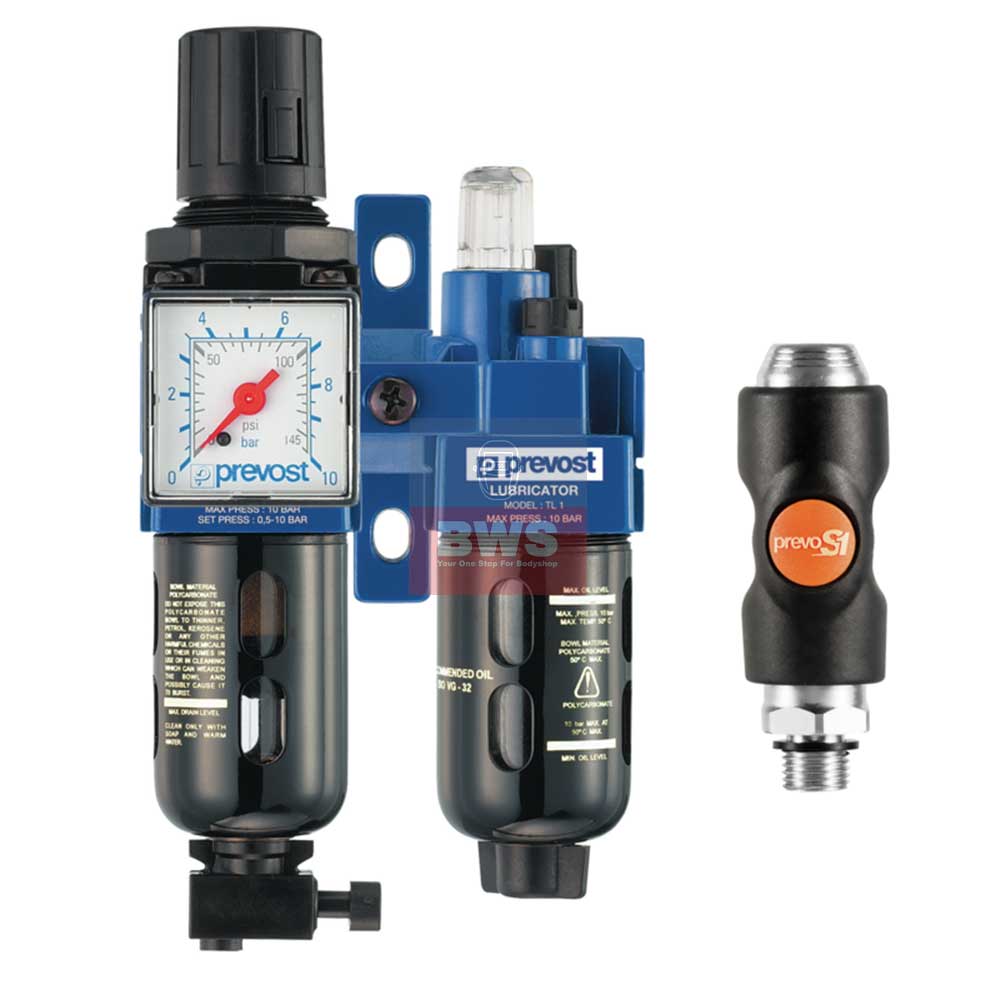

Prevost Filter-Regulator-Lubricator (gauge included) PrevoS1 safety quick coupling.
Quality Aluminium body Polycarbonate bowl with metallic protection air and oil filter regulator.
Equipped with: Manual drain Equipped with a pressure gauge: Max operating pressure: 12 Bar."
-
Temperature :+5°C to +50 °C
- Construction :Body : Aluminium
-
Polycarbonate bowl with metallic protection
-
Equipped with :Manual drain
- Max operating pressure: 12 Bar
- Equipped with a pressure gauge:
Dimensions
|
A (mm) |
B (mm) |
Reference |
|
92 |
170 |
KTB SM1ES |
|
92 |
170 |
KTB SM1BS |
|
92 |
170 |
KTB SM1IS |
Technical Specifications
|
BSPP female thread |
Flow rate (l/min at 7 bar ΔP=1b) |
Max operating pressure(bar) |
Filtration (µm) |
Equipped with 1 coupling |
SKU |
|
G 1/4 |
500 |
12 |
25 |
ESI 07 |
KTB SM1ES |
|
G 1/4 |
500 |
12 |
25 |
BSI 06 |
KTB SM1BS |
|
G 1/4 |
500 |
12 |
25 |
ISI 06 |
KTB SM1IS |
