Nitrogen Plastic Welder with Generator

Power Tec Nitrogen Plastic Welder With Generator

£5,033.84
Skip to product information
Nitrogen Plastic Welder with Generator
  • Nitrogen Plastic Welder with Generator
  • Nitrogen Plastic Welder with Generator
  • Nitrogen Plastic Welder with Generator
  • Nitrogen Plastic Welder with Generator
  • Nitrogen Plastic Welder with Generator
  • Nitrogen Plastic Welder with Generator
Power Tec Nitrogen Plastic Welder With Generator

Power Tec Nitrogen Plastic Welder With Generator

£5,033.84
Shipping calculated at checkout.

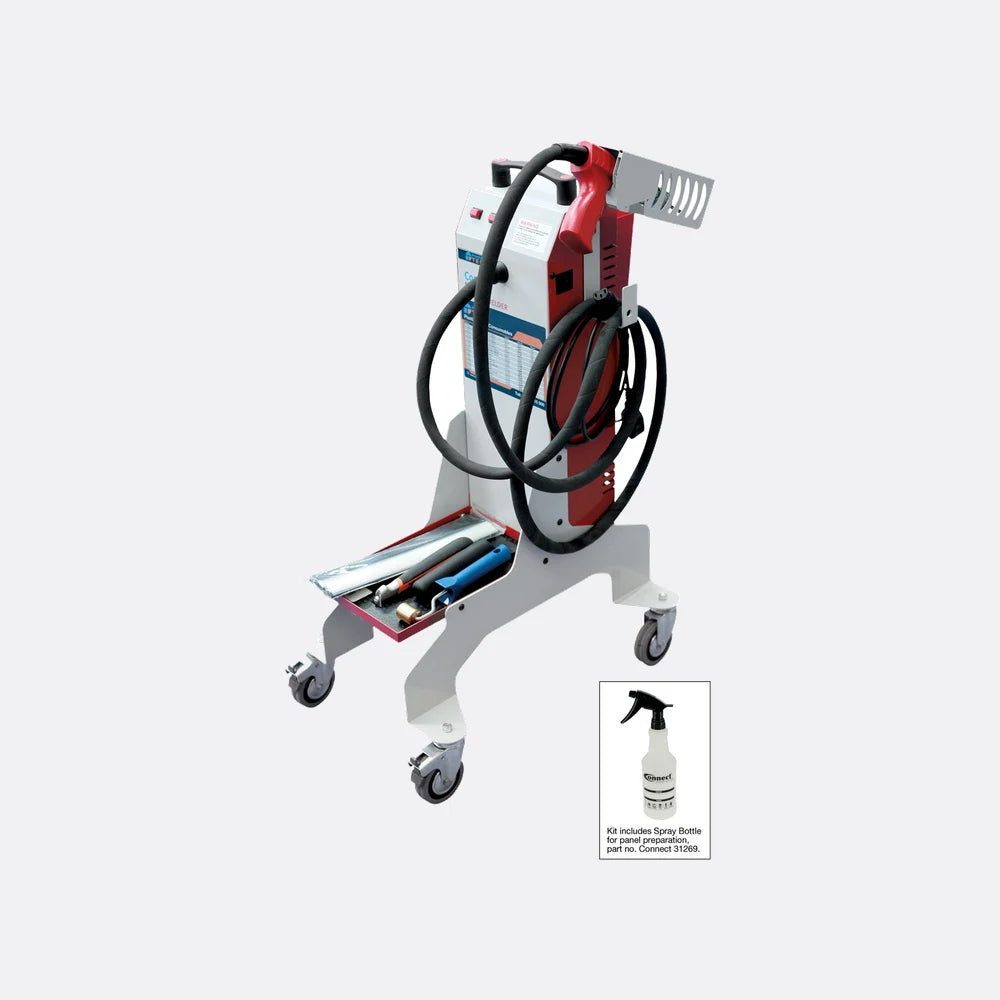

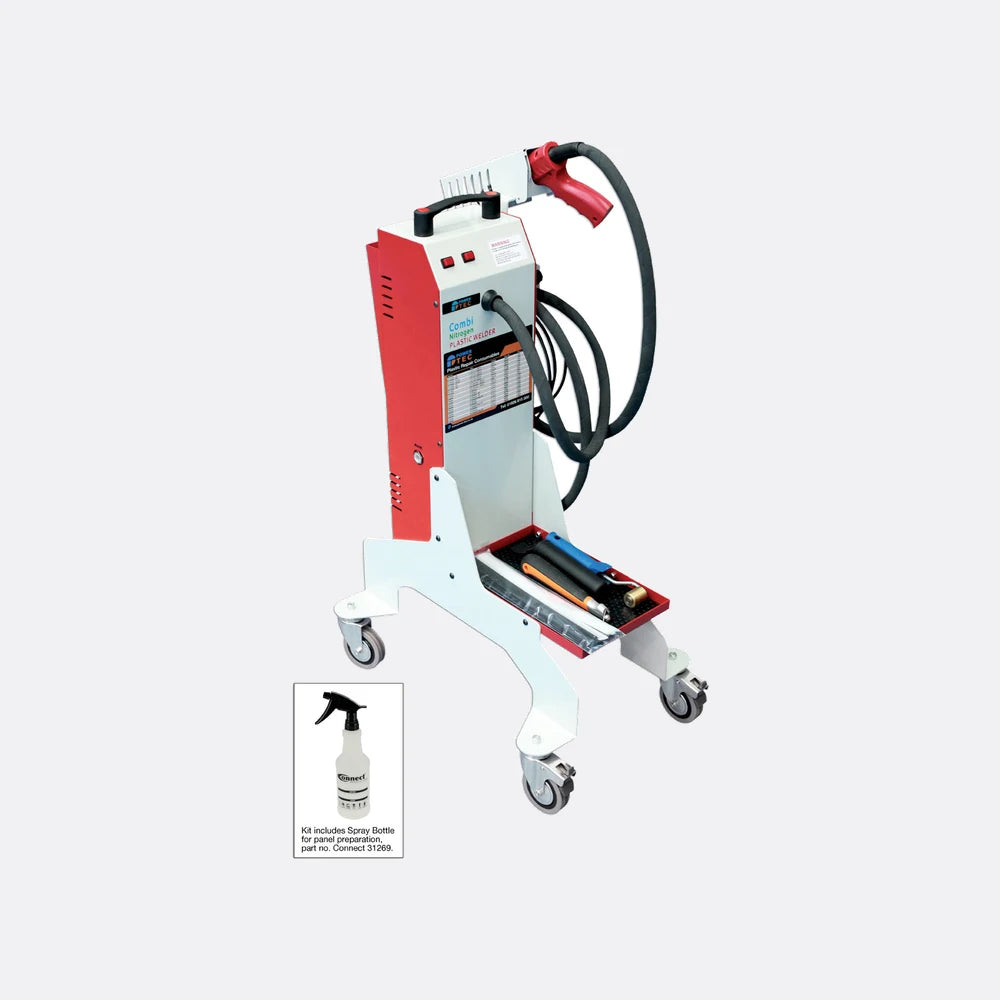

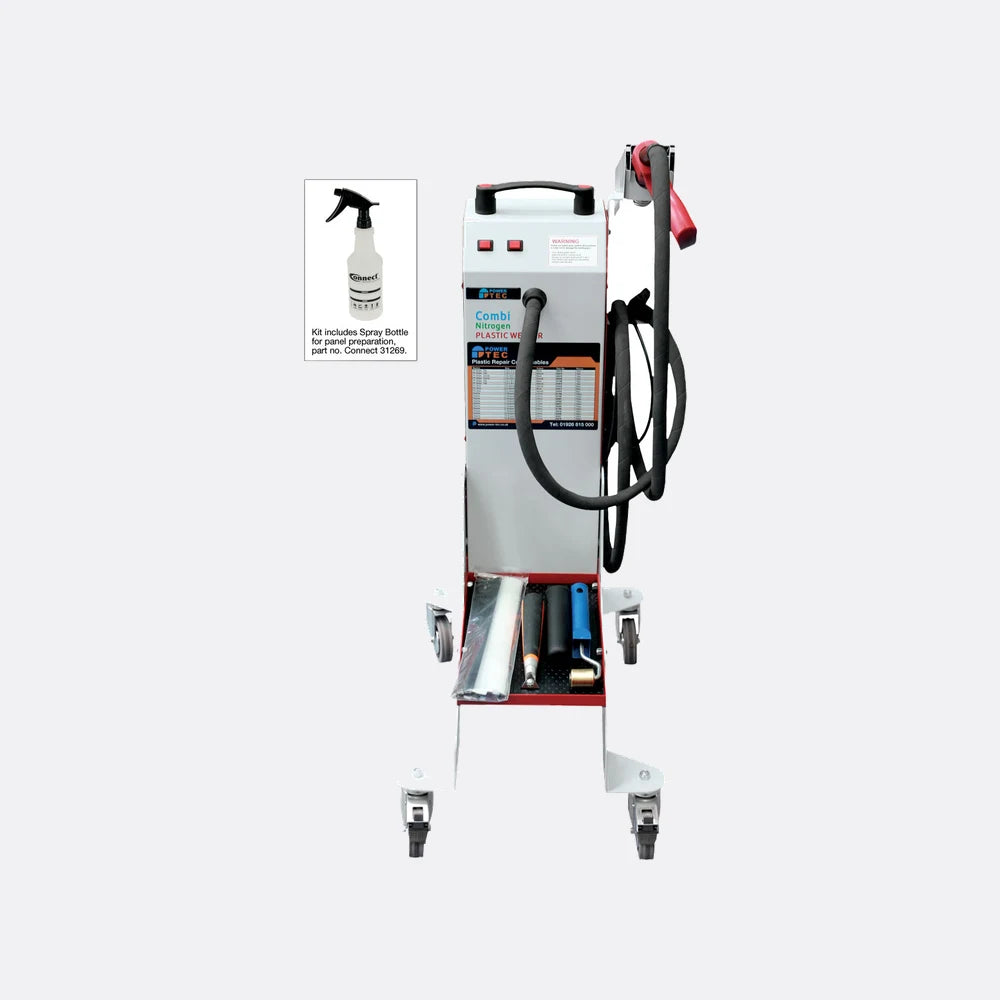

Power Tec Nitrogen Plastic Welder With Generator is a workshop-grade system for welding and reconstructing automotive plastic panels and trim using heated nitrogen.

The Power Tec Nitrogen Plastic Welder With Generator incorporates an integrated nitrogen generator and uses workshop compressed air for consistent temperature control between welds.

Power Tec Nitrogen Plastic Welder With Generator is supplied with PP filler strips, scraper and roller to complete professional repairs.

Key Features

  • Compatible with automotive plastic types
  • Integrated nitrogen generator, no bottle
  • Uses workshop compressed air
  • Heats plastic without combustion
  • Supplied with scraper and roller
  • 230V, 1600W, 20–650°C output
Technical Support

Everything we sell is supported by our factory trained engineers at our premesis in Manchester or nationwide through our mobile service engineers.

Delivery + Returns

Returns details can be edited in the theme editor.
Supply voltage

Supply

230V

Warranty

Warranty

1 years

Free delivery

Free Delivery

UK mainland delivery

Service engineers

Service

In-house engineers

Technical support

Support

0161 223 1843

Expert Advice

Paul Jones

Paul Jones says

This is the Power-TEC Combi Nitrogen Plastic Welder with an integrated nitrogen generator. I use it in bodyshop work to weld filler strips into bumpers, trim supports and to reconstruct missing plastic sections; the gun heats the filler with nitrogen while workshop compressed air maintains consistent temperature between welds and the nitrogen is only released on the trigger. Key technical points are matching filler to the parent material (the supplied strips are PP and many automotive parts are PP) and ensuring correct utilities: 230V supply plus compressed air at 6–8 bar and c.15–20 l/min. The machine is factory pre-calibrated and has a defined shutdown sequence to protect the gun. In practice the most common faults I see are inadequate surface prep (grease left on the joint), using the wrong filler type, and holding the nozzle too close so it contacts the plastic. Used to the manual and with routine checks of the pressurised filters and ventilation, it provides reliable, strong repairs superior to two-part epoxy or hot-air methods.

Paul Jones, Technical Director

📄

Technical Datasheet

Download the official manufacturer datasheet for Power Tec Nitrogen Plastic Welder With Generator including specifications, compatibility information and technical details.

Download Power Tec Nitrogen Plastic Welder With Generator Datasheet
Bodyshop Equipment Engineers

WHY BUY YOUR EQUIPMENT FROM US?

Our team of welding experts at BWS is ready to assist you every step of the way. Whether you have questions about specific products, need guidance on selecting the right equipment, or seek welding-related advice, our knowledgeable staff is here to help.

We also have some of the most experienced engineers in the industry who are able to offer full technical support on top of what the manufacturers offer.

Find Our More

Technical Features

  • Integrated nitrogen generator removes the need for an external nitrogen gas bottle.
  • Nitrogen flow is only activated when the trigger is pulled to avoid gas being wasted between welds.
  • Uses workshop compressed air to maintain consistent temperature between welds; compressed air inlet pressure 6–8 bar and typical air flow 15–20 l/min.
  • Heats plastics with nitrogen rather than by combustion, therefore welding without combustion fumes.
  • Welding method melts the base plastic and filler together with no oxidation to produce the strongest possible weld (as described by the manufacturer).
  • Compatible with almost every plastic type used in the automotive industry; filler strips supplied with the machine are polypropylene (PP).
  • Supplied consumables include plastic filler strips, a scraper, a roller and a reusable trigger spray water bottle.
  • Control panel with illuminated general start and HEAT buttons plus a gun with nozzle for directional nitrogen flow to the repair area.」「Pre‑calibrated at the factory so no user temperature regulation is required for normal operation.」「Gun reaches optimal welding temperature in a few minutes and operates across a stated temperature range of 20–650°C with 1600W power and 230V mains input.」「Recommended working technique supported by the manual: direct nozzle at the repair, keep approx. 1.5 cm distance, hold gun at ~45° and position filler strip with a ~90° twist for correct melting and penetration.」「Designed for common bodyshop tasks such as closing splits/cracks, reconstructing missing parts and finishing with a roller or optional gripper to compress and smooth the weld.」「Contains pressurised components (compressed air filter and nitrogen membrane module) and must be depressurised before maintenance; filters are serviceable and require periodic attention per the manual.」「Supplied with trolley storage and mains power connection for workshop use.」「Declared compliant with CE and UKCA markings and the listed EN standards in the manufacturer’s declaration of conformity.

Specification

Brand
Power-TEC
Model
COMBI NITROGEN PLASTIC WELDER
MPN
92452
SKU
92452
Type
Plastic welder
Storage
Trolley
Country of manufacture
Italy
Voltage
230V
Input voltage
230V - 16 A 50 / 60Hz
Power
1600W
Intake power
210W
Temperature output
20°C-650°C
Air flow (standard)
15 - 20 l / min
Compressed air inlet pressure
6 - 8 bar (87 - 114 Psi)
Power plug
Standard BS plug
Gas
Nitrogen
Weight
12kg
Packaged Width (mm)
555
Packaged Height (mm)
435
Packaged Depth (mm)
837
Standards
CE, UKCA
Applicable EN standards
EN 55014-1 : 2006 + A1 : 2009 +A2 :2011, EN 55014 - 2 :1997 +A1 :2001 + A2 :2008, EN 61000 - 3 - 2 :2014, EN 61000 - 3 -3 - 2013, EN 60335 - 1 : 2012 + A11 :2014, EN 62233 : 2008
Detailed purpose
Gas welder for plastics for professionals use
Warranty
1 years
Website
//powertec.co.uk/product/92452 Video available: https://youtu.be/Y9rsy1knh9M
Service phone
+44 (0) 1926 818186
temperature between welds
the nitrogen is only activated when pulling the
Input voltage 230V
16 A 50 / 60Hz
Air flow (standard) 15
20 l / min
Compressed air inlet pressure 6 - 8 bar (87
114 Psi)
EN 55014-1
2006 + A1 : 2009 +A2 :2011
EN 55014 - 2
1997 +A1 :2001 + A2 :2008
EN 61000 - 3 - 2
2014
EN 61000 - 3 -3
2013
EN 60335 - 1
2012 + A11 :2014
EN 62233
2008
service department direct on
+44 (0) 1926 818186 . Normal wear and tear

FAQs

Which plastics will the Power Tec Nitrogen Plastic Welder repair?
The unit is compatible with almost every plastic type used in the automotive industry. About 80% of automotive exterior plastics are polypropylene (PP) and the filler strips supplied with the machine are PP. The manual advises you to check the material marking on the part and to use welding material of the same plastic type; contact Power‑TEC if you need a different filler profile or material.
Do I need an external nitrogen bottle to operate it?
No. The machine has an integrated nitrogen generator so no external nitrogen bottle is required. Workshop compressed air is required to maintain consistent temperature between welds; the nitrogen output is only activated when the trigger is pulled to avoid wasting gas. The manual also warns that nitrogen can lead to suffocation and that the work area must be well ventilated.
What electrical and compressed air supplies are required on the workshop floor?
Electrical supply 230V (input 16A, 50/60Hz) with a standard BS plug. The unit is specified at 1600W and a stable mains voltage within about ±10% of the rated voltage is recommended. Compressed air inlet pressure should be 6–8 bar (87–114 psi) with an air flow of about 15–20 l/min. Use appropriate workshop compressed air fittings and avoid unsuitable extension leads or incompatible plugs.
What consumables and service support are supplied and what is the warranty?
The welder is supplied with a set of plastic consumables including scraper and roller and a reusable trigger spray water bottle; filler strips provided are PP. The instruction manual states the machine has no user maintenance items but recommends periodic cleaning and authorised maintenance for pressurised filters (at least annually). The product carries a 12‑month warranty. For service or spare parts contact Power‑TEC/Tool Connection service: +44 (0) 1926 818186.
