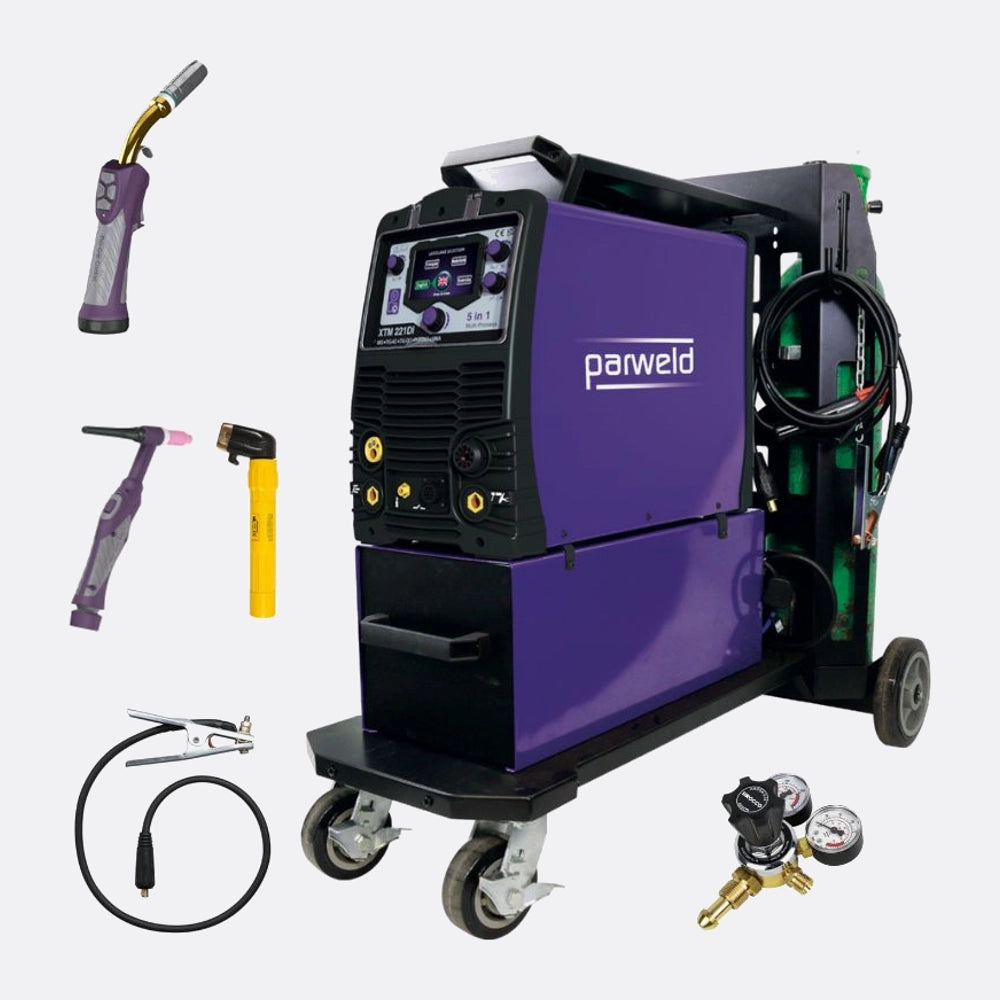

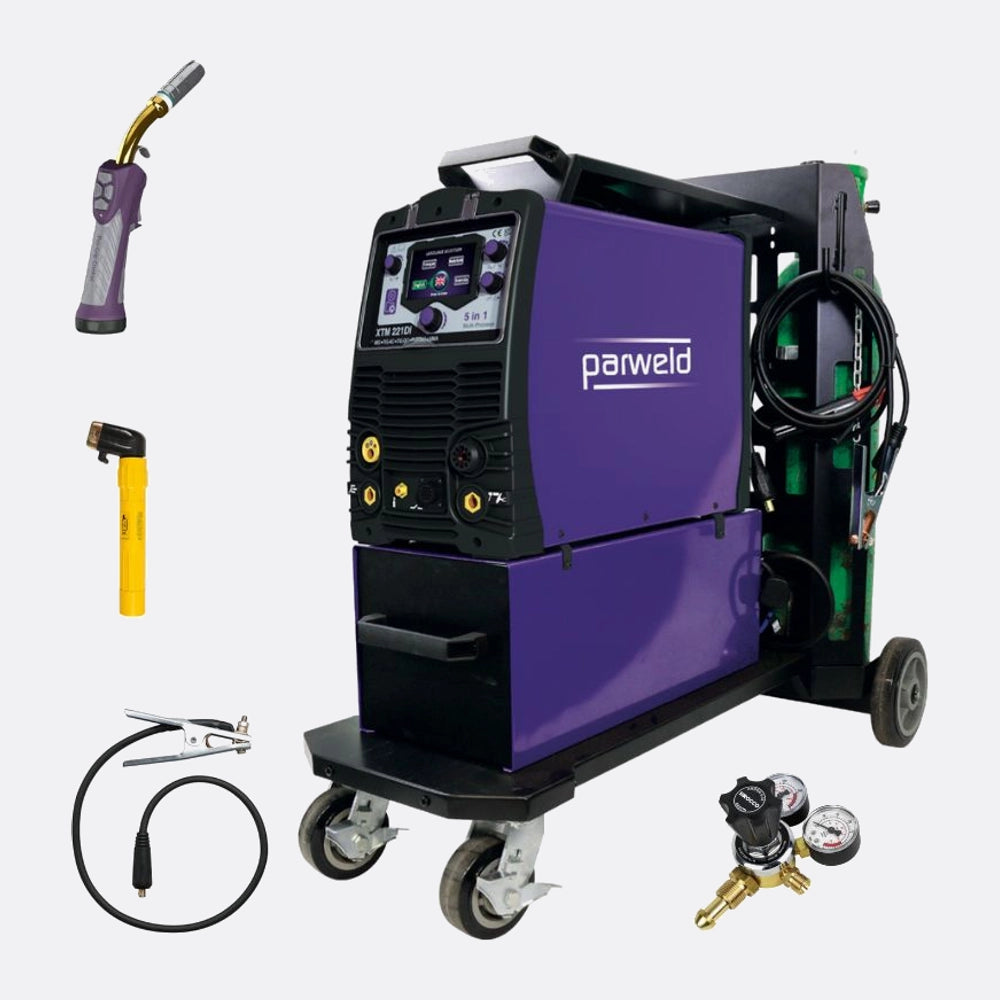

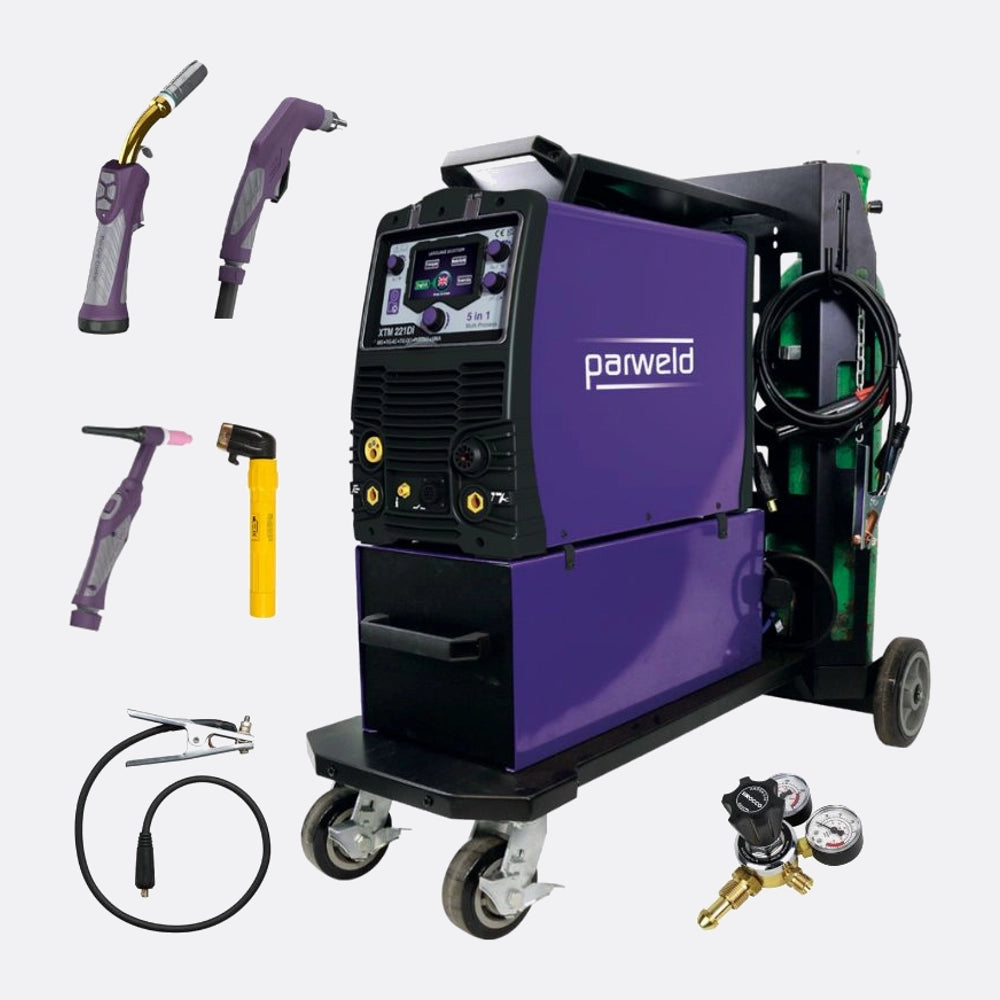

Parweld Xtm221 Di Multiprocess Inverter

£2,499.00 £2,699.00

Shipping calculated at checkout.

Parweld Xtm221 Di Multiprocess Inverter is a portable five-process machine for professional MIG, AC/DC TIG, MMA welding and plasma cutting in workshop and on-site applications.

Key Features

Five-process welding and cutting capability
110V and 230V smart switching
Large multi-language colour interface
Rapid synergic process setup
HF start and pulse TIG
Auto polarity and programme memory

Everything we sell is supported by our factory trained engineers at our premesis in Manchester or nationwide through our mobile service engineers.

Returns details can be edited in the theme editor.

Supply

110V-230V

Warranty

3 Years

Free Delivery

UK mainland delivery

Service

In-house engineers

Support

0161 223 1843

Expert Advice

Paul Jones says

The Parweld XTM221Di is a multi-process inverter for MIG, AC and DC TIG, MMA welding and plasma cutting. In a bodyshop or fabrication workshop, that makes it useful where steel, stainless steel and aluminium work are carried out on the same job, without needing separate machines for each process.

In practice, the main benefit is quick changeover between processes, combined with 110V and 230V operation for workshop or site use. The digital interface and synergic settings help with initial setup, but they do not replace checking wire type, shielding gas, torch configuration and material thickness before welding.

For aluminium MIG work, correct liner, contact tip, wire feed pressure and spool arrangement are particularly important. Poor setup will usually show as inconsistent feeding or bird-nesting rather than a machine fault. Plasma cutting also depends heavily on clean, dry compressed air and suitable earthing.

I am Paul Jones, Technical Director at BWS Ltd, and after many years servicing welding equipment, I find reliable results come from correct preparation and sensible process selection. Used within its duty cycle and maintained properly, this is a practical choice for workshops needing one machine to cover several processes.

Paul Jones, Technical Director

WHY BUY YOUR EQUIPMENT FROM US?

Our team of welding experts at BWS is ready to assist you every step of the way. Whether you have questions about specific products, need guidance on selecting the right equipment, or seek welding-related advice, our knowledgeable staff is here to help.

We also have some of the most experienced engineers in the industry who are able to offer full technical support on top of what the manufacturers offer.

Find Our More

Technical Features

5in1 multiprocess machine combining MIG, AC TIG, DC TIG, MMA and plasma cutting
Suitable for welding steel, stainless steel and aluminium, plus plasma cutting and gouging
Dualvoltage 110V/230V smart switching for workshop and site use
Large colour screen with a clear multilanguage digital interface
Rapid synergic setup helps select suitable welding parameters with less manual adjustment
Synergic control available for MIG, TIG, MMA and plasma cutting
MIG capability for thin material down to 0.9mm
Fourroll wire feed system for consistent wire delivery
Accepts 200mm 5kg and 300mm 15kg wire spools
MIG wire compatibility from 0.6mm to 1.0mm, with standard 0.8/1.0mm rollers supplied
HFstart TIG ignition for clean, reliable arc starting
Pulse TIG function for improved arc control and reduced heat input on suitable work
AC TIG capability for aluminium welding, alongside DC TIG for steel and stainless steel
Auto polarity switching avoids repeatedly changing frontpanel worklead connections
Onetouch torchtrigger process switching between MIG, TIG and plasma functions
MIG torch controls can be used to view and adjust machine parameters when fitted with a compatible control torch
Memory function saves and recalls welding programmes across the available processes
Compact portable inverter format for use around the workshop or on site
Integrated support for three gas connections, allowing welding and plasma processes to be set up together
Designed for professional bodyshop repair, fabrication, maintenance and general workshop welding
P1T package includes a twinbottle trolley with drawer for practical workshop storage and gascylinder handling

Specification

Machine Type

Portable multi-process inverter

Processes

MIG, AC TIG, DC TIG, MMA and plasma

Input Voltage

110V

Maximum Output Current

MIG 140A at 110V, 200A at 230V

Maximum Output Current

TIG 140A at 110V, 200A at 230V

Maximum Output Current

MMA 110A at 110V, 200A at 230V

Maximum Output Current

Plasma 25A at 110V, 40A at 230V

MIG Duty Cycle

100A at 60% and 140A at 30% on 110V; 140A at 60% and 200A at 30% on 230V

TIG Duty Cycle

100A at 60% and 140A at 30% on 110V; 140A at 60% and 200A at 30% on 230V

MMA Duty Cycle

110A at 50% and 100A at 60% on 110V; 140A at 60% and 200A at 30% on 230V

Plasma Duty Cycle

25A at 20% and 28A at 60% on 110V; 40A at 30% on 230V

MIG Input Current

19.4A at 110V, 14.4A at 230V

TIG Input Current

17.7A at 110V, 12.5A at 230V

MMA Input Current

21.8A at 110V, 16.2A at 230V

Plasma Input Current

21.9A at 110V, 16.0A at 230V

Minimum Fuse Rating

32A at 110V, 16A at 230V

Input Power

3.7kVA

Recommended Generator Size

7kVA

MIG Wire Size

0.6–1.0mm

MIG Spool Size

200mm up to 5kg, 300mm up to 15kg

Wire Feed System

4-roll drive

MIG Steel Material Range

0.6–6.0mm, 10mm maximum for short periods

MIG Stainless Steel Material Range

0.8–9.0mm

MIG Aluminium Material Range

1.0–5.0mm

Steel Flux-Core Material Range

1.0–6.0mm, 8mm maximum for short periods

TIG Steel Material Range

0.8–6.0mm, 10mm maximum for short periods

TIG Stainless Steel Material Range

0.8–6.0mm, 12mm maximum for short periods

TIG Aluminium Material Range

0.6–6.0mm, 8mm maximum for short periods

MMA Material Range

1.5–7.0mm

Welding Capacity

6mm at 230V input

Enclosure Protection

IP23S

Dimensions

650 x 275 x 495mm (L x W x H)

Weight

30kg

Warranty

5 years

FAQs

What welding and cutting processes does the Parweld XTM221DI support?

It is a 5-in-1 machine for MIG, AC TIG, DC TIG, MMA and plasma cutting. It is suited to steel, stainless steel and aluminium work, with automatic polarity switching to simplify changing between processes.

What power supply does the XTM221DI need?

It has smart-switching dual-voltage input for 110V or 230V single-phase supplies. The minimum fuse rating is 32A at 110V or 16A at 230V, and output capacity is reduced when running on 110V.

What material thickness can it handle?

For best performance, the recommended welding range is 0.6mm to 6mm, with up to 6mm capacity on 230V input. MIG wire sizes are 0.6mm to 1.0mm, and the four-roll drive system accepts 5kg or 15kg spools.

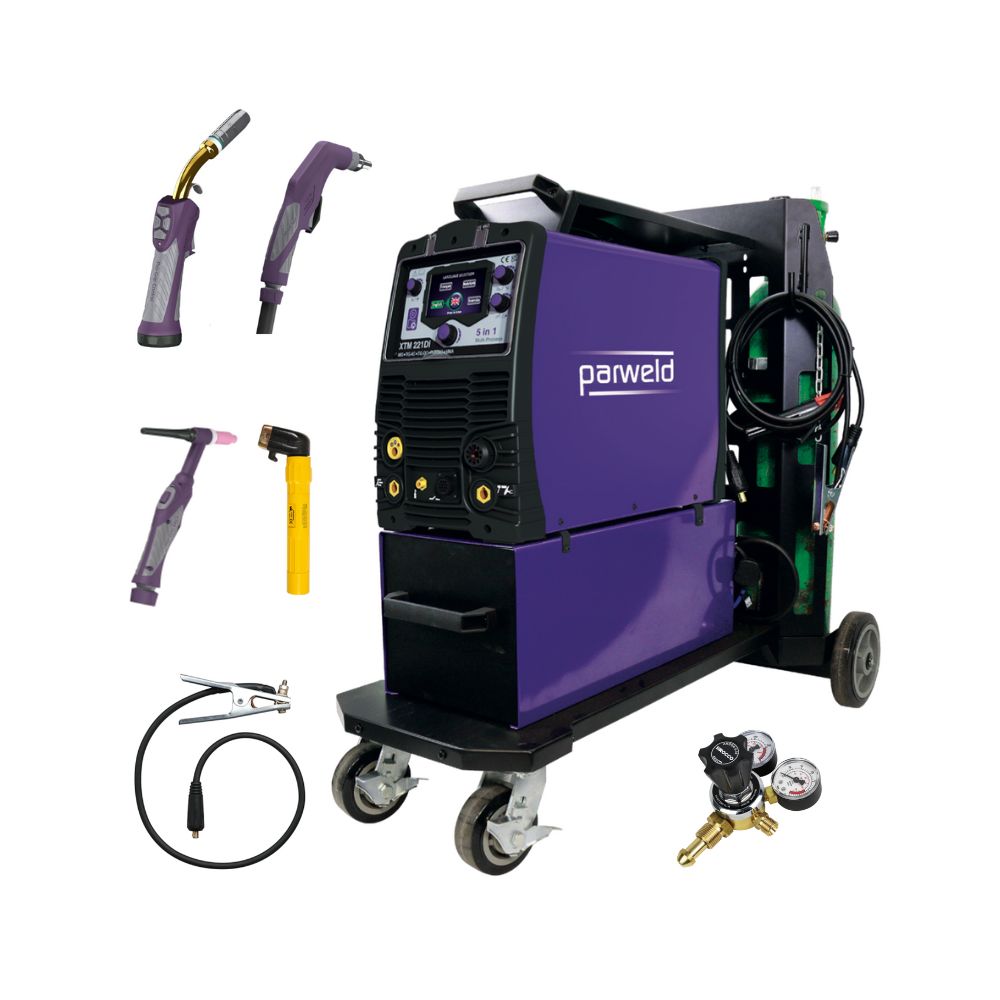

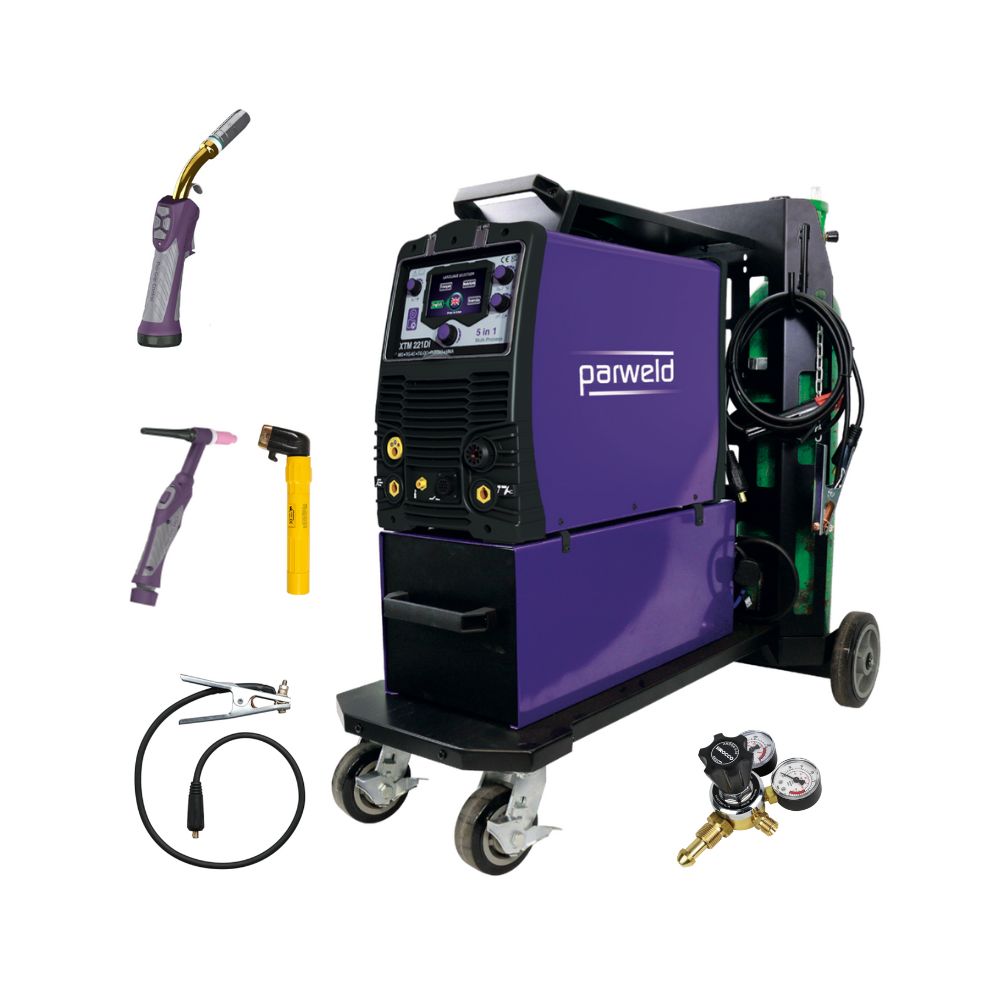

What is included with the XTM221DI-P1T package?

The XTM221DI-P1T package includes the machine, MMA leads, three gas hoses, a 3m 250A MIG torch with four-button control, input cable and a twin-bottle trolley with drawer. A TIG torch, plasma torch and regulators depend on the selected package, so check the exact bundle before ordering.
