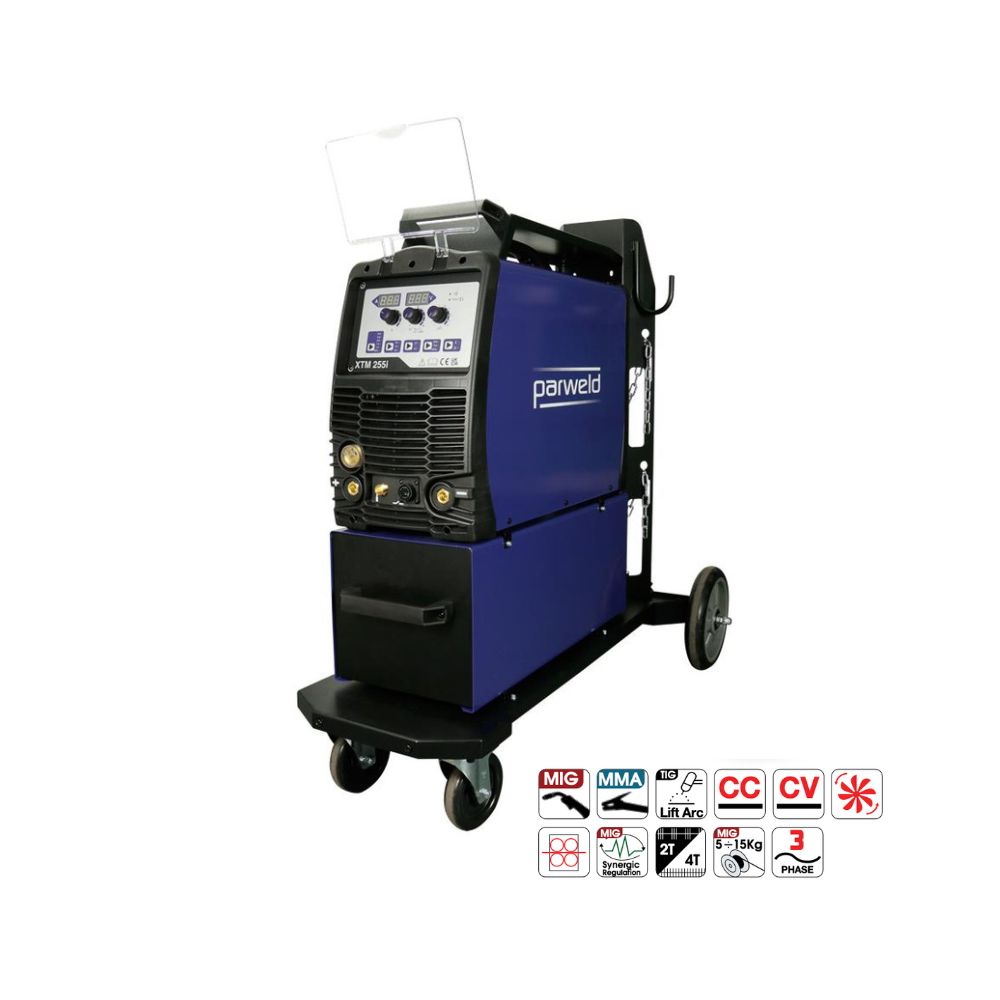

PARWELD XTM 255I INVERTER MIG WELDER

Price Exc Tax

PAR-MIG-3-255i

Brand: Parweld

PARWELD MULTIPROCESS MIG WELDER  250A

SKU  PAR-MIG-3-255

The Latest Inverter MIG Welder from Parweld, this multiprocess machine offers high performance and is multiprocess with Lift TIG and MMA also. The welding arc is smooth and controllable

FEATURES:

-1 Phase Inverter MIG/MMA/Lift TIG Welder
-Synergic Programming – Self adjusting parameter settings
-LED Digital display with Voltage & Wire feed settings chart
-2T / 4T trigger Control Function
-Gas connection on the XTM255I MIG Inverter allows use of the Lift TIG function in conjunction with P1 Torch Package.

BENEFITS:

-Very simple and easy to use
-Lightweight and portable machine, comes already fitted onto trolley for easy mobility.
-Multi processes provide greater flexibility
-Built in certain parametric setting saves time fiddling with manual settings
-High precision, smooth welding performance and perfect arc characteristics.

SYNERGIC:

Synergic means one button operation for ease of use and setup.

A professional welder has designed and installed programmes into the welder for you to access quickly giving you the optimum parameter for a given material and thickness.

PRO PACKAGE AVAILABLE

We offer professional installation and training on this machine by qualified welding engineers-on your site. Ask For Details

Multi-Process MIG/TIG/MMA Welding
230V Three Phase Machine
Quick and Easy Selection of Welding Processes, Control type, Material and Wire Size
Synergic Control
Fan On Demand
2T / 4T Trigger Latching
Real Time Display of Parameters and Data
Soft Switching Technology for improved efficency
Clear Visor for Front Panel Controls Protection
Supplied with Gas Hose and 3m Earth Lead

+ Weight 24.5 kg
+ Dimensions 690 × 280 × 500 mm
+ Phase Three Phase
+ Machine Style Compact, Portable
+ Machine Type inverter
+ Maximum Current 350A DC
+ Duty Cycle 350A @ 35% Duty Cycle
+ Input Voltage 400V 3P
+ Voltage 10.4-24V (TIG), 15.5-31.5V (MIG), 20.4-34V (MMA)
+ Feed Box 4 Roll Drive
+ Input Current (Eff)
+ MIG – 14.5A, TIG – 10.4A, MMA – 14.5A
+ Output DC
+Wire Size 0.6-1.2mm
+ Spool Size 200mm (5kg), 300mm (15kg)
+ Minimum Fuse Rating 16A
+ Generator Size (Requires AVC) 10 KVA
+ Enclosure Protection
IP23S


Machine with trolley, work return lead and gas hose

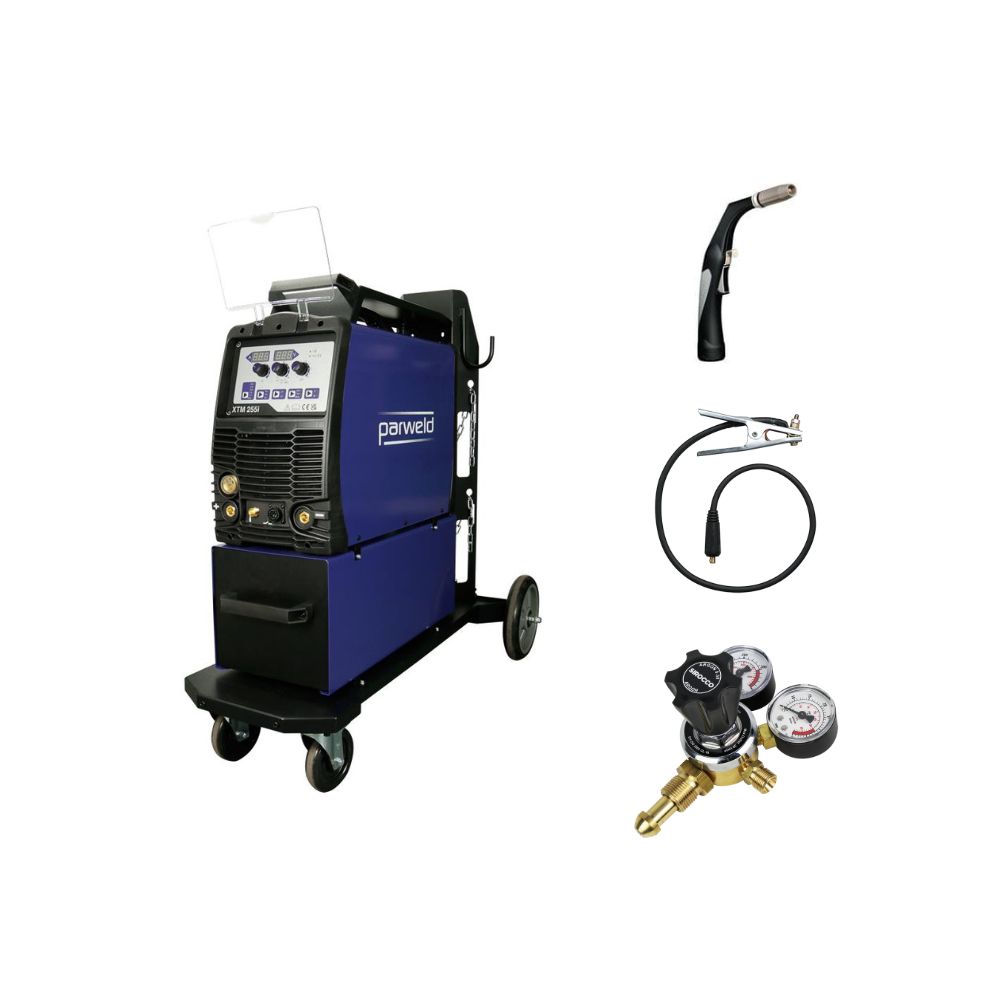

P1-Machine with trolley, work return lead, gas hose, XP200A 4m long MIG torch and gas regulator
