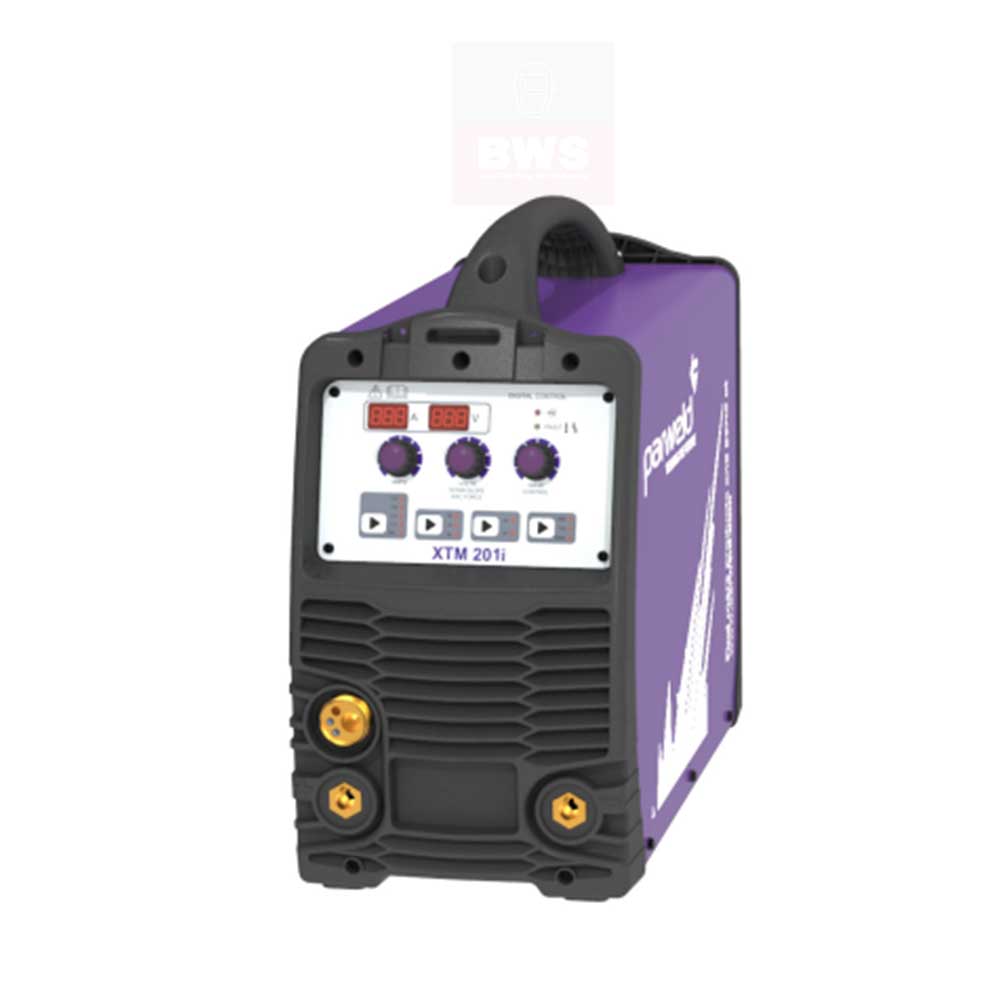

Parweld XTM 201i Multiprocess Inverter Welder
P1 Torch Regulator Earth Cable Gloves
£789.00
Skip to product information
Parweld XTM 201i Multiprocess Inverter Welder
£789.00
Shipping calculated at checkout.

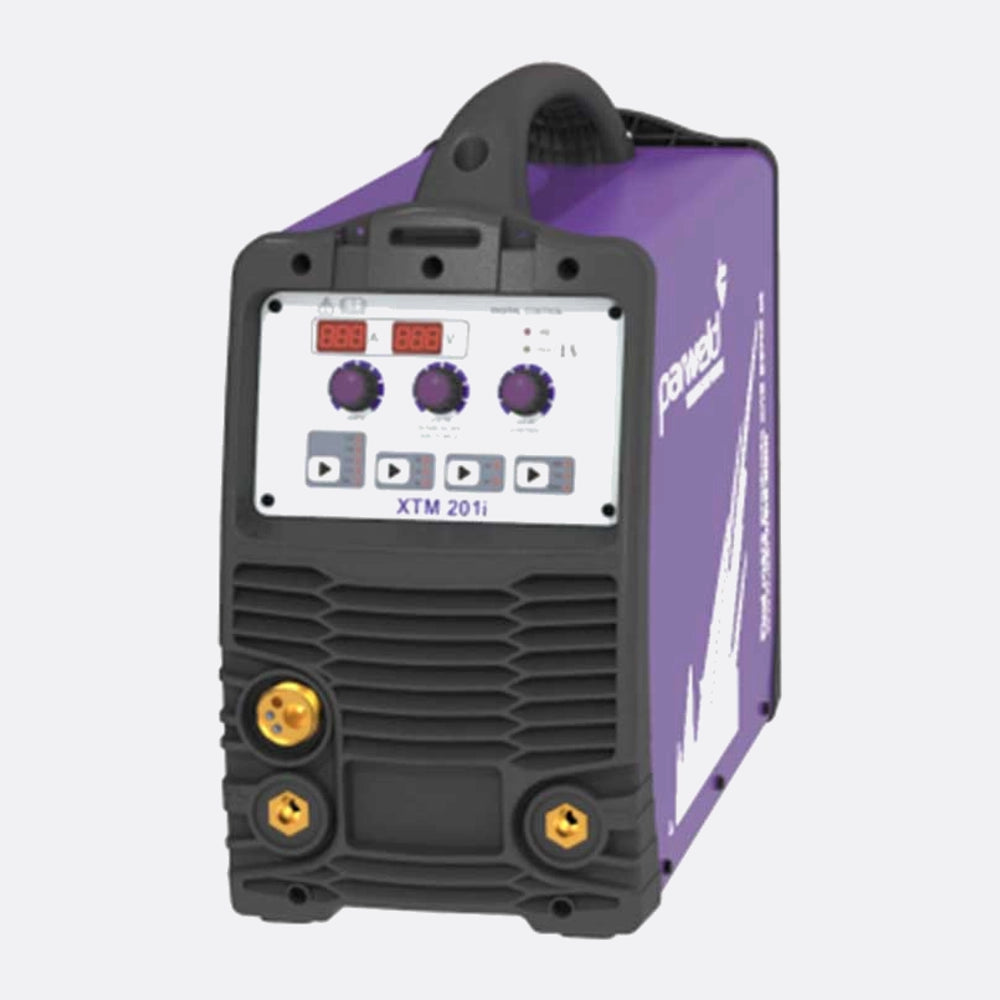

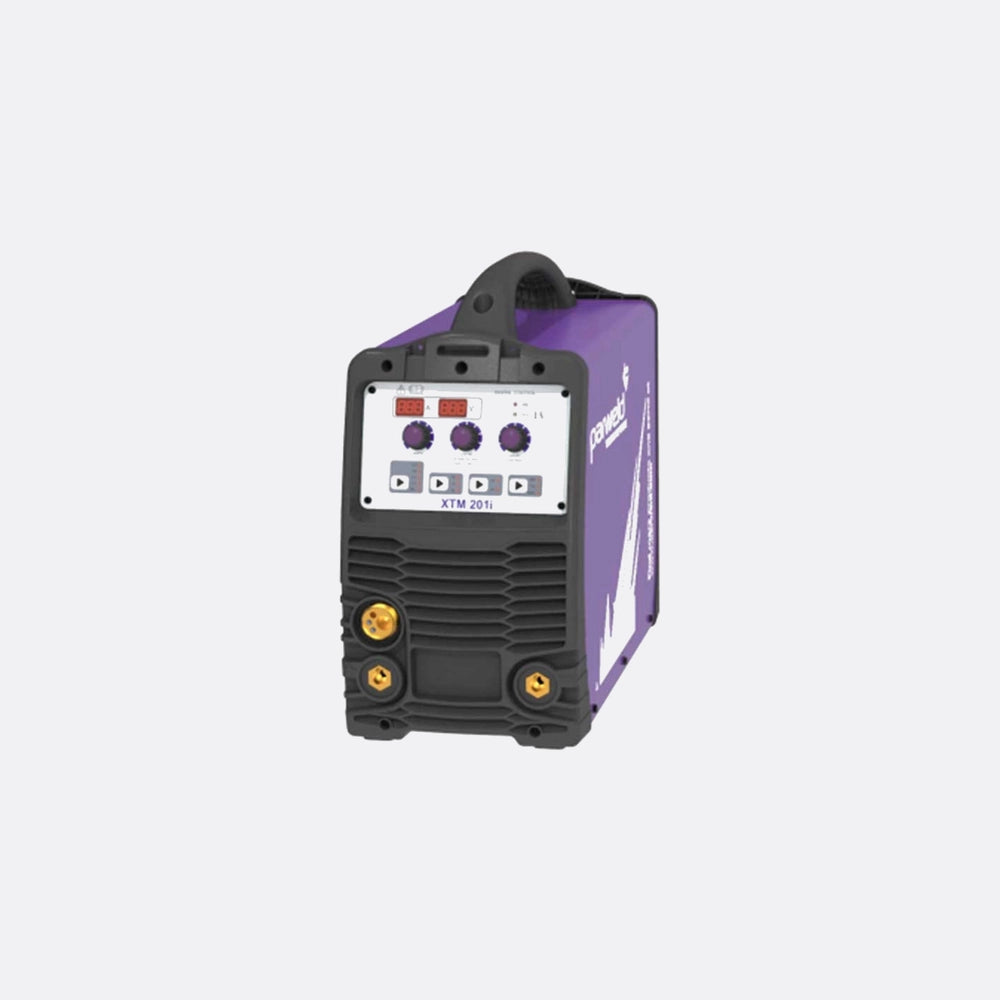

The Parweld XTM 201i Multiprocess Inverter Welder is a compact 230V single-phase MIG power source offering MIG, MMA and Lift TIG capability for professional workshop and bodyshop use.
Key Features
- Multiprocess MIG, MMA, Lift TIG
- 230V single phase inverter
- Semi-synergic MIG control
- Gas and gasless operation
- Compact, portable steel case
- Smooth DC arc characteristics
Technical Support
Everything we sell is supported by our factory trained engineers at our premesis in Manchester or nationwide through our mobile service engineers.
Delivery + Returns
Returns details can be edited in the theme editor.
Technical Features
- 230V Single Phase
- Lightweight 12kg
- Generator friendly
- Compact and portable
- MIG welding with arc force adjustment
- Dual digital display
- Accepts 5kg (200mm) spools
- 2T/4T trigger latching
- 3 years return to base warranty
Specification
Manufacturer
Parweld
Supply
230V
Fuse
16A
Output
230A @ 20% Duty Cycle
FAQs
What welding processes does the Parweld XTM 201i support and is it suitable for professional workshop use?
The XTM 201i is a single-phase 230V inverter power source capable of MIG (manual and synergic), Lift TIG and MMA (stick) welding, with gas or gasless operation. It is designed for light industrial manufacturing, maintenance and repair, sheet metal work, agricultural use, training and site welding, so it suits general fabrication, smaller bodyshop work and garage repairs where a compact multi-process set is useful.
What power supply and generator capacity does the XTM 201i require in a workshop?
The machine runs on 230V single-phase with a minimum 16A fused supply and an effective input current of around 18A, so a dedicated 16A socket is recommended rather than a 13A plug. It will tolerate input fluctuations of approximately ±15% and can be used on most generator sets, typically around 7 kVA with automatic voltage control. BWS engineers can advise on correct cabling, fuse rating and generator sizing for your site.
What material thickness and wire sizes can the XTM 201i weld for bodyshop and fabrication work?
The XTM 201i delivers up to 200A DC at around 25% duty cycle and is intended for materials up to about 4–5 mm in mild steel, stainless and aluminium in a single pass, which covers most light fabrication and panel repair work. It takes 0.8–1.0 mm solid MIG wire on 5 kg spools for standard steel and stainless, and can be set up for aluminium wire; gasless flux-cored wire can be used by reversing polarity when needed for outdoor or quick repair jobs.
What comes with the XTM 201i and are consumables easy to source for trade use?

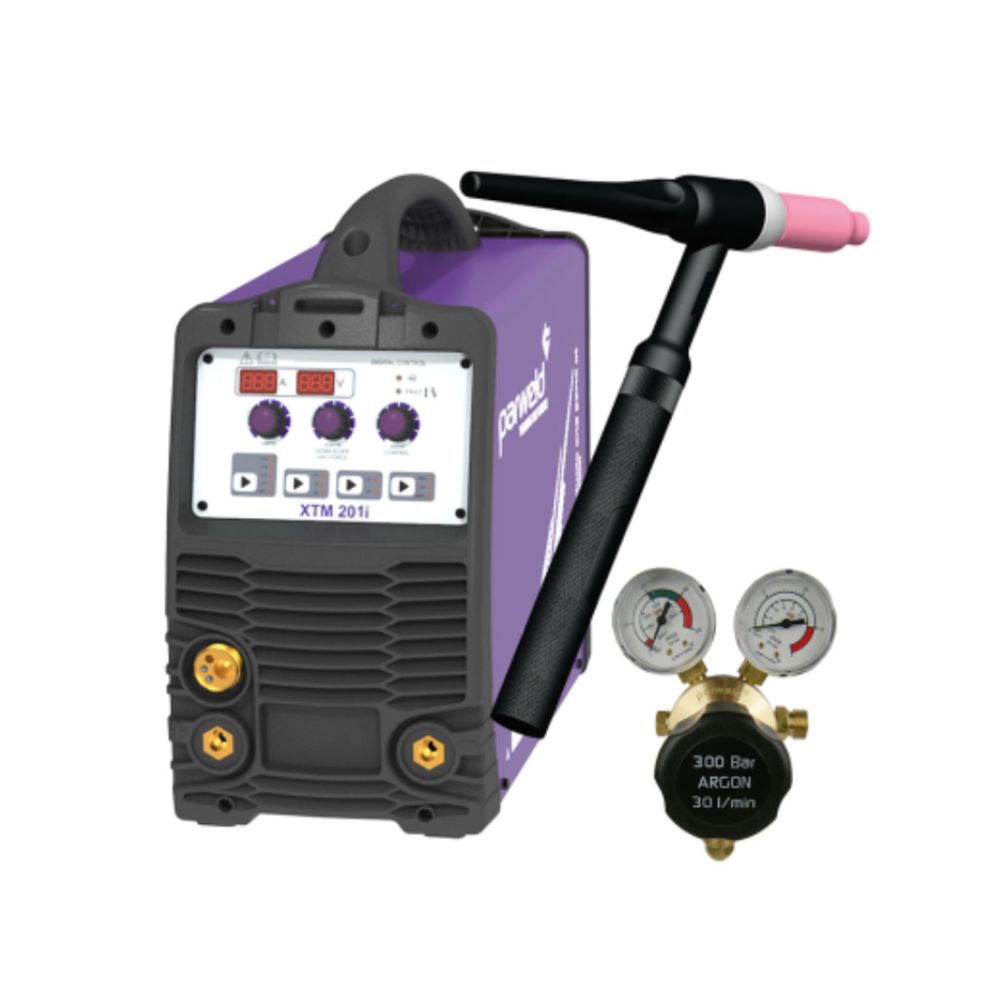

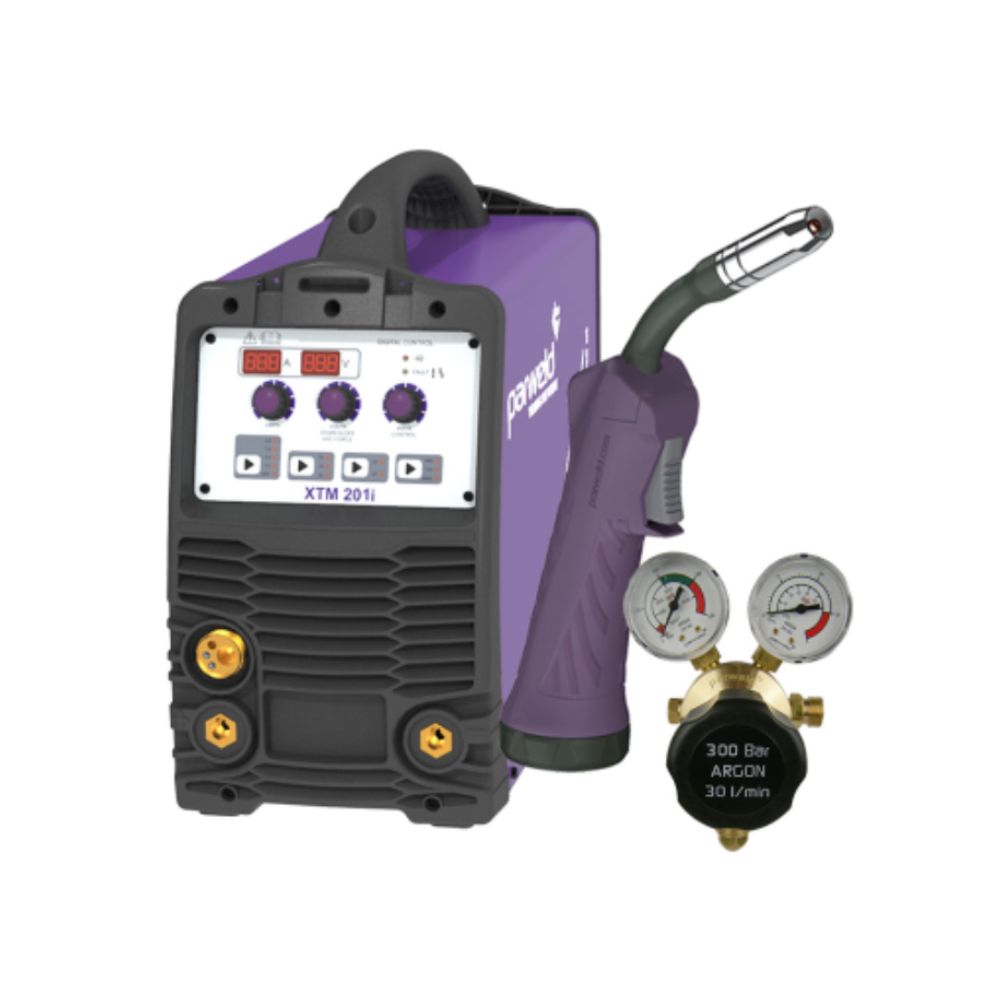

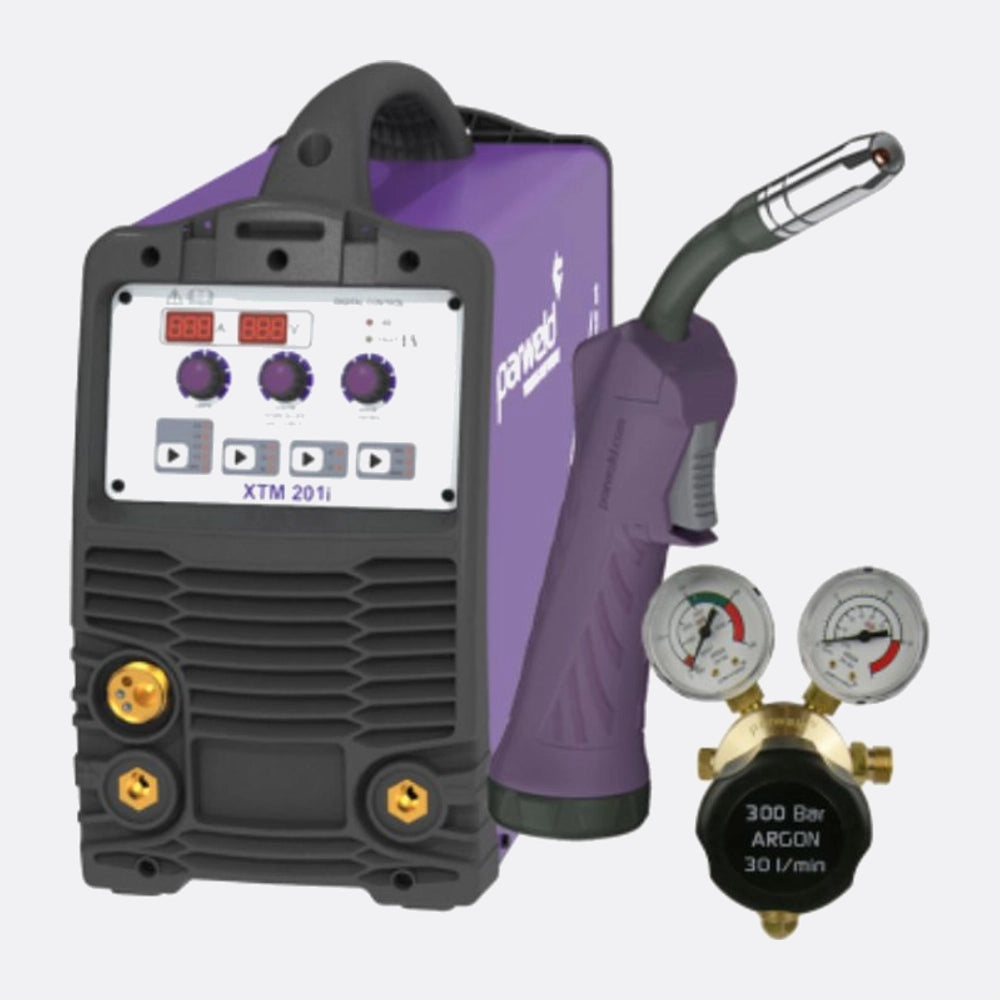

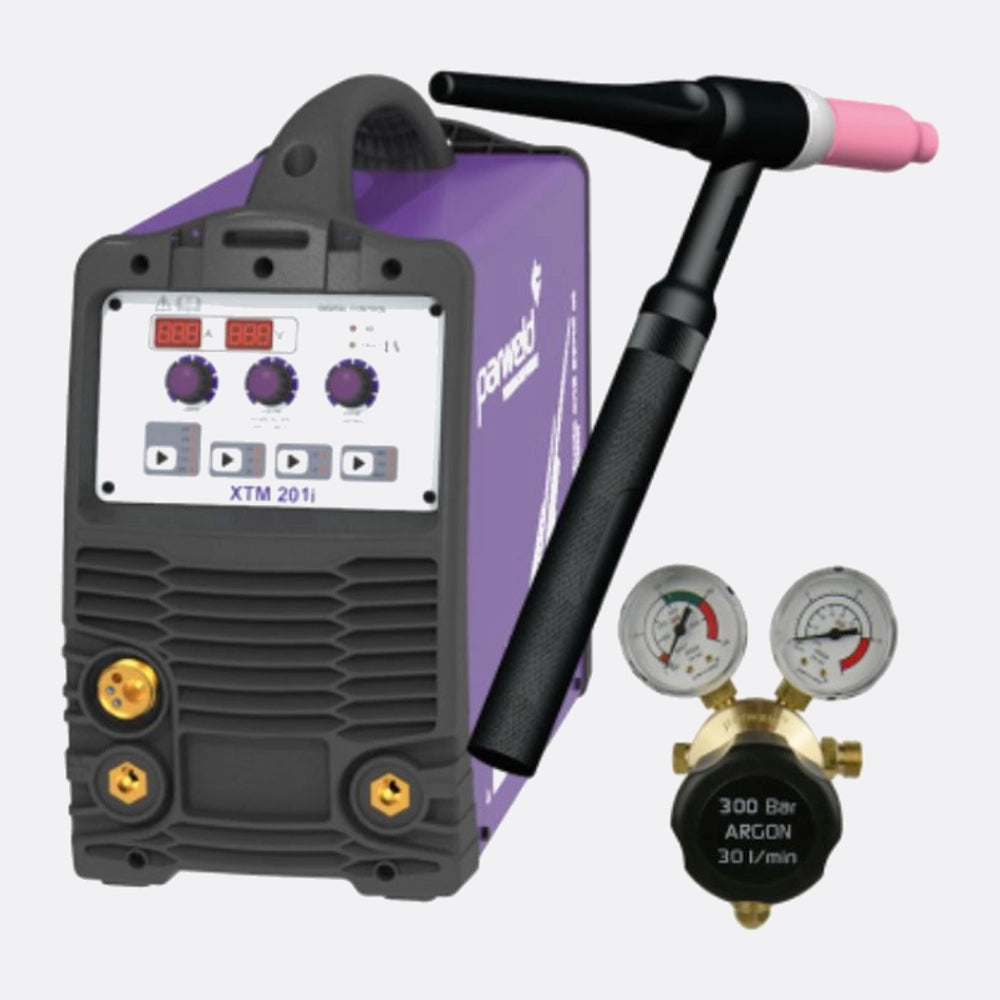

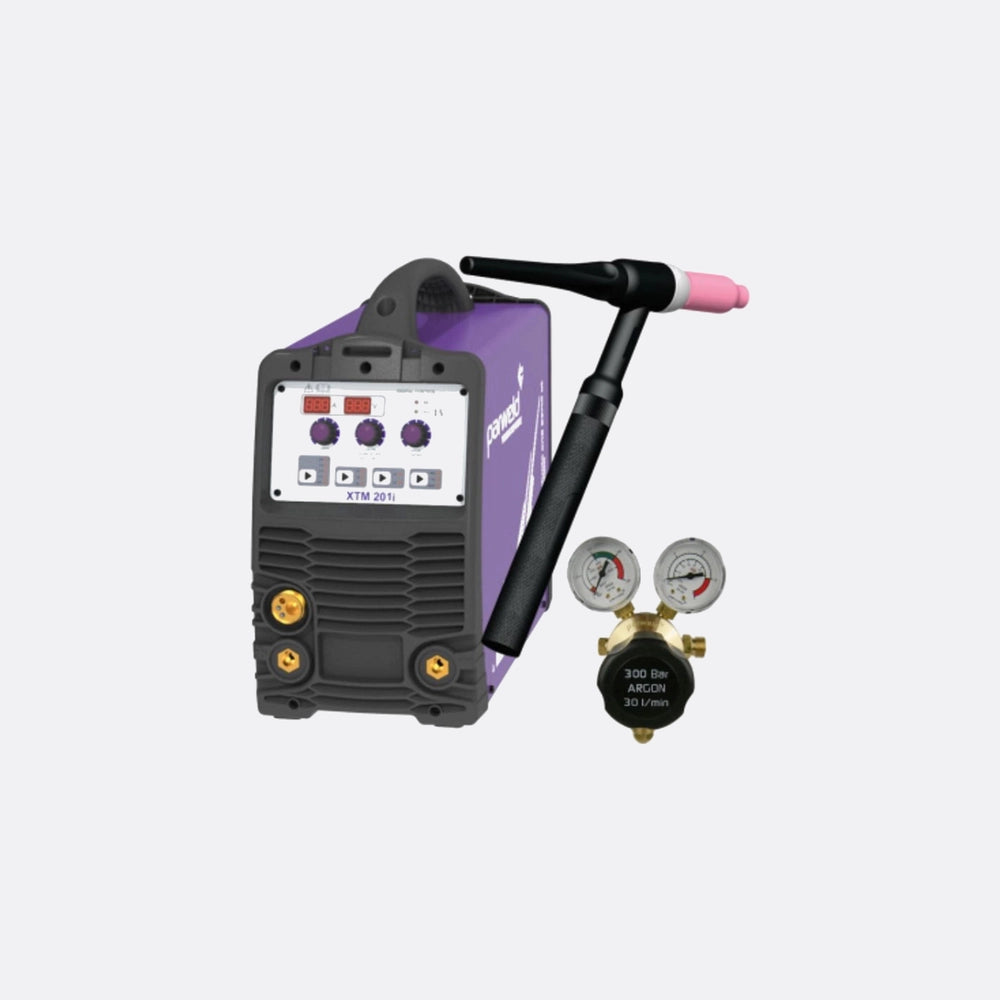

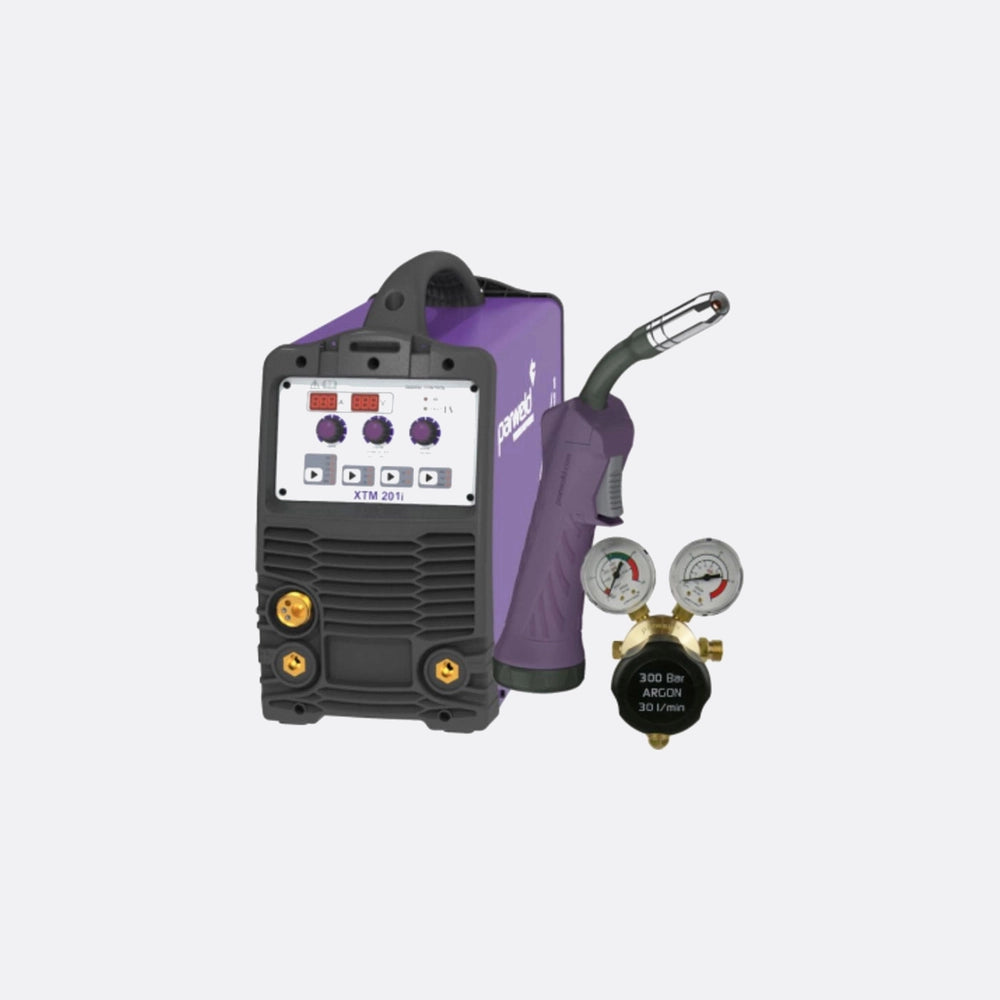

Depending on kit version, the XTM201I-P1 package typically includes the 200A inverter power source, 3 m input cable, 3 m earth lead, gas hose, regulator and Parweld Eco-Grip MIG torch; the XTM201I-P2 option swaps to a TIG torch and MMA lead. The machine uses a standard Euro torch connection and common contact tips, shrouds, liners and rollers, so consumables and spares are straightforward to source. BWS can supply genuine Parweld torches, liners, rollers and service parts and support long-term maintenance in professional workshops.
