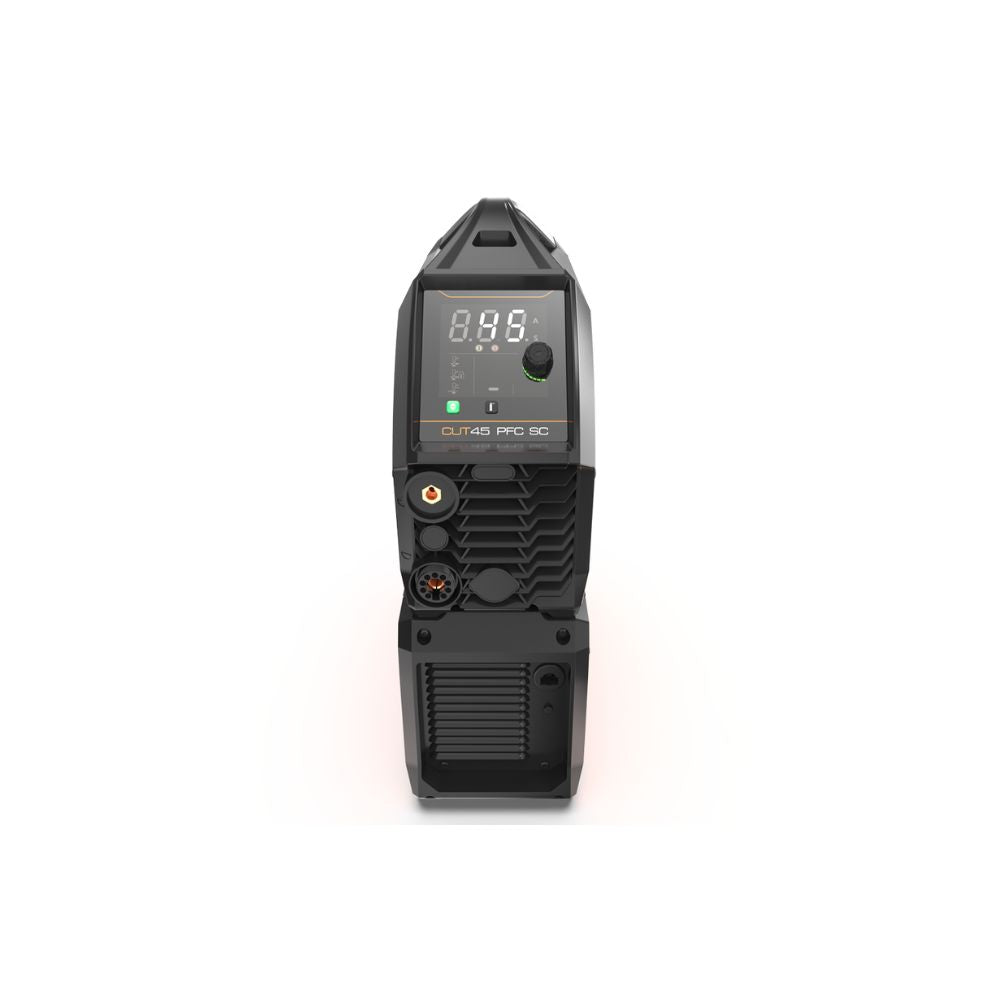

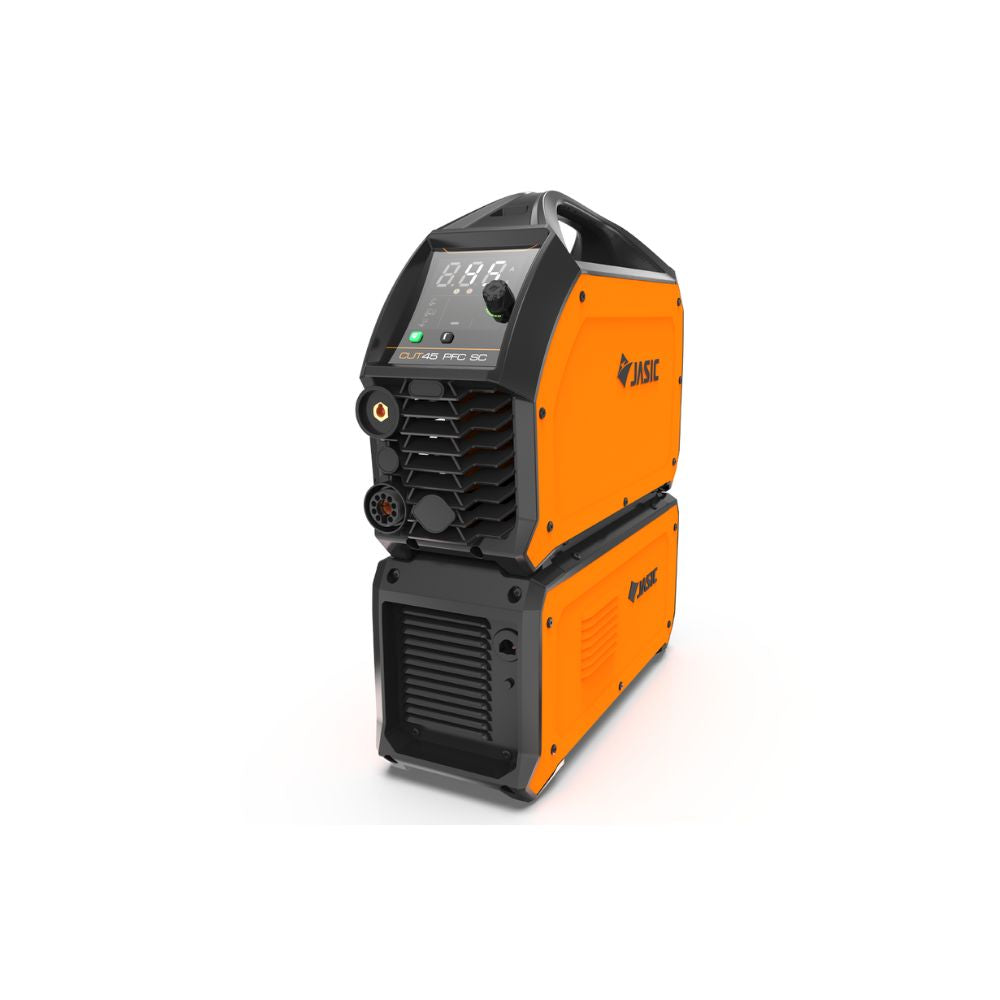

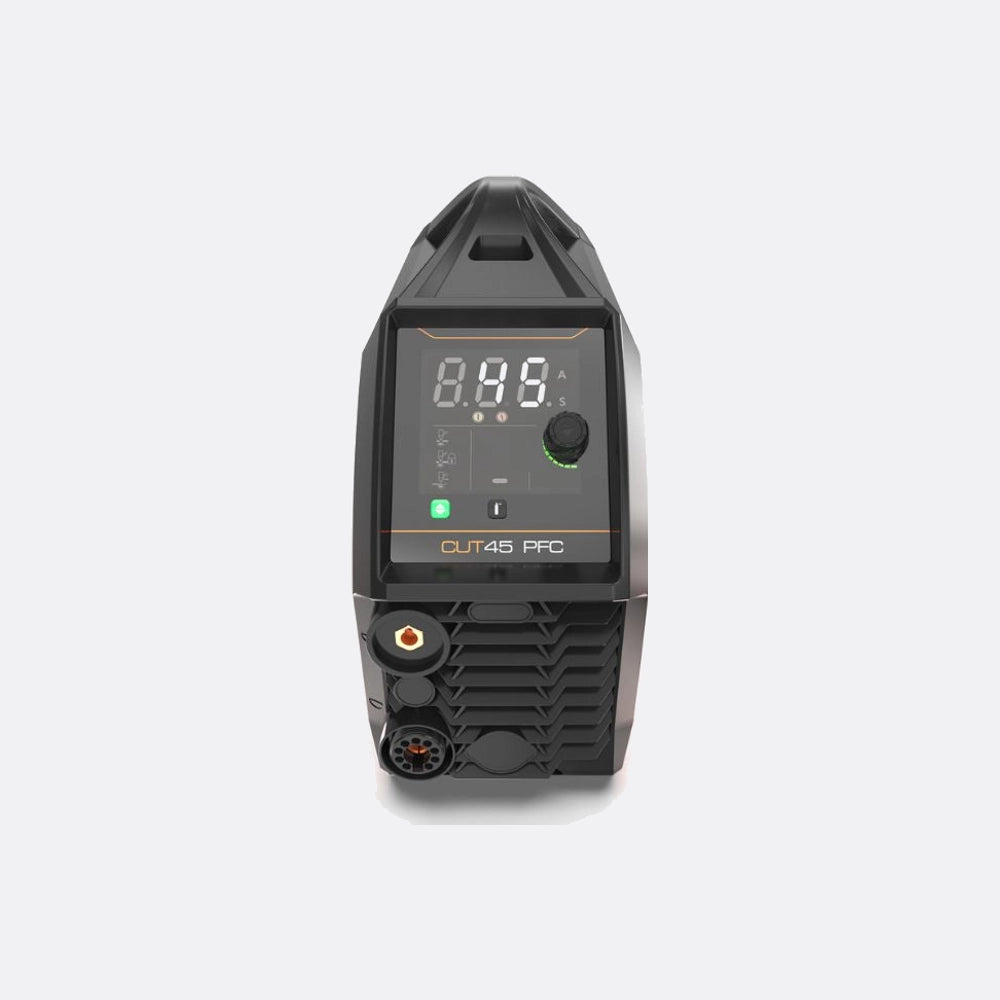

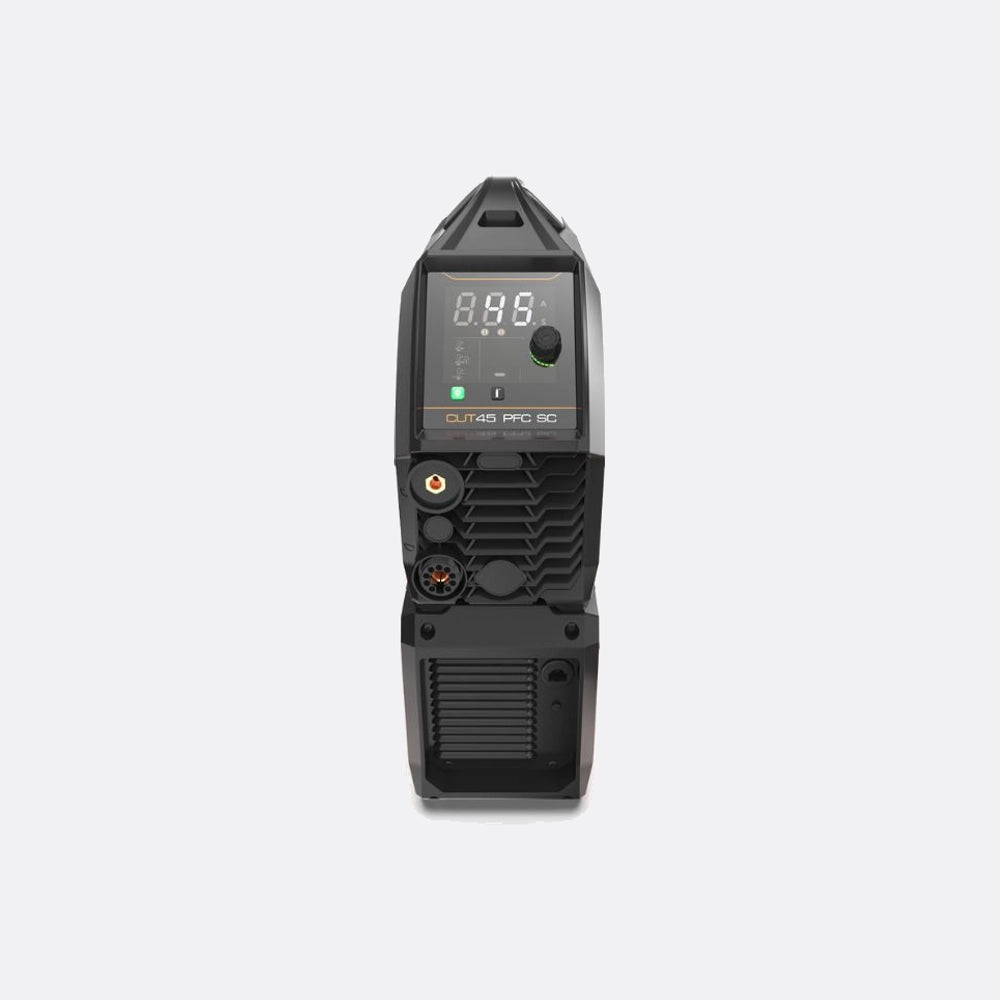

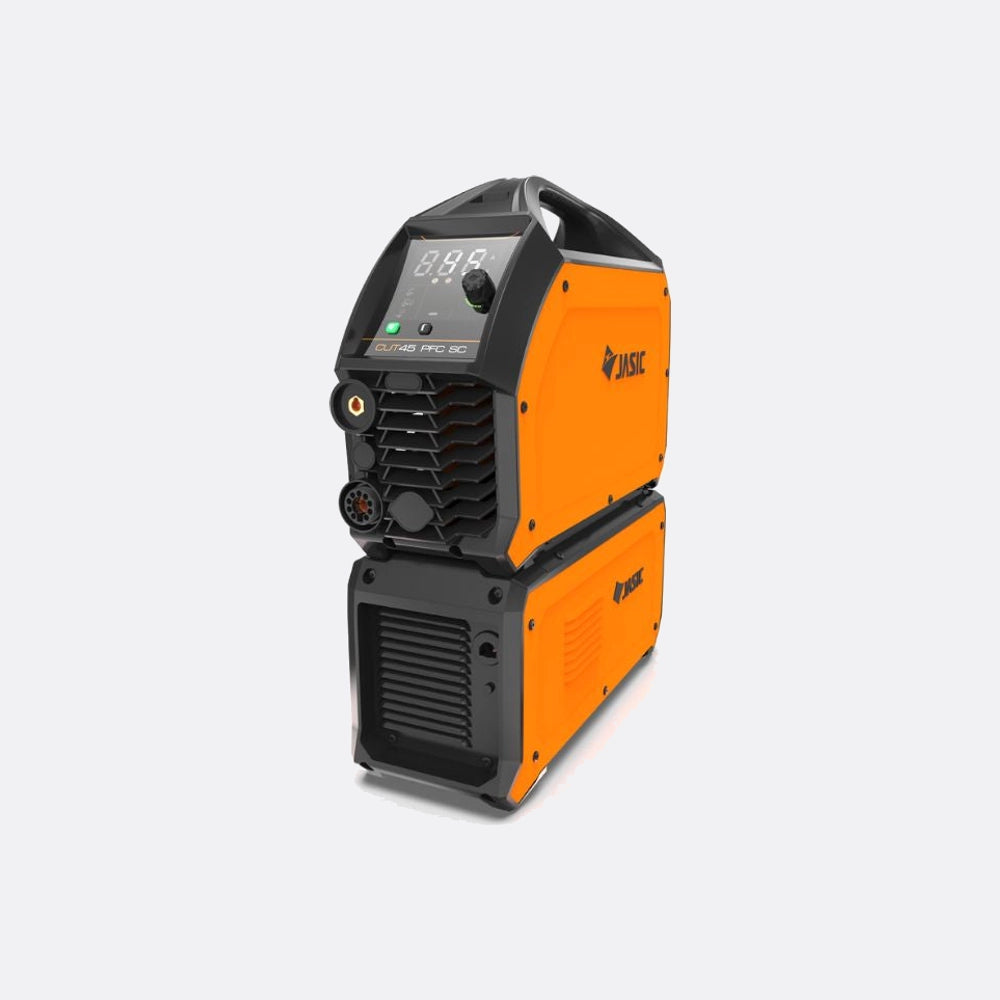

Jasic Evo Cut 45 Pfc Plasma Cutter With Compressor

Name: Jasic Evo Cut 45 Pfc Plasma Cutter With Compressor
Brand: Wilkinson Star
SKU: ZXEP-45SC
Price: 1493.00 GBP
Availability: InStock

£1,493.00

Shipping calculated at checkout.

JASIC EVO CUT 45 PFC PLASMA CUTTER WITH COMPRESSOR is designed for professional use in automotive bodyshops and fabrication workshops, providing reliable cutting performance.

Key Features

In-built compressor
Rugged, ergonomic design
SurePlasma technology
Adaptable voltage range
Overcurrent and overheat protection
Quick factory reset

Everything we sell is supported by our factory trained engineers at our premesis in Manchester or nationwide through our mobile service engineers.

Returns details can be edited in the theme editor.

Supply

110V-230V

Free Delivery

UK mainland delivery

Service

In-house engineers

Support

0161 223 1843

Expert Advice

Paul Jones says

The JASIC EVO CUT 45 PFC Plasma Cutter with Compressor is a solid tool for any workshop focused on metal fabrication and repair. In my experience, you’ll find this plasma cutter particularly useful for cutting mild steel, stainless steel, and aluminium with precision. It's best suited for applications that require clean, fast cuts in various thicknesses.

When setting it up, ensure proper air pressure and flow are adjusted according to the material thickness; too much or too little can affect cut quality. It's also essential to use the right torch consumables for the material you're working with. A common issue I've observed is operators using incompatible nozzles or electrodes, which can lead to erratic cutting and increased wear on parts.

Regular maintenance is key for reliability. With proper usage and setup, you can achieve consistent performance, which is vital in a busy workshop. Overall, this plasma cutter is a practical choice for professionals who need efficiency without sacrificing quality.

Paul Jones, Technical Director

WHY BUY YOUR EQUIPMENT FROM US?

Our team of welding experts at BWS is ready to assist you every step of the way. Whether you have questions about specific products, need guidance on selecting the right equipment, or seek welding-related advice, our knowledgeable staff is here to help.

We also have some of the most experienced engineers in the industry who are able to offer full technical support on top of what the manufacturers offer.

Find Our More

Technical Features

Compact inverter design makes it lightweight and portable for onsite applications.
Dual voltage capability allows operation on both 110V and 230V supplies, providing versatility for different environments.
PFC (Power Factor Correction) technology enhances energy efficiency, helping to lower operational costs.
Powerful cutting performance, capable of clean cuts up to 15mm on lowcarbon steel and up to 25mm for severance cuts.

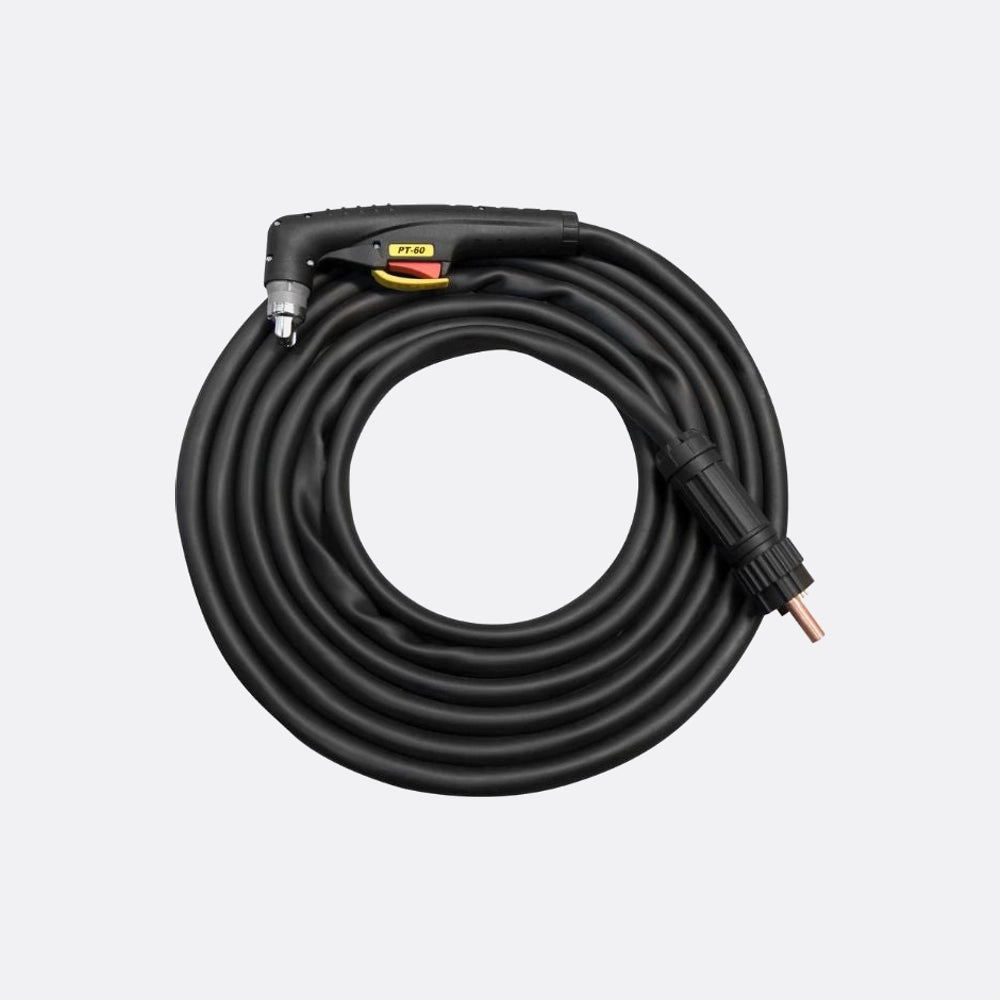

Equipped with a prograde PT60 plasma torch, known for its reliability and extensive compatibility.
Features nonHF arc ignition and pilot arc for easier starts and better control.
Gas check and adjustable postflow time settings enhance cutting quality and consumable life.
Active Balancing Air Passage (ABAP) ensures optimal airflow and cutting performance.
Fanondemand function reduces power consumption and noise when not in use.
Overcurrent and overheat protection to safeguard the machine during intensive operations.
Adjustable settings for cutting torch length and welding engineer mode offer flexibility for different tasks.
Rugged and ergonomic design for comfortable handling and extended use in demanding workshop conditions.
ClearVision technology improves visibility of the cutting area for precise cutting applications.
Mesh cutting mode allows for consistent performance across varying thicknesses of materials.

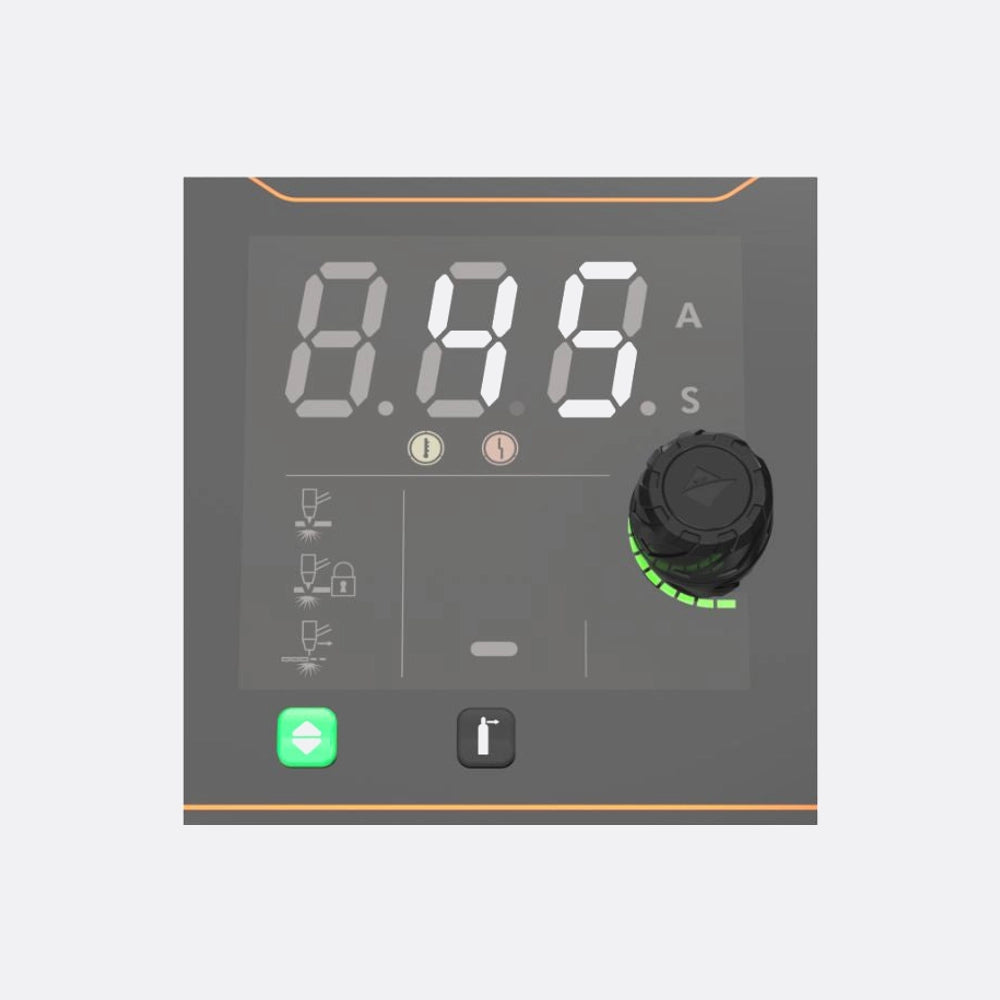

TFT screen option enhances user interface for easier monitoring and adjustments.

Specification

Input Voltage

AC95-265V, 50

No Load Voltage

300V

Rated Input Current

37A (230V), 27A (115V)

Rated Input Power

4.3kVA (230V), 6.2kVA (115V)

Current Range

20-45A

Arc Starting

Non-HF

Rated Duty Cycle @ 40ºC

25%

Clean Cut (Carbon Steel)

5mm @ 400mm

Severance (Carbon Steel)

10mm

Efficiency

86%

Power Factor

0.99

Protection Class

IP23S

Insulation Class

H

Dimensions

548 x 187 x 558mm (L x W x H)

Weight

26.5kg

Recommended Generator Size

6.5kVA (230V), 9.5kVA (115V)

Standard Accessories

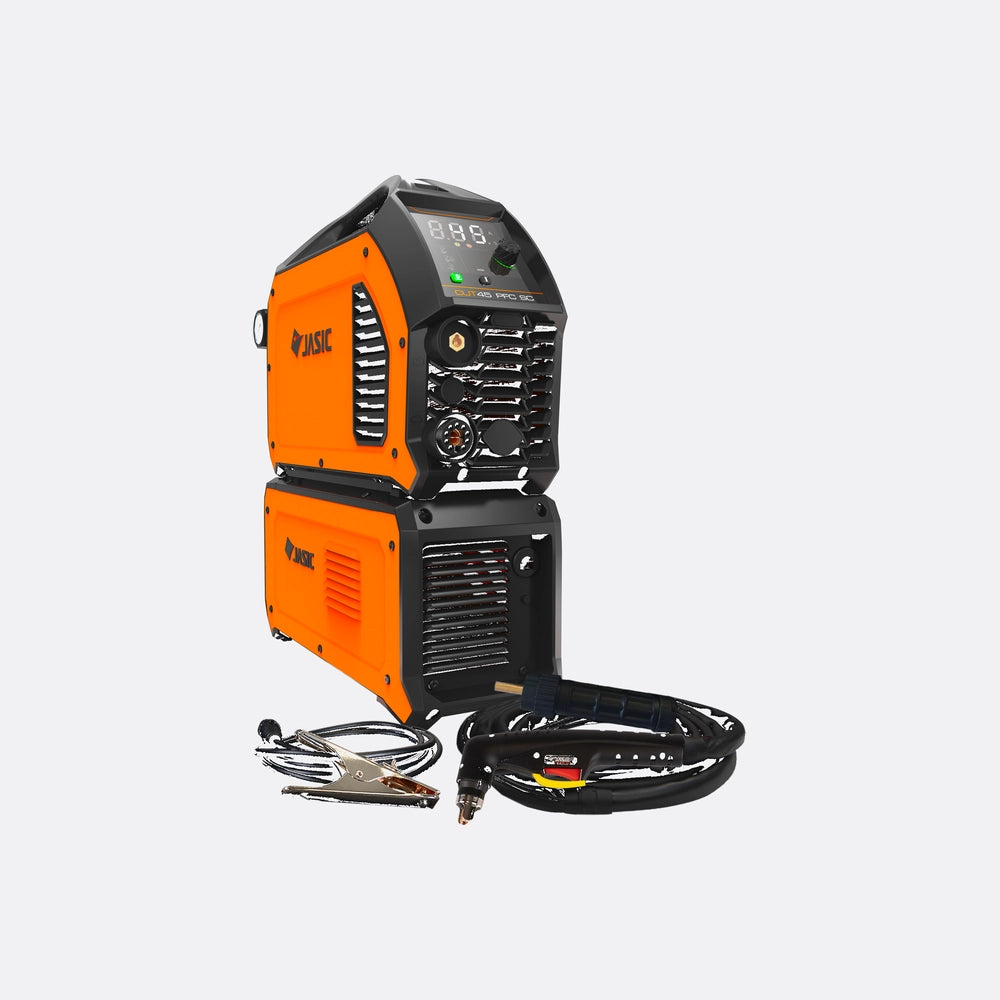

6m Cutting Torch, 3m Earth Clamp, Built-in Compressor

FAQs

What materials can the JASIC EVO CUT 45 PFC plasma cutter cut through?

It can cut through all conductive materials including mild steel, stainless steel, and aluminium, with a clean cut capability of up to 15mm depending on the material.

Does it operate on both 110V and 230V power supplies?

Yes, this model is designed to operate on a dual voltage supply, making it suitable for both workshop and site use.

How does the Power Factor Correction (PFC) technology benefit users?

PFC technology enhances energy efficiency by reducing power consumption, which can lead to lower operating costs and makes the cutter generator-friendly.

Is the cutting torch included with the plasma cutter?

Yes, it comes with a professional-grade PT-60 cutting torch, which is widely used across various plasma cutters for effective performance and reliability.
