Jasic Arc Welder-arc 140

Jasic Arc Welder-arc 140

£232.00
Skip to product information
Jasic Arc Welder-arc 140
  • Jasic Arc Welder-arc 140
  • Jasic Arc Welder-arc 140
Jasic Arc Welder-arc 140

Jasic Arc Welder-arc 140

£232.00
Shipping calculated at checkout.

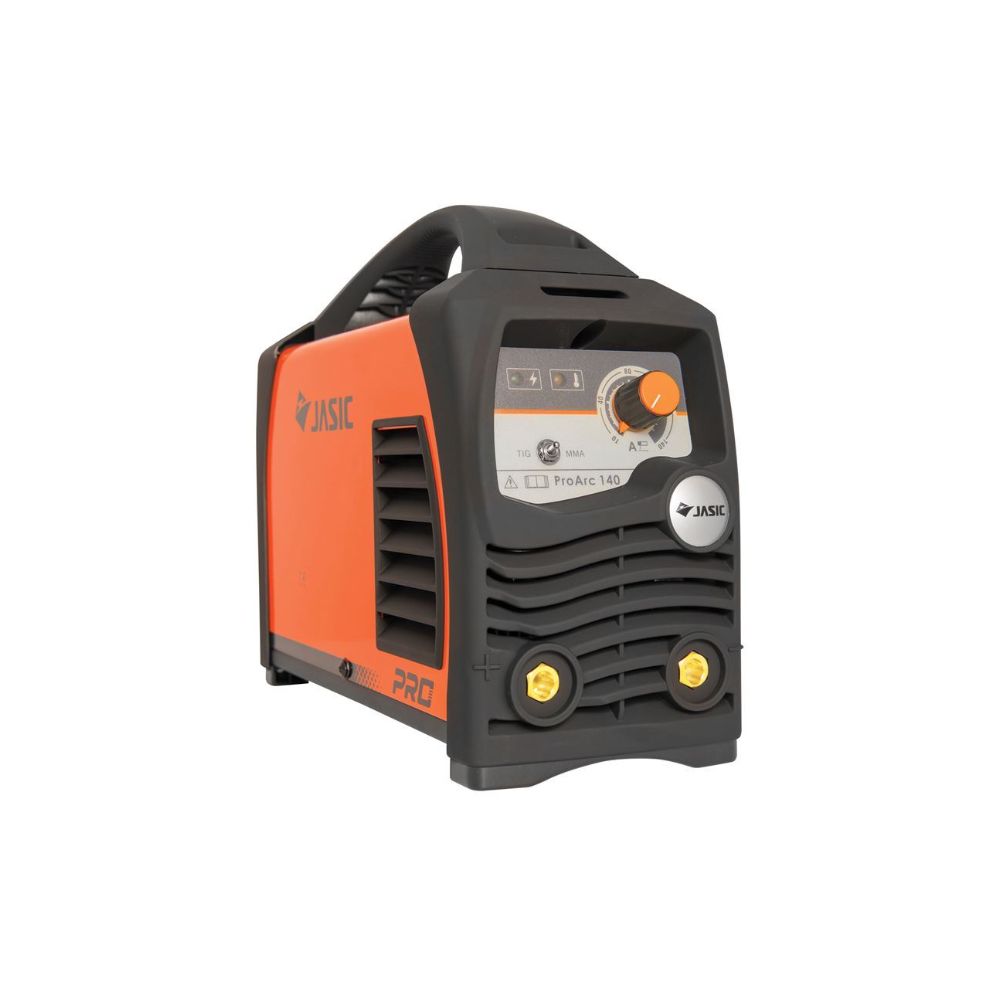

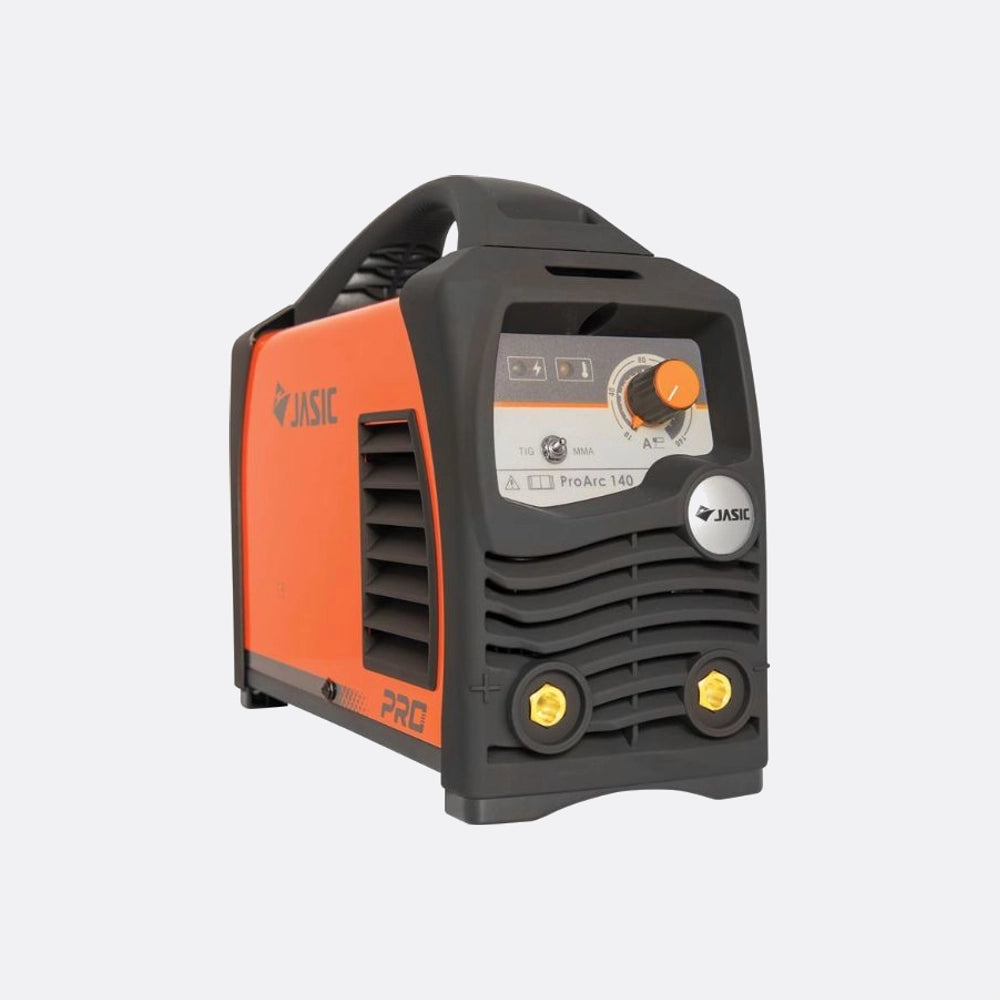

JASIC ARC WELDER-ARC 140 is a compact arc welding machine designed for professional workshops and bodyshops. It provides reliable performance for various welding applications.

Key Features

  • Compact and portable design
  • Robust metal casing
  • Adjustable welding current
  • Suitable for multiple materials
  • Easy setup and operation
  • Good duty cycle performance
Technical Support

Everything we sell is supported by our factory trained engineers at our premesis in Manchester or nationwide through our mobile service engineers.

Delivery + Returns

Returns details can be edited in the theme editor.
Free delivery

Free Delivery

UK mainland delivery

Service engineers

Service

In-house engineers

Technical support

Support

0161 223 1843

Expert Advice

Paul Jones

Paul Jones says

The JASIC ARC 140 is an arc welder well-suited for general automotive bodywork applications and light fabrication tasks. In a workshop environment, it's mainly used for welding thin sections of steel and other ferrous materials, making it a handy addition to any smaller bodyshop.

One key consideration when using this welder is the setup of the amperage control. For thin materials, you need to fine-tune the output to avoid burn-through, so getting familiar with the sensitivity of the controls is essential. Additionally, ensuring compatibility with the correct electrodes can greatly influence the quality of the welds produced.

From my experience, a common issue arises with poor penetration, especially when working with dissimilar thicknesses. This can often be a result of incorrect setup or not adjusting the electrode angle adequately, which affects the weld pool.

In conclusion, when used correctly, the JASIC ARC 140 provides reliable performance for automotive repairs, and its efficiency will depend on the weld setup and technique employed. Consistent practice with the equipment will yield improved results over time.

Paul Jones, Technical Director

Bodyshop Equipment Engineers

WHY BUY YOUR EQUIPMENT FROM US?

Our team of welding experts at BWS is ready to assist you every step of the way. Whether you have questions about specific products, need guidance on selecting the right equipment, or seek welding-related advice, our knowledgeable staff is here to help.

We also have some of the most experienced engineers in the industry who are able to offer full technical support on top of what the manufacturers offer.

Find Our More

Technical Features

  • Compact inverter design for easy storage and portability.
  • Manufactured with advanced IGBT technology for improved efficiency.
  • Userfriendly interface for straightforward operation across skill levels.
  • Consistent arc performance ensures reliable welding results.
  • Offers lift TIG welding functionality for added versatility in maintenance and light fabrication tasks.
  • Robust singlephase system suitable for various workshop environments.
  • Designed for easy maintenance with a singular PCB layout.
  • Provides a 5year warranty for peace of mind and longterm reliability.

Specification

Input Voltage
230V ±10%, 1ph, 50Hz
Rated Output Current
140A
Welding Type
MMA (Manual Metal Arc)
Duty Cycle
60% at 140A
Weight
5.5kg
Dimensions
410 x 170 x 290mm (L x W x H)
Protection Rating
IP21
Welding Electrodes
1.6mm to 3.2mm
Input Power
6.5kVA

FAQs

What materials can the JASIC ARC 140 weld?
It is suitable for welding mild steel and stainless steel using the MMA process. With a recommended electrode diameter of 2.5mm to 3.2mm, it can effectively tackle a variety of bodyshop repairs and light fabrication tasks.
Does the JASIC ARC 140 require special power supply?
No, it operates on a standard single-phase 240V supply, which is ideal for most UK workshops. Its compact design makes it easy to integrate into existing setups without the need for three-phase power.
Is lift TIG welding functionality available?
Yes, the JASIC ARC 140 includes lift TIG welding capabilities, making it versatile for both MMA and TIG applications. This feature is useful for thin-walled materials and assists in achieving cleaner welds.
What kind of technical support is available for the JASIC ARC 140?
BWS offers extensive technical support, including assistance from service engineers who can provide maintenance or repair advice. We also stock genuine parts to ensure reliability and performance.
