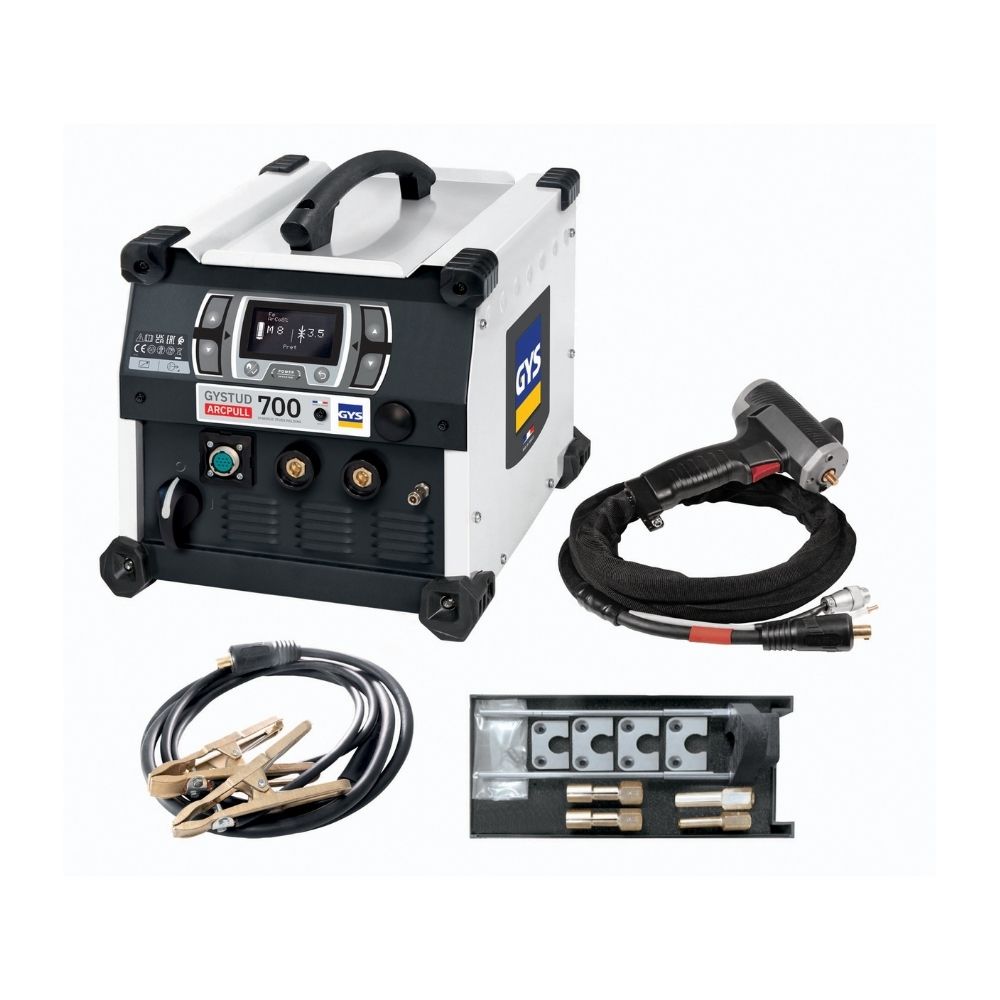

GYStud Arcpull 700 Industry (5m Gun Cable)
GYStud Arcpull 700 Industry (5m Gun Cable)
High-Precision Drawn-Arc Stud Welding System for Industrial Applications
The GYSTUD ARCPULL 700 is an advanced drawn-arc stud welding unit engineered for high-performance industrial production environments. Designed to weld all types of studs and stud supports up to Ø13 mm, it supports ceramic-shielded drawn-arc welding with or without gas protection, delivering exceptional penetration, repeatability and weld integrity. Its secondary current regulation ensures a perfectly stable arc throughout the welding cycle, eliminating the need for manual or approximate parameter adjustments.
At the heart of the system is a market-leading ARCPULL welding gun equipped with linear motor technology, providing unrivalled control of arc height and welding precision. Capable of welding up to 30 studs per minute, the ARCPULL 700 significantly boosts productivity while maintaining consistent quality. A digital user interface offers intuitive navigation between Synergic mode for rapid setup and Expert mode for full cycle control, with memory capacity for up to 99 custom programs. Built to EN 60974-1 standards and manufactured in France, the GYSTUD ARCPULL 700 is a robust, reliable solution for demanding steel and aluminium stud welding applications.
WHY BUY FROM BWS?
Specification
- Welding Process: Drawn-arc stud welding
- Stud Diameter Capacity: Up to Ø13 mm
- Welding Current Range: 50 – 680 A
- Input Supply: 380 – 480 V, 3-phase, 50/60 Hz
- Welding Modes: Synergic and Expert
- Memory Capacity: Up to 99 custom programs
- Protection Class: IP23
- Dimensions: 32 x 32.4 x 41 cm
- Weight: Approx. 20.4 kg (with gun)
Features
- Exclusive linear motor welding gun for precise arc-height control
- Synergic mode for fast setup with predefined parameters
- Expert mode for full control of the welding cycle
- High productivity with welding rates up to 30 studs per minute
- Stable arc regulation for consistent, high-quality welds
- Digital control unit with intuitive user interface
- Compatible with steel, aluminium and concrete anchor studs
- Manufactured in France to EN 60974-1 standards
FAQs
1. What types of studs can the GYSTUD ARCPULL 700 weld?
It can weld steel studs up to M12, aluminium studs up to M8, and concrete anchors up to Ø13 mm in accordance with ISO 13918.
2. What is the advantage of drawn-arc welding?
Drawn-arc welding offers excellent penetration, high repeatability and reliable weld quality, especially for structural and industrial applications.
3. What makes the ARCPULL welding gun unique?
The ARCPULL gun uses linear motor technology, providing precise arc-height control and eliminating manual adjustments for superior consistency.
4. Is the system suitable for high-volume production?
Yes, with welding speeds of up to 30 studs per minute and programmable memory, it is ideal for high-throughput industrial environments.
