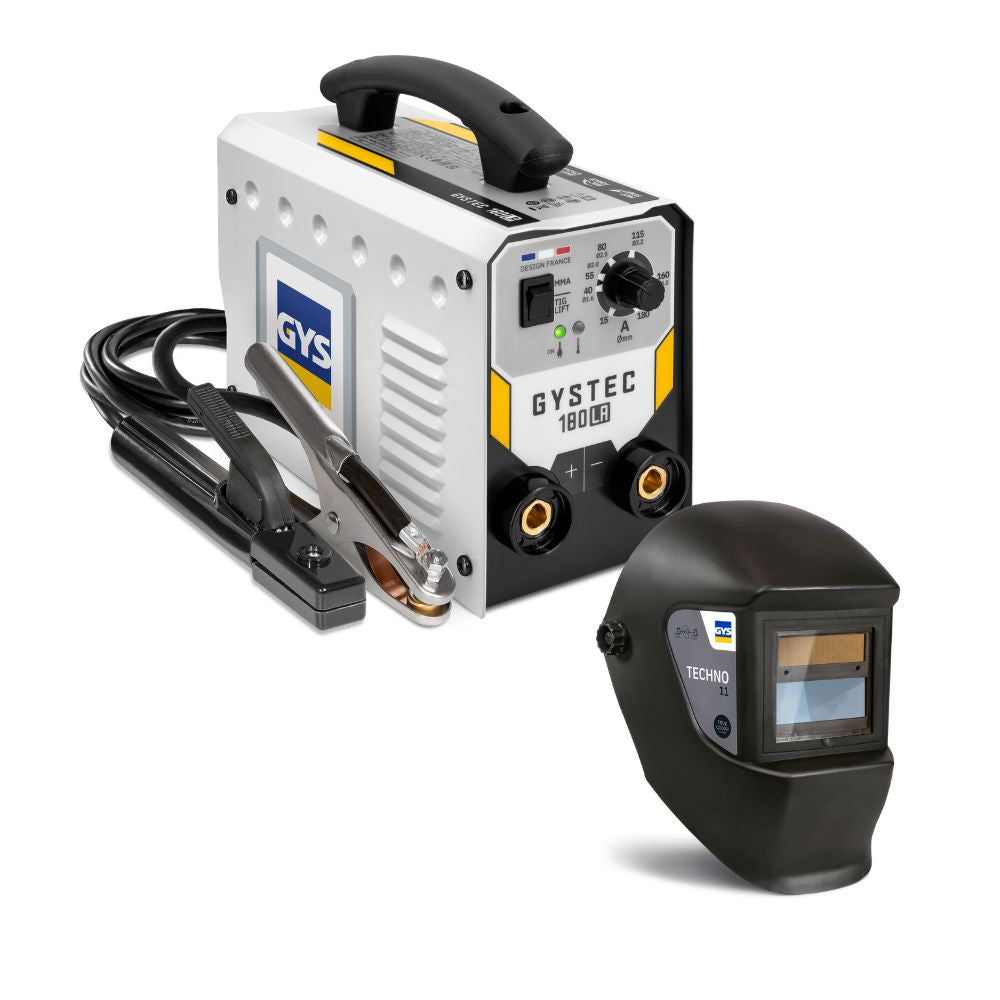

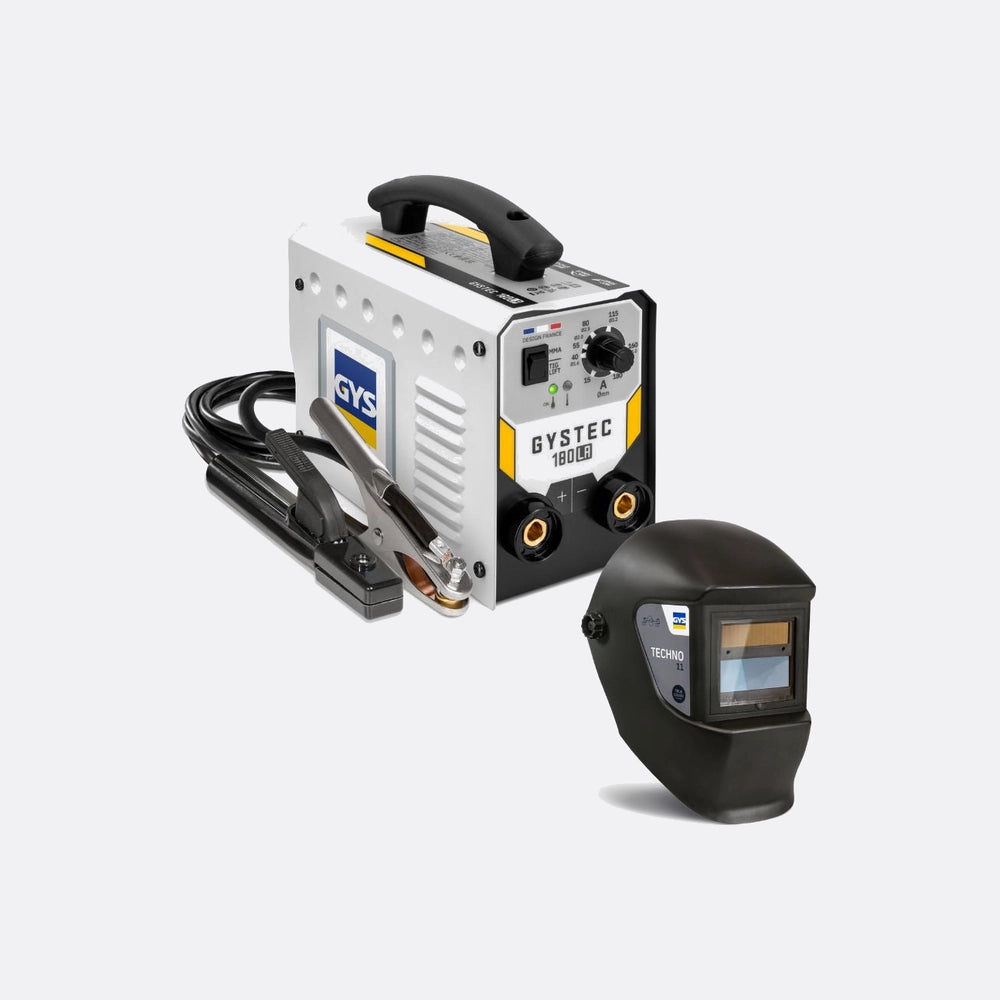

GYSTEC 180 LA + HELMET LCD 11 TRUE COLOR
Prices Exclude Tax

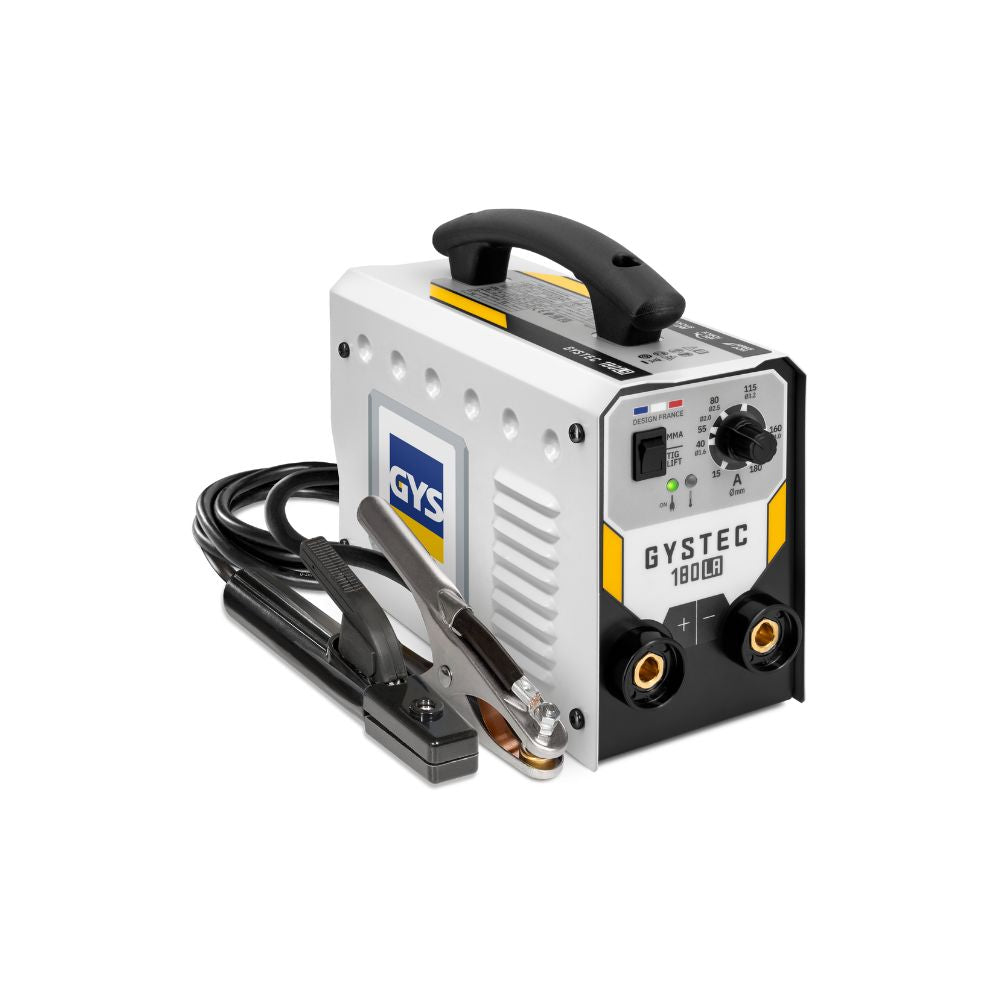

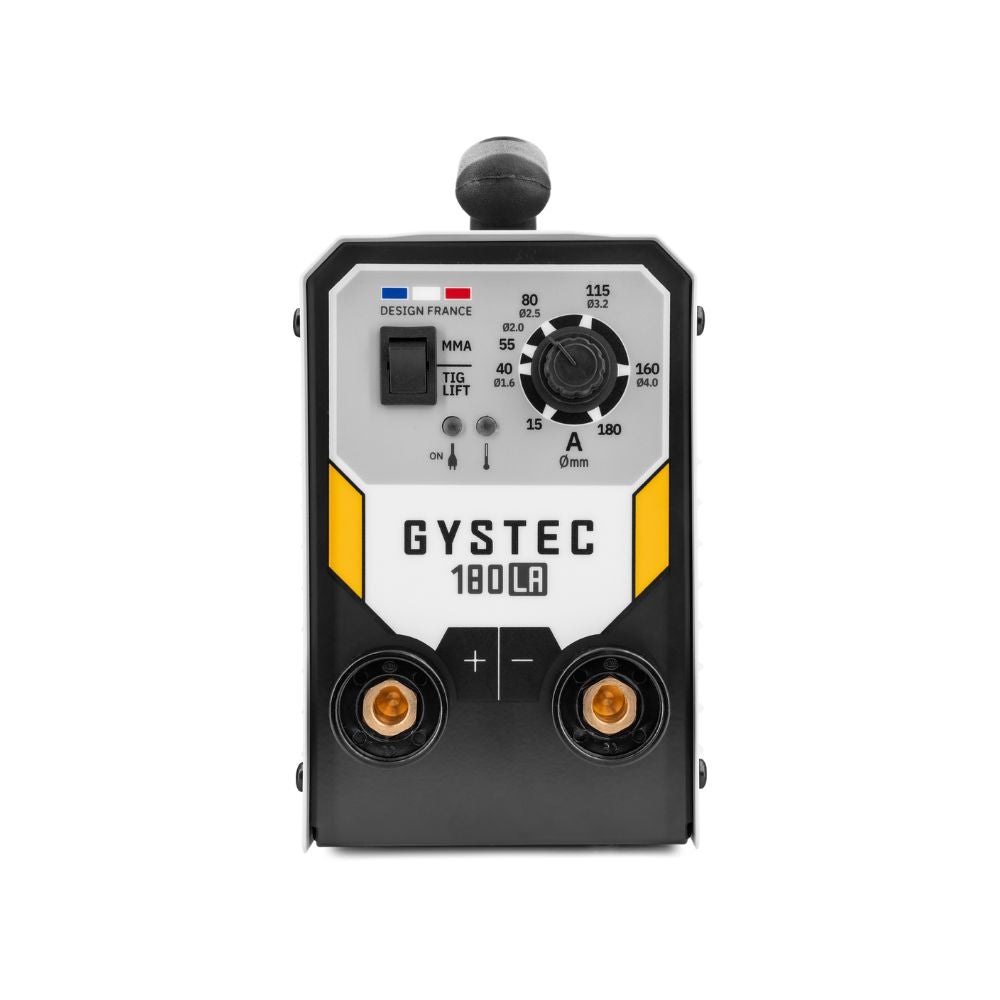

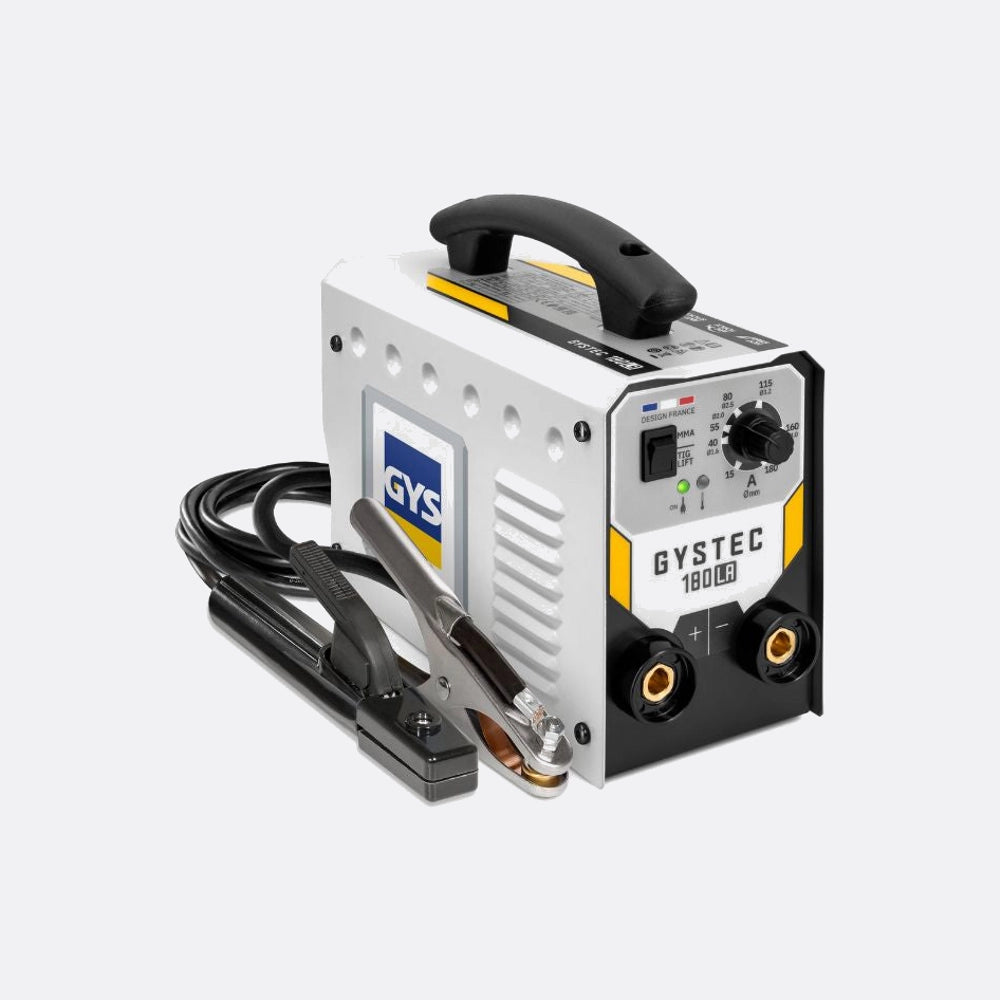

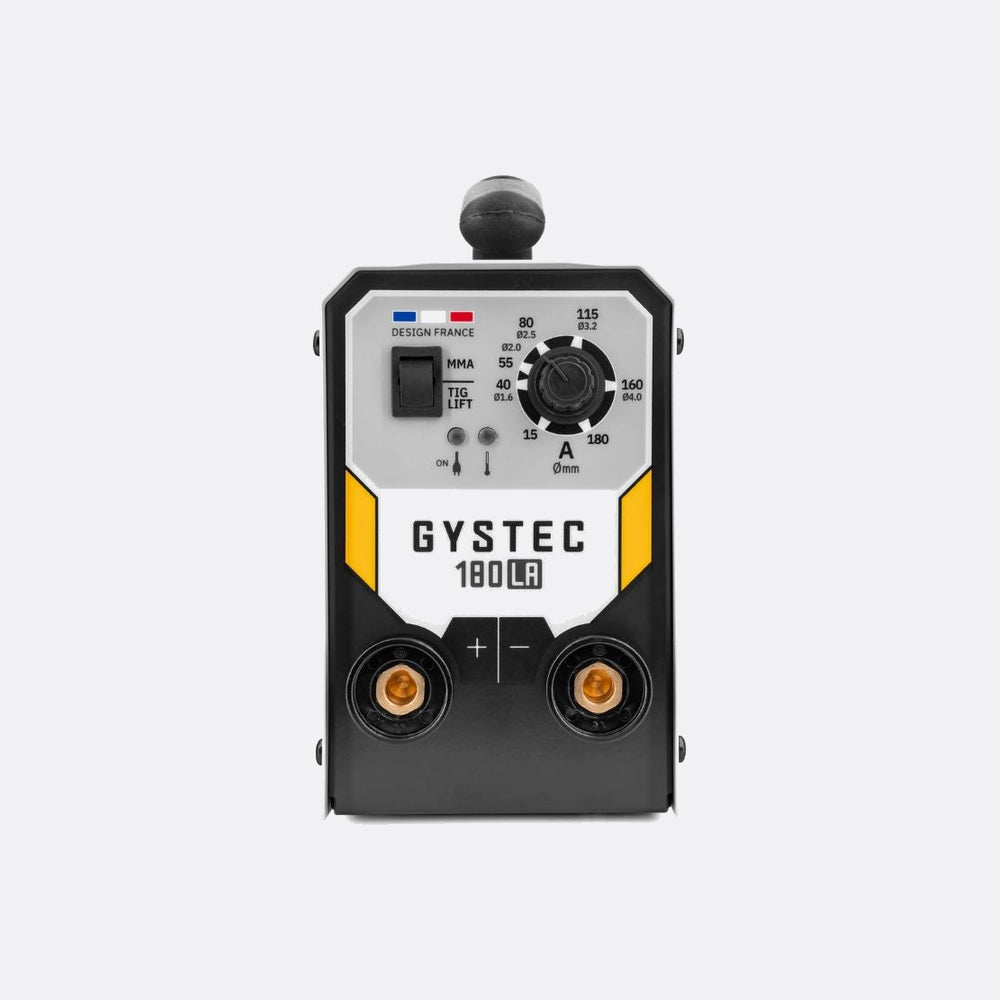

Compact 180A Inverter MMA & TIG Lift Welder with Techno 11 Auto-Darkening Helmet
The GYS GYSTEC 180 LA is a professional-grade single-phase inverter welder offering both MMA (Manual Metal Arc) and TIG Lift welding modes. Built with the latest IGBT inverter technology, it ensures excellent arc stability, consistent current delivery, and smooth weld fusion on steel, stainless steel, and cast iron up to 10 mm thick. With built-in Hot Start, Arc Force, and Anti-Sticking functions, ignition is effortless, performance is stable, and electrode sticking is greatly reduced. Weighing just 3.7 kg, this compact and robust machine is ultra-portable and compatible with generators, making it ideal for mobile or workshop use. Supplied as a complete kit with cables and a Techno 11 True Color Auto-Darkening Welding Helmet, the GYSTEC 180 LA provides everything needed for professional results straight out of the box.
Collections: Best Selling Products, GYS ARC WELDERS, Newest Products
WHY BUY FROM BWS?
Specification
- Reference: 084919
- Input Voltage: 230V (1 Phase, 50/60Hz)
- Output Current: 15 – 180A
- Duty Cycle (60%): 100A (MMA) / 105A (TIG)
- Welding Modes: MMA (Stick) & TIG Lift
- Electrode Compatibility: Ø 1.6 – 4.0 mm (Rutile, Stainless, Cast Iron & Basic)
- Generator Compatible: Yes (±15% voltage tolerance)
- Protection Class: IP21
- Dimensions: 270 × 210 × 110 mm
- Weight: 3.7 kg
- Power Requirement: 7 kW / 10 kVA
- Supplied With: 2 m electrode holder cable, 1.6 m earth cable, Techno 11 helmet
Features
- Dual Welding Modes: MMA and TIG Lift for maximum versatility.
- Inverter Technology: Stable arc, consistent output, and smooth weld bead quality.
- Hot Start: Simplifies arc ignition for effortless electrode striking.
- Arc Force: Temporarily increases current to maintain a stable arc in difficult conditions.
- Anti-Sticking: Prevents electrodes from sticking to the workpiece.
- Ultra-Portable: Compact design and lightweight 3.7 kg chassis with single carry handle.
- Generator Safe: Operates reliably from generator power within ±15% tolerance.
- Durable Build: Protected against overcurrent and overheating, ensuring long-term reliability.
About the Techno 11 True Color Welding Helmet
The included Techno 11 True Color Welding Helmet provides exceptional protection and comfort for professional welders. It features a True Color LCD filter with a wide field of vision (98 × 35 mm) for excellent clarity during setup and welding. The helmet has a Light Shade 3 for clear visibility during preparation and a Dark Shade 11 that automatically activates in just 0.6 ms when the arc is struck. Its fast-response sensors and ergonomic headgear offer superior comfort and safety during prolonged use, making it ideal for MMA, TIG, and MIG applications. For more technical details, see the official GYS Techno 11 page: Techno 11 True Color Helmet.
FAQs
1. What materials can the GYSTEC 180 LA weld?
It can weld mild steel, stainless steel, and cast iron up to 10 mm thick using standard electrodes or TIG lift mode.
2. Does this model include a TIG torch?
The unit supports TIG Lift welding; an optional TIG17 valve torch (Ref. 087583) can be purchased separately.
3. What makes the Techno 11 helmet special?
The Techno 11 True Color Helmet features advanced LCD technology for realistic colour perception, quick darkening, and excellent visibility during prep work.
4. Can I use the GYSTEC 180 LA with a generator?
Yes. It is generator compatible and safely operates within ±15% voltage fluctuation, ideal for mobile work.
