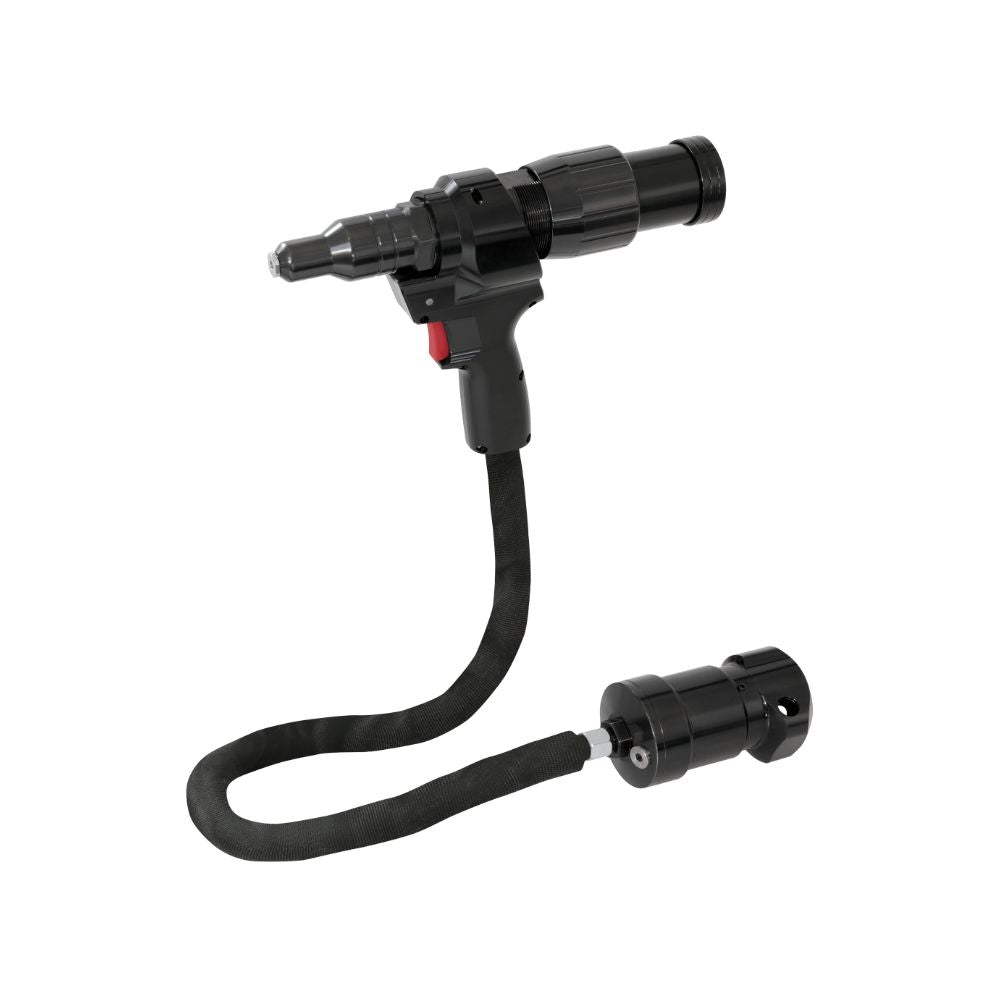

GYSPRESS 50KN 8T/10T BLIND RIVET ADAPTER

Price Exc Tax

064867

Flexible Blind Rivets Adapter For 8T, 10T, Push-Pull Rivet Tools

Flexible extension For Installing Blind, POP and Break-stem Rivets

The blind rivet adapter is designed to provide flexibility when using GYSPRESS 8T and 10T rivet tools for installing blind, POP, and break-stem rivets. It has a tensile force of 50 kN and enables the installation of blind rivets with diameters ranging from 4.0 to 7.8 mm for aluminium and 4.0 to 6.4 mm for steel.

FITTING CAPACITY

  • Blind rivets from Ø 4.0 to Ø 9.8 mm
  • Blind rivet nuts from M5 to M14
  • Blind rivet bolts from M5 to M8
ACCESSORIES
Nozzle  Size Reference
3.2mm 065994
3.6mm 066007
4.0mm 066014
4.5mm 066038

SPECIFICATION
Pressure Max. 50Kn @8 bar
Dimensions 1300x300x70mm
Weight 5.42kg
Part No.  064867
Download XTM201 Instruction Manual Download
