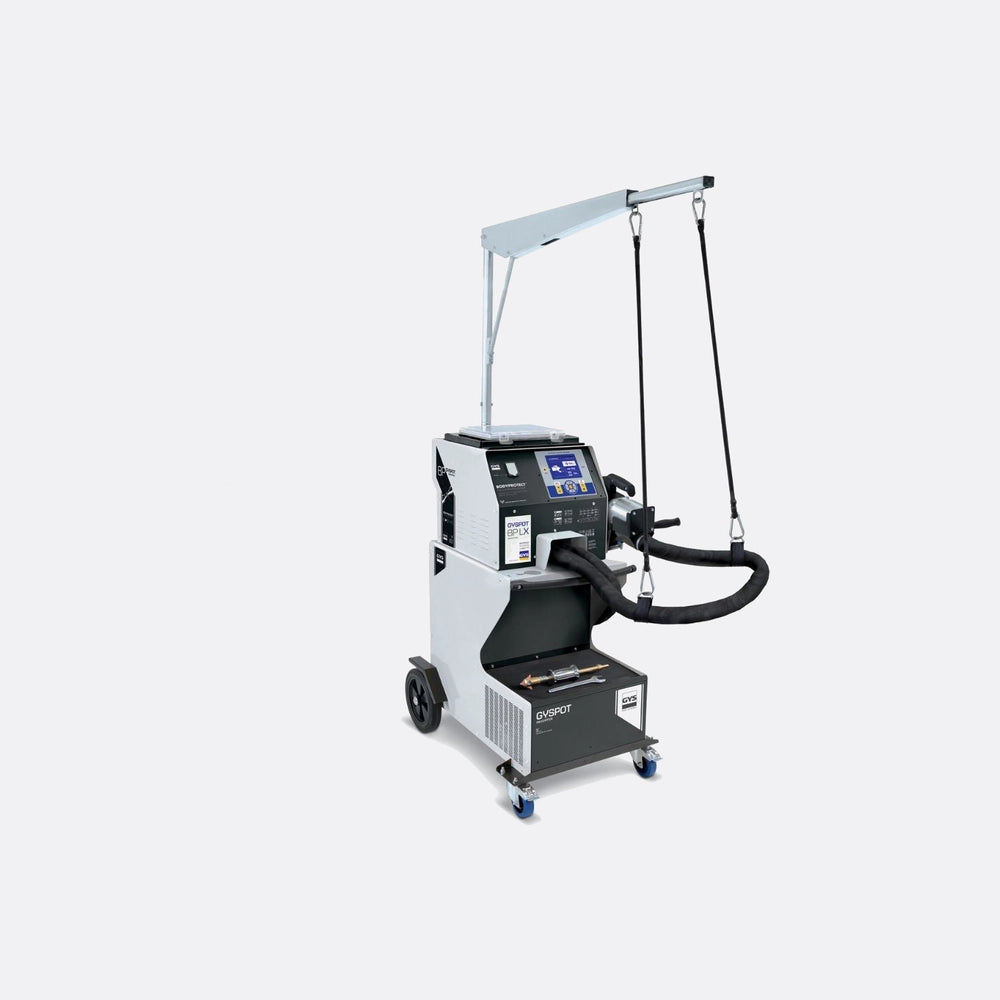

GYSPOT BP LX INVERTER SPOT WELDER 400V
GYSPOT BP LX INVERTER SPOT WELDER 400V
Brand: GYS Type: Spot Welders
High-Performance Inverter Spot Welder for Professional Automotive Repair

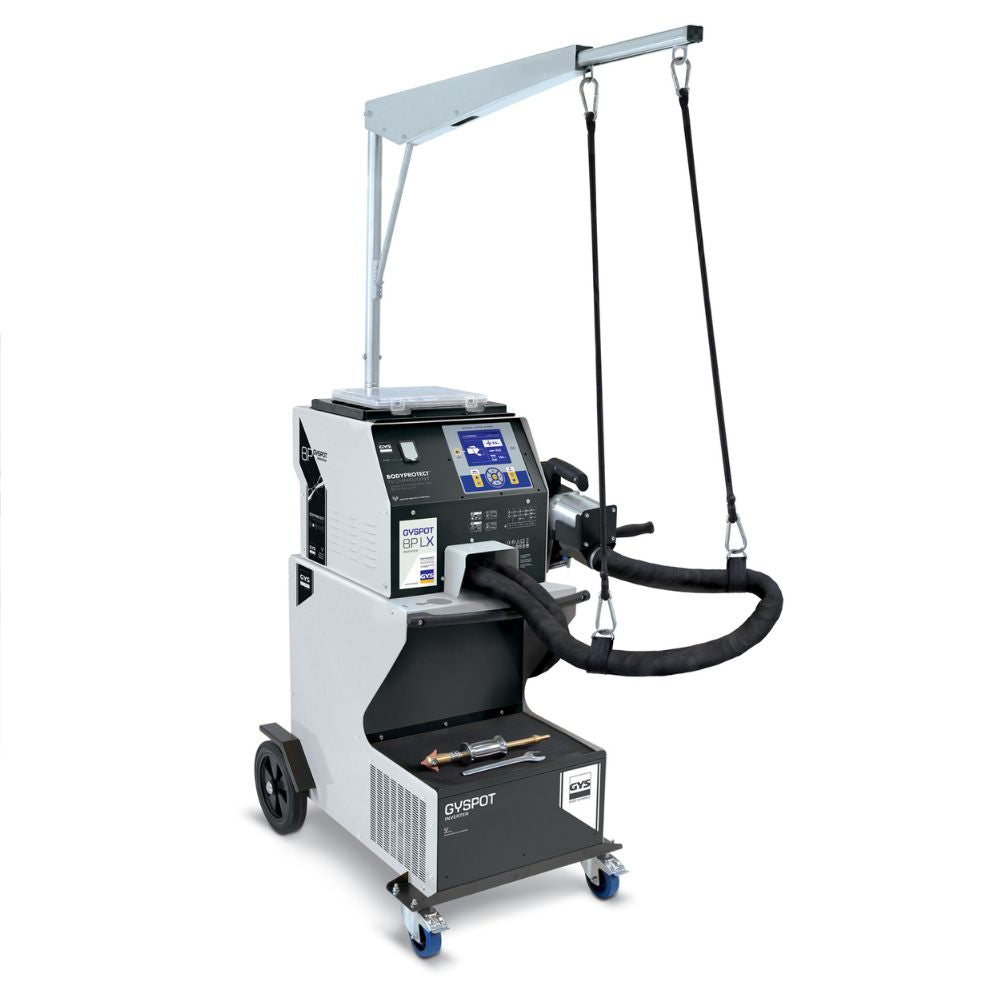

The GYS GYSPOT BP LX INVERTER SPOT WELDER 400V is a state-of-the-art resistance spot welding system designed for professional automotive body repair shops. This advanced machine delivers a maximum welding current of 13,000 A, making it capable of welding various steel types, including high-strength steels (HSS), very high-strength steels (VHSS), and ultra-high-strength steels (UHSS).
The BP LX features a powerful and intelligent power supply that allows for up to 10 welds per minute, significantly boosting productivity. It incorporates a liquid cooling system for the transformer, cables, and electrodes, ensuring optimal performance and longevity of components.

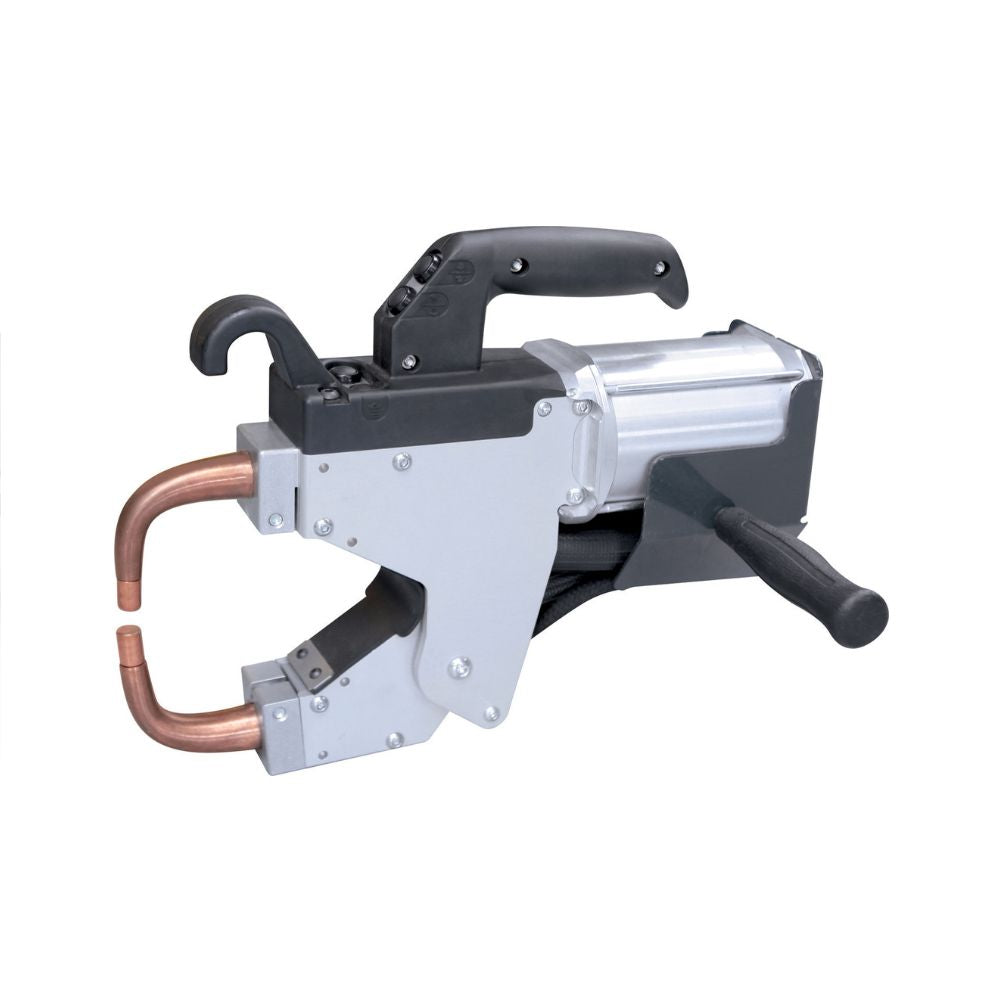

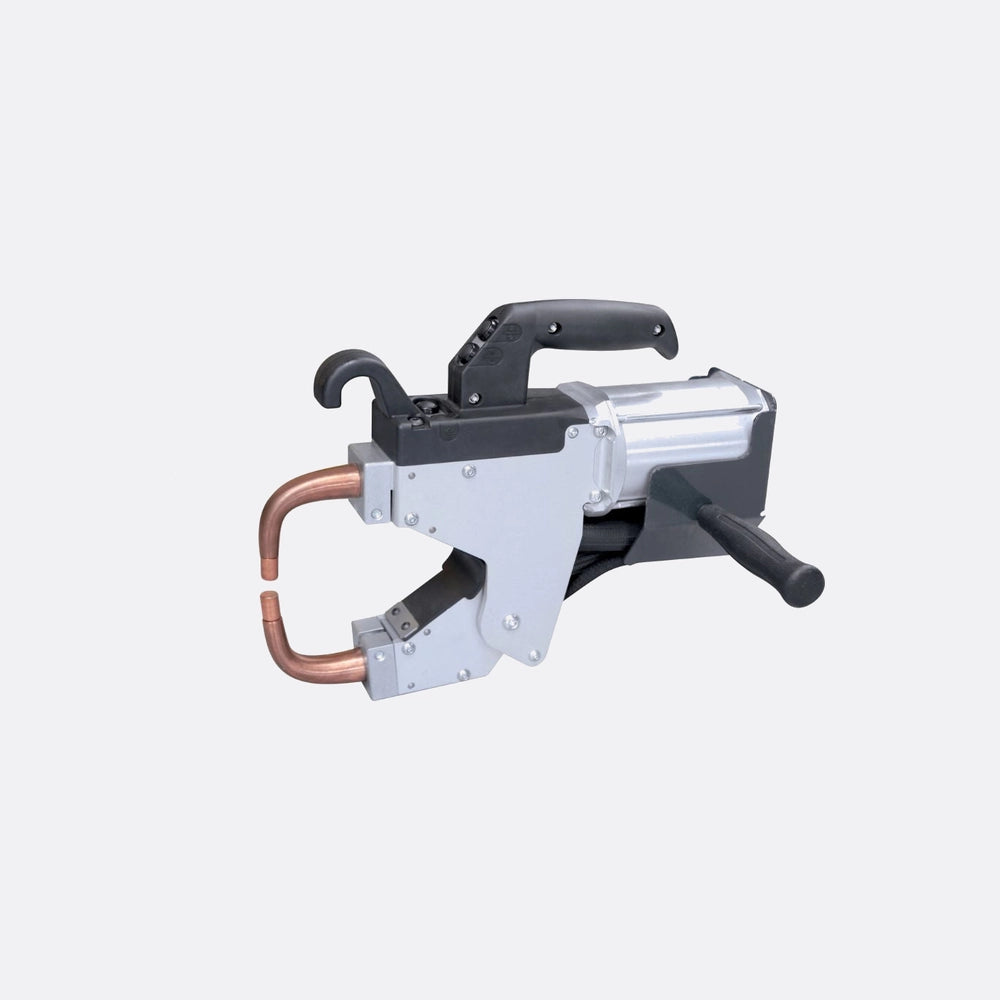

The machine's X-clamp design offers a maximum clamping force of 550 daN at 8 bar pressure, providing excellent stability during welding operations. With its 2.5-meter cable length, the BP LX offers flexibility for various welding scenarios. The system includes advanced features such as traceability software for saving and exporting welding configurations, and a unique BODYPROTECT technology that minimizes electromagnetic field exposure.
WHY BUY FROM BWS?
- Technical Support ✓
- Service Engineers ✓
- Business Account ✓
Download
Specification
- Supply Voltage: 3 x 400V
- Maximum Welding Current: 13,000 A
- Clamping Force: 550 daN at 8 bar
- Cable Length: 2.5 meters (liquid cooled)
- Welding Frequency: Up to 10 welds per minute
- Product Dimensions: 65 x 80 x 205 cm
- Product Weight: 164.5 kg
Features
- Inverter technology for precise welding control
- X-clamp design for optimal welding pressure
- Liquid cooling system for extended component life
- Suitable for HSS, VHSS, and UHSS steels
- High productivity with up to 10 welds per minute
- Traceability software for saving and exporting welding configurations
- BODYPROTECT technology for minimized electromagnetic field exposure
- SD card memory for data storage
- Compatible with various optional accessories
FAQs
-
Q: What types of materials can this spot welder handle?
A: The GYSPOT BP LX is capable of welding various steel types, including high-strength steels (HSS), very high-strength steels (VHSS), and ultra-high-strength steels (UHSS). -
Q: How does the BODYPROTECT technology work?
A: BODYPROTECT is a proprietary GYS technology that minimizes electromagnetic field exposure, enhancing operator safety during welding operations. -
Q: Can the welding data be exported for quality control purposes?
A: Yes, the machine features traceability software that allows saving and exporting of welding configurations and data via an SD card. -
Q: Is this machine suitable for high-volume production environments?
A: Yes, with its ability to perform up to 10 welds per minute and liquid cooling system, the BP LX is well-suited for high-volume automotive repair shops.
