GYSPOT ALU 66 Aluminium Dent Puller

Gyspot Alu 66 Aluminium Dent Puller Kit

£1,575.00
Skip to product information
GYSPOT ALU 66 Aluminium Dent Puller
  • GYSPOT ALU 66 Aluminium Dent Puller
  • GYSPOT ALU 66 Aluminium Dent Puller
  • GYSPOT ALU 66 Aluminium Dent Puller
  • GYSPOT ALU 66 Aluminium Dent Puller
Gyspot Alu 66 Aluminium Dent Puller Kit

Gyspot Alu 66 Aluminium Dent Puller Kit

£1,575.00
Shipping calculated at checkout.

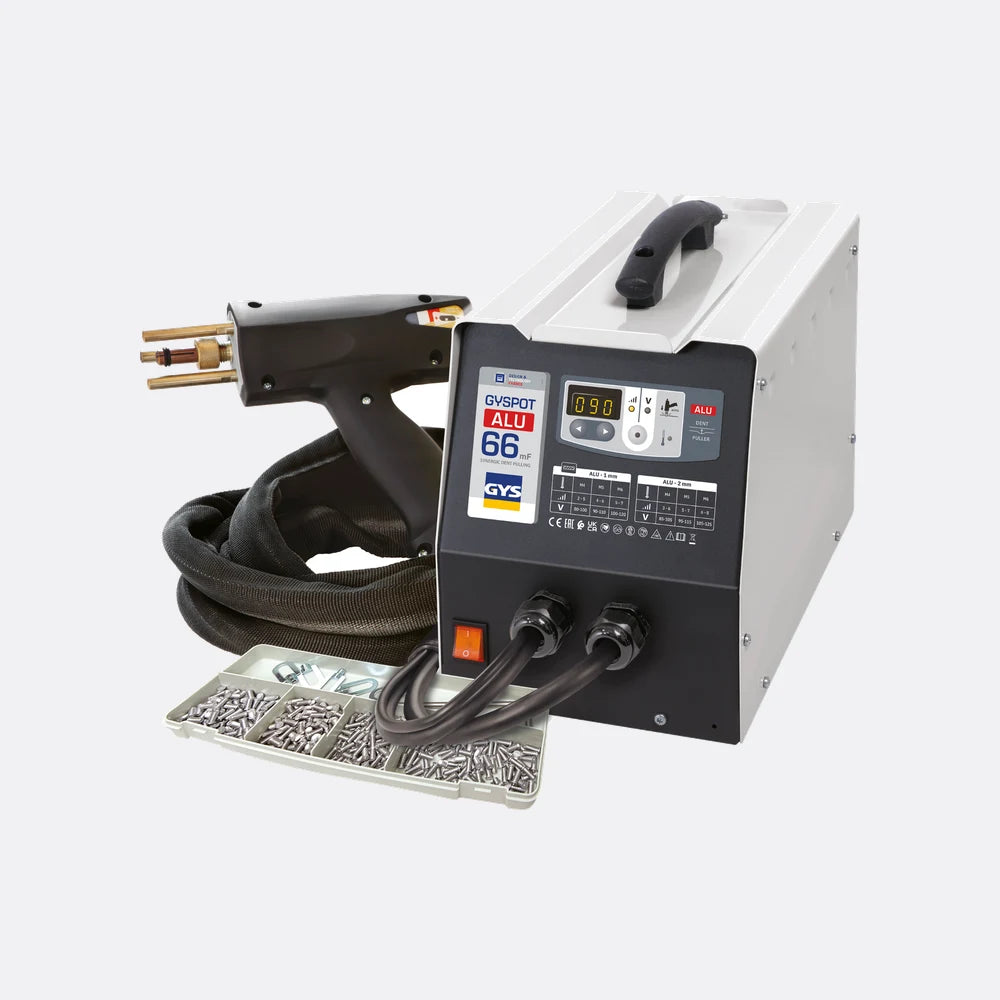

Gyspot Alu 66 Aluminium Dent Puller Kit is a capacitor-discharge stud-welding station for straightening aluminium body panels without stripping; the Gyspot Alu 66 Aluminium Dent Puller Kit provides microprocessor control with two selectable modes, and the Gyspot Alu 66 Aluminium Dent Puller Kit includes an automatic gun with integrated earth terminals.

Key Features

  • Dedicated to aluminium bodywork
  • Capacitor discharge system, 66 mF
  • Fast welding, 3 millisecond
  • Voltage mode 50–200 V
  • Power mode adjustable 0–10
  • Automatic gun, integrated earths
Technical Support

Everything we sell is supported by our factory trained engineers at our premesis in Manchester or nationwide through our mobile service engineers.

Delivery + Returns

Returns details can be edited in the theme editor.
Supply voltage

Supply

50 - 200 V

Warranty

Warranty

2 years

Service engineers

Service

In-house engineers

Technical support

Support

0161 223 1843

Expert Advice

Paul Jones

Paul Jones says

This is an aluminium dent puller station for welding studs to remove dents from aluminium body panels. In the workshop I use it to attach M4, M5 and M6 studs to doors, bonnets and other panels so the damage can be pulled without stripping the component. The unit uses capacitor discharge welding with a 66 mF capacitor and a fast 3 millisecond weld; microprocessor control gives a choice of voltage mode (50–200 V) or power mode (0–10). The automatic gun has integrated earth terminals and fires when the tip seats; spring-loaded brass studs and an adjustable spring force help maintain contact, and a chuck for Ø 4 mm studs plus an aluminium accessory box are supplied. A common issue is poor contact from contamination or incorrect spring setting, which produces weak joins. In my experience, correct setup and surface preparation are essential to consistent welds and predictable pulling results.

Paul Jones, Technical Director

Bodyshop Equipment Engineers

WHY BUY YOUR EQUIPMENT FROM US?

Our team of welding experts at BWS is ready to assist you every step of the way. Whether you have questions about specific products, need guidance on selecting the right equipment, or seek welding-related advice, our knowledgeable staff is here to help.

We also have some of the most experienced engineers in the industry who are able to offer full technical support on top of what the manufacturers offer.

Find Our More

Technical Features

  • Microprocessor control for welding parameters
  • Two selectable modes: Voltage adjustable from 50 V to 200 V, or Power adjustable from 0 to 10
  • Capacitor discharge welding using a 66 mF capacitor
  • Fast welding cycle: 3 millisecond weld time

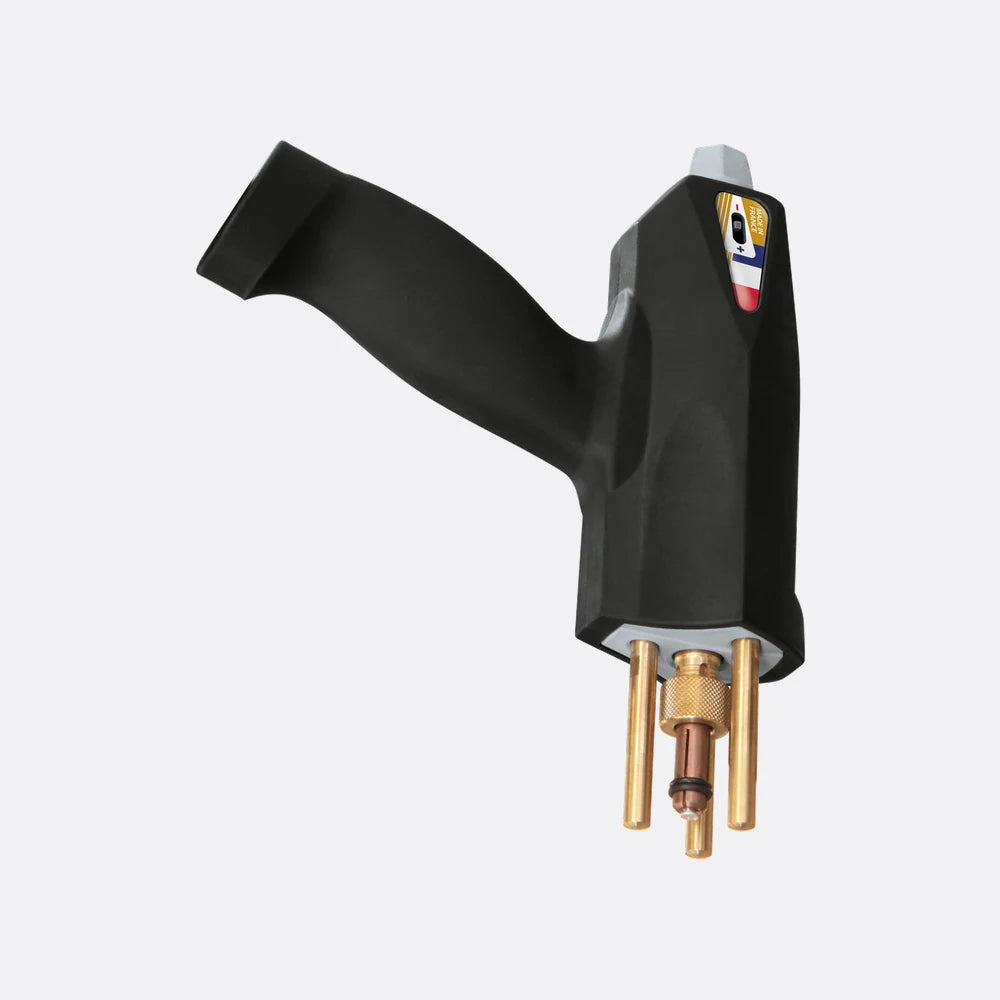

  • Automatic gun with no trigger; welding is triggered automatically when the tip slides into the gun
  • Gun integrates earth terminals; supplied with three earth terminals
  • Manual spring force adjustment on the gun for contact control
  • Supplied chuck for Ø 4 mm studs included with the kit

Specification

Manufacturer
GYS
Model
GYSPOT ALU 66
Reference
080188
Country of manufacture
China
Standards
IEC 62135-1
Product type
Spot welding machine
Welding method
Capacitor discharge
Capacitor
66 mF
Voltage range
50 V to 200 V
Power adjustment
0 to 10
Welding time
3 ms
Stud sizes
M4, M5, M6
Brass studs
3, spring-loaded
Gun type
Automatic (triggerless, tip-activated)
Gun earth terminals
3 (integrated to gun)
Spring force adjustment
Manual
Included accessories
Automatic gun with 3 earth terminals; Aluminium dent removal accessory box (ALU BOX STANDART M4 050020); Chuck for Ø 4 mm studs
Mains supply
185 V to 265 V, 1~
Frequency
50/60 Hz
Weight
14 kg
Dimensions
20.5 x 27 x 37 cm

FAQs

What is the Gyspot Alu 66 intended for?
The Gyspot Alu 66 is dedicated to straightening aluminium body components. It welds studs to remove dents and impacts on panels such as doors and bonnets without stripping. It performs capacitor discharge welding of M4, M5 and M6 studs.
What is the power and voltage specification?
The unit uses a voltage setting adjustable from 50 V to 200 V and is microprocessor controlled. The capacitor discharge system has a 66 mF capacitor and produces fast welding pulses of around 3 milliseconds.
What is included with the kit and which studs does it use?
Included items listed are an automatic gun with three earth terminals, an aluminium dent removal accessory box (ALU BOX STANDARD M4 050020) and a chuck for Ø4 mm studs. The station is designed to work with M4, M5 and M6 studs; it also uses three brass studs for improved contact and stability.
How does the welding gun operate and how is contact made?
The gun is automatic and has no trigger; welding is triggered automatically when the tip slides into the gun. Earth terminals are integrated into the gun and the spring-loaded brass studs provide contact that adapts to different surfaces. Spring force is manually adjustable to suit the job.
