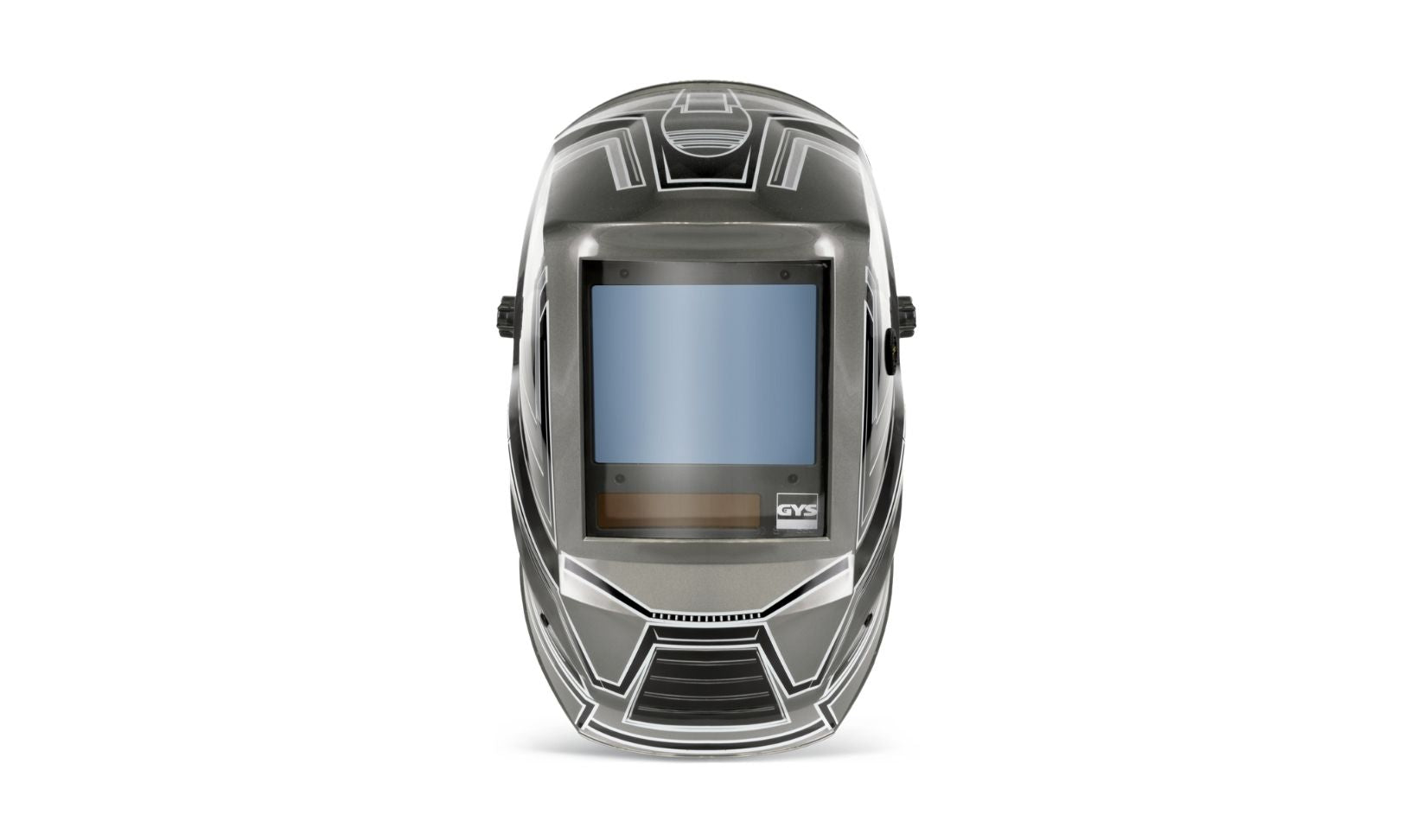

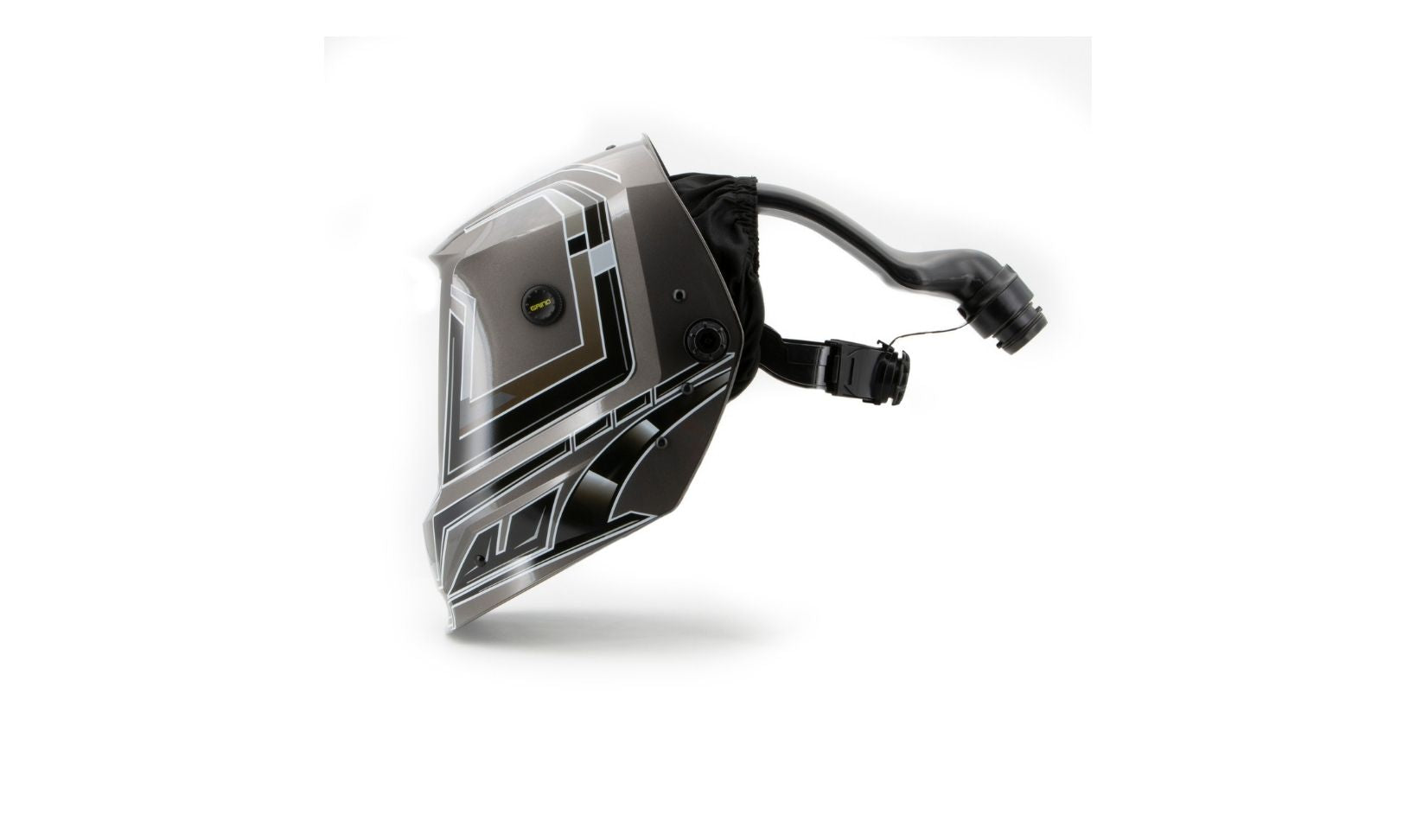

GySmatic 5-13 G Air-fed Helmet True Color XXL

The Gysmatic 5-13 G Air-fed Helmet True Color XL is compatible with a broad range of arc welding and cutting processes. Its shade range of 5 to 13 covers MIG (GMAW), TIG (GTAW), MMA (stick) welding, and plasma cutting applications. The wide shade variability means it can be used for delicate, low-amperage TIG work as well as high-current MIG and MMA operations, making it a highly versatile choice for professional fabrication shops, shipyards, and structural steel environments where multiple processes may be in use throughout a single working day.

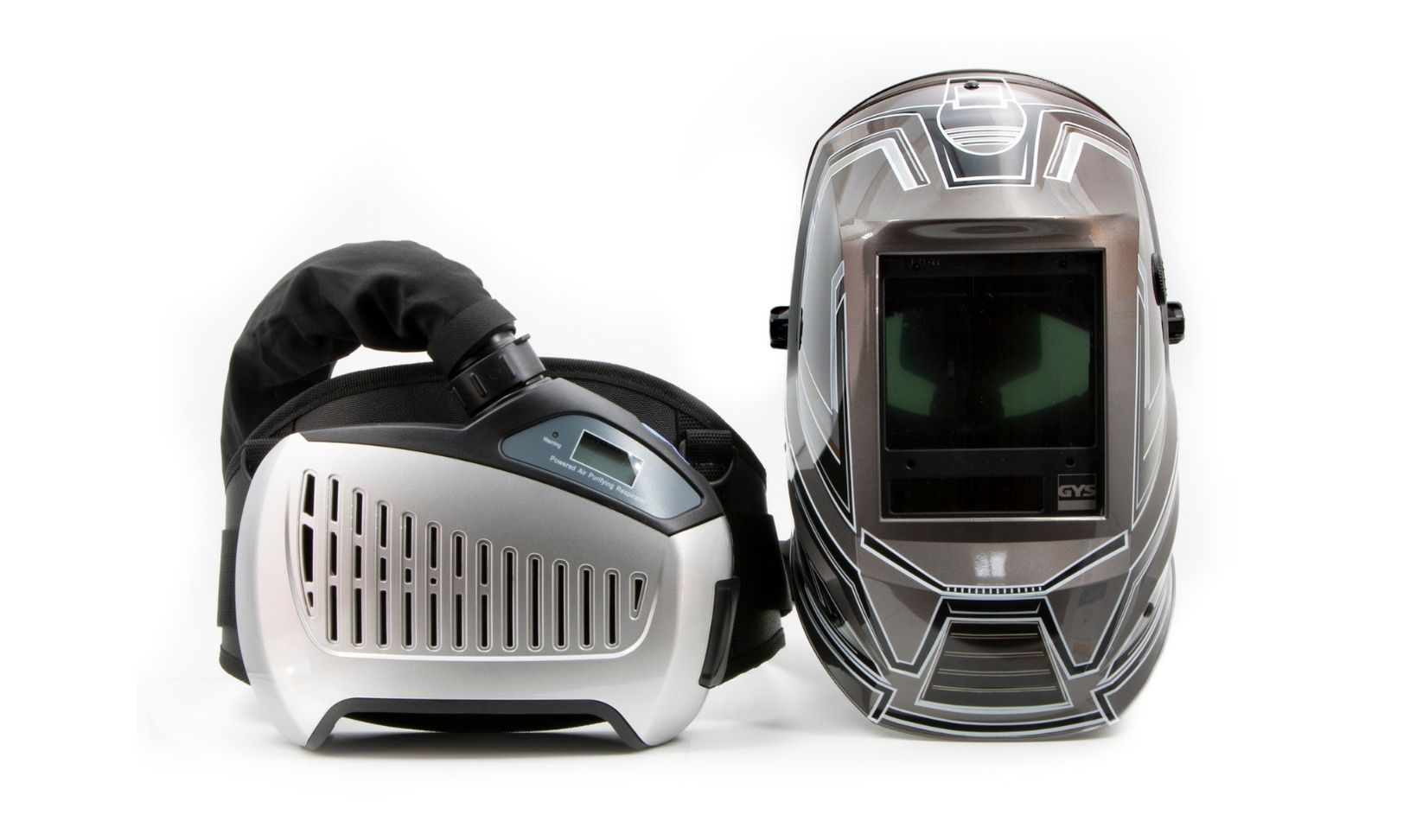

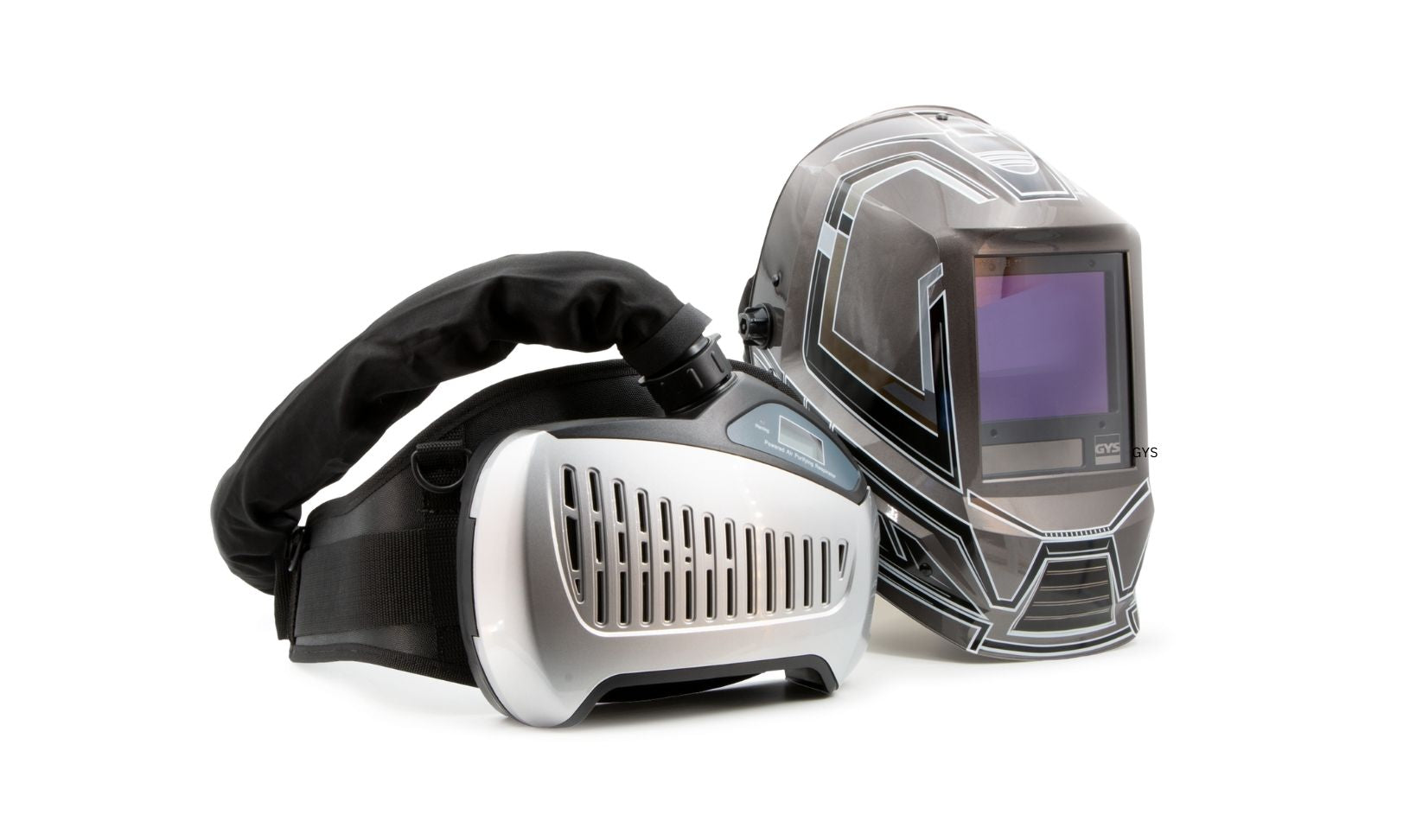

The integrated air-fed system in the Gysmatic 5-13 G helmet uses a powered blower unit to draw ambient air through a replaceable particle filter before delivering it continuously into the interior of the helmet shell. This positive-pressure airflow prevents contaminated air from migrating in around the helmet seal, protecting the welder from welding fumes, metal oxide particulates, and other airborne hazards generated during the welding process. The adjustable flow rate of 160–200 litres per minute ensures a consistent supply of filtered air throughout the working shift. It is important to note that this system is designed for use with appropriate filter cartridges matched to the specific hazards present in your working environment, and users should always consult the relevant safety data sheets and local regulations when selecting filtration media.

Traditional auto-darkening welding filters often produce a green or yellow tint when in their darkened state, which can make it difficult to accurately distinguish colours, read the weld pool, and assess penetration in real time. True Color technology uses advanced multi-layer optical coatings within the auto-darkening filter to deliver a significantly more neutral, natural colour rendition in both the light and dark states. For the welder, this translates to a clearer, more detailed view of the weld zone, reduced eye strain during prolonged use, and improved ability to identify weld defects, slag inclusions, and bead profile issues as they develop. The result is greater accuracy, higher weld quality, and a more comfortable working experience across a full shift.

Yes, the Gysmatic 5-13 G Air-fed Helmet is well-suited to confined space welding applications, and its air-fed system is a key advantage in these environments. Confined spaces present a heightened risk of fume and gas accumulation, and the positive-pressure air supply actively works to displace contaminated air within the helmet, providing a degree of respiratory protection beyond that offered by passive or standard auto-darkening helmets. The helmet's four arc sensors are designed to detect the welding arc reliably even when sensor-to-arc sightlines are partially obstructed, which is a common challenge in confined or restricted-access locations. However, users should always conduct a full risk assessment prior to working in confined spaces and ensure that the air supply filtration is appropriate for the specific atmospheric hazards present in that environment, in line with local health and safety regulations.
